Manufacturer
Blomberg
Model Number
7294647510
Description
30 Inch Built-in Bottom Freezer Refrigerator Bbbf3
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

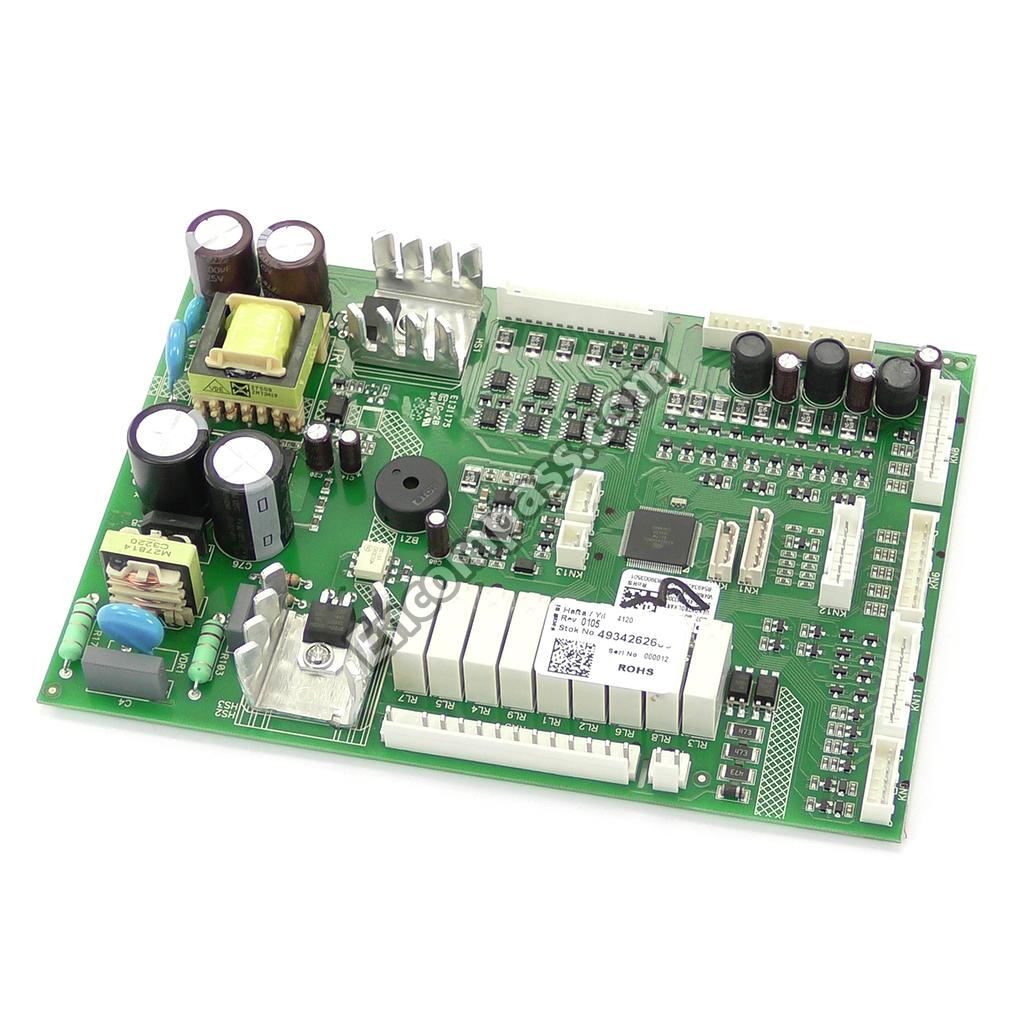

1_U4_CONTROL_BOARD_GR 30INC BB B1 D1 UL |
|
|
3D_ADJUSTMENT_BOTTOM_COVER |
|
|
6MM SHELF GLASS |
|
|
90_DEGREE_PIN |
|
|
AIR_COVER_SHEET_ASSY |
|
|
ALUMINIUM GLASS SHELF PROFILE 6MM |
|
|
ANTI TIP BRACKET GROUP |
|
|
ATLANTIC FF BOTTOM EVA COVER GROUP |
|
|
ATLANTIC_BLUE_LIGHT_VEGETABLE_BODY_GR |
|
|
ATLANTIC_CARD_COVER_ASSY. |
|
|
ATLANTIC_DC_FAN_ASSEMBLY |
|
|
ATLANTIC_EKSTR_ZERO_VEGETABLE_COVER |
|
|
ATLANTIC_EKST_VEGETABLE_COVER |
|
|
ATLANTIC_EVERFRESH_TOP_COVER |
|
|
ATLANTIC_FF_INTEGRATED_DOOR_ASSY |
|
|
ATLANTIC_FF_LONG_DRAWER_RAIL_GR_LEFT |
|
|
ATLANTIC_FF_LONG_DRAWER_RAIL_GR_RIGHT |
|
|
ATLANTIC_FF_SHORT_DRAWER_RAIL_GR_LEFT |
|
|
ATLANTIC_FF_SHORT_DRAWER_RAIL_RIGHT |
|
|
ATLANTIC_FF_SHORT_RAIL_SUPPORT |
|
|
ATLANTIC_FF_SHORT_RAIL_SUPPORT |
|
|
ATLANTIC_FF_TALL_RAIL_SUPPORT |
|
|
ATLANTIC_FF_TALL_RAIL_SUPPORT |
|
|
ATLANTIC_FRZ_INTEGRATED_DOOR_ASSY |
|
|
ATLANTIC_FRZ_RAILS_GR |
|
|
ATLANTIC_FRZ_RAILS_GR |
|
|
ATLANTIC_FRZ_RAILS_GR |
|
|
ATLANTIC_FRZ_RAILS_GR |
|
|
ATLANTIC_HINGE_BRACKET |
|
|
ATLANTIC_MAGNET_FF_TOP_COVER_GROUP |
|
|
ATLANTIC_MONTAGE_BOX |
|
|
ATLANTIC_PLASTIC_BAG_CLAMP_GR |
|
|
ATLANTIC_RAIL_HOLDER_LEFT |
|
|
ATLANTIC_RAIL_HOLDER_RIGHT |
|
|
ATLANTIC_SERVICE_COVER |
|
|
ATLANTIC_VEGETABLE_GR_ARC |
|
|
ATLANTIC_WATER_FILTER_PUSH_IN_PUSH_OUT |
|
|
ATLANTIC_ZEROSTAR_CRISPER |
|
|
ATLANTIC_ZEROSTAR_MOTOR_GR |
|
|
ATLANTIC_ZEROSTAR_VEGETABLE_GR_BEKO |
|
|
AXIAL BLADE CCW_145MM (ROHS) |
|
|
BACK_COVER_SHEET |
|
|
BEKO LOGO |
|
|
BITOM FOR EVAPARATOR TUBES |
|
|
BLACK_VENT_KIT |
|
|
BOLT |
|
|
BRACKET |
|
|
BRACKET COVER |
|
|
BUTTON |
|
|
BY_PASS ASSY_4K_SBS |
|
|
CABLE ASSY |
|
|
CAPASITOR ASSEMBLY |
|
|
CHIPBOARD_SCREW |
|
|
CLIP MUFF PUSH |
|
|
CLIP MUFF PUSH |
|
|
CO-EXTRUSION UPPER DECORATIVE BRACKET |
|
|
COMP TERM ASSY K76540 |
|
|

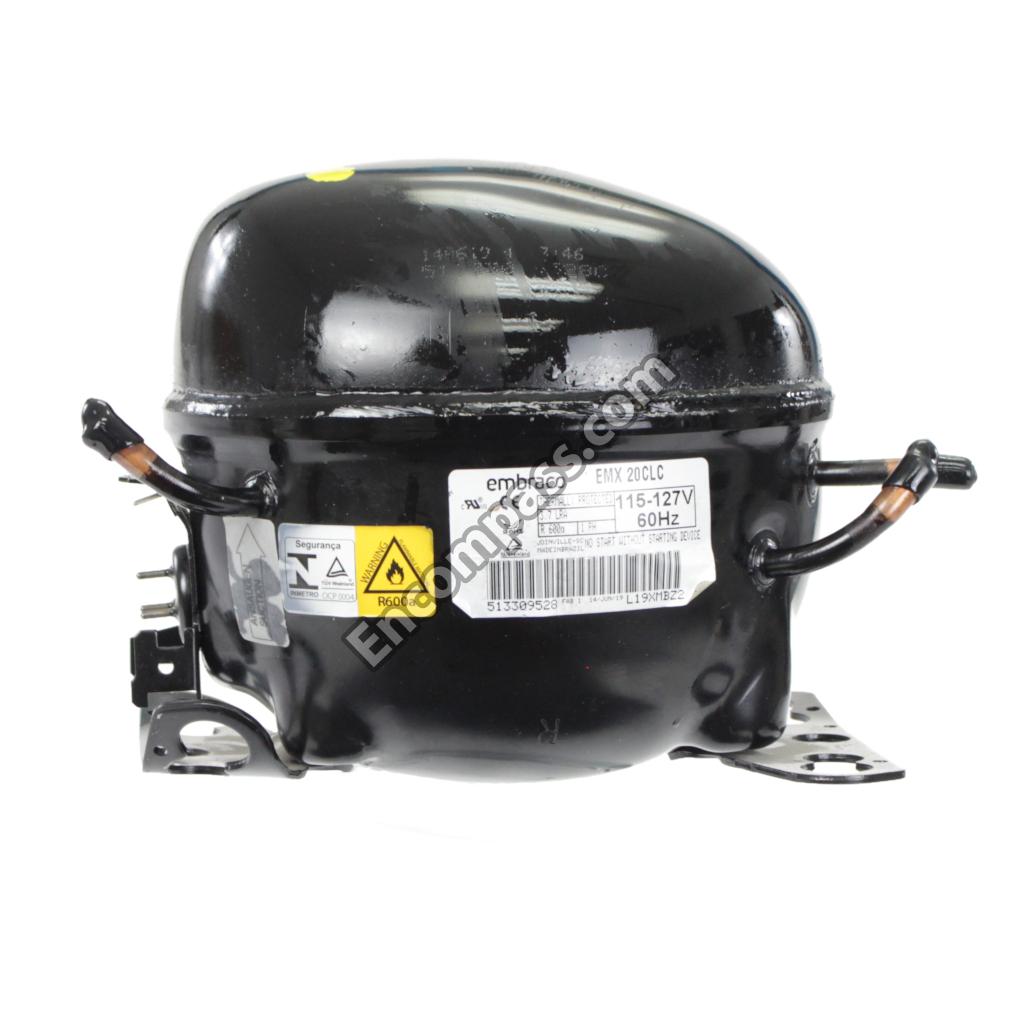

COMPRESSOR EMX20CLC |
|
|
COMPRESSOR TERMNAL ASSY._115V) |
|
|
COUNTERSUNK HEAD SCREW (PT-4X9_5) |
|
|
CROMOL |
|
|

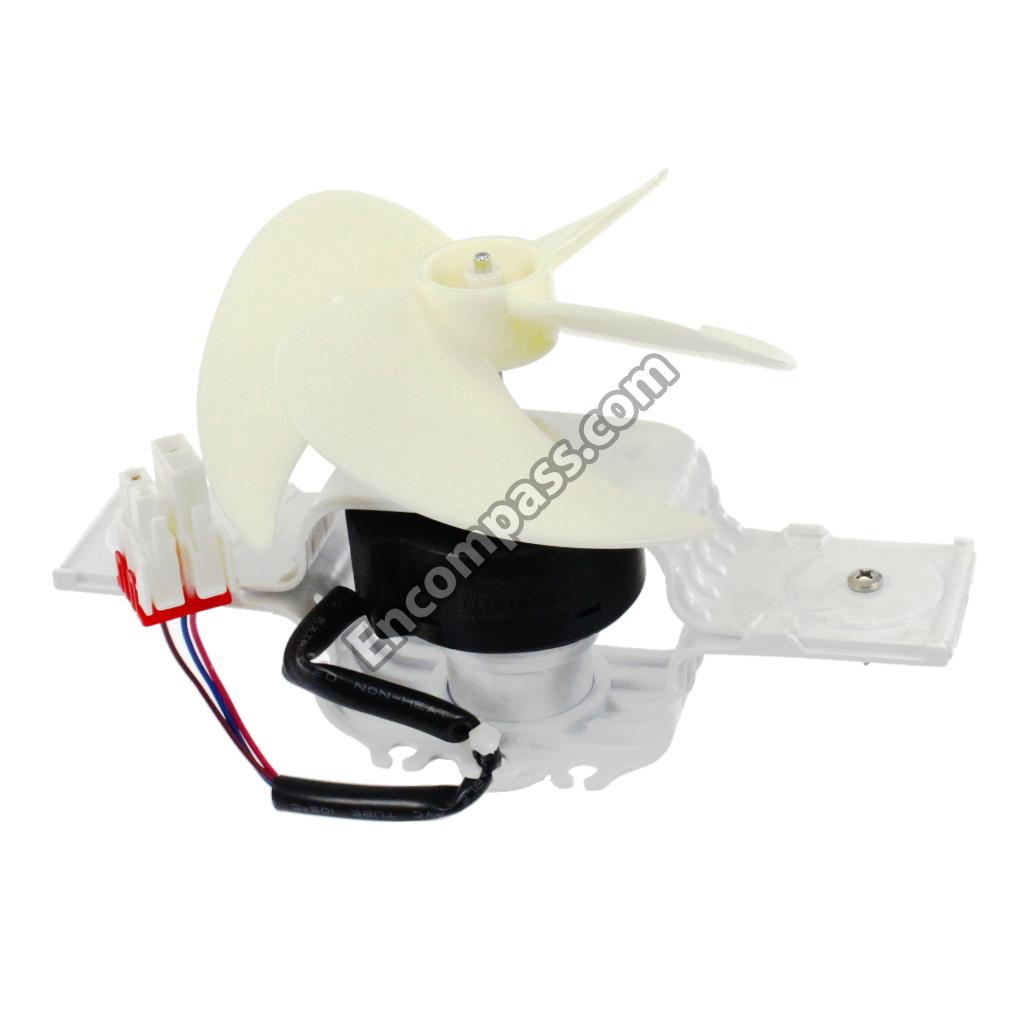

DC FAN MOTOR ASSY |
|
|
DC SQUARE FAN EF70151 SUNON 70X70X15 |
|
|
DC_FAN_MOTOR |
|
|
DC_FAN_MOTOR |
|
|
DISPENSER LED BOARD 12V DC |
|
|
DISPLAY GROUP ASSEMBLY |
|
|
DOOR SHELVES |
|
|
DOOR SHELVES |
|
|
DOOR THICKNESS CONTROL PART GROUP |
|
|
DOOR TRAVERS_GR |
|
|
DOOR TRAVERS_GR |
|
|
DOOR_HANDLE_ASSEMBLY_BEKO_FF |
|
|
DOOR_HANDLE_ASSEMBLY_BEKO_FRZ |
|
|
DRAWER FIX PART |
|
|
DRAWER FIX PART |
|
|
EAPORATOR FRONT COVER ASS |
|
|
EVAPORATING_DISH_ASSEMBLY |
|
|
EVAPORATOR_FINNED_ASSEMBLY_UL |
|
|
FAN BLADE |
|
|
FAN PROTACTOR |
|
|
FE_HEATED_DOUBLE_WATER_PIPE_GR |
|
|
FF EVAPARATOR COVER |
|
|
FF EVAPORATOR HEATER_K76540 |
|
|
FF_1D_MECHANISM_GR_LEFT |
|
|
FF_1D_MECHANISM_GR_RIGHT |
|
|
FF_2D_MECHANISM_GR |
|
|
FF_3D_MECHANISM_GR |
|
|
FF_3D_MECHANISM_GR_BOTTOM |
|
|
FF_3D_MECHANISM_GR_TOP |
|
|
FF_DOOR_GROUP |
|
|

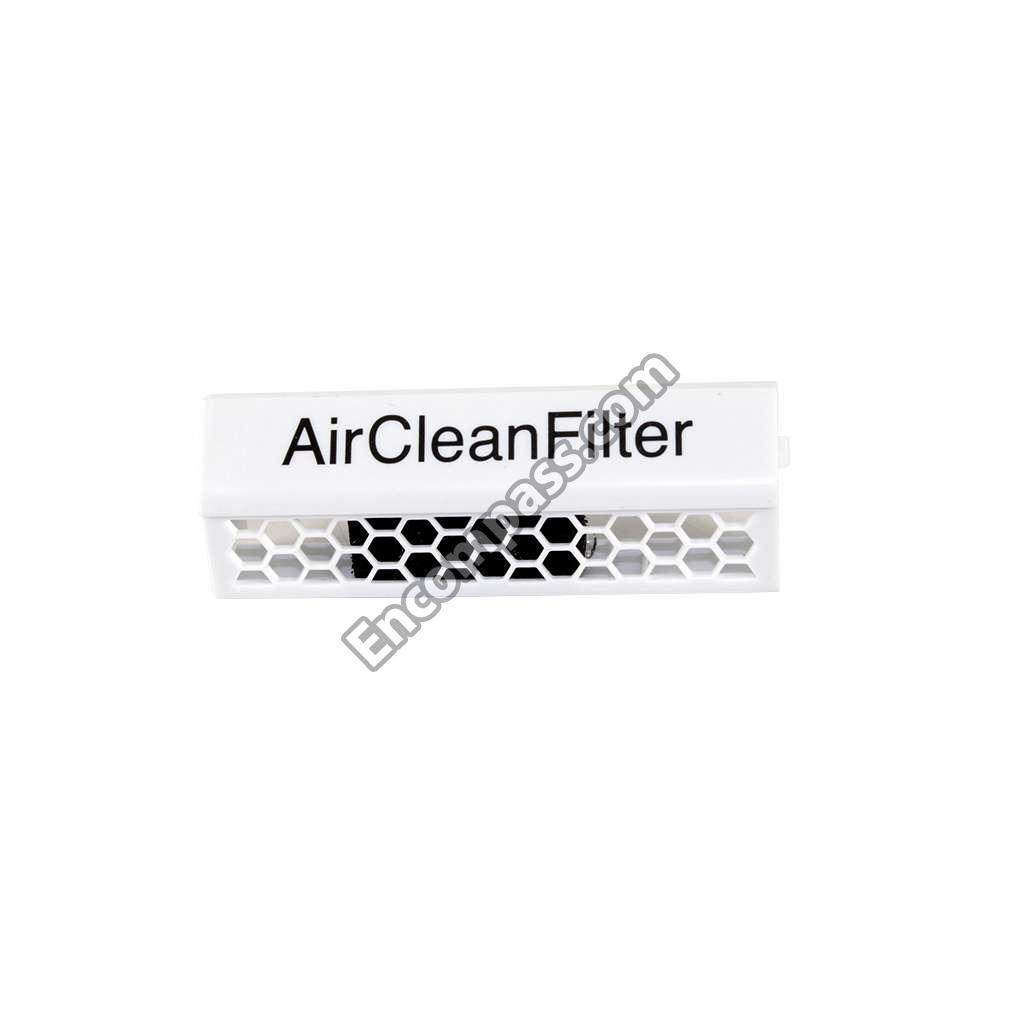

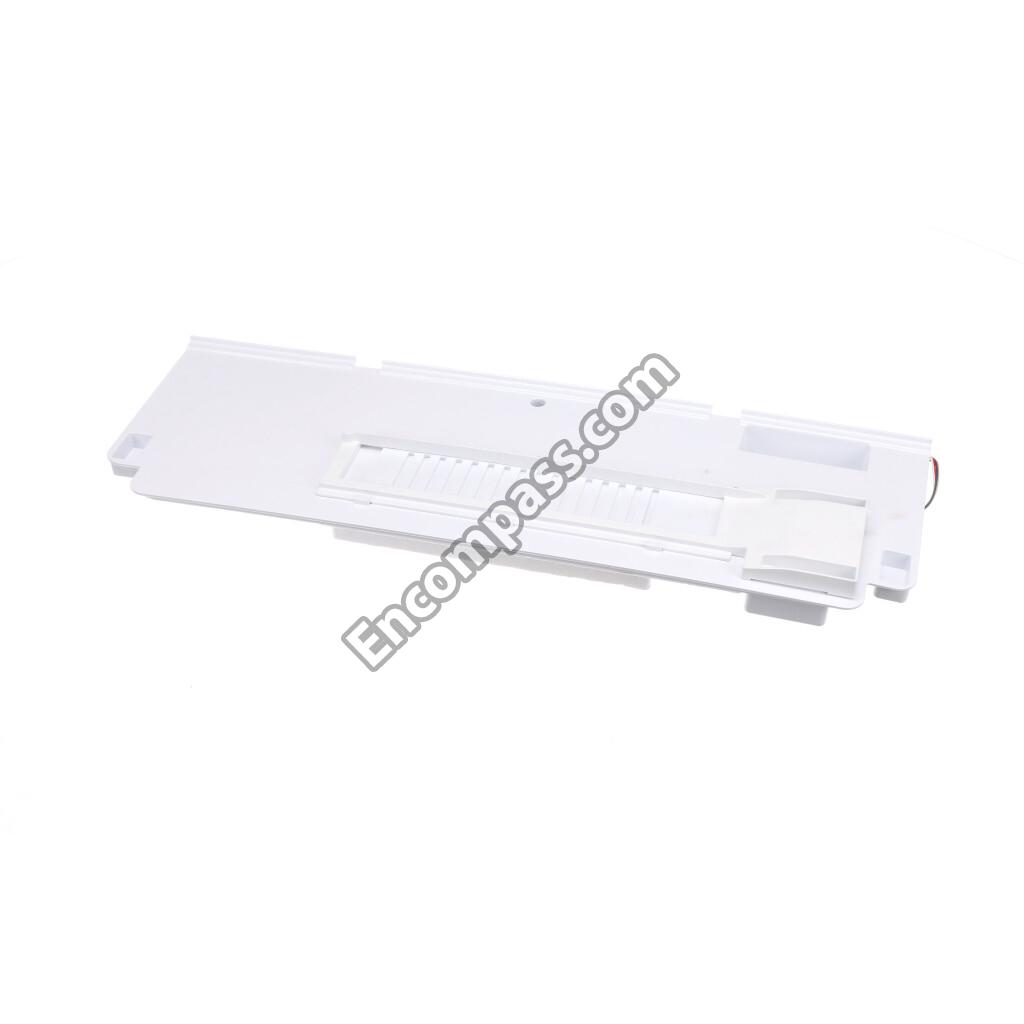

FF_FILTER_COVER_GR_PHOTOCATALYST_35MM |
|
|
FF_SLED_HOLDER_GR_BOTTOM |
|
|
FF_SLED_HOLDER_GR_TOP |
|
|
FILTER HEAD _SBS_4K |
|
|
FIXING_BRACKET |
|
|
FREEAER_LIGHT_COVER |
|
|
FREEZER DOOR GASKET ASSEMBLY |
|
|
FRESHFOOOD DOOR GASKET ASSEMBLY |
|
|
FROM_DOOR_GASKET |
|
|
FRONT WHELL ASSY |
|
|
FRONT_COVER_BOTTON_SHEET_ASSY |
|
|
FRONT_COVER_CONNECTION_PART |
|
|
FRZ EVAPORATOR HEATER_K76540 |
|
|
FRZ_2D_MECHANISM_GR |
|
|
FRZ_3D_MECHANISM_GR |
|
|
FRZ_3D_MECHANISM_GR |
|
|
FRZ_DOOR_TOP_COVER |
|
|
FRZ_LIGHTING_GROUP |
|
|
FRZ_SLED_HOLDER_GR |
|
|

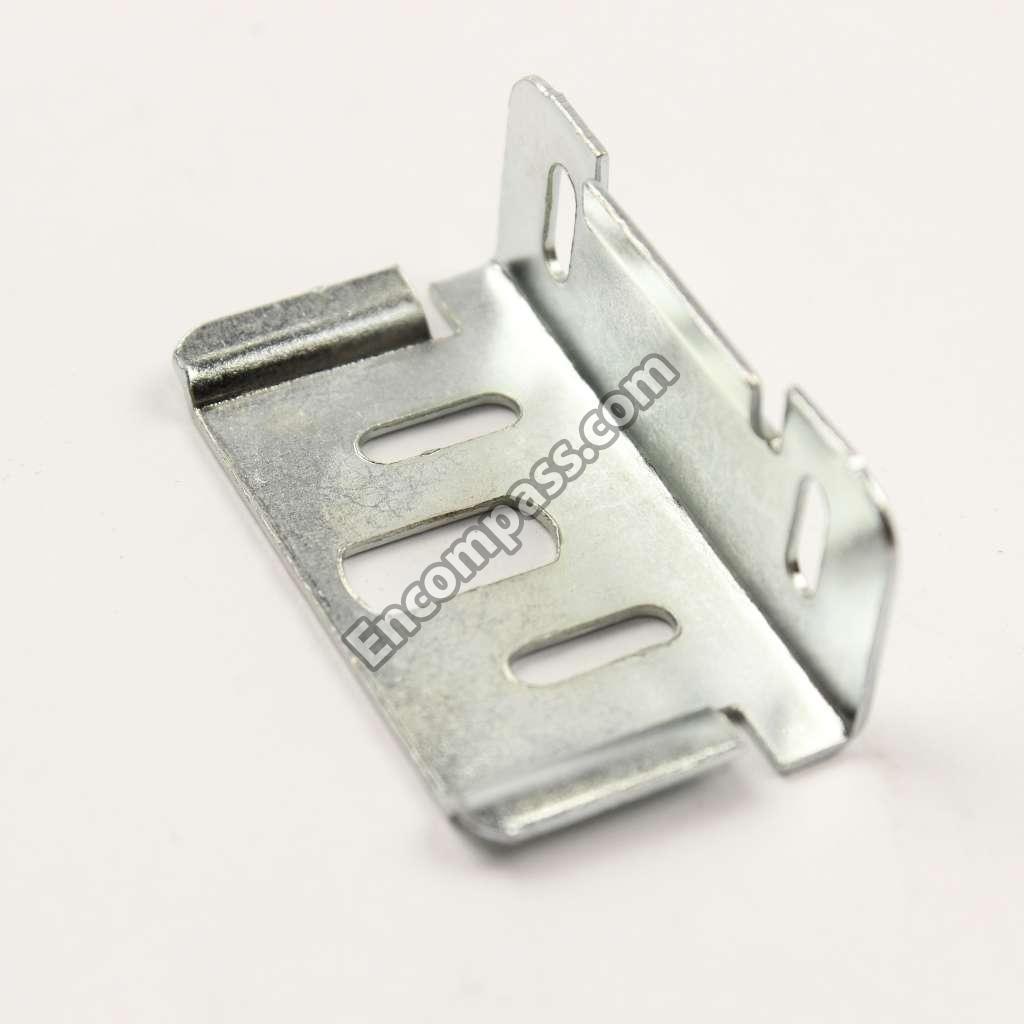

FURNITURE_MOUNTING_BRACKET |
|
|
GLASS SHELF BACK PROFILE |
|
|
GROUND CABLE ASSEMBLY |
|
|
GROUND CABLE ASSEMBLY |
|
|
HANDLE SCREW COVER |
|
|
HANGER_GROUP |
|
|
HEATER HOLDER SPRING(BACK) |
|
|
HEATER SPRING (FRONT) |
|
|
HEATER_SPRING |
|
|
HINGE_GROUP |
|
|
HINGE_GROUP |
|
|
HINGE_INTERNAL_SCREW_COVER |
|
|
HINGE_SLOT_COVER |
|
|
HOLDER_PART |
|
|
ICE CUP |
|
|

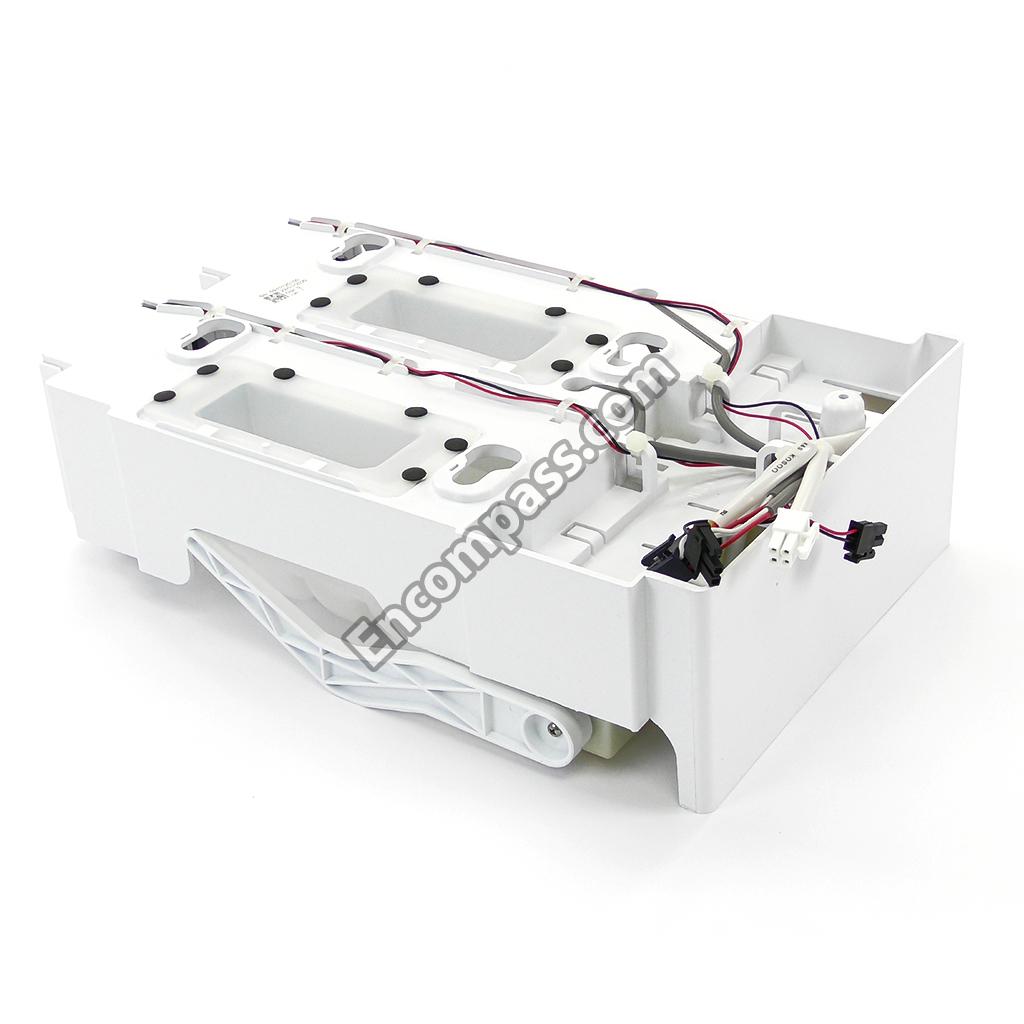

ICEMAKER MACHINE GROUP |
|
|
ICE_SHOVEL |
|
|
ILLUMINATION_COVER_LONG |
|
|
IONIZER BOX ASSY_160MM_120V_60HZ |
|
|
LED BAR |
|
|
LED STRIP 12V DC WHITE-BLUE LEDS |
|
|
LED_CARD |
|
|
LED_CARD |
|
|
LED_CARD 12V_9LED |
|
|
LED_CARD_12V_9LED_ICM |
|
|
LEFT AND RIGHT DECORATIVE BRACKET |
|
|
LIGHTING GROUP |
|
|
LIGHTING_GROUP_LONG |
|
|
LIGHTING_GROUP_LONG |
|
|
LINKING_KIT_ISOLATION_SPONGE |
|
|
M4 WASHER |
|
|
M6 COMPRESSOR SCREW |
|
|
MAINBOARD_HOUSING |
|
|
MICROSWITCH (ZING_EAR_G9110-250D02D1) |
|
|
MIDDLE SUPPORT ASSEMBLY |
|
|
MNL1_GLASS_SHELF_GRB_STAMPED_LONG_P01 |
|
|
MNL1_GLASS_SHELF_GRB_STAMPED_SHORT_P01 |
|
|
MOTOR HOUSE SUPPORT |
|
|
MOUNTING_BRACKET |
|
|
PIPE HOSE |
|
|
PLASTIC CLAMP 100 MM |
|
|
PLASTIC HEAD BOLT |
|
|
PU_FRZ_DOOR_GR |
|
|
QOICK FIT CON_ 1_4_ 5_16 J.G PI201008S |
|
|
Q_ FIT C _(6.35) SIN_ INPUT DOUBLE OUTPU |
|
|
RAIL_HANDLE |
|
|
RAIL_HANDLE |
|
|

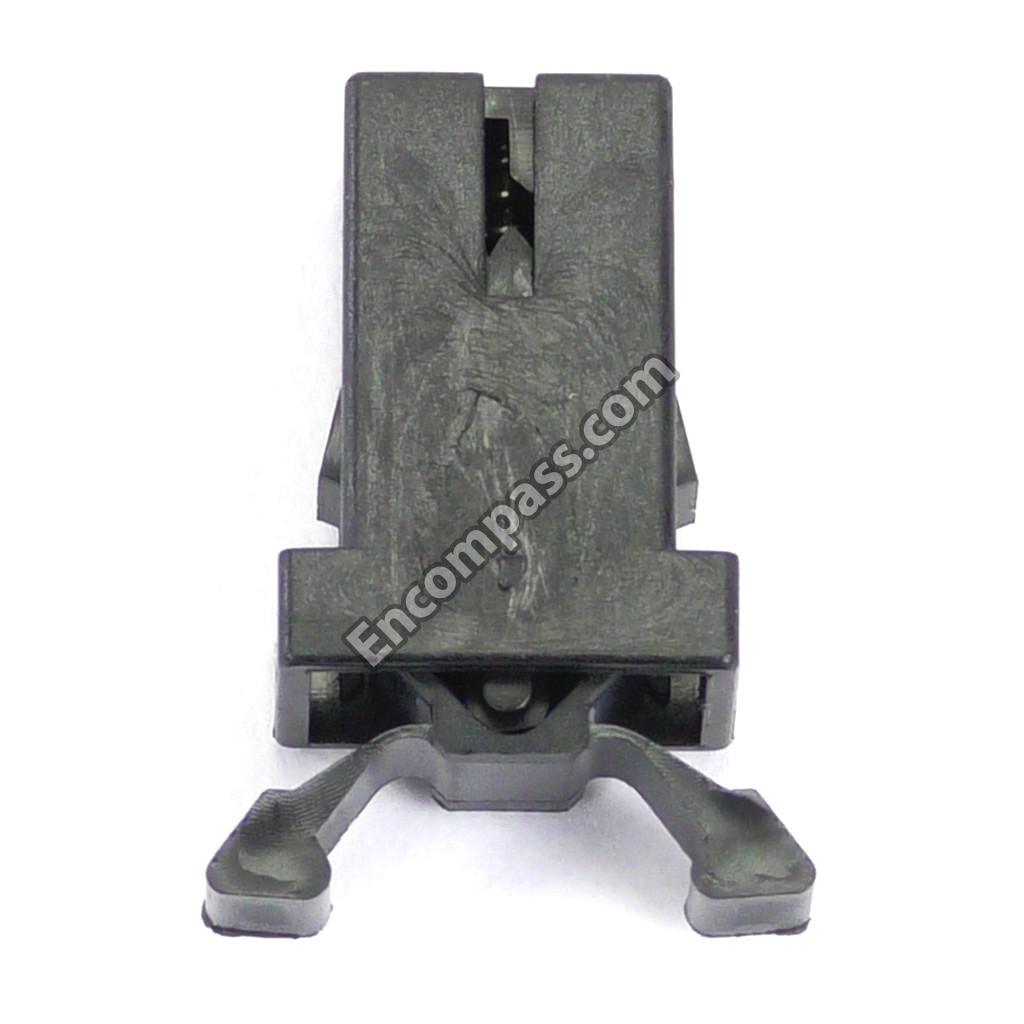

REED SWITCH ASSY |
|
|
REED_SWITCH_COVER |
|
|
REFRIGERATOR FAN MOTOR |
|
|
REFRIGERATOR FAN MOTOR |
|
|
RUBBER GROMMET. |
|
|
SBS PIPE CLAMP |
|
|
SCREW. |
|
|
SENSOR_COVER |
|
|
SENSOR_COVER_ASSEMBLY |
|
|
SERRATED SCREW (M5X20) |
|
|
SET_FOOT_ASSEMBLY |
|
|
SET_FOOT_ASSEMBLY |
|
|
SHEET METAL DRAWER |
|
|
SHEET METAL DRAWER |
|
|
SHELF_CARRIER |
|
|
SHELF_CARRIER |
|
|
SIX LOBE SCREW M5X22 |
|
|
SLIDE |
|
|
SUPPLY CORD_UL_K76540 |
|
|
SUPPORTER_PULL |
|
|
TARCK_GROUP |
|
|
TARCK_GROUP |
|
|
THERMAL INSURANCE |
|
|
TOP_FRONT_PLASTIC |
|
|
TORX_CONK_SCREW |
|
|
TORX_CONK_SCREW |
|
|
TORX_CONK_SCREW |
|
|
TRACK GROUP |
|
|
TRACK GROUP |
|
|
TRACK_GROUP |
|
|
TRACK_GROUP |
|
|
TRACK_GROUP |
|
|
TRACK_GROUP |
|
|
TRUNK CLAMP |
|
|
TWIN CABINET COUPLING PIECE WITH SCREW |
|
|
TWIN_CUPBOARD_GASKET |
|
|
U4_CONTROL_BOARD_GR 30INC BB B1 D1 UL |
|
|
UPPER MOUNTING BRACKET |
|
|

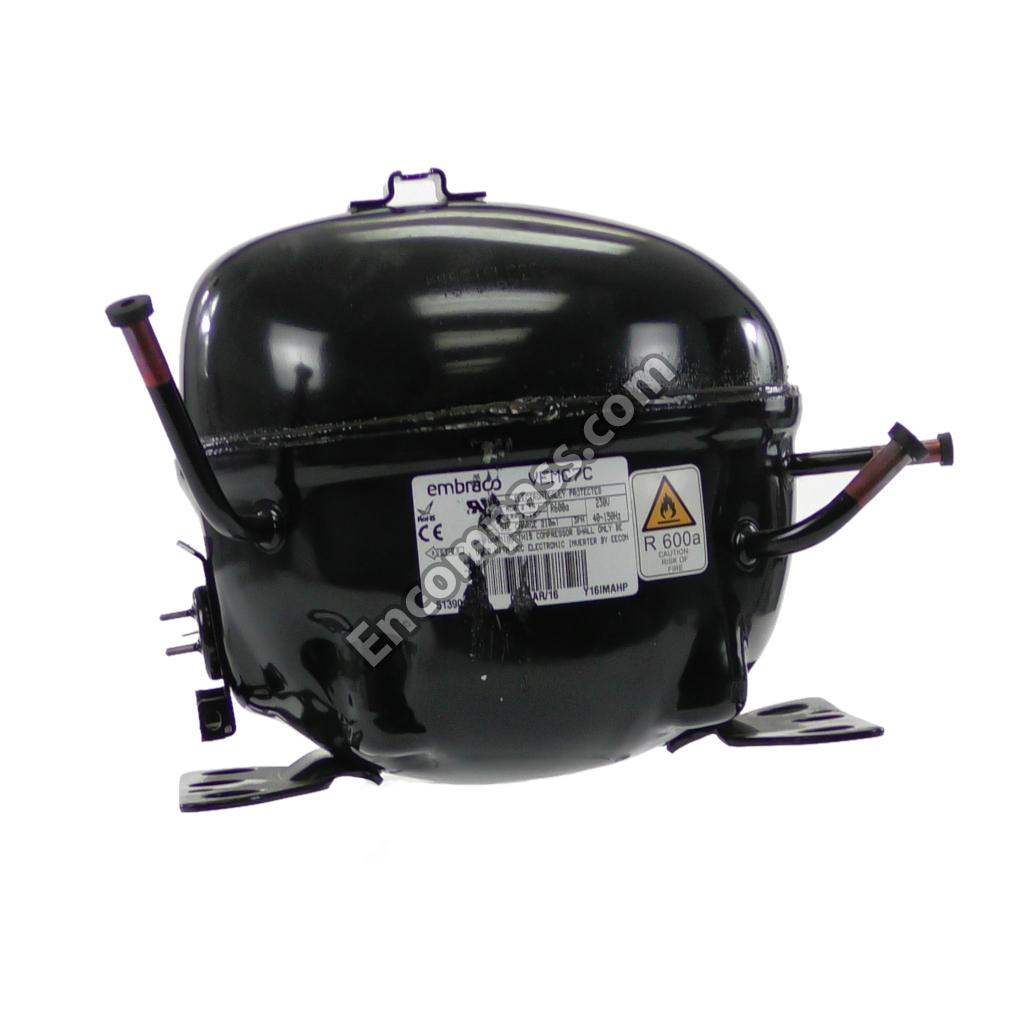

VCC COMPRESSOR (EMBRACO_VEMC7C)_115V |
|
|
VCC INVERTER VEMC7C_115V_60HZ_FR |
|
|
WASHER |
|
|
WASHER |
|
|
WATER |
|
|
WATER DISPENSER GROUP |
|
|
WATER FILTER |
|
|

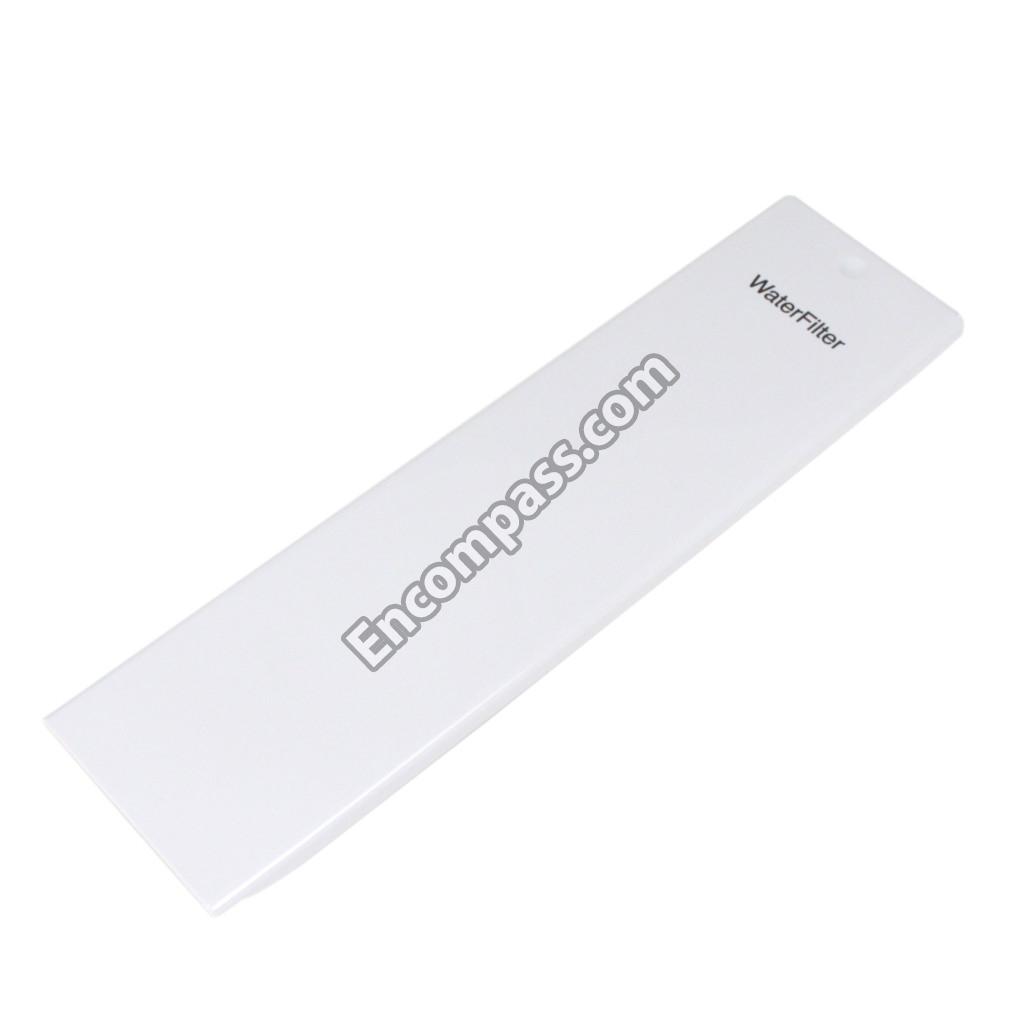

WATER FILTER COVER ASSY. |
|
|
WATER FILTER HOLDER |
|
|
WATER HOSE |
|
|
WATER VALF SPRING ASSY._7.2_150MM |
|
|
WATER VALF SPRING ASSY._9.2_150MM |
|
|

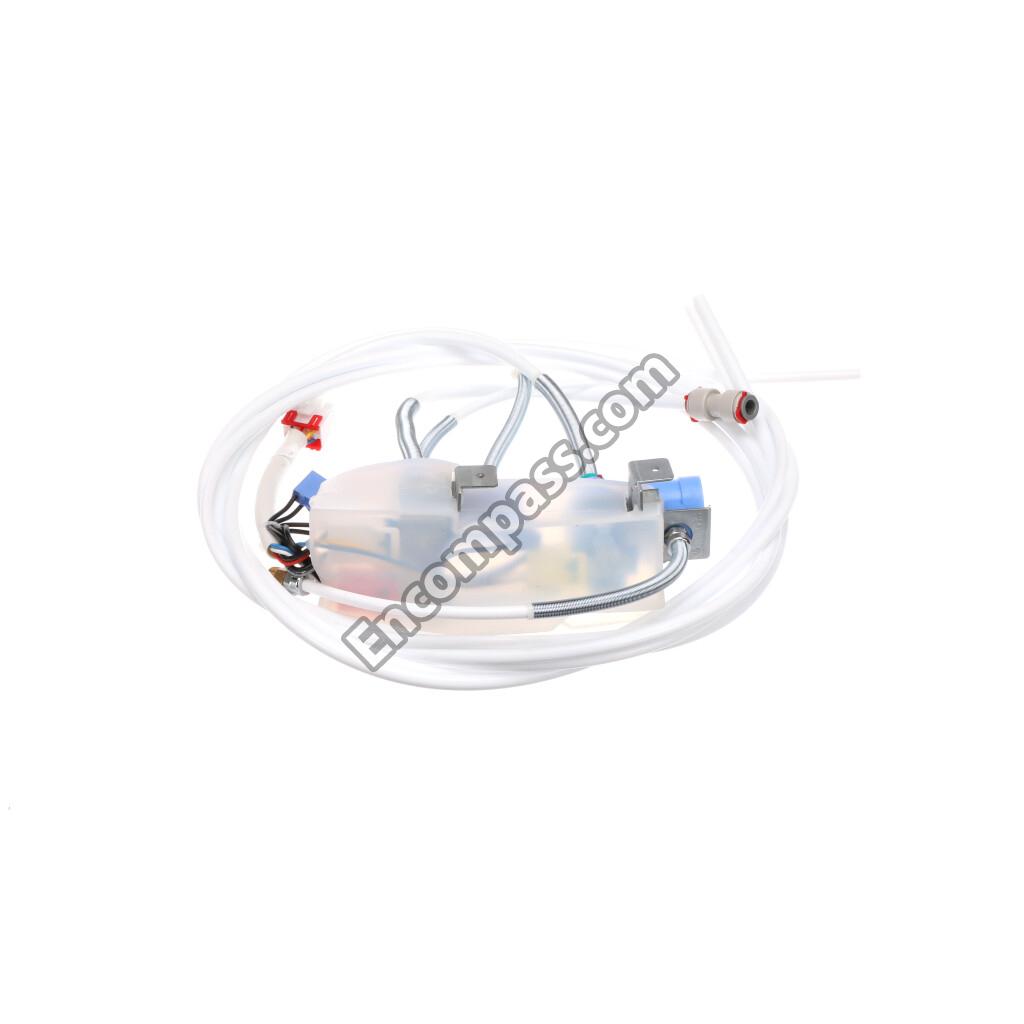

WATER VALVE ASSY. WITH HOSES |
|
|
WATER VALVE ASSY. WITH HOSES 110V W/O WA |
|
|
WATER_DRAIN_ASSY. |
|
|
WATER_DRAIN_ASSY. |
