Manufacturer
Blomberg
Model Number
7625559545
Description
Dds25840x Slim Size Stainless Dishwasher
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
45 CM USA OUTER COVER GROUP |
|
|
45CM PLATE HOLDER BACK 2-7016 |
|
|
45CM PLATE HOLDER-BACK 1-7016 |
|
|
ACCESSORIES GROUP |
|
|
ACCESSORIES GROUP 82-92 |
|
|
AIR FUNNEL CAP |
|
|
AIR FUNNEL GASKET |
|
|
AIR FUNNEL GASKET |
|
|
AMERICA BOBBIN TERFERENCE FILTER |
|
|
BEKO 2014 HANDLE GROUP-745 |
|
|
BEKO TOP BASKET HANDLE BACK PART-7016 |
|
|
BEKO TOP BASKET HANDLE FRONT PART-7016 |
|
|
BEKO TOP BASKET SHELF EU1 45CM-7016 |
|
|
BEKO14 CONNECTION HANDLE PART-LEFT-745 |
|
|
BEKO14 CONNECTION HANDLE PART-RIGHT-745 |
|
|
BODY COVER PART |
|
|
BOLT M4X6 |
|
|
BOLT M4X8 D3731 D3421 |
|
|
BOTTOM TRAY-45 CM |
|
|
CABLE HARNESS COMPLETE |
|
|
CIRCULATION PUMP DAMPENING RUBBER |
|
|

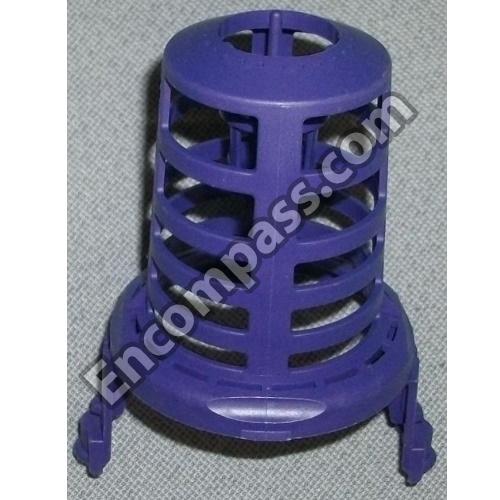

COARSE FILTER-PURPLE |
|
|
CORNER PADDING GR-FRONT |
|
|
COUNTER GROUP |
|
|
COUNTER PCB_4 |
|
|
COVER SPRING |
|
|
CUTLERY BASKET GROUP 45CM PURPLE HANDLE |
|
|
DELAY BUTTON - BLACK |
|
|
DETERGENT DISPENCER CAB HAR HOLD 7037 |
|
|
DETERGENT DISPENSER GASKET |
|
|

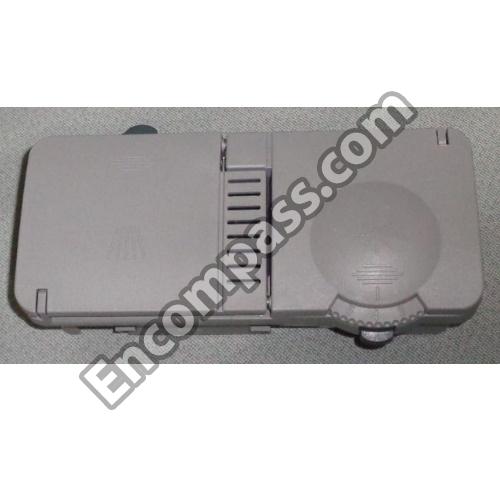

DETERGENT DISPENSER GROUP -RAL 7037 |
|
|
DOOR INSULATION |
|
|
DOOR LOCK COTTON FLEECE |
|
|
DOOR LOCK HOOK |
|
|
DOOR SEALING GASKET - BOTTOM |
|
|

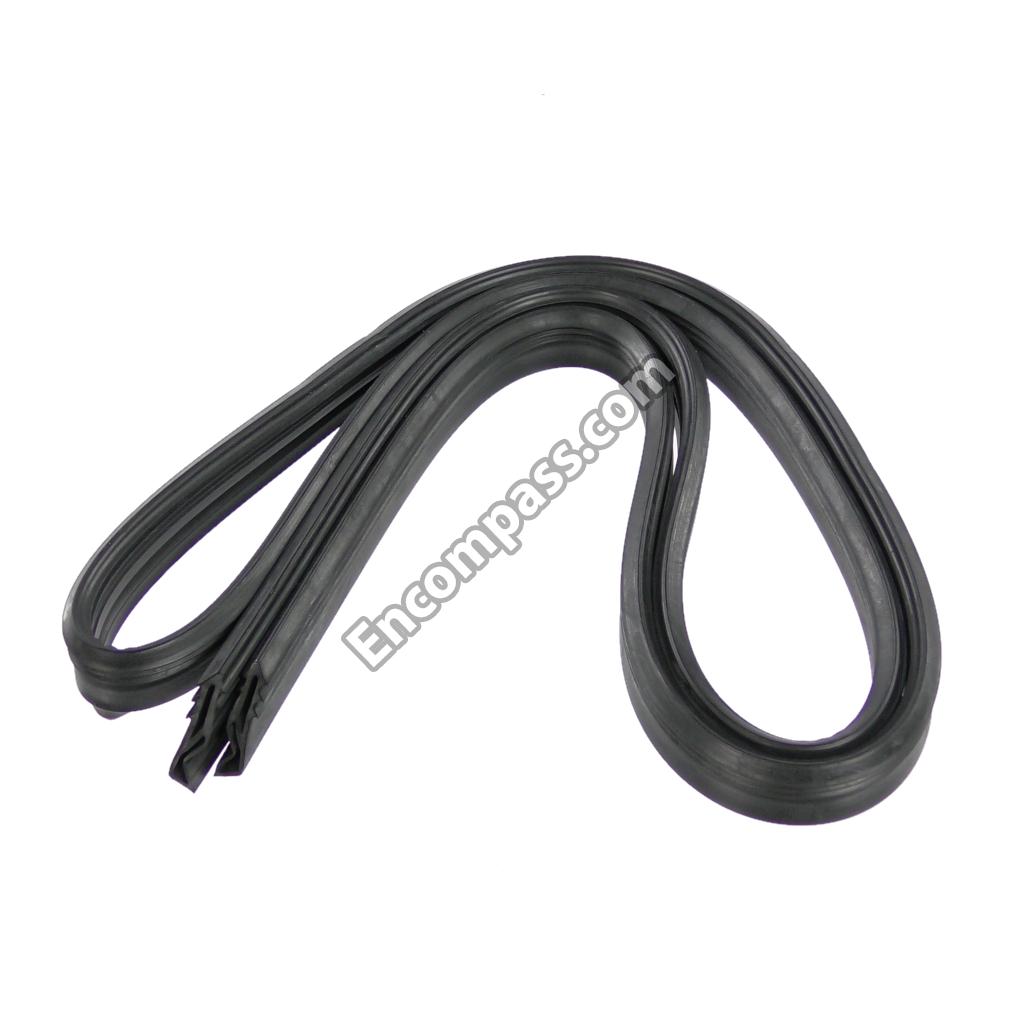

DOOR SEALING GASKET- L=1625 |
|
|
DRAIN HOSE ELBOW |
|
|
DRAIN HOSE HOLDER 7037 |
|
|
DRAIN HOSE-2250MM |
|
|
DRAIN PUMP GROUP-120V-60H-UL |
|
|
E5-E6 BOTTON HOLDER PART |
|
|
E5-E6 CARD HOLDER BACK PART |
|
|
E5-E6 CARD HOLDER FRONT PART |
|
|

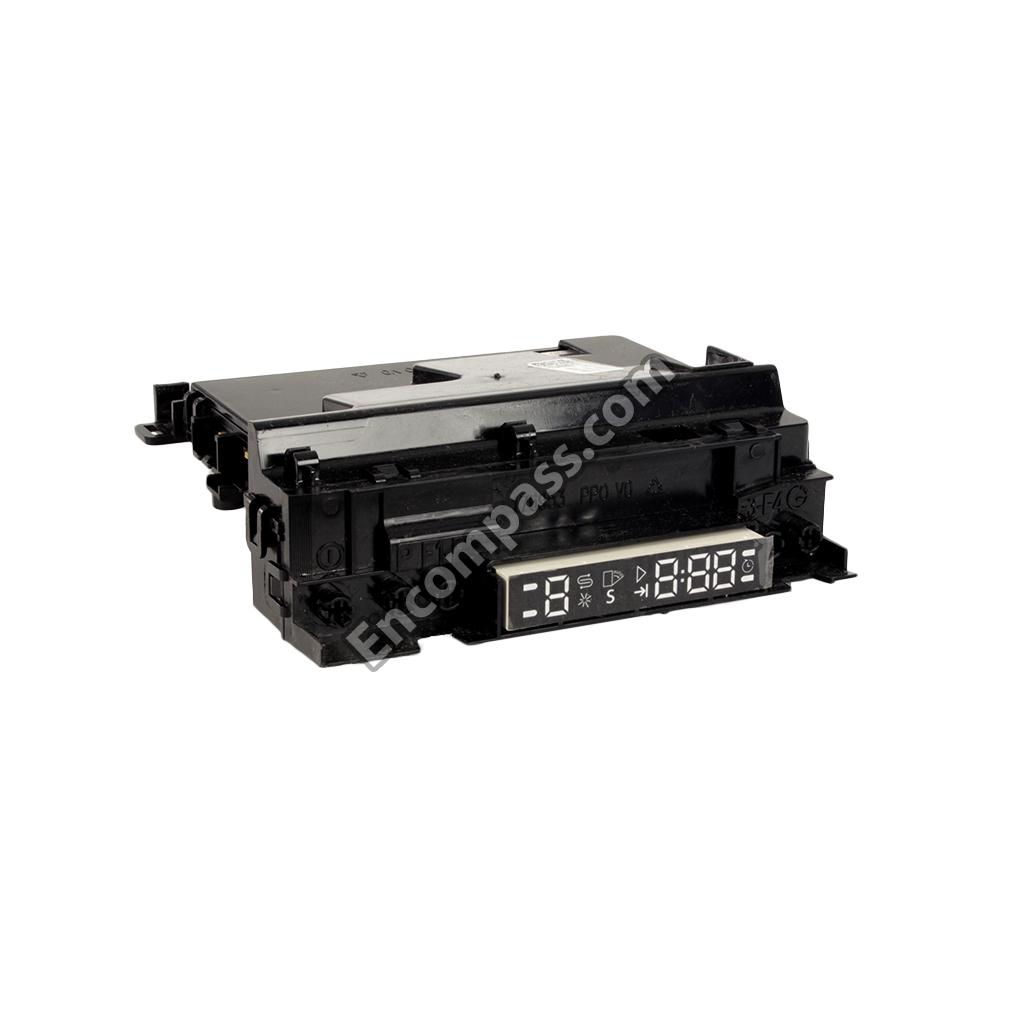

ELECTRONIC CARD UE519501 |
|
|
F1-F2 FUNCTION BUTTON - BLACK |
|
|
F3-F4 FUNCTION BUTTON- BLACK |
|
|
FAN SUCTION TUBE - WELDED |
|
|
FILTER GROUP 3 NO RING |
|
|

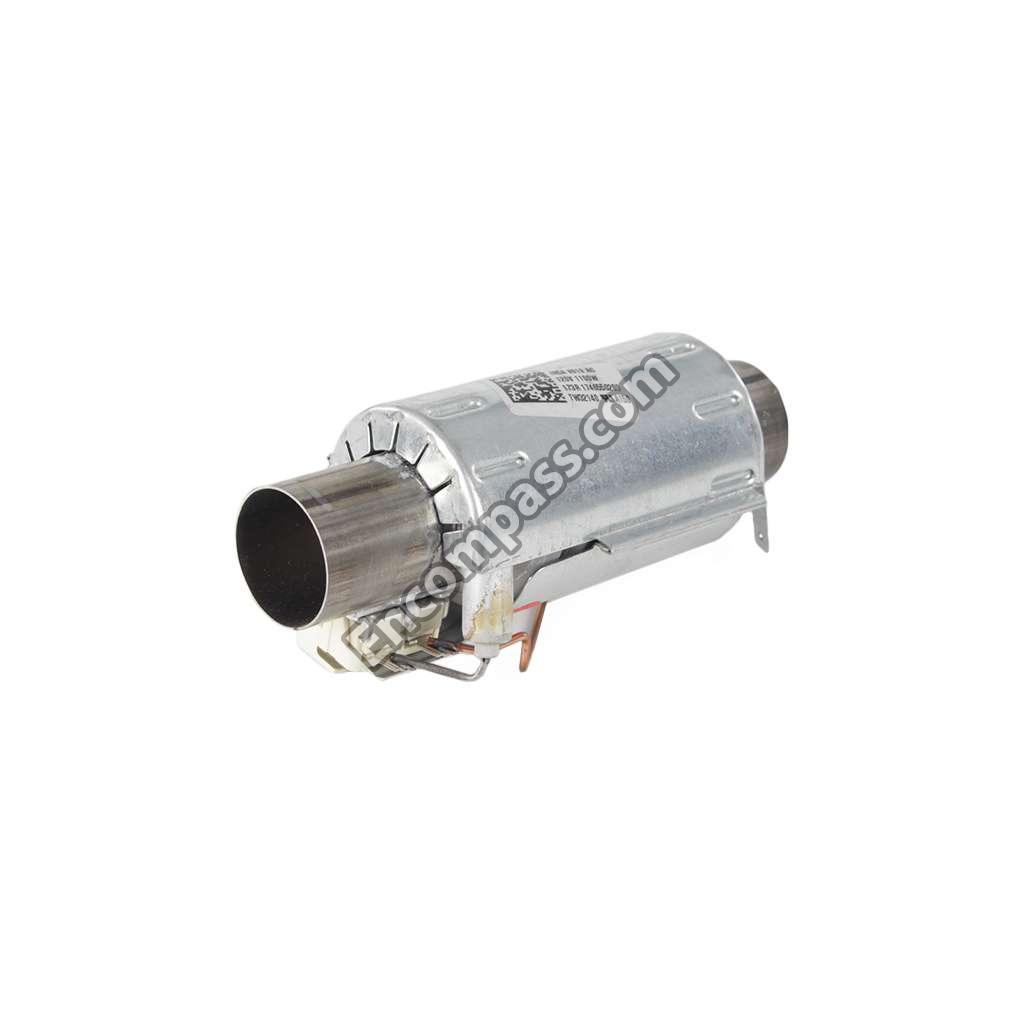

FLOW THROUGH HEATER 32 1100W |
|
|
FOLDING WIRE- 45CM-7016 |
|
|
FOOT GROUP GR -ADJUSTABLE-FRONT-RIGHT |
|
|
FOOT GROUP-ADJUSTABLE |
|
|
FOOT GROUP-ADJUSTABLE-LEFT-FRONT |
|
|
FOOT GROUP-ADJUSTABLE-RIGHT-BACK |
|
|
FOOT SUPPORT PART |
|
|
GASKET |
|
|
GASKET HOLDER FOR SPRAY ARM FEED PIPE |
|
|
GRD CUTLERY BASKET SEPERATOR |
|
|

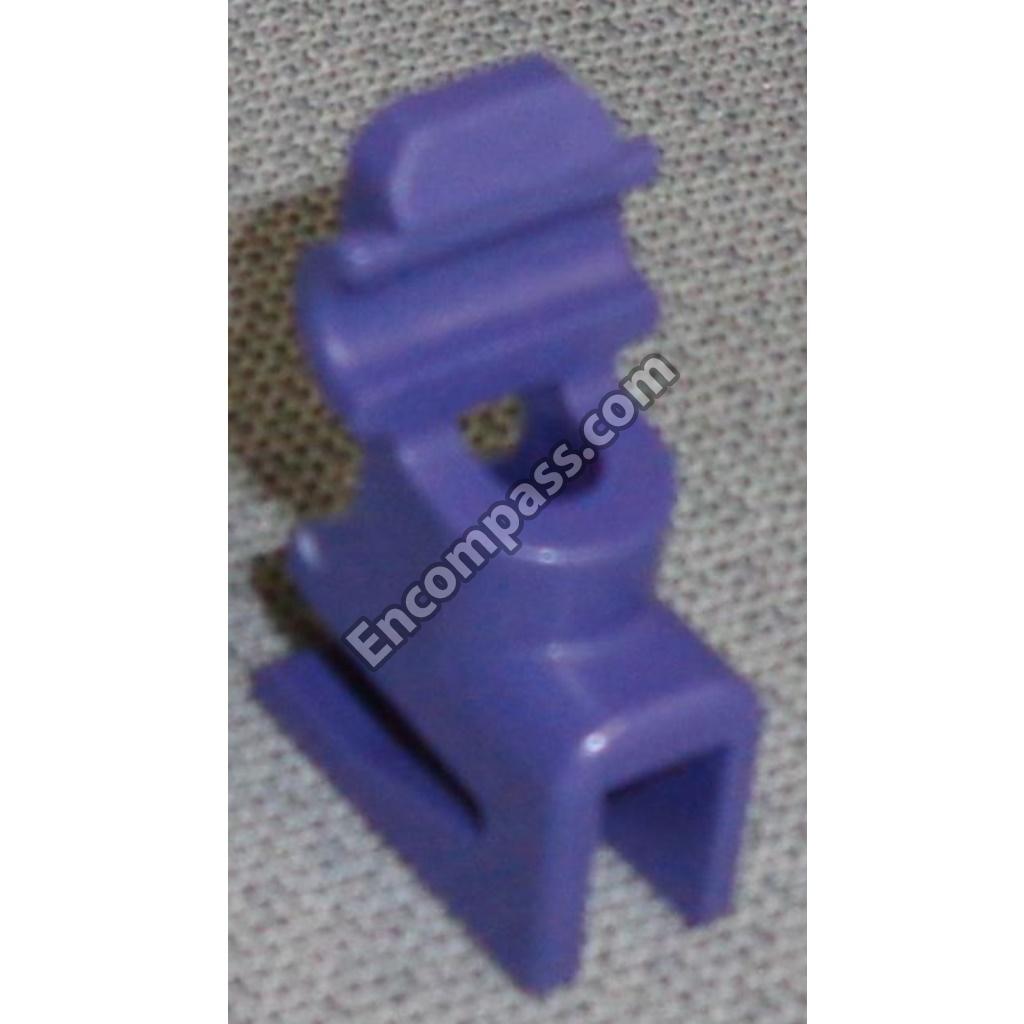

GRD LOWER BASKET SHORT CLIPS-LEFT |
|
|
GRD LOWER BASKET SHORT CLIPS-RIGHT |
|
|
GRUNDIG CABLE HARNESS |
|
|
HALF FILTER SUPPORT 45CM |
|
|
HANDLE AUXILARY PART |
|
|

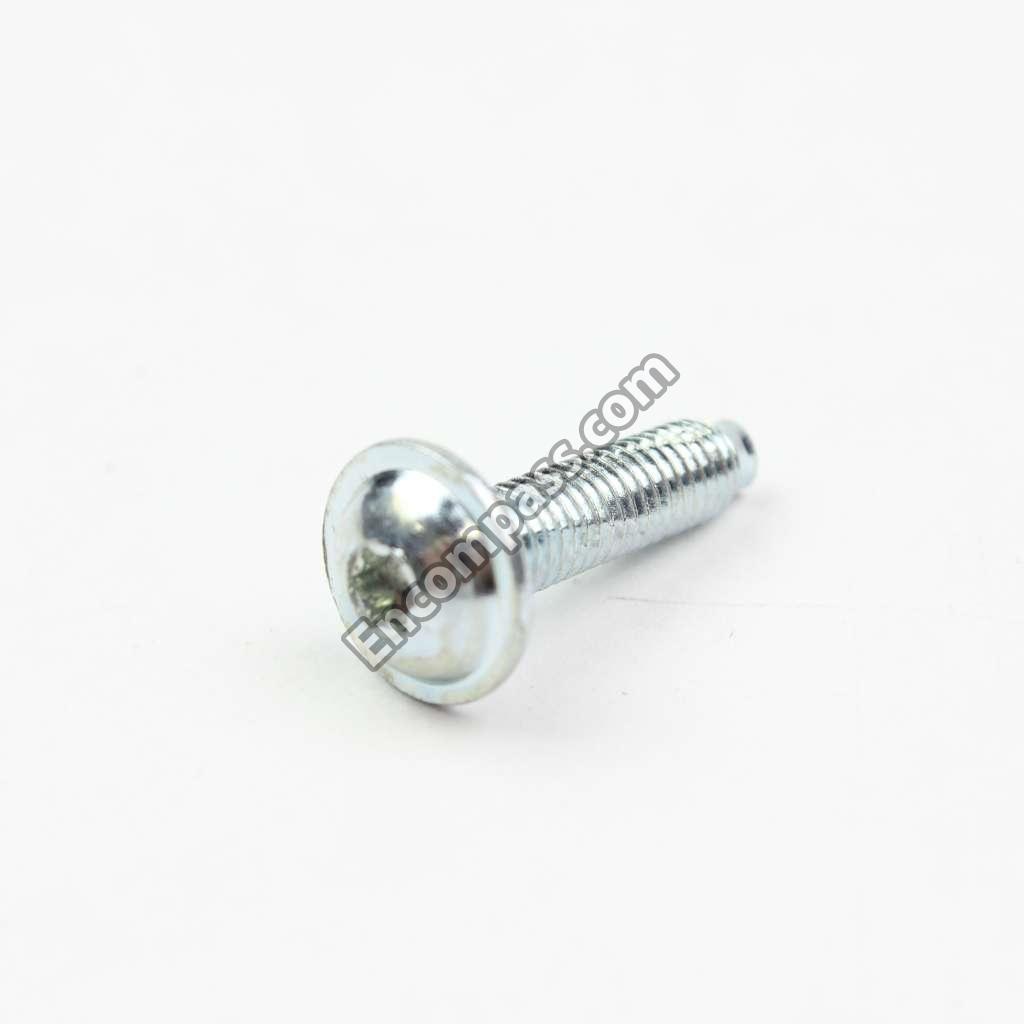

HANDLE SCREW-M5X20 |
|
|
HEIGH ADJ. MECHANISM GR-LEFT-PURPLE |
|
|
HEIGH ADJ. MECHANISM GR-RIGHT-PURPLE |
|
|
HINGE ARM SUPPORT |
|
|
HINGE ARM-LEFT |
|
|
HINGE ARM-RIGHT |
|
|
HINGE ROPE GROUP L=440(GREY) |
|
|
HINGE SPRING |
|
|

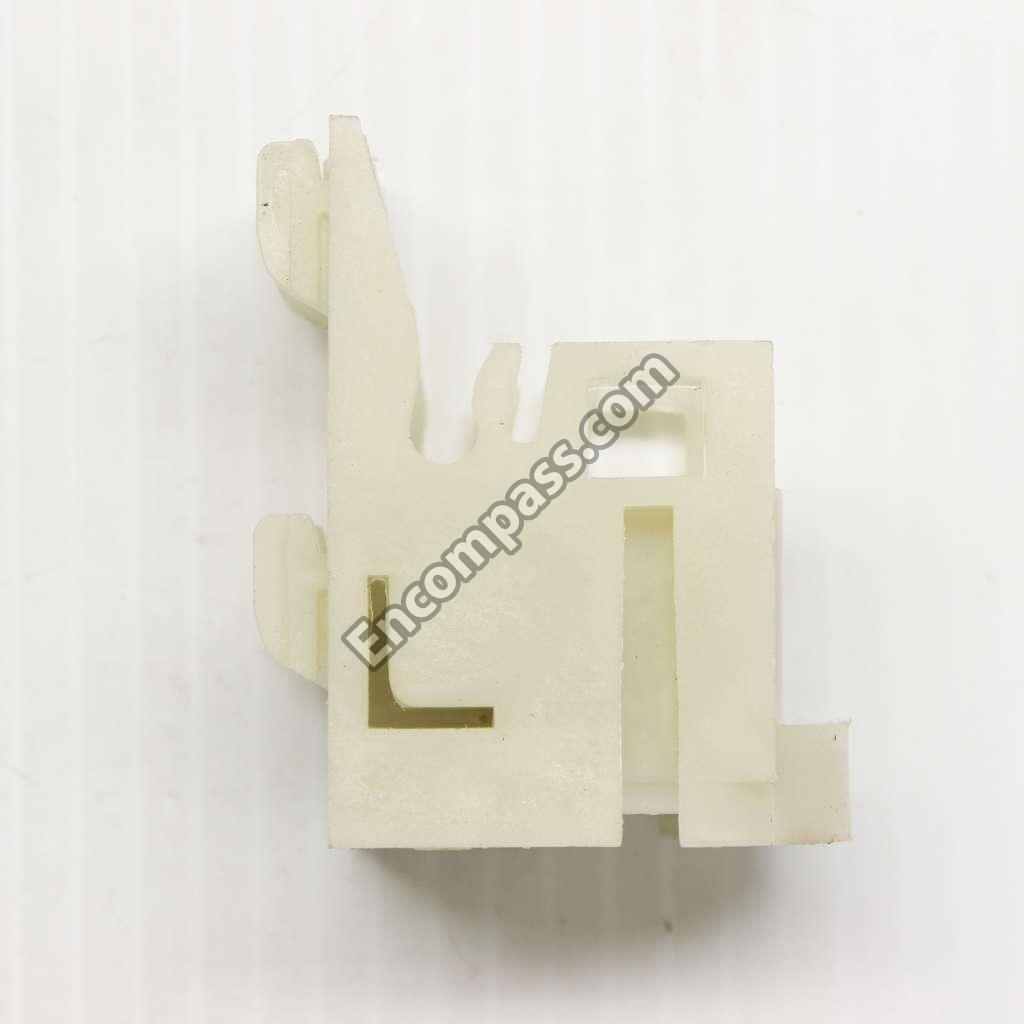

HINGE SPRING HOLDER-LEFT |
|
|
HINGE SPRING HOLDER-RIGHT |
|
|

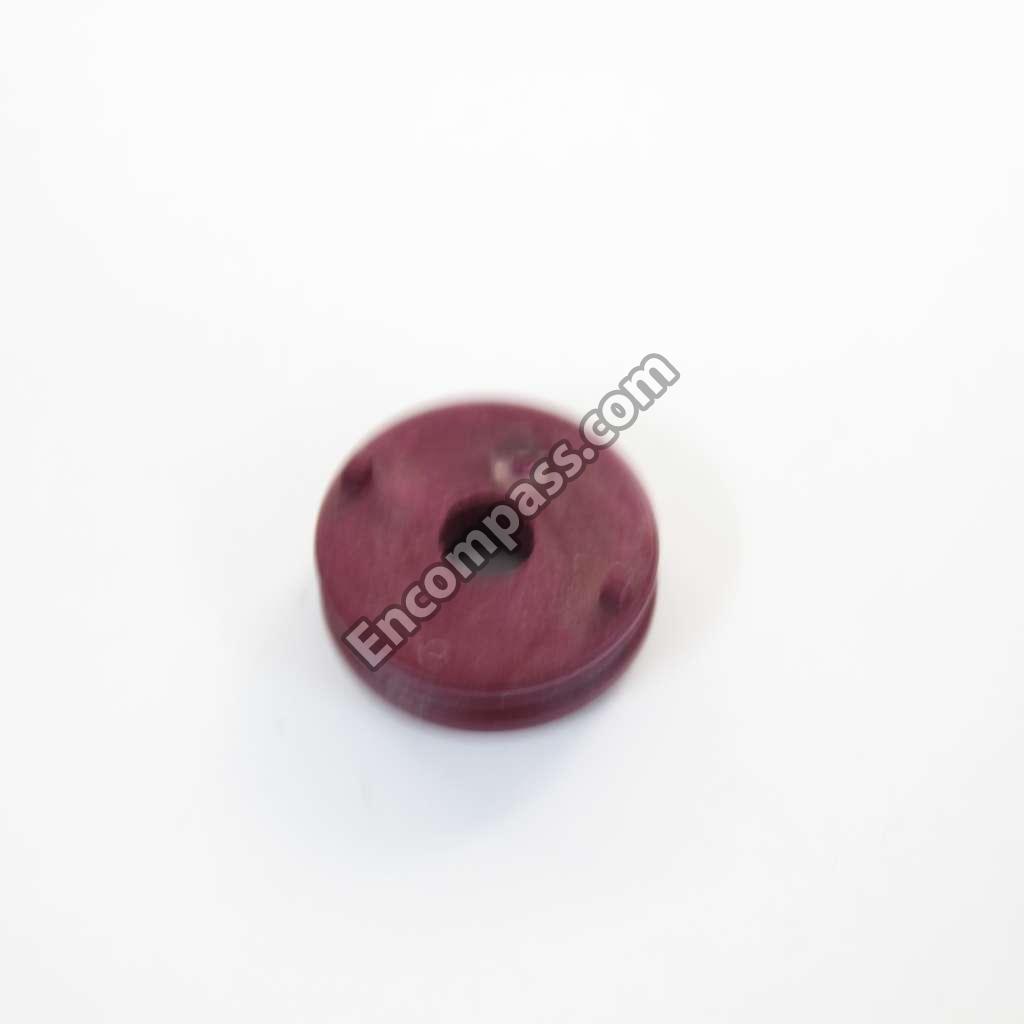

HINGE WHEEL-RED |
|
|
HOSE |
|
|
HOSE (VALVE-COUNTER) |
|
|
HOSE BETWEEN COUNTER AND REGENERATION U. |
|
|
HOSE BETWEEN FAN AND SUMP |
|
|
HOSE BETWEEN SUMP AND HEATER |
|
|
HOSE CLAMOS WITH SCREW-29-WHITE |
|
|
HOSE CLAMP ( 15.88) |
|
|
HOSE CLAMP ( 16.4) |
|
|
HOSE CLAMP ( 27.5) |
|
|
HOSE CLAMP ( 38.8) |
|
|
HOSE CLAMP ( 40.0) |
|
|
HOSE CLAMP ( 47 ) |
|
|
HOSE CLAMP( 15_6 ) |
|
|
HOSE CLAMP.( 34_1) |
|
|
HOSE CLAMPS WITH SCREW 40 WHITE |
|
|
HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) |
|
|
HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) |
|
|
INNER DOOR BITUMEN GRD |
|
|
INNER TUB ISOLATION |
|
|
INNER TUB ISOLATION-LEFT |
|
|

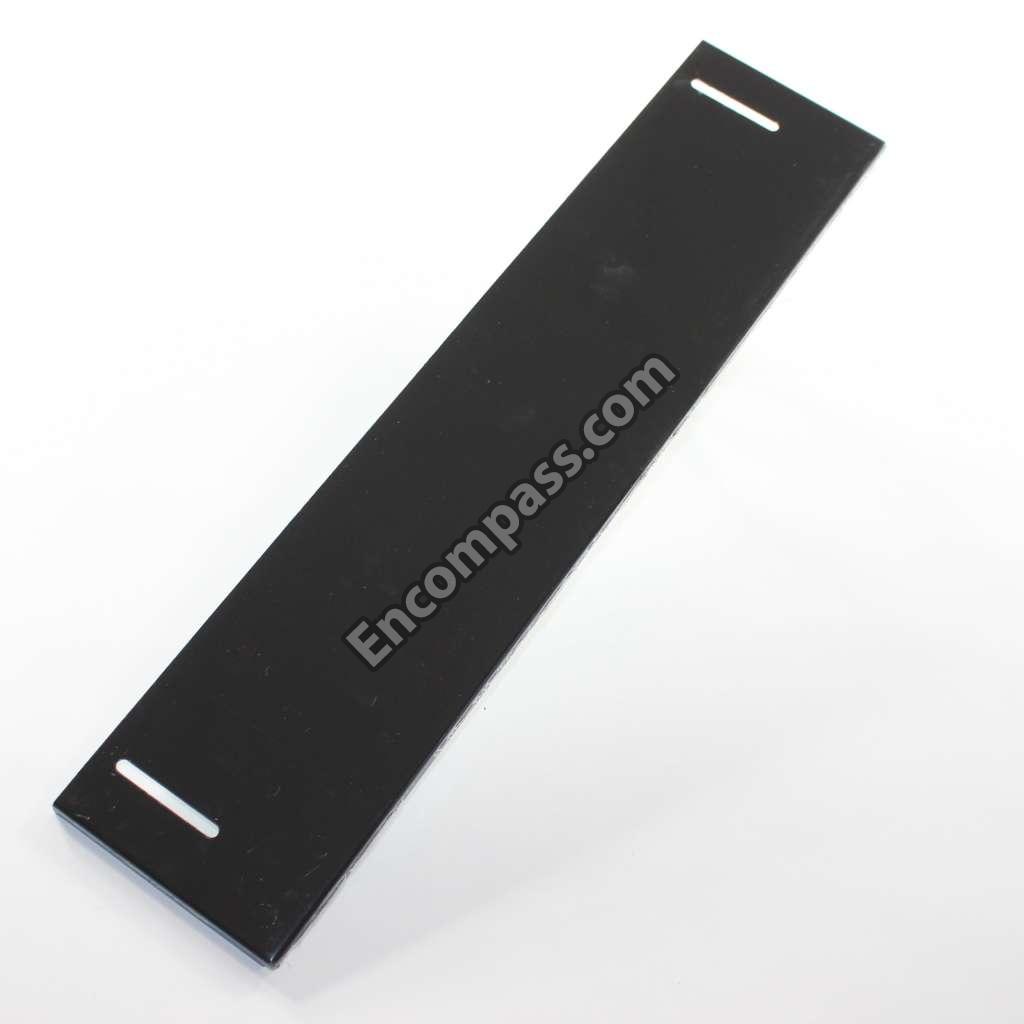

KICK PLATE ADJUSTING LOCKER-BLACK |
|
|
KICK PLATE INSULATION |
|
|
KICK PLATE SHEET-ARC744 |
|
|
KICK PLATE SHEET-BLACK 82CM |
|
|
KICK PLATE SHEET-BLACK 87CM |
|
|
KICK PLATE SHEET-BLACK 92CM |
|
|
L.BASKET SHORT FOLDING PART 742/PURPLE |
|
|
LOWER BASKET CLIPS-7037 |
|
|
LOWER BASKET EU2 GROUP 45CM-7037/7016 |
|
|
LOWER BASKET HANDLE BACK PART-7016 |
|
|
LOWER BASKET HANDLE FRONT PART-7016 |
|
|
LOWER BASKET WHEEL GROUP 45CM |
|
|
LOWER SPRAY ARM GROUP-7037 |
|
|
LOWER SUPPORT - FRONT |
|
|
MAIN PLUG EURO 120 V CANADA |
|
|
MAIN PLUG HOLDER (1,5) |
|
|
METAL FILTER HALF |
|
|
MICRO FILTER GROUP_3 NO RING |
|
|
MOTOR BRACKET GROUP |
|
|

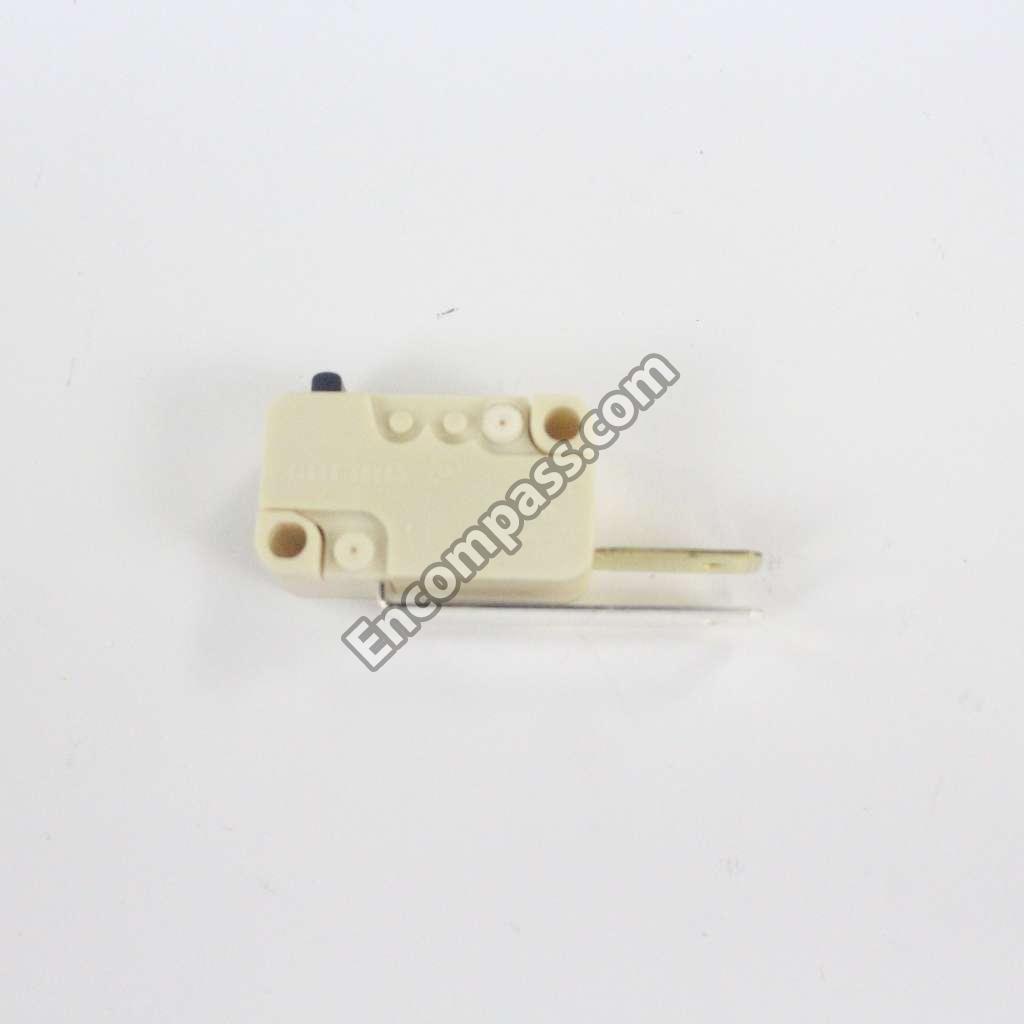

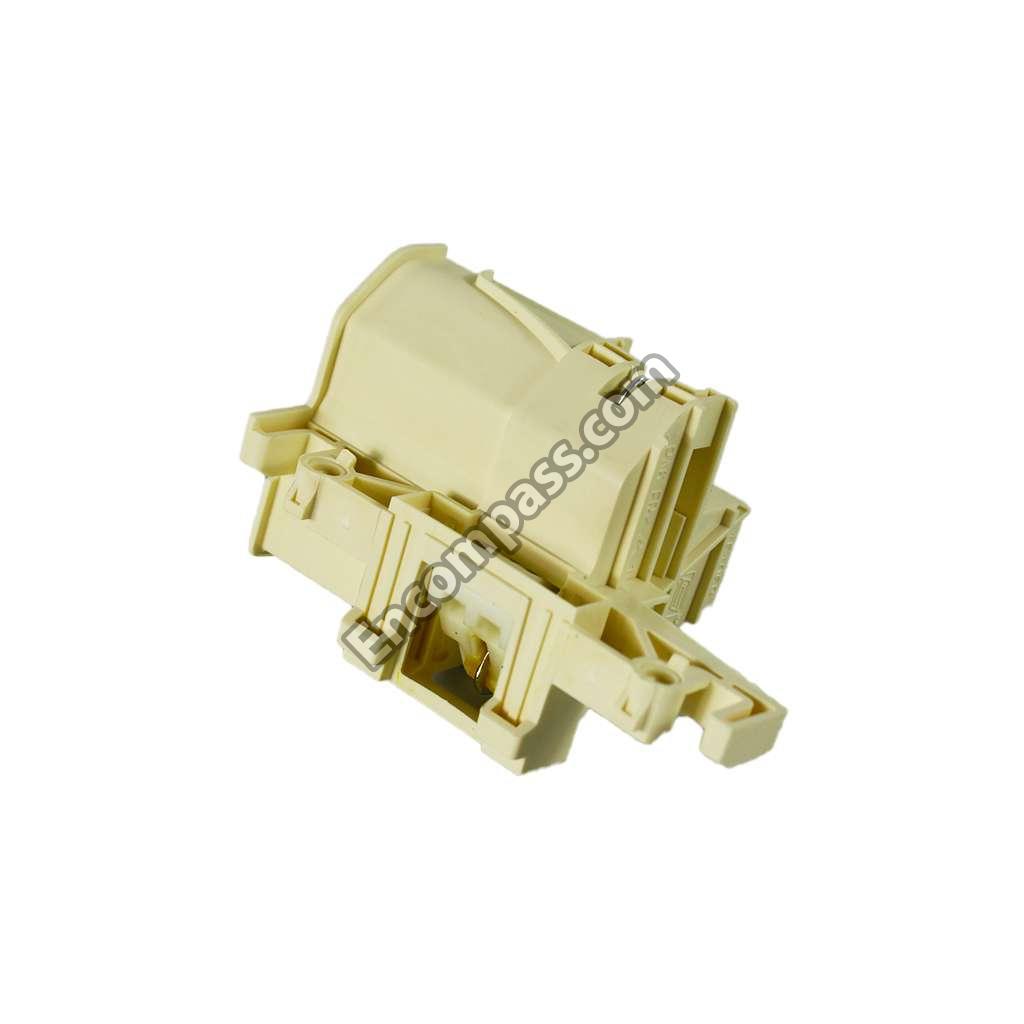

NEW DOOR SWITCH |
|
|
NOISE ISOLATION FOR TUB |
|
|
NOISE ISOLATION FOR TUB-7037 |
|
|
NOISE ISOLATION-7037 |
|
|
NOISE ISOLATION-LEFT -7037 |
|
|
NOISE ISOLATION-RIGHT-7037 |
|
|

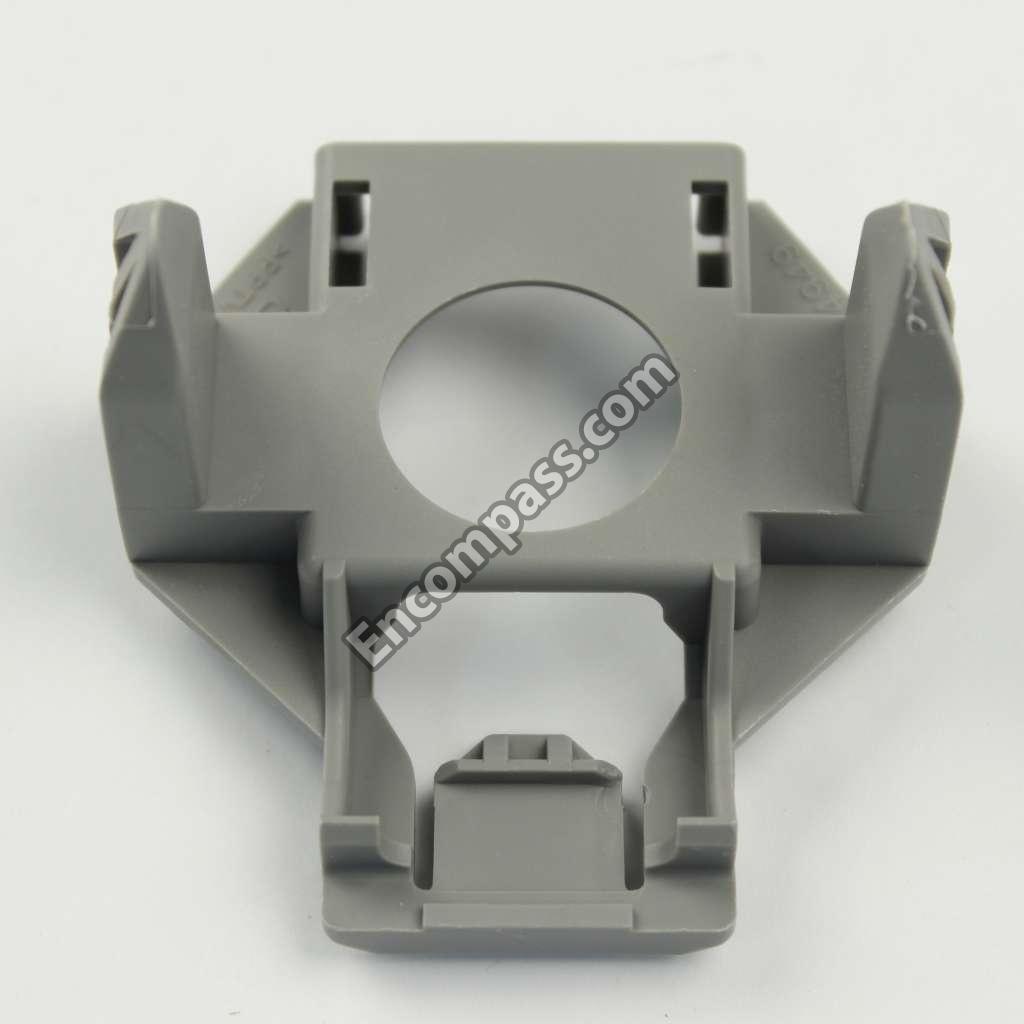

NOZZLE HOLDER FOR TOP SPRAY ARM-7037 |
|
|

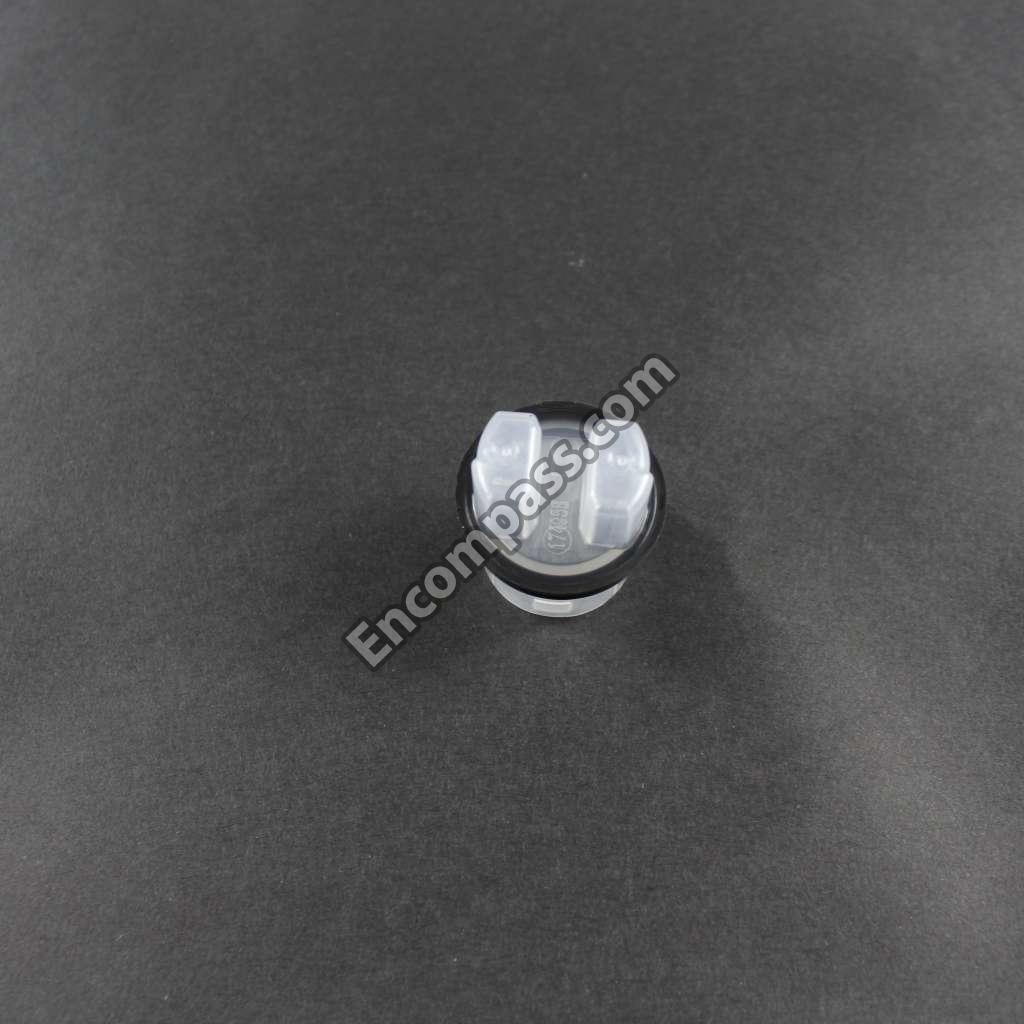

NTC GROUP |
|
|
O-RING (FLOW DIVERTER) |
|
|
ON-OFF BUTTON - BLACK |
|
|

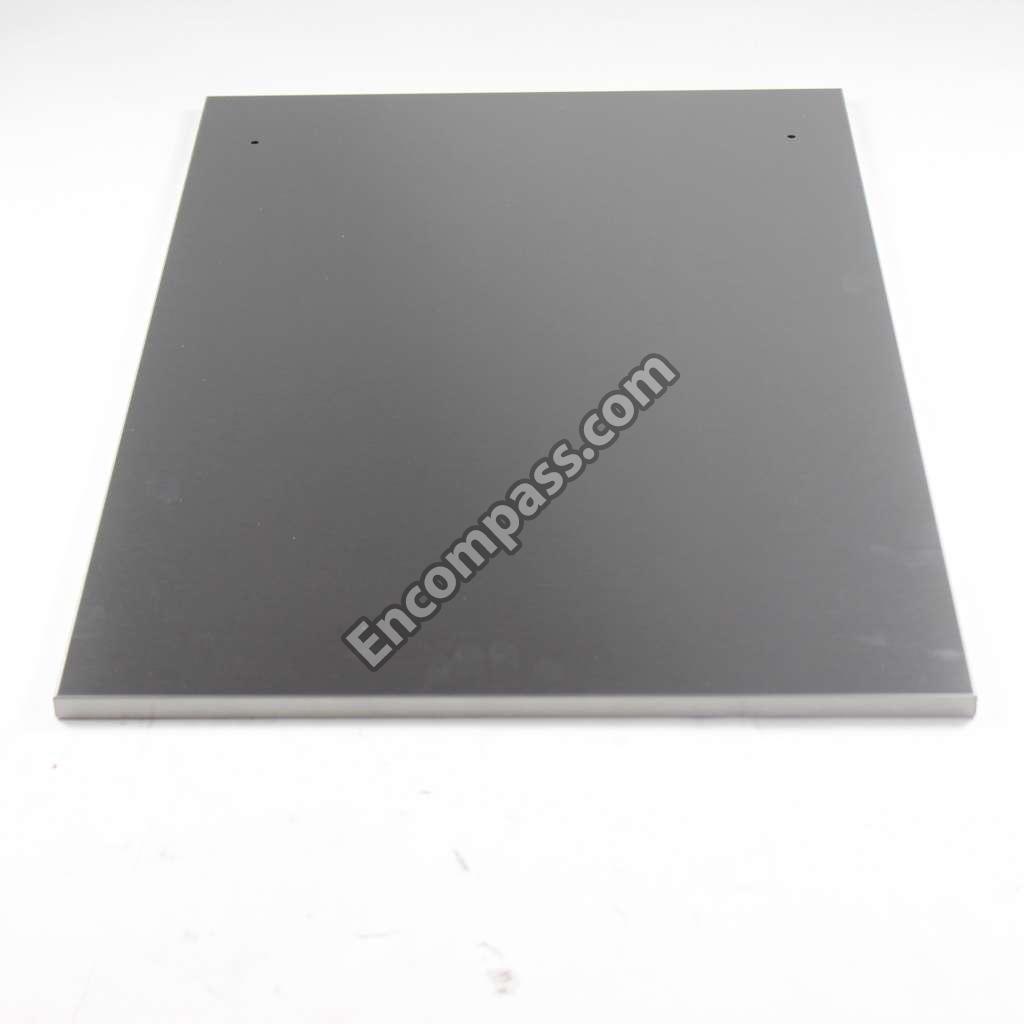

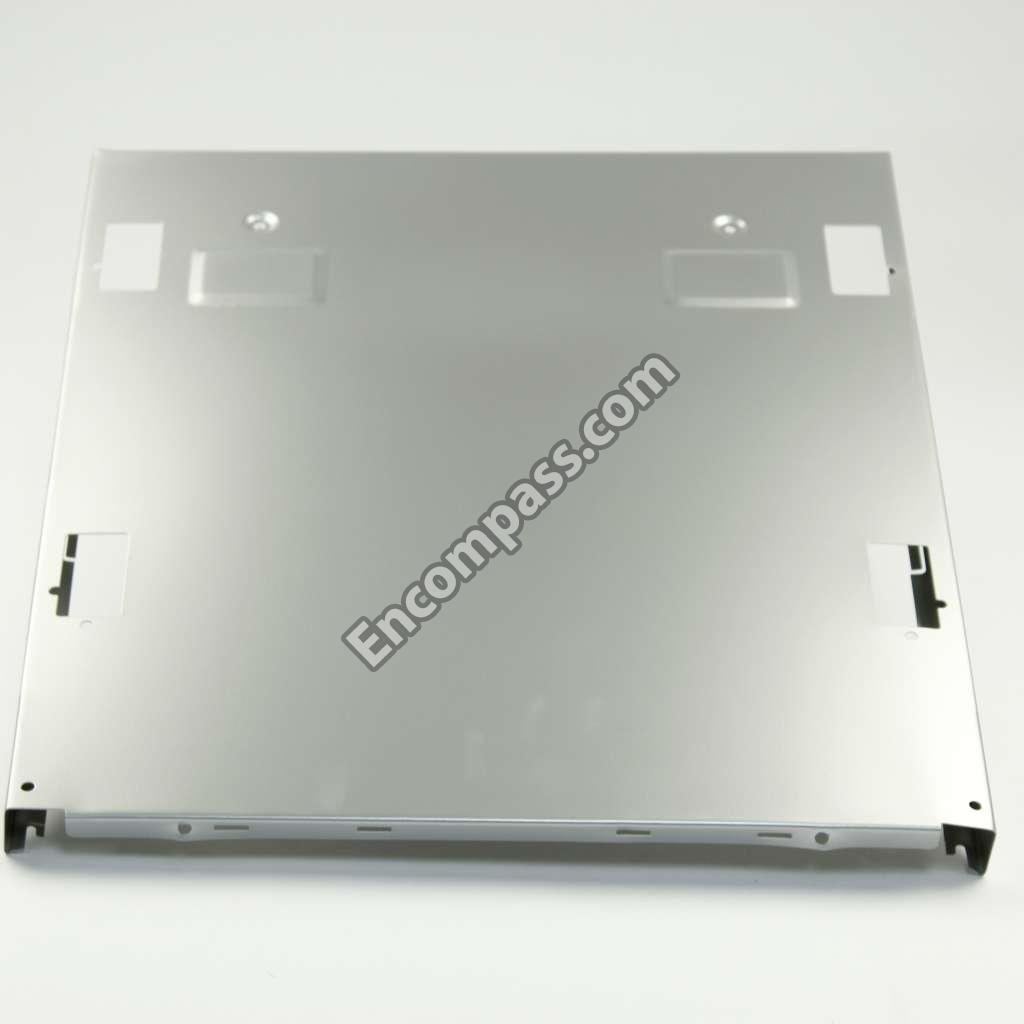

OUTER DOOR-ARC744 |
|
|
OVER FLOW SWITCH (LOW END) D3731 D3421 |
|
|
OVERFLOW FLOAT GROUP |
|
|
OVERFLOW SIPHON |
|
|
OVER_FLOATING_HOUSE_3 |
|
|
PACKAGE COVER - BOTTOM |
|
|
PACKAGE STRAFOR - BOTTOM |
|
|
PANEL GROUP DDS25840X |
|
|

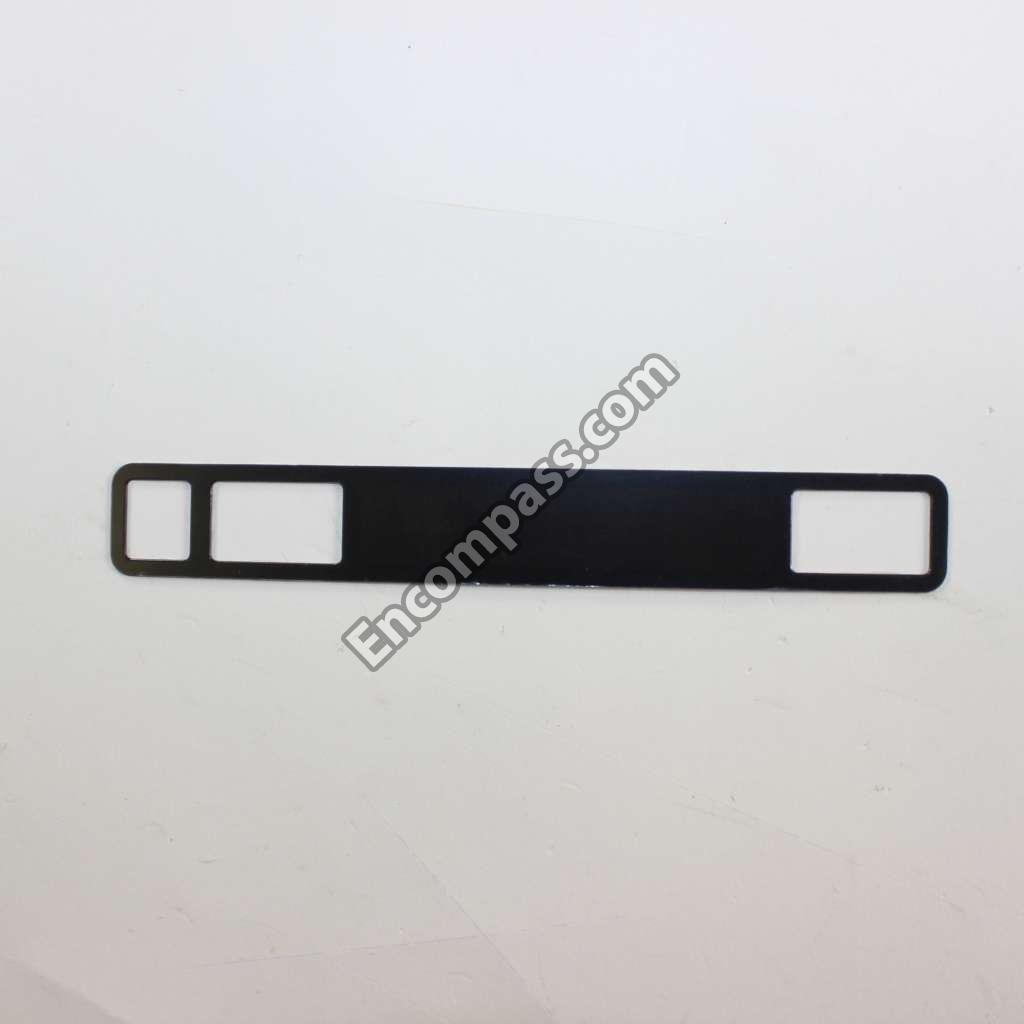

PC INLAY-E5-E6 |
|
|
PLASTIC SCREW |
|
|
PLASTIC SCREW |
|
|

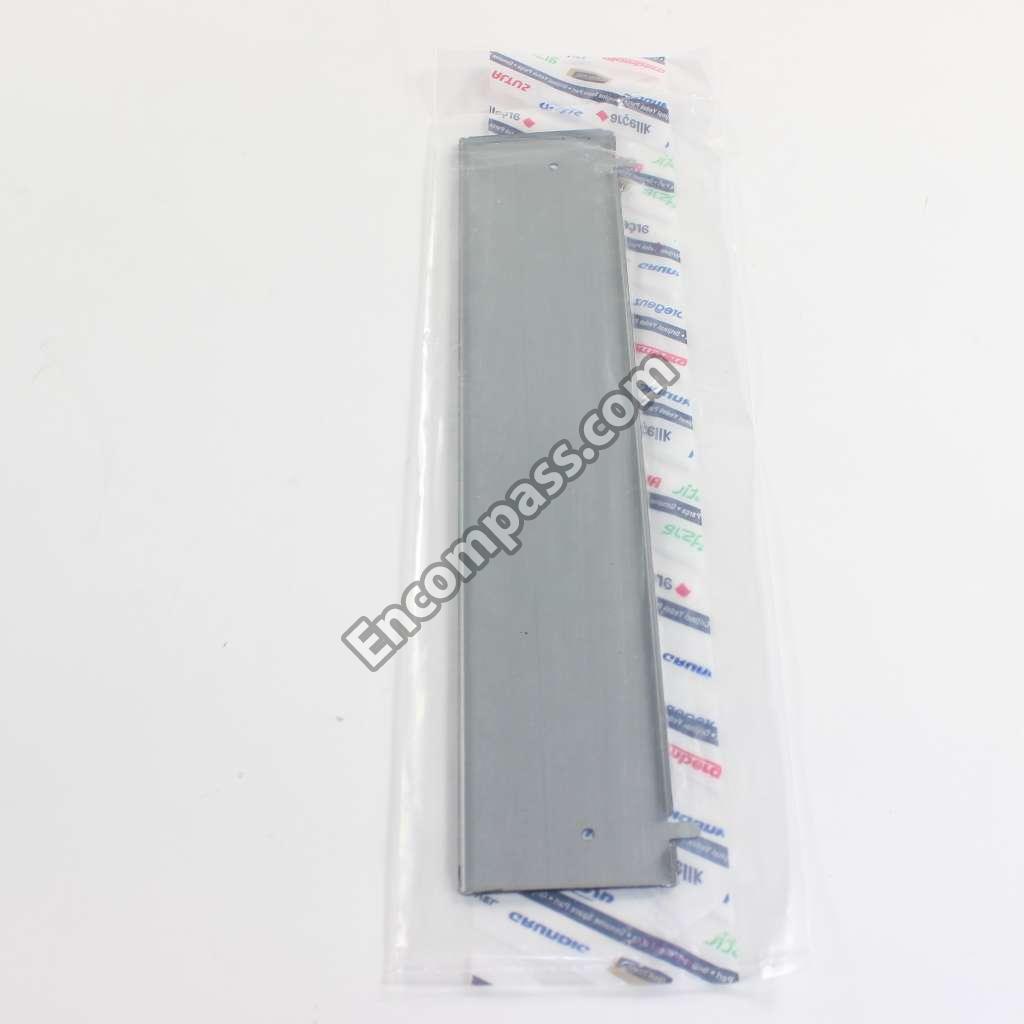

PLINTH ADJUSTMENT SHEET-LEFT |
|
|
PLINTH ADJUSTMENT SHEET-RIGHT |
|
|
PROGRAM DELAY BUTTON - BLACK |
|
|
PUMP INLET HOSE |
|
|
PUMP OUTLET HOSE |
|
|

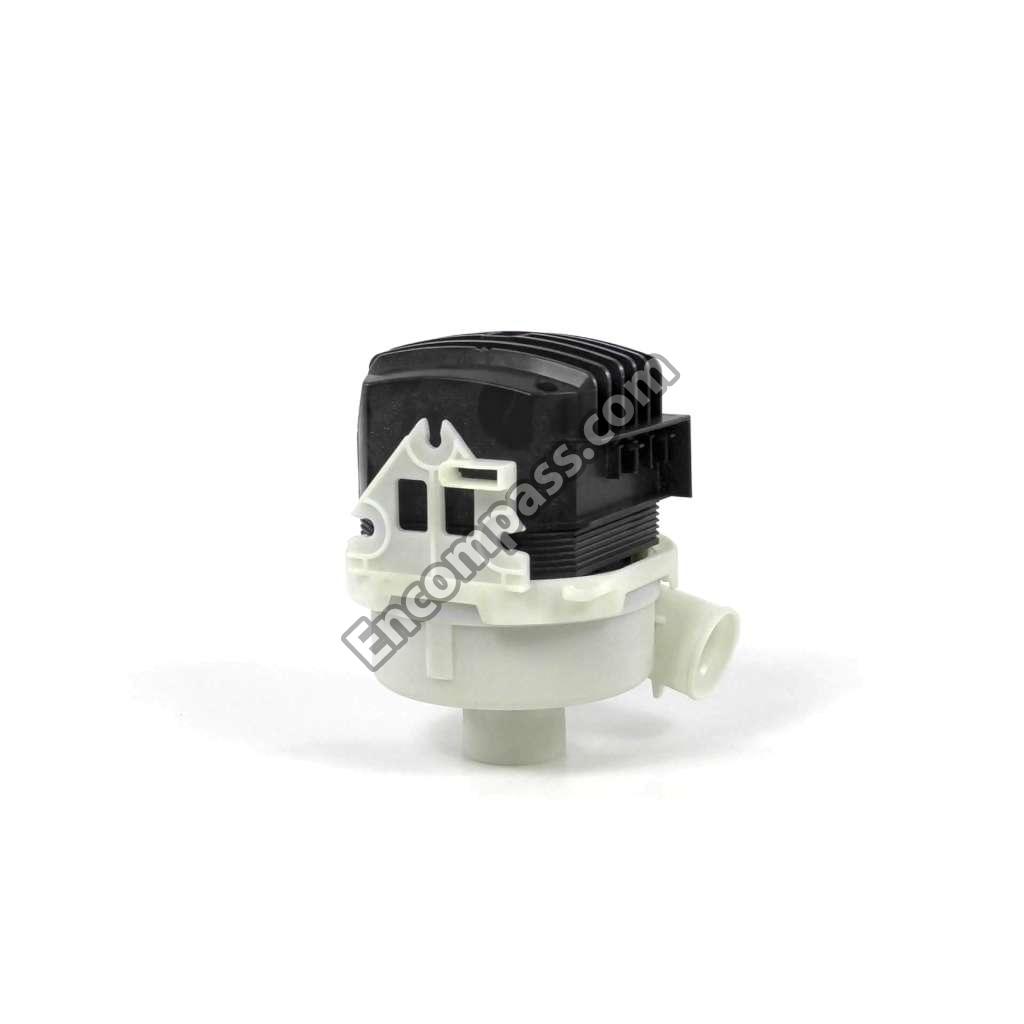

QUADRO CIRCULATION MOTOR GROUP |
|
|

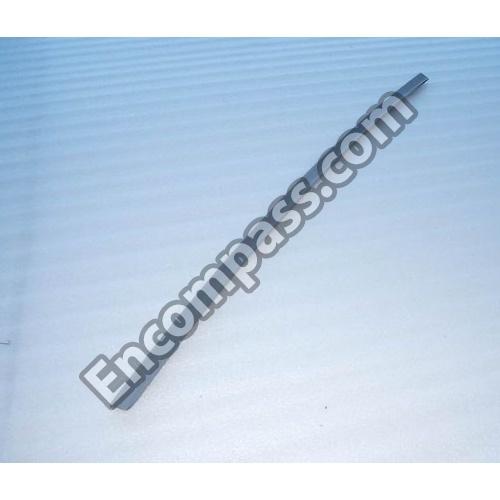

RAIL (430 STAINLESS STEEL) |
|
|
RAIL CAP- FRONT&BACK -RAL7037 |
|
|
RAIL WHEEL GROUP-RAL7037 |
|
|
RAIL WHEEL HOLDER |
|
|
RAIL WHEEL SCREW |
|
|
REAR ADJUSTABLE FOOT CONNECTION PART |
|
|
REAR BOTTOM SUPPORT |
|
|
REAR CORNER PADDING GR-BACK |
|
|
REAR FEET ADJUSTABLE LEFT BACK |
|
|
REGENERATION UNIT GR |
|
|
RINSE AID GASKET |
|
|
SCREW (3.9X9.5) |
|
|
SCREW (FILTER SUPPORT) |
|
|
SCREW (PANEL-DOOR LOCKED) |
|
|
SCREW 3.9 L=11 (INNER-OUTER DOOR) |
|
|
SCREW 4X14 |
|
|
SCREW CAP-SIDE PANELS-BLACK |
|
|
SCREW CAP-SIDE PANELS-GREY |
|
|
SCREW CAP-SIDE PANELS-WHITE |
|
|
SCREW M5X8 |
|
|
SELFRESETING LOCK GROUP |
|
|

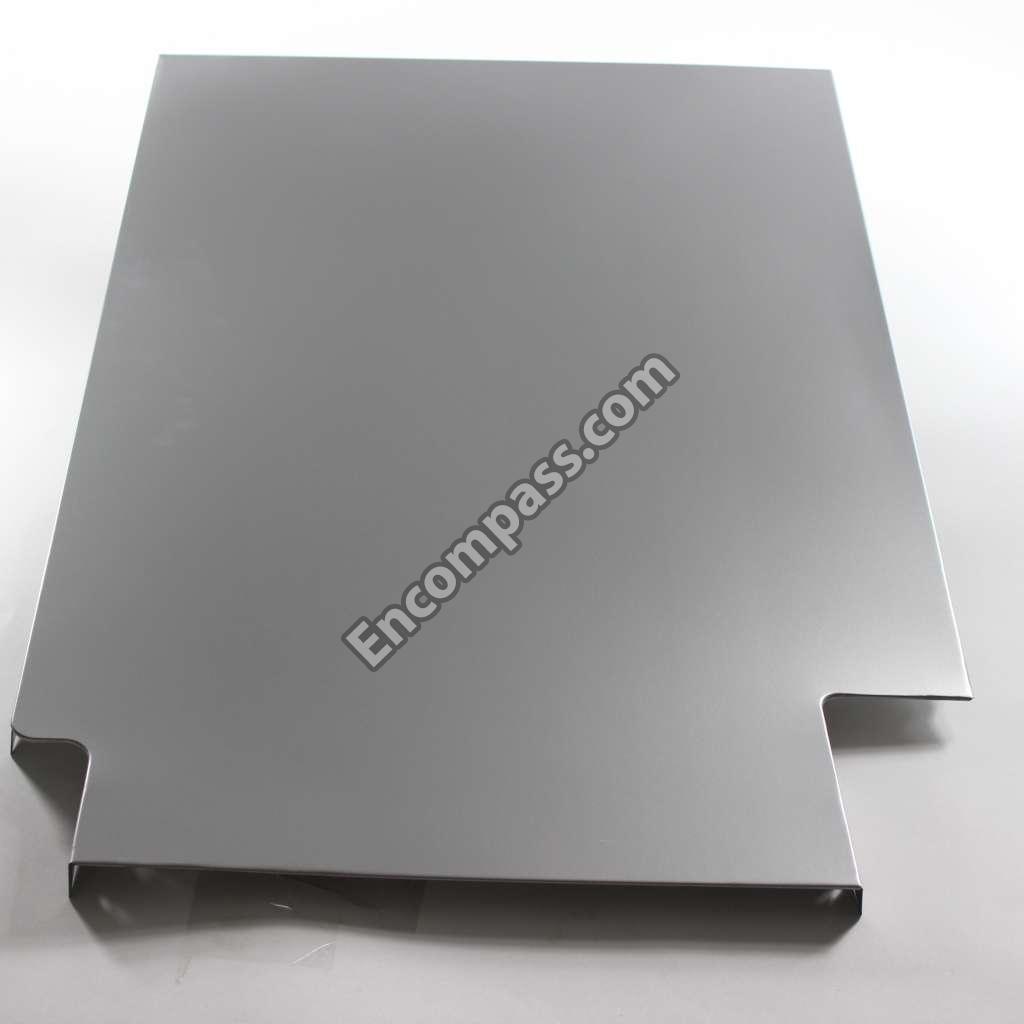

SIDE PANEL-LEFT-ARC744 |
|
|
SIDE PANEL-RIGHT-ARC744 |
|
|
STRUCTURE GROUP |
|
|
SUMP CLAMP SCREW TYPE |
|
|
SUMP GASKET |
|
|
SUMP GR-7037 |
|
|

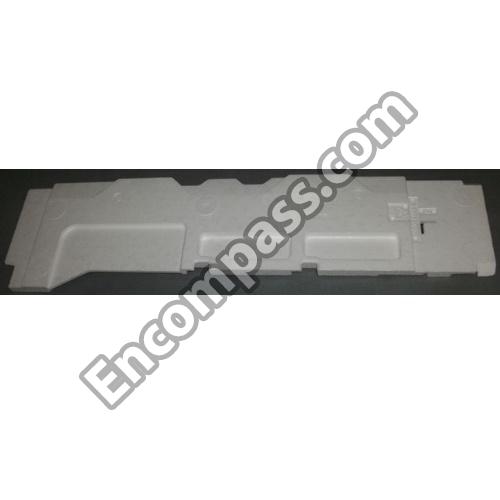

SUPPORT SYROPOR OF B_I KICK PLATE |
|
|
THERMOACTUATOR D3731 D3421 |
|
|
THREE WAY VALVE |
|
|
TOP CORNER BRACKET - LEFT |
|
|
TOP CORNER BRACKET - RIGHT |
|
|
TOP PLATE CUP APPARATUS-7037 |
|
|
TOP SPRAY ARM CAP-7037 |
|
|
TOP SPRAY ARM FEED BODY-7037 |
|
|
TURBIDITY CARD AND LED HOLDER GR-BLACK |
|
|
TURBIDITY FRAME_2K |
|
|
UPPER BASKET FOLDING TINES 45CM-7037 |
|
|
UPPER BASKET GROUP-7037-PURPLE |
|
|
UPPER BASKETFOLDING PART 45CM-PURPLE |
|
|
UPPER SPRAY ARM FEED PIPE -RAL 7037 |
|
|
UPPER SPRAY ARM GROUP 7037-7016 |
|
|
UPPER SPRAY ARM GUIDE ADJ. BASKET-7037 |
|
|
VAPOUR FOIL GR |
|
|
WASHER |
|
|
WATER INLET VALVE (4LT/MIN) |
|
|
WATER SUPPLY TUBE-7037 |
