Manufacturer
Blomberg
Model Number
7221841783
Description
Ffbf 245 Ss Summit Usa Cdk 7630 B-763
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
100 MM DOOR SHELF(60 CM) NATUR. |
|
|

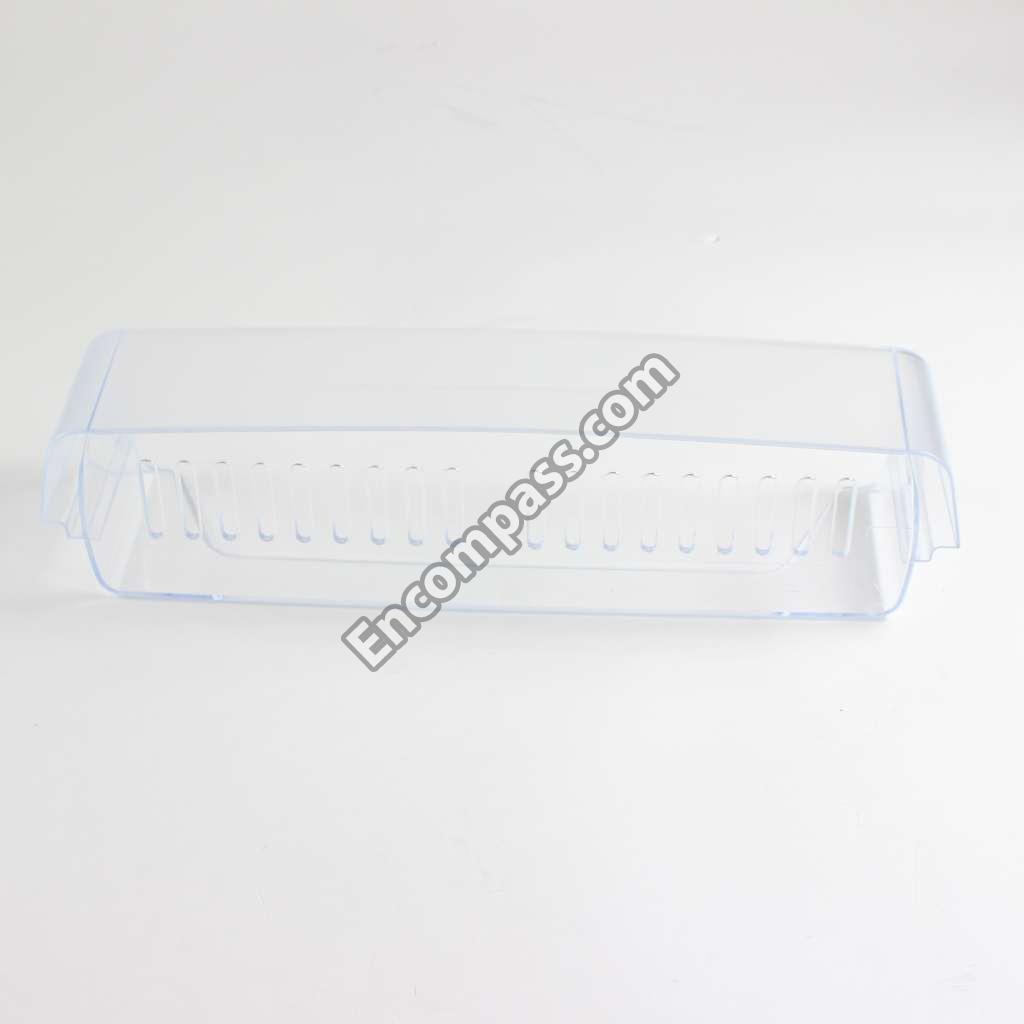

55 MM DOOR SHELF(60 CM)(TRANSPARENT) |
|
|
ADJUSTABLE GLIDER |
|
|
ADJUSTABLE GLIDER (SHORT) |
|
|
ADJUSTABLE GLIDER GROMMET |
|
|
AMORTIZOR COMPRESOR |
|
|

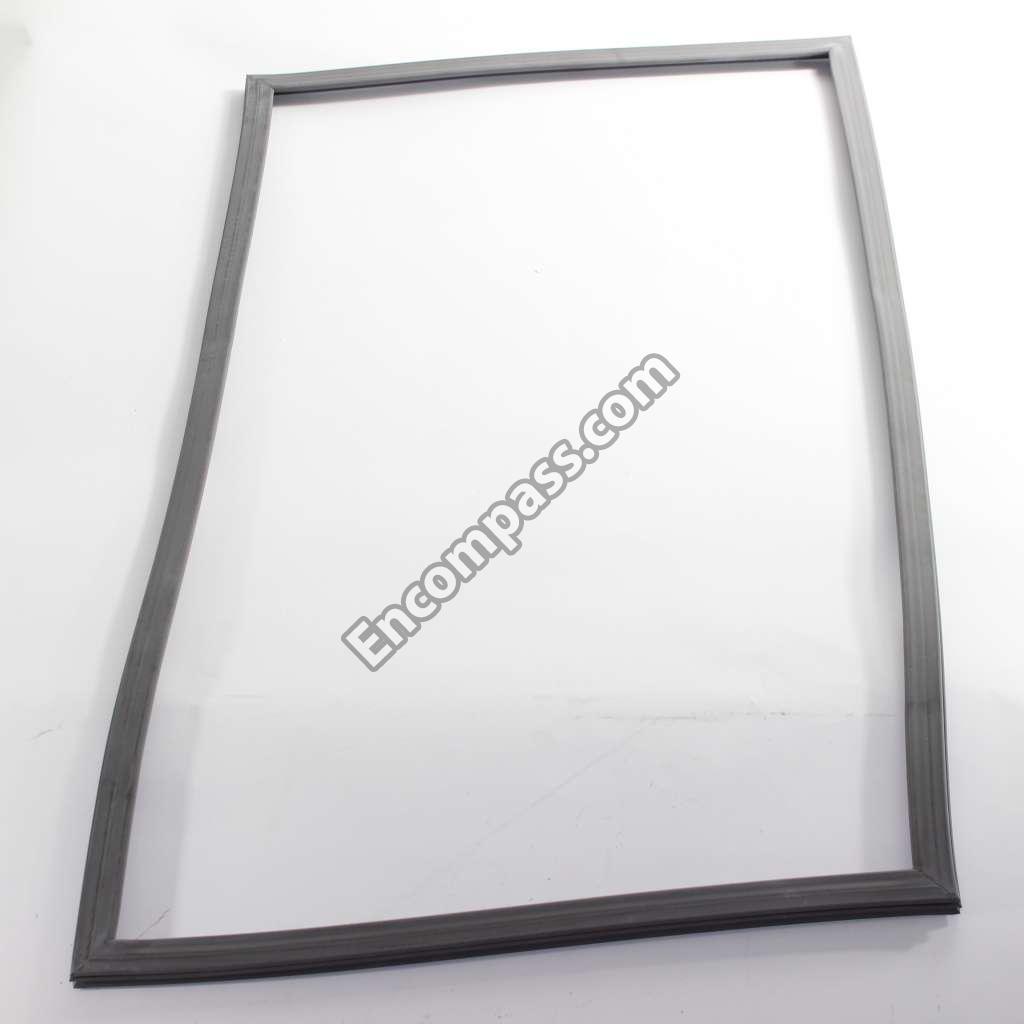

B-750/760 LOWER DOOR GASKET ASSY |
|
|
B-760 TOP DOOR GASKET ASSY |
|
|

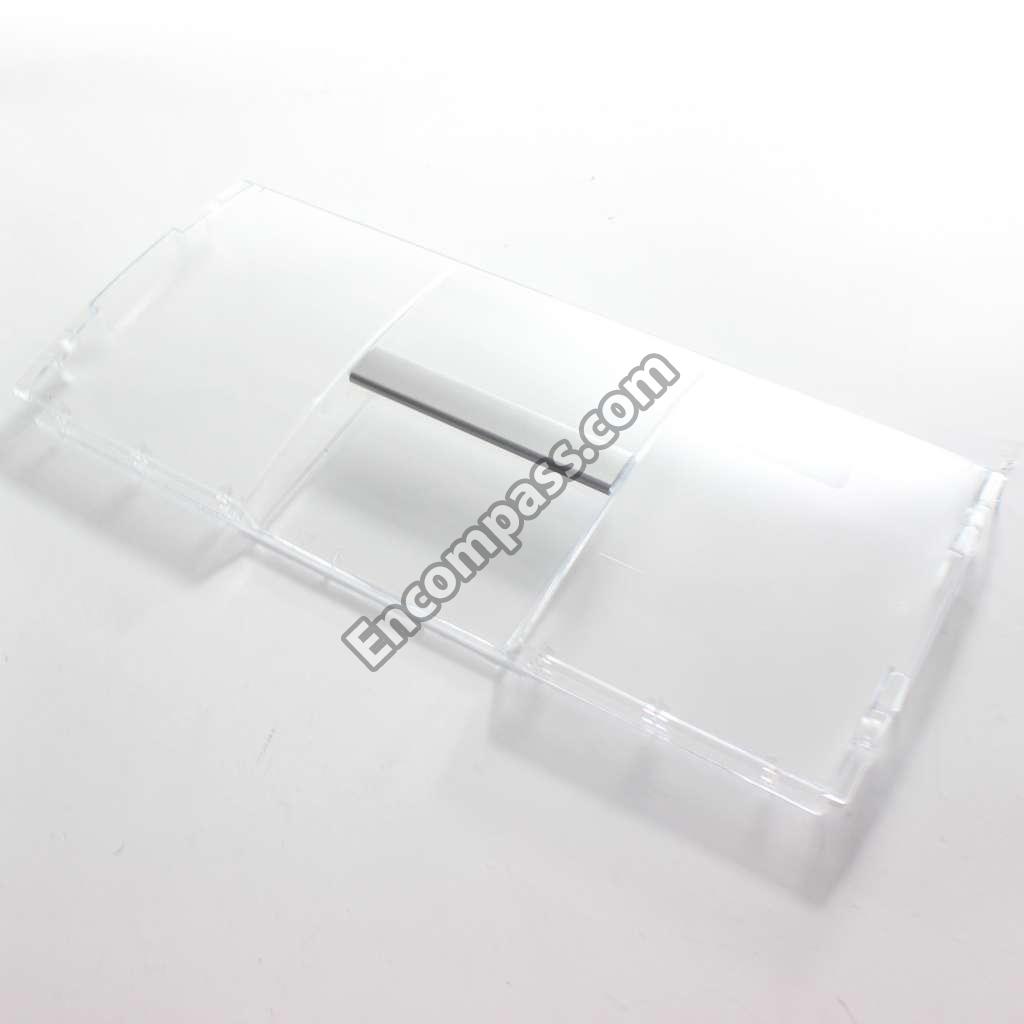

BASKET COVER/SEF 97. |
|
|
BI-METAL THERMOSTAT(INCHANG_72C)_UL |
|
|
CABLE ASSEMBLY |
|
|
CHARGING TUBE |
|
|
COMPRESSOR (EGX60HLC-EMBRACO) 115V 60HZ |
|
|
COMPRESSOR TERMINAL ASSY._115V) |
|
|
COMPRESSOR TRAVERSE |
|
|
CONDENSER ASSY. |
|
|
COVER HINGE (LEFT) |
|
|
COVER HINGE (RIGHT) |
|
|
CRISPER/B760/762 |
|
|
DOOR HANDLE PLUG_ARC 518 SILVER GREY |
|
|
DRYER (10 GR) (UL APPROVED) |
|
|
EGG TRAY-LINE 2001. |
|
|
EVA.BACK PANEL |
|
|

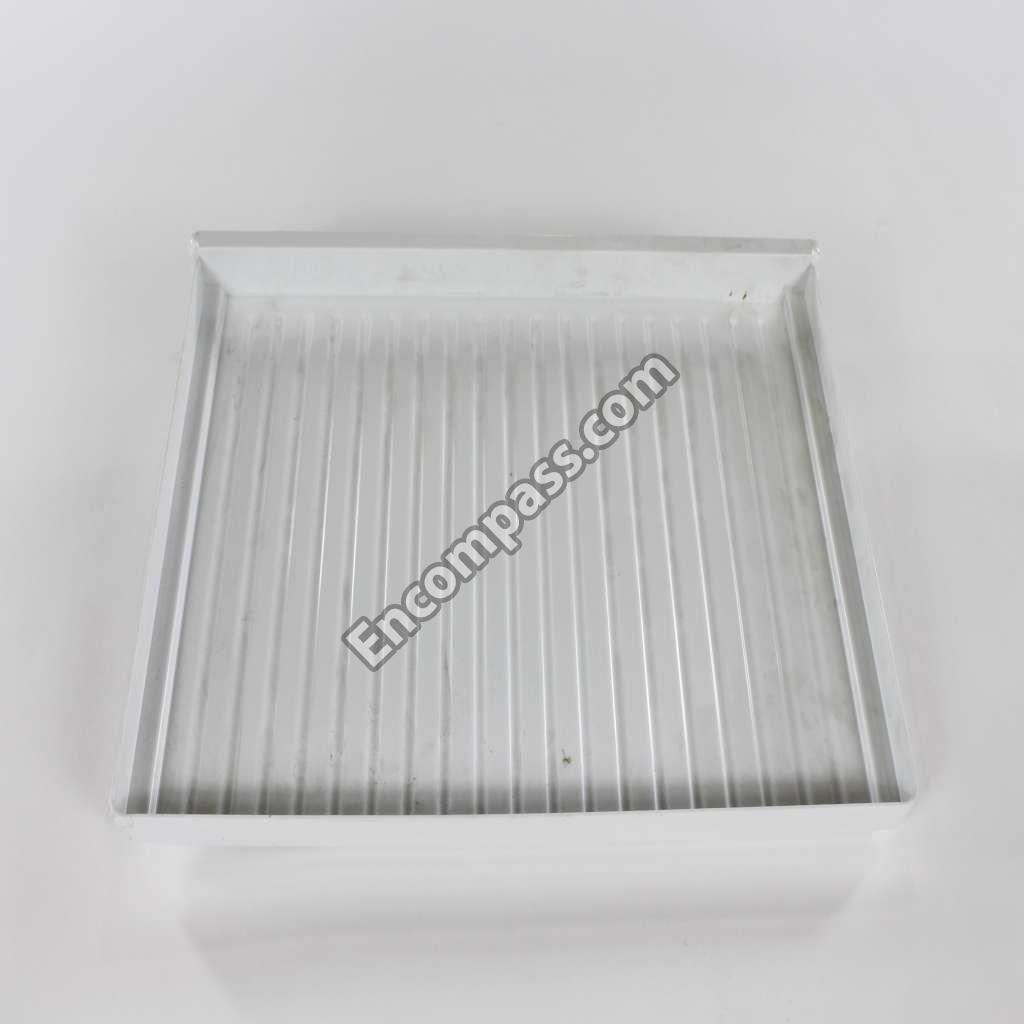

EVAPORATING PAN |
|
|
EVAPORATOR (B763 HCA FANLI/B753) |
|
|
EVAPORATOR CLAMP ASSY. |
|
|
EVAPORATOR COVER |
|
|
EXTERNALLY MOUNTABLE HANDLE ASSEMBLY- |
|
|
FAN ASSY. (B-763T_UL) |
|
|
FAN BLADE(NF-CCW-100MM) |
|
|
FAN MOTOR (IS-27210ARCU_115V_UL APPROVED |
|
|
FAST FREEZE COMPARTMENT COVER |
|
|
FF STOPPER |
|
|
FOAMED LOWER DOORB760_762_DKHANDLE_INOX |
|
|
FOAMED UPPER DOOR(B767_CDK_INOX_ARC552 |
|
|
FULL DEPTH BASKET/HIPS/ARCP1 |
|
|
FULL DEPTH BASKET_SAN_NAT_WITHHOLE |
|
|
GLASS SHELF ASS.B_760_762 |
|
|
GLASS SHELF PROFILE(FRONT_60CMB760_762 |
|
|
GLASS SHELF PROFILE(REAR_60CM_760_762 |
|
|
GROUND CABLE ASSEMBLY |
|
|

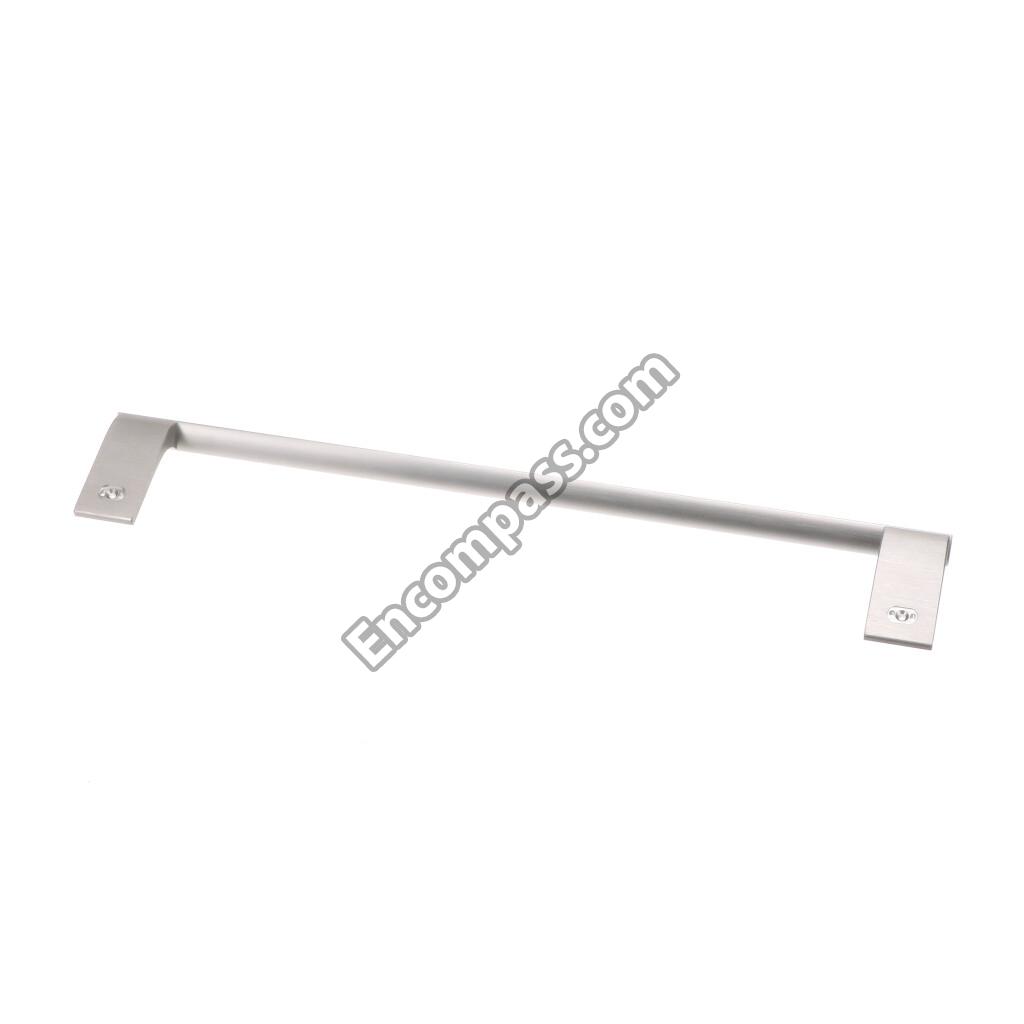

HANDLE GROUP..(R8_295MM_495MM) INOX |
|
|

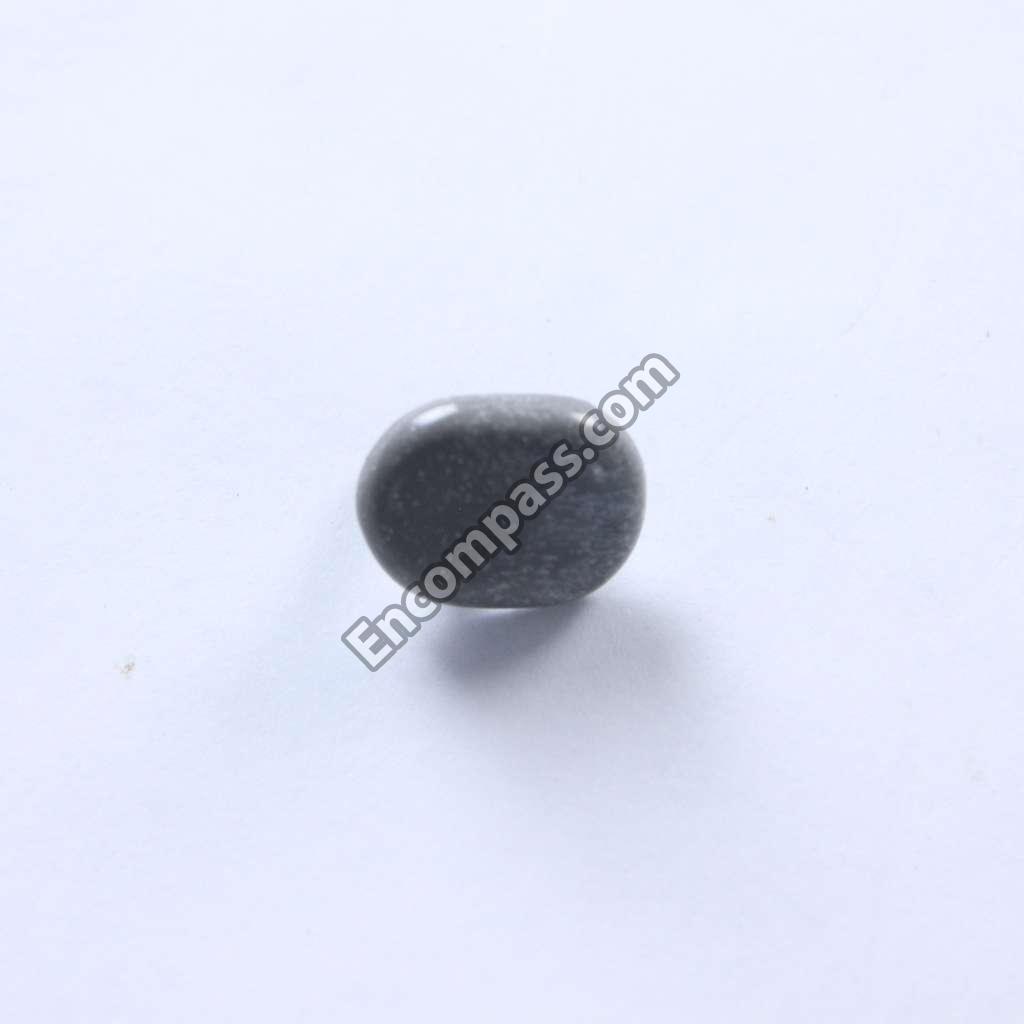

HANDLE HOLE PLUG (ARC 518) |
|
|
HEATER (UL) |
|
|
HINGE COVER-LEFT. |
|
|
HINGE HOLDER-LINE 2001 |
|
|
HINGE HOUSING |
|
|
ICE BANK |
|
|
ICE CUBE TRAY |
|
|
INTERIOR LAMP (15W E17) |
|
|
INTERIOR LIGHT SWITCH |
|
|
INTERIOR LIGHT SWITCH |
|
|
INTERIOR LIGHT SWITCH |
|
|
LAMPHOLDER BJB 22.223 |
|
|
LAMP_THERMOSTAT HOUSING |
|
|
LAMP_THERMOSTAT HOUSING COVER |
|
|
LOWER DOOR STOPER-LINE 2001 |
|
|
LOWER HINGE ASS_Y |
|
|
MIDDLE HINGE ASSEMBLY (LINE 2001).. |
|
|
MIDDLE HINGE PLUG |
|
|
MIDDLE HINGE PLUG (WHITE) |
|
|
ORNAMENT FATA TOP DR.. |
|
|
PLASTIC WASHER |
|
|
POWER SUPPLY CORD ASSY |
|
|
PRINTED GLASS SHELF ASSY/B760 |
|
|
SALAD CRISPER COVER EDGE PROFILE |
|
|
SCREW(M5X18 |
|
|
SPACER |
|
|
STOPPER HINGE BEARING |
|
|
TERMINAL-SOCKET CABLE ASSEMBLY |
|
|

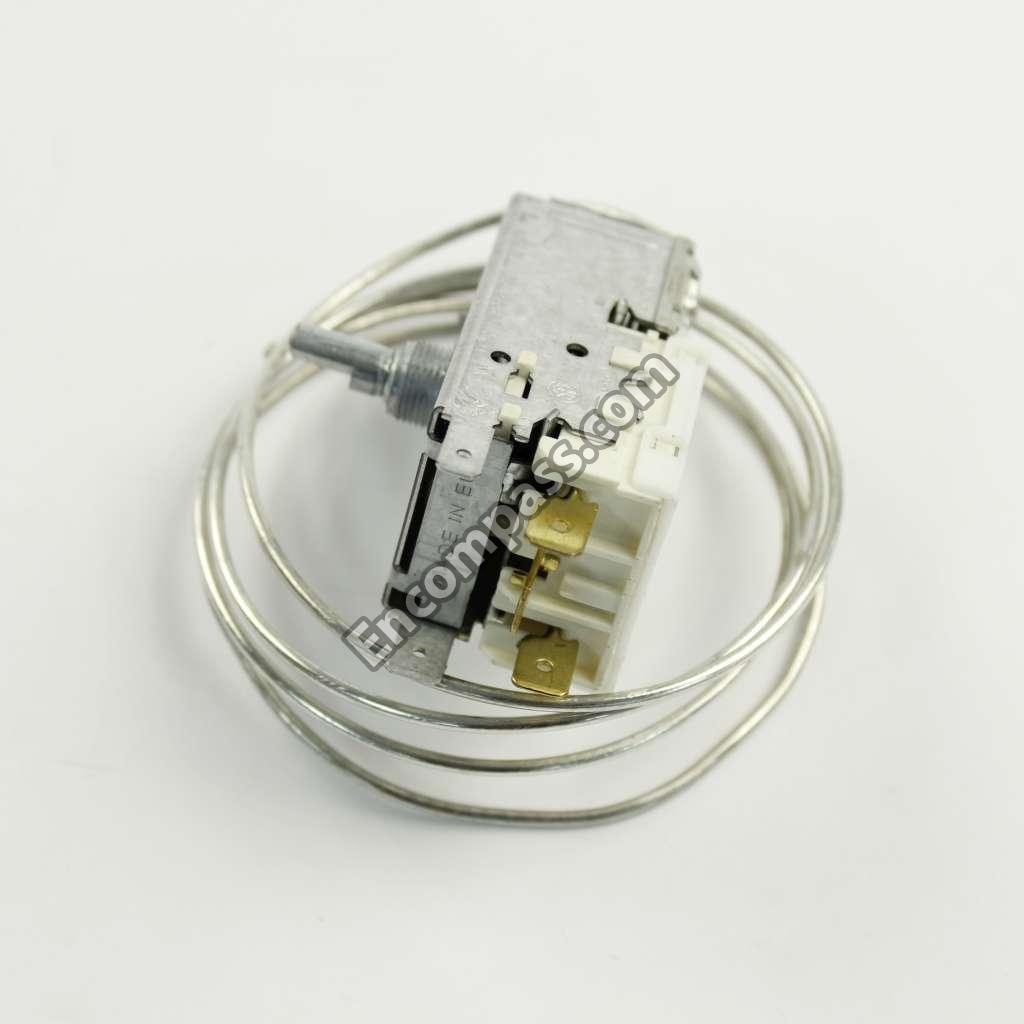

THERMOSTAT (K59 L2680 _ RANCO) |
|
|
THERMOSTAT KNOB ASS. PRINTED (BEKO_UK) |
|
|
TIMER (TMDJ710ZE9) 115V_60HZ |
|
|
TOP HINGE ASSEMBLY |
|
|
TOP HINGE HOUSING. |
|
|
TRUNK CLAMP |
|
|
UPPER DOOR BROW HINGE COVER_RIGHT |
|
|
UPPER DOOR STOPER(LINE 2001) |
|
|
UPPER HINGE COVER-LEFT_RAL9006MAT |
|
|
VACUUMING TUBE (__L__ SHAPED)_ |
|
|
WHEEL |
|
|
WHEEL PIN |
|
|
WIRE SHELF |
|
|
WIRE SHELF (FOR BOTTLE). |
