Manufacturer
Blomberg
Model Number
8700000667
Description
24 Inch Freestanding Bottom Mount Refrigerator Brf
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
4_20 PY HB ZN SCREW. |
|
|
60CM COMPRESSOR TRAVERS GROUP |
|
|
60CMDRAWER_COVER165MM_GRUNDIG_T215_3_5 |
|
|
60CMDRAWER_COVER180MM_GRUNDIG_T215_3_5 |
|
|
ADJUSTABLE_FOOT_ASSY_ASEAN_RAL7039 |
|
|
ASEAN K60340_375 LARGE DRAWER BODY 180MM |
|
|
ASEAN K60340_375 SMALL DRAWER BODY 180MM |
|
|
ASEAN_60CM_100MM_DOOR_SHELVES_GRUNDIG |
|
|
ASEAN_K60340N_K60375N_DRAWER_BODY_165MM |
|
|
ASEAN_REED_SENSOR_FRONT_COVER_HIPS |
|
|

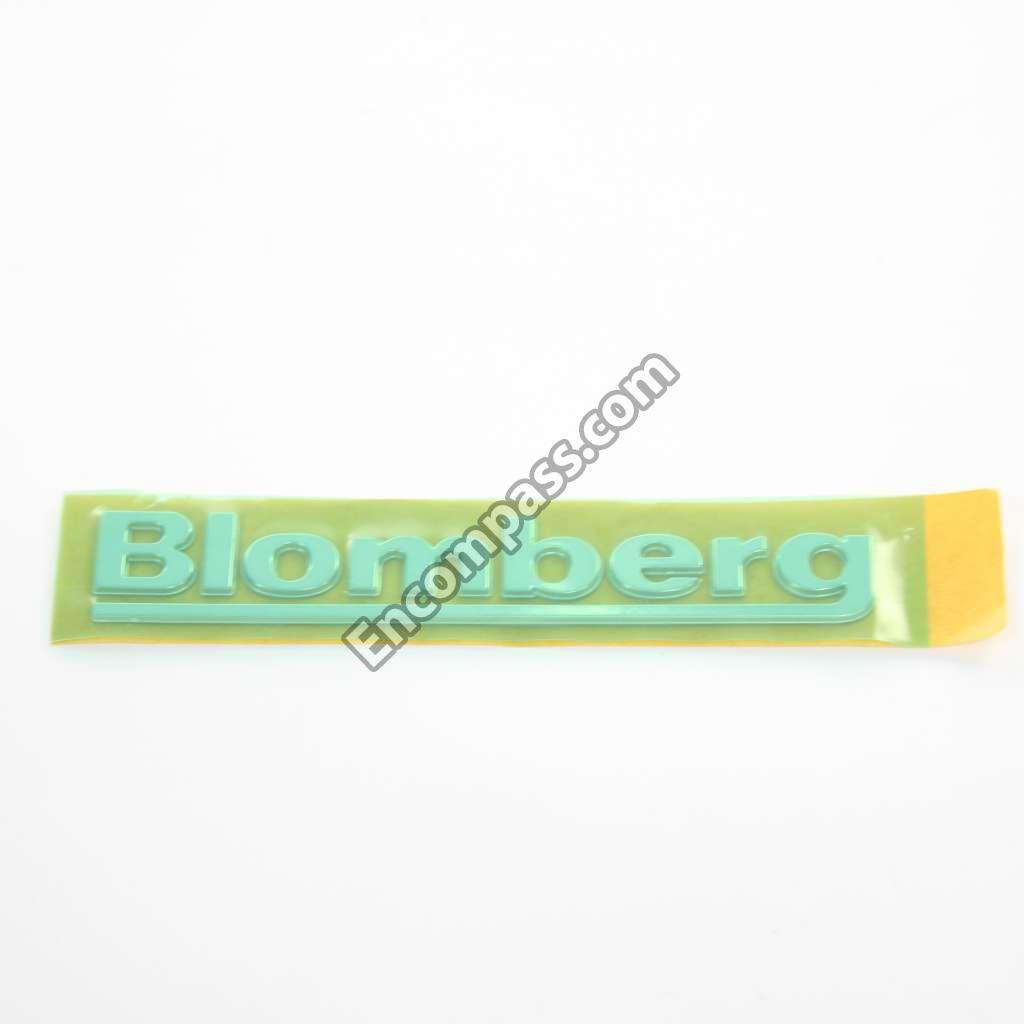

BLOMBERG (SINGLE LETTER LOGO) |
|
|
BOTTOM HINGLE ASSY ASEAN |
|
|
COMPRESSOR_RUBBER_NON_INVERTER_ASSY |
|
|
COMPRESSOR_TRAVERS_LEVELING_PART |
|
|

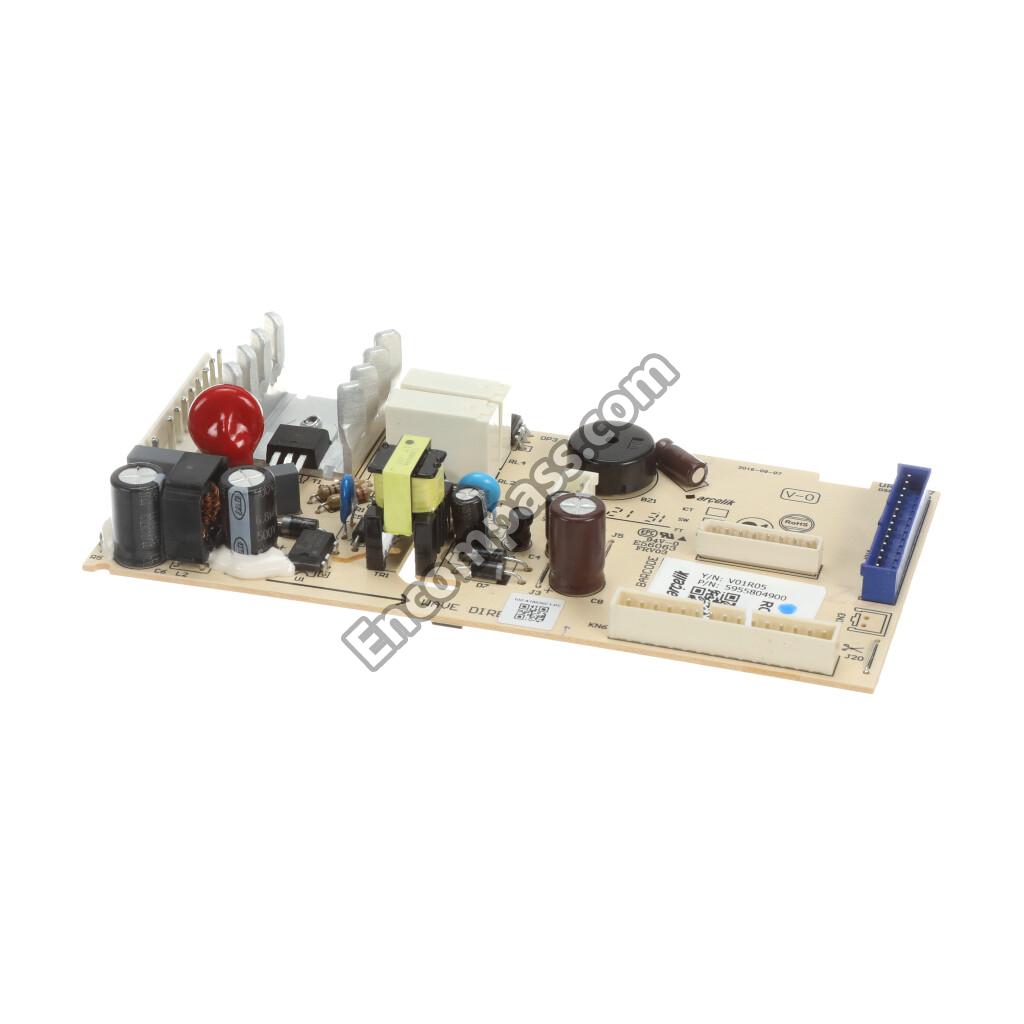

CONTROL CARD U-1 |
|
|
CRISPER_TOP_GLASS_FRNT_PRFLE_D60_ARCP1 |
|
|
D60340N_360N_BIOFRESH_CRISPER_BODY |
|
|
DISPLAY CARD GROUP |
|
|
DOOR BOTTOM CAP HINGE BEARING |
|
|
EGGCUP 6_T215-3-5 |
|
|
EMBRACO INVERTER ASSY VEMC9C_115V/60HZ_F |
|
|
EVA COVER STR PLUG |
|
|
EVA FAN ASSY 115V_115MM |
|
|
EVAP TRAY_EMBRACO |
|
|
EVAP. COVER CAP WHITE |
|
|
EVAPORATOR FRONT COVER ASSY USA |
|
|
EVAPORATOR_ISITICI_K60_120V_89W |
|
|
FAN MOTOR_BLDC_FDQC18AL4C_PANASONIC_MLX |
|
|
FF_LIGHTINING_ASSY LEFT |
|
|
FLAGE_HOLE_PLUGI_RAL7039 |
|
|
FLAGE_HOLE_PLUG_ARCP1 |
|
|
FRZ FIN SENSOR_1700 MM_BLACK |
|
|
GLASS SHELF BACK PROFILE FF D60 |
|
|
GLASS SHELF BACK PROFILE FRZ D60 |
|
|
GLASS TOP CRISPER D60 |
|
|
GLASS_SHELF_FRONT_PROFILE_FF_D60_ARCP1 |
|
|
HEATER K60400 |
|
|
HINGE_STOPPER_STEEL |
|
|
ICE CUBE TRAY |
|
|
ILLUMINATION_COVER_SHORT |
|
|
K60 CRISPER BODY UNILLUMINATED |
|
|
K60340N_FF_DOOR_ASSY_STATIONARY_SHELF_FH |
|
|
K60_340_FF_SLOT_IN_GASKET_LIGHT GRAY_HG |
|
|
K60_FRZ_DOOR_ASSY_SIDE_HNDL_PEARL STL |
|
|
LED_LAMP_CARD_SHORT |
|
|
MIDDLE HINGE ASSY ASEAN AUTO CLOSE |
|
|
MIDDLE HINGE HOLE PLUG ARCP1 |
|
|
PANNEL HOLE PLUG RAL7039 |
|
|
PCB COVER ASSY |
|
|
PIESA_FIXARE_SENZOR_HIPS_NATURAL |
|
|
PIPE IMMERSION VCC |
|
|
POWER CORD_USA_2150 MM |
|
|
PRINTED GLASS SHELF T60390N FRZ ASSY |
|
|
PRINTED GLASS SHELF T60390N FRZ NAR ASSY |
|
|
PRINTED_CRISPED_COVER_GR_110MM_T215_PRNT |
|
|
PRINTED_GLASS_SHELF_D60_FF_ASSY |
|
|
PRINTED_SQUARE_FAN_COVER_COOLING_BLOMBE |
|
|
RAIL ASSY_60CM_CRIS_550_LEFT_NO_DAMPER |
|
|
RAIL ASSY_60CM_CRIS_550_RIGHT_NO_DAMPER |
|
|
RAIL_ASSY_ASEAN_550MM_LEFT_NO_DAMPER |
|
|
RAIL_ASSY_ASEAN_550MM_RIGHT_NO_DAMPER |
|
|
REED SWITCH |
|
|
RUBBER HOLDER |
|
|
SCREW 3.5_19 |
|
|
SCREW COMPRESSOR |
|
|
SCREW(M5X18) |
|
|
SEALING_GASKET_KOMBI_K60_T60 |
|
|
T60_K60_FRZ_SLOT_IN_GASKET_LIGHT GRAY_HG |
|
|
TOP_HINGE_ASSY_ASEAN_SPOT_WELDING |
|
|
TOP_HINGE_COVER_STATIC_ASEAN_RAL7039 |
|
|
VCC COMPRESSOR (VEMC9C_R600_115-60_EMBRA |
|
|
VCC INVERTER |
|
|
WATER_DRAINAGE_ELBOW |
