Manufacturer
Bertazzoni
Model Number
D36600X
Description
36-inch Drop-in Gas Cooktop With 6 Sealed Burners
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCUMULATOR 4U |
|
|
ACCUMULATOR 6U |
|
|
ADAPTER FOR WOK BURNER PAN SUPPORT |
|
|
BRIDLE FOR FIXING GAS VALVES |
|
|

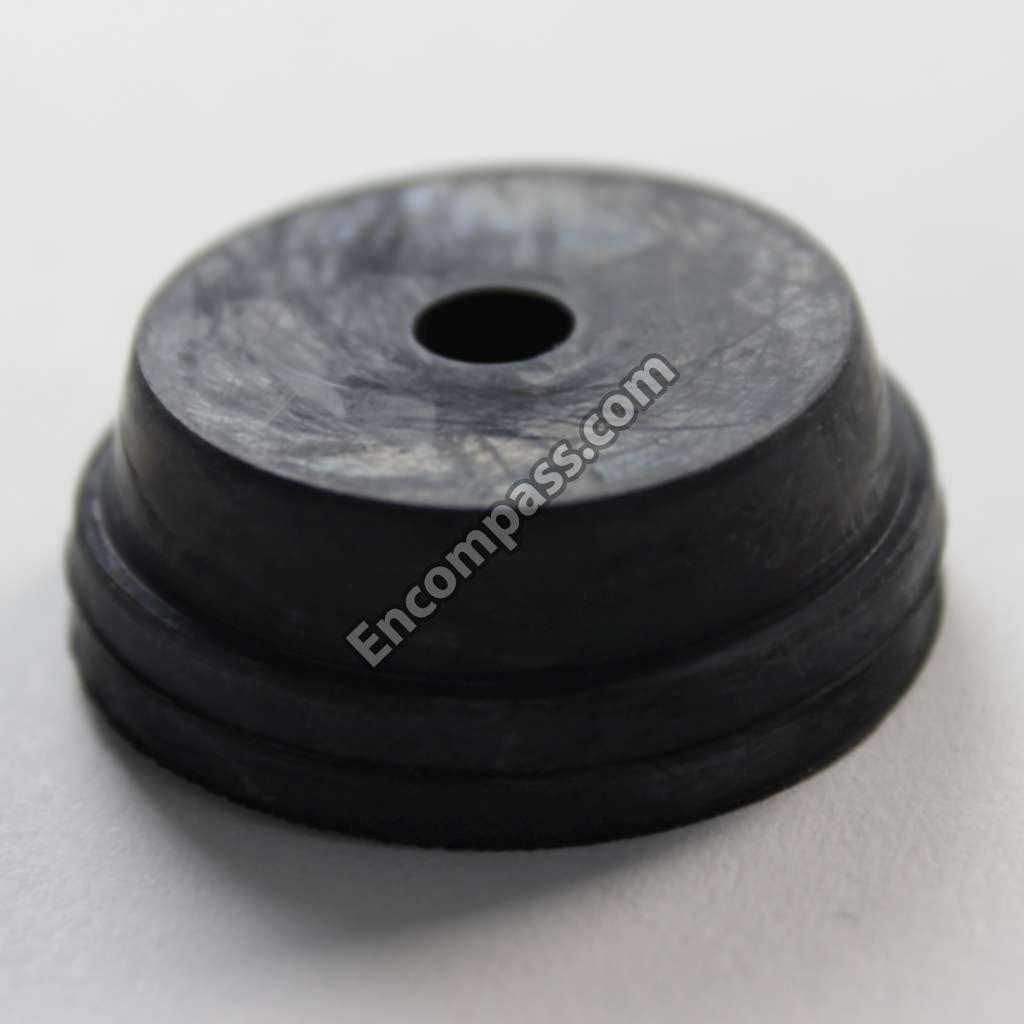

BUMPER FOR PAN SUPPORT |
|
|
CAST IRON PAN SUPPORT 1 BURNER |
|
|
CAST IRON PAN SUPPORT 2 BURNERS |
|
|
COVER FOR MEDIUM BURNER |
|
|
COVER FOR RAPID BURNER |
|
|
COVER FOR SMALL FLAME SPREADER |
|
|
COVER IN FOR DUAL BURNER FLAME SPREADER |
|
|
COVER OUT FOR DUAL BURNER FLAME SPREADER |
|
|
DUAL BURNER |
|
|

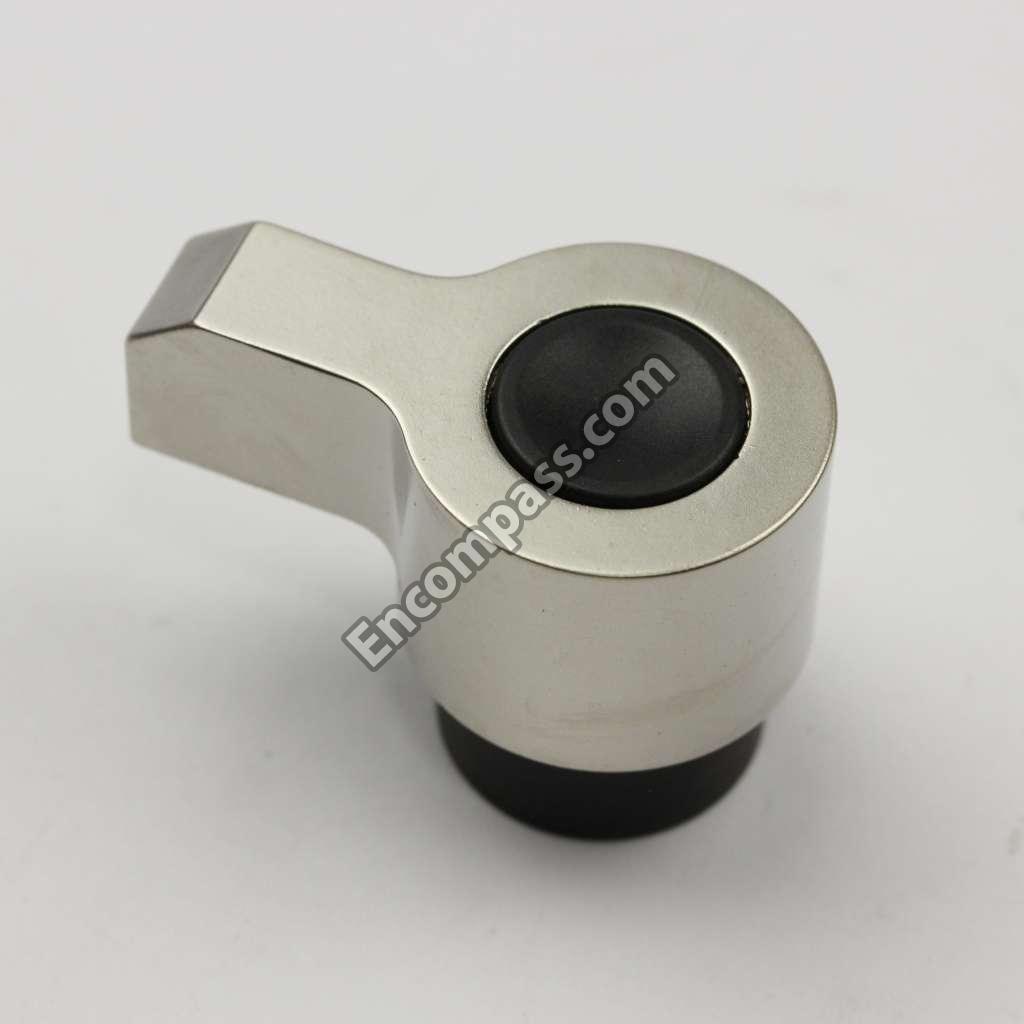

ELECTRIC KNOB |
|
|
FIXING HOOK |
|
|
GAS COLLECTOR |
|
|

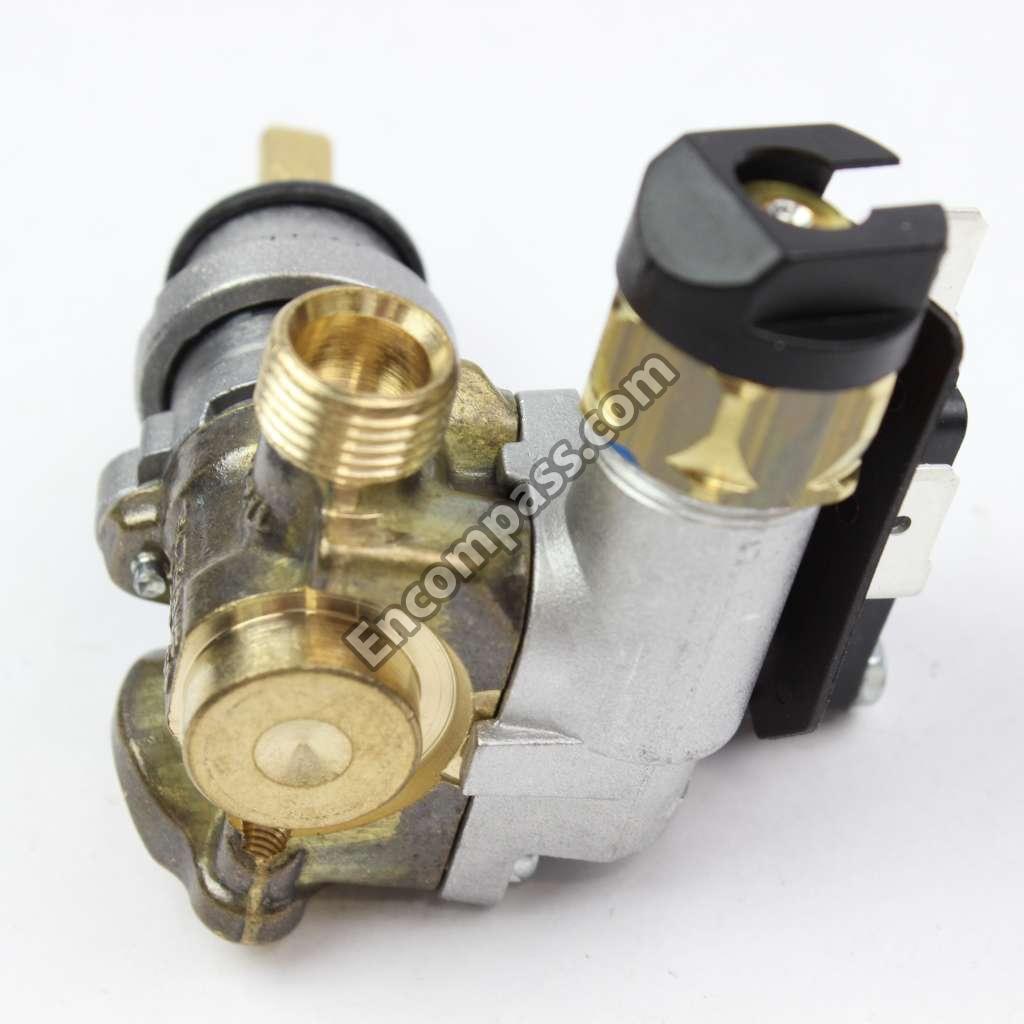

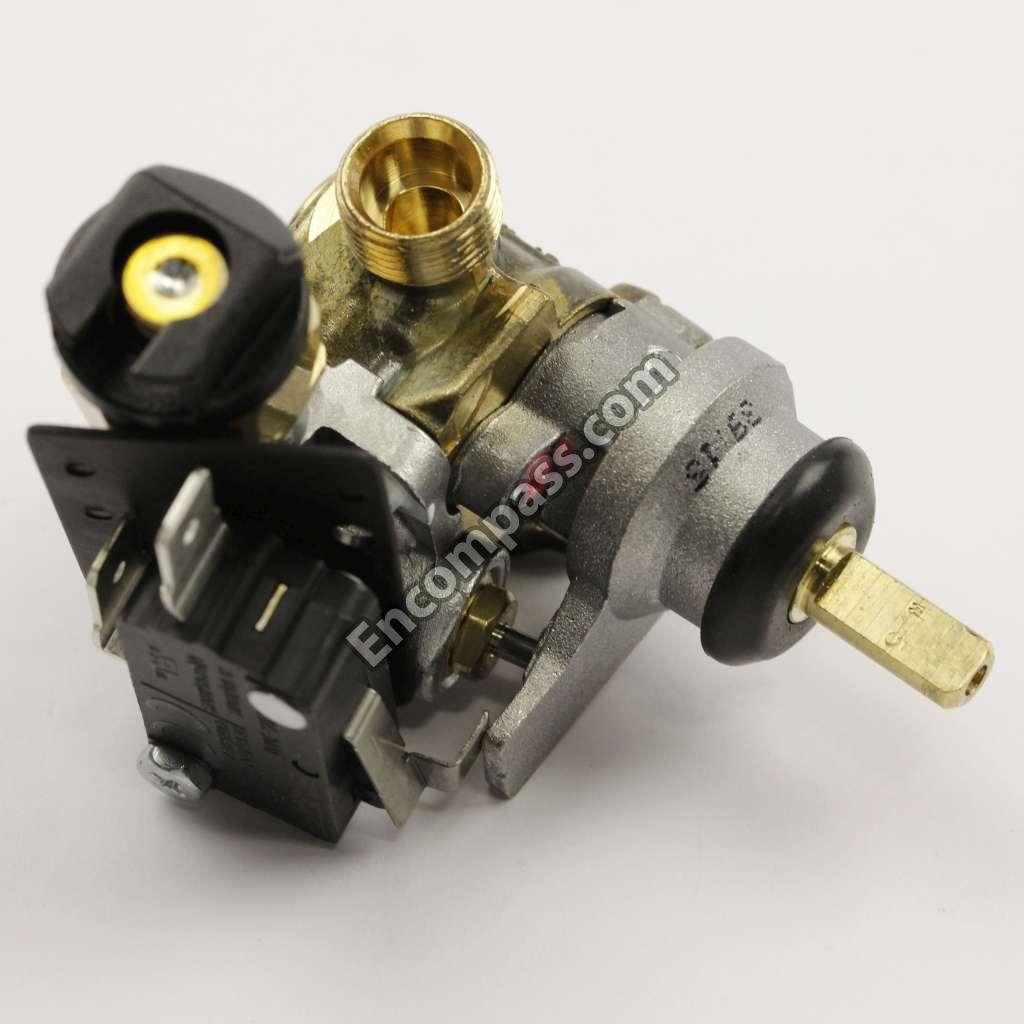

GAS VALVE BY-PASS029 +MICRO FOR IGNITION |
|
|
GAS VALVE BY-PASS037 +MICRO FOR IGNITION |
|
|
GAS VALVE BY-PASS058 +MICRO FOR IGNITION |
|
|
GAS VALVE BY-PASS073 +MICRO FOR IGNITION |
|
|
GASKET |
|
|
LOAD BEARING BOTTOM |
|
|
MEDIUM FLAME SPREADER |
|
|
PART FOR BURNER FIXING |
|
|
PART FOR DUAL WOK AND SEMI RAPID BURNERS |
|
|
RAPID BURNER |
|
|
RAPID FLAME SPREADER |
|
|
SEMI RAPID BURNER |
|
|
SIMMER PLATE |
|
|
SMALL BURNER |
|
|
SMALL FLAME SPREADER |
|
|
SPARK PLUG 350MM |
|
|
SPARK PLUG 700MM |
|
|
SPARK PLUG FOR DUAL BURNER |
|
|
SPRING FOR SPARK PLUG |
|
|
TERMINAL SEPARATOR |
|
|

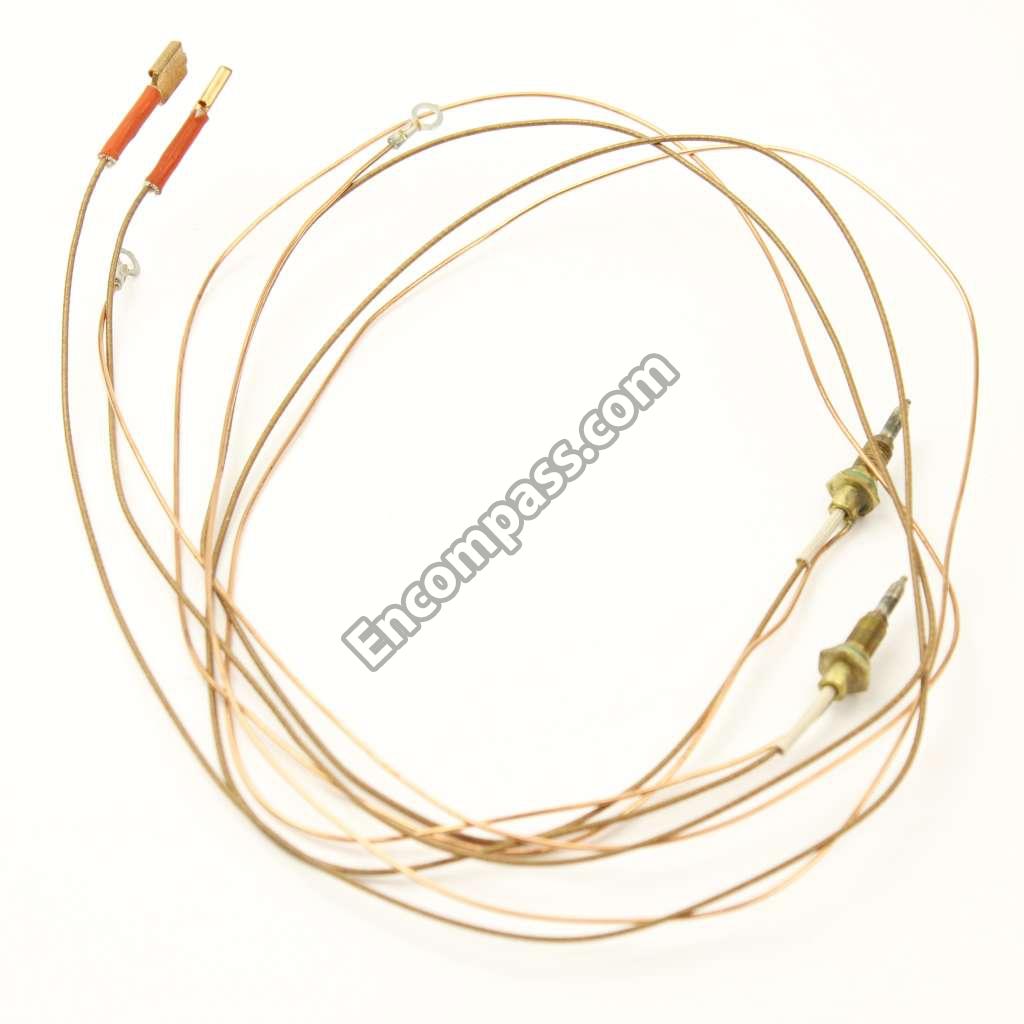

TERMOCOUPLE MM900 |
|
|
TERMOCOUPLE ULTRA-RAPID BURNER |
|
|
TUBE FOR CENTRAL BURNER |
|
|
TUBE FOR EXTERNAL DUAL BURNER |
|
|
TUBE FOR IN.DUAL BURNER AND REAR LEFT |
|
|
TUBE FOR LEFT BURNER |
|
|
TUBE FOR REAR RIGHT BURNER |
|
|
TUBE FOR SEMIRAPID BURNER RIGHT |
|
|
ULTRA RAPID FLAME SPREADER |
|
|
WORK TABLE |
