Manufacturer
Bertazzoni
Model Number
V24400X
Description
24-inch Gas Cooktop With 4 Sealed Aluminum Burners
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCUMULATOR 4U |
|
|
ADAPTER FOR WOK BURNER PAN SUPPORT |
|
|
BRIDLE FOR FIXING GAS VALVES |
|
|
BUMPER EQUIPMENT |
|
|
BUMPER FOR PAN SUPPORT |
|
|
CAST IRON GRID P6D4 |
|
|
CAST IRON PAN SUPPORT 2 BURNERS |
|
|
CIRCUIT DIAGRAM |
|
|
COVER FOR MEDIUM BURNER |
|
|
COVER FOR SMALL FLAME SPREADER |
|
|
COVER IN FOR ULTRA RAPID FLAME SPREADER |
|
|
COVER OUT FOR ULTRA RAPID FLAME SPREADER |
|
|
DOUBLE CARTER P6 |
|
|
FIXING HOOK |
|
|
GAS COLLECTOR P640/P680 |
|
|
GAS VALVE BY PASS 029+MICRO FOR IGNITION |
|
|
GAS VALVE BY PASS 037+MICRO FOR IGNITION |
|
|
GAS VALVE BY PASS 073+MICRO FOR IGNITION |
|
|
GASKET |
|
|
KNOB |
|
|
LOAD BEARING BOTTOM |
|
|
MEDIUM FLAME SPREADER |
|
|
REDUCTION GRID |
|
|
SCREW 5MAX10 TCT |
|
|
SEMI RAPID BURNER |
|
|
SMALL BURNER |
|
|
SMALL FLAME SPREADER |
|
|
SPARK PLUG 350MM |
|
|
SPARK PLUG FOR ULTRA RAPID BURNER |
|
|
SPRING FOR SPARK PLUG |
|
|
TERMINAL SEPARATOR |
|
|

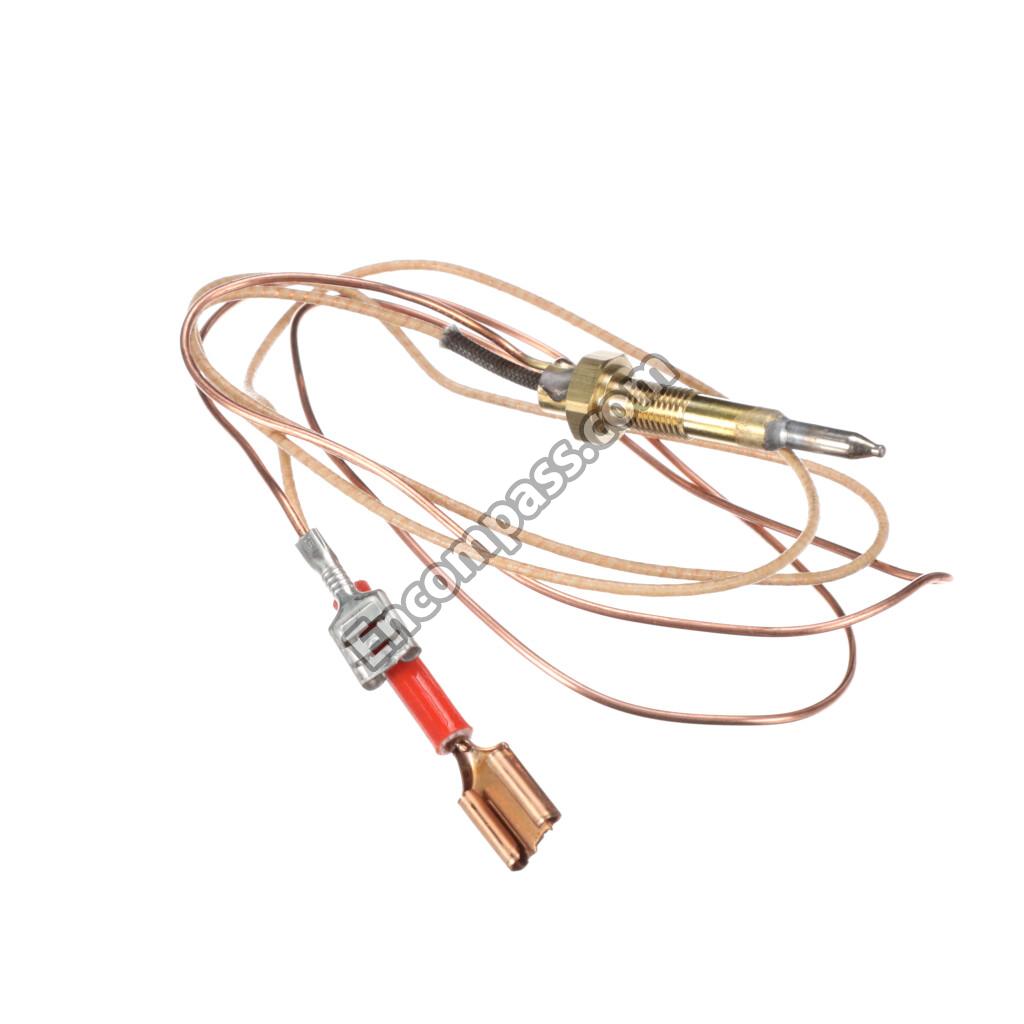

TERMOCOUPLE 600MM |
|
|
THERMOCOUPLE MM300 |
|
|
THERMOCOUPLE MM600 |
|
|
TUBE FOR LEFT BACK BURNER |
|
|
TUBE FOR SEMI-RAPID BURNER |
|
|
TUBE FOR SMALL BURNER |
|
|
TUBE FOR WOK BURNER |
|
|
ULTRA RAPID BURNER |
|
|
ULTRA RAPID FLAME SPREADER |
|
|

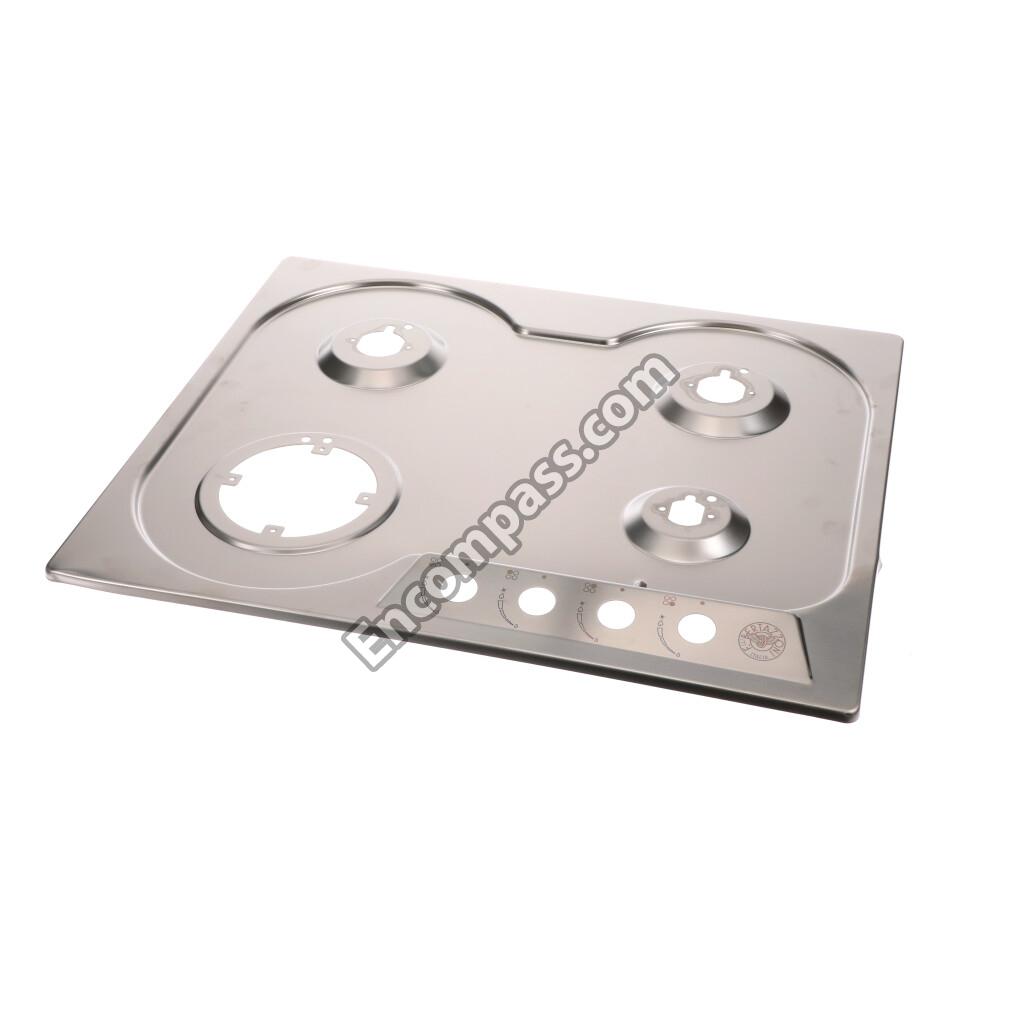

WORK TABLE |
