Manufacturer
Bowers &Wilkins
Model Number
702SIGNATURE
Description
Tower Speaker
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCESSORY PACK SPIKES RUBBER FEET CLR X4 |
|
|
ALLEN KEY 5MM A/F |
|
|
BAFFLE PROTECTION COVER CM10 |
|
|
BAG PARAFOAM 620 X 1300 |
|
|
BASS UNIT 6-INCH 702 S2 |
|
|
CARD CORNER 683 PACKAGING |
|
|
CARTON 702 S2 |
|
|
CM10 S1/S2 - PLINTH BLACK |
|
|
CM10 S1/S2 - PLINTH WHITE |
|
|
CM10 TWEETER PE PROTECTOR WHITE |
|
|
DECOUPLER - FRONT CMS3 6IN |
|
|
FOAM BUNG 2 PART (55OD- 32ID/OD)X45-50MM |
|
|
GASKET 6-INCH CHASSIS (GROMMET CLEARANCE) |
|
|
GRILLE ASSEMBLY CM10 - S1/S2 BLACK N50 |
|
|
GRILLE ASSEMBLY CM10 - S1/S2 GREY N50 |
|
|
HF BAFF TUBE - CM S3 |
|
|
HF GRILLE ASSEMBLY BLACK 800 NG |
|
|
HF GRILLE ASSEMBLY SATIN CHROME 800 NG |
|
|
HF MOTOR SYSTEM TOP MOUNT CM S3 |
|
|
ISOLATOR HF CM S3 |
|
|
MF CENTRALISER NUT |
|
|

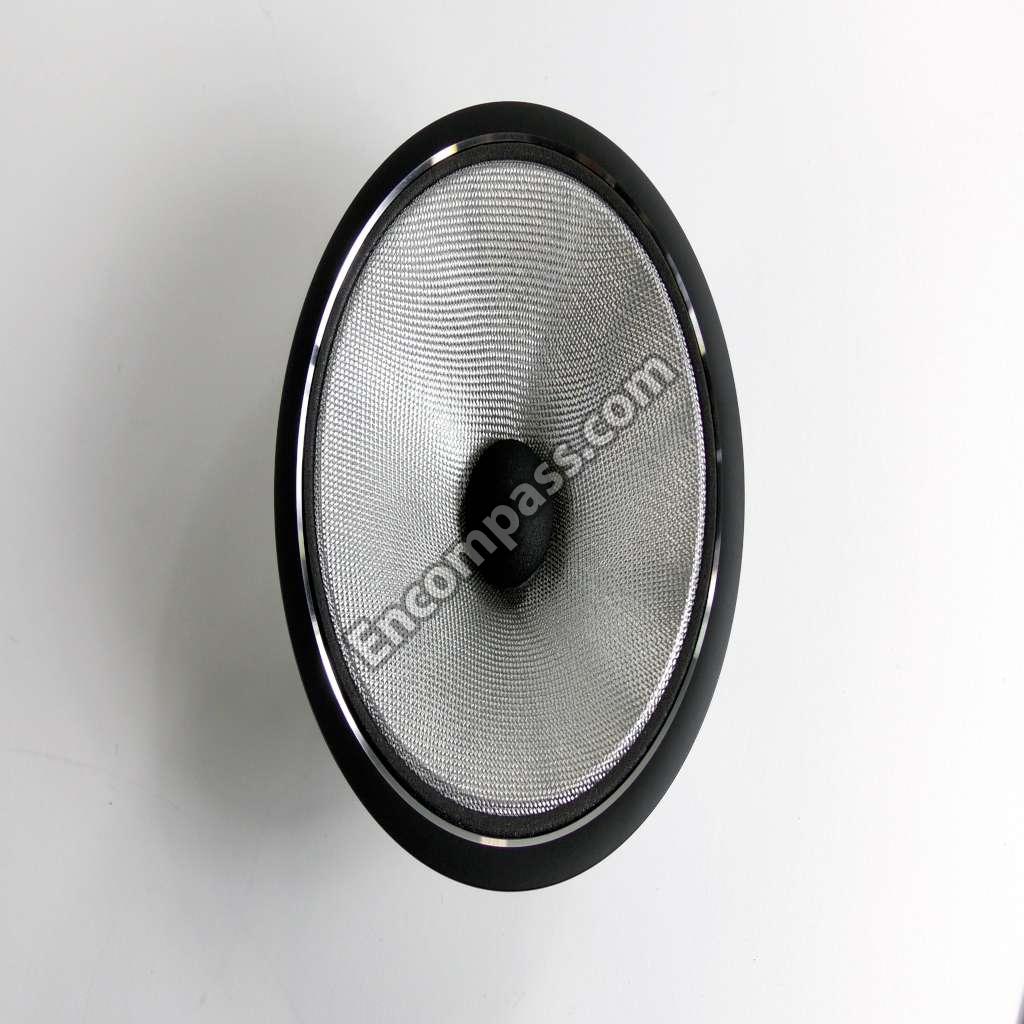

MID 6-INCH DARK TRIM 702/703 S2 - SPARES ONLY |
|
|
MID 6-INCH LIGHT TRIM 702/703 S2 - SPARES ONLY |
|
|
MIDRANGE FIXING ASSEMBLY CM10 S3 |
|
|
MOUNTING HF - CM S3 - BLACK |
|
|
MOUNTING HF - CM S3 - SATIN CHROME |
|
|
NUT - DECOUPLER - FRONT CMS3 |
|
|
PARAFOAM SHEET PROTECTION 0.7X319X1110 |
|
|
PLINTH CARD WRAP CM10 |
|
|
POLY BOTTOM CM10 S3 |
|
|
POLY PLINTH PROTECTION CM10 |
|
|
POLY TOP CM10 S3 |
|
|
PORT TUBE INC FLARE 50X100MM ABS BLACK |
|
|
T/RING ASSY LF 6-INCH CM S3 DARK |
|
|
T/RING ASSY LF 6-INCH CM S3 LIGHT |
|
|
TERM TRAY/PORT 50MM NICKEL 6 MNTG STUDS |
|
|
TWEETER BODY ASSEMBLY BLACK CM S3 |
|
|
TWEETER BODY ASSEMBLY WHITE CM S3 |
|
|
TWEETER SPIGOT |
|
|

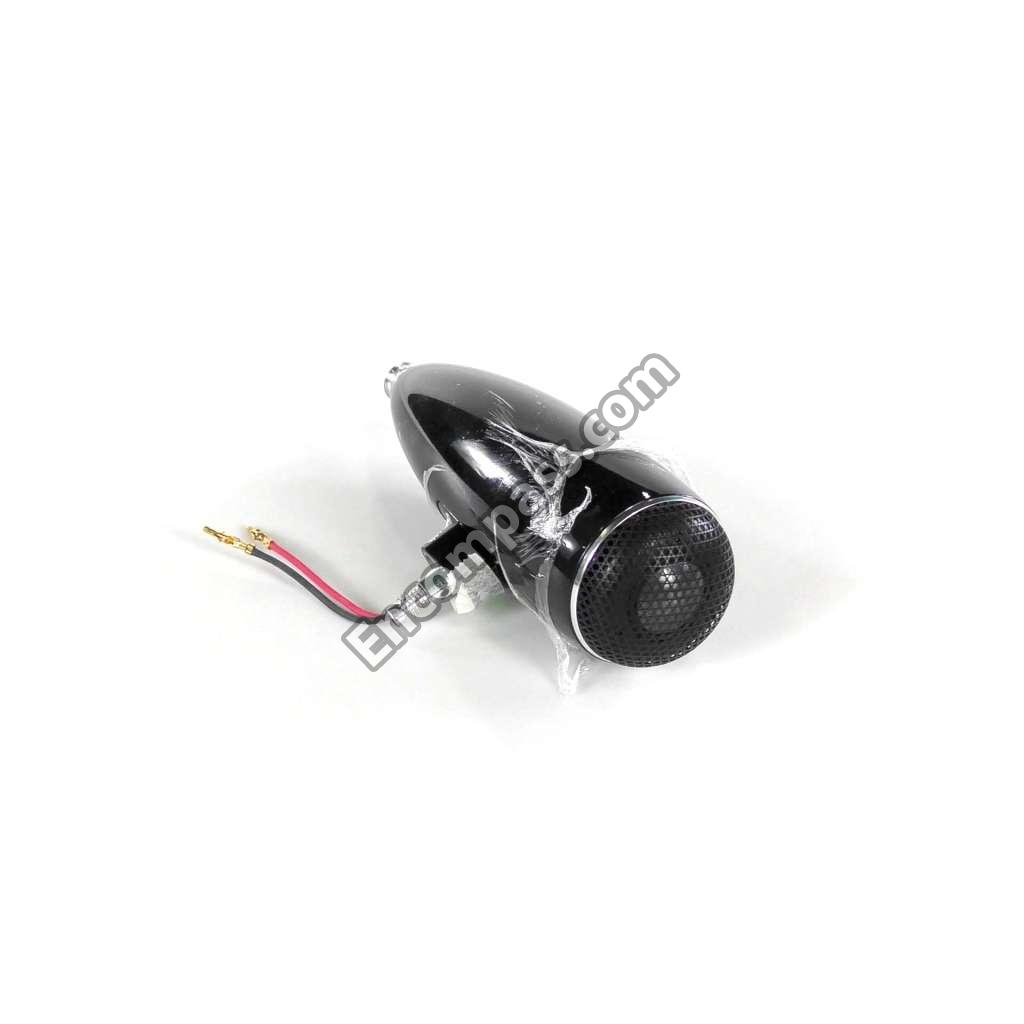

TWEETER TOP MOUNTED BLACK 700 S2 |
|
|
TWEETER TOP MOUNTED WHITE CM S3 |
|
|
X-OVER HF/MF- 702 S2 |
|
|
X-OVER LF - 702 S2 |
