Manufacturer
Bowers &Wilkins
Model Number
802D4
Description
801 Series Diamond Tower Speaker
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
800 D3 TWEETER GRILLE SILVER |
|
|
802 PROTECTIVE PACKING FOAM INSERT |
|
|
803 FP CLOTH BAG (2015) |
|
|
803/4/5/HTM GREY ACC CARTON (2014) |
|
|
ACCESSORY P/FITMENT 801/802/803 |
|
|
ACCESSORY PACK 800/802 D4 |
|
|
BAG TWEETER PROTECTION D4 |
|
|
BASE FOAM ASSEMBLY 802 D4 |
|
|

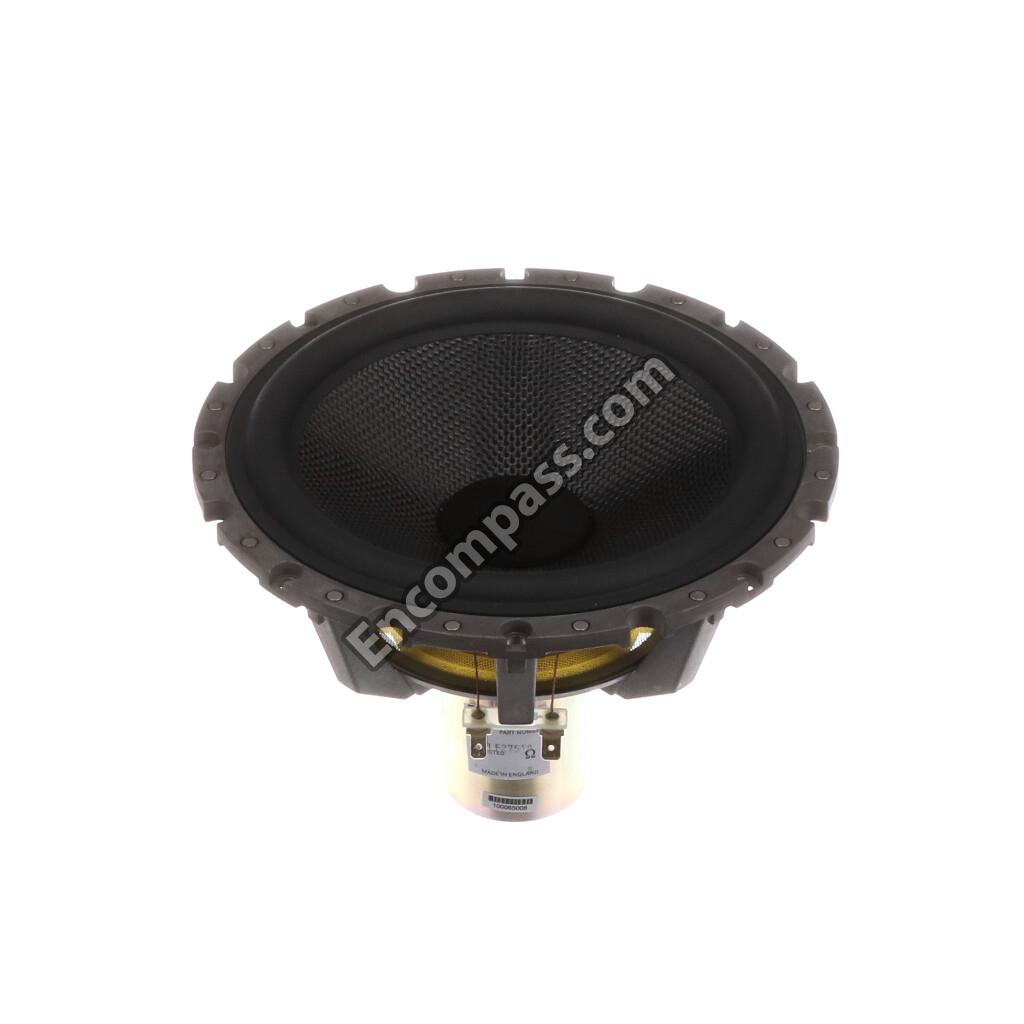

BASS UNIT 8" CARBON SANDWICH - D4 |
|
|
CAB TOP ASSY 802 LEATHER BLK GRAIN 7198 |
|
|
CAB TOP ASSY 802 LEATHER GREY GRAIN 7197 |
|
|
CARTON TOP - 800/802 2016 |
|
|
CARTON WRAP 802 D4 |
|
|
CONNECTOR BRACKET 9 WAY |
|
|
END CAP ASSEMBLY DARK 6 INCH HEAD D4 |
|
|
END CAP ASSEMBLY LIGHT 6 INCH HEAD D4 |
|
|
EXTRUSION SPINE ANTHRACITE - 802 D4 |
|
|
EXTRUSION SPINE LIGHT TINT - 802 D4 |
|
|
FLOOR SPIKE ASSEMBLY 800 NG |
|
|
GASKET CABINET TOP 802 D4 |
|
|
GASKET CASTING TO TOP 802 D4 |
|
|
GASKET CHASSIS 8 INCH |
|
|
GASKET TUBE TO CABINET - 802D3 |
|
|
GENERIC WARRANTY LEAFLET 5YR |
|
|
GRILLE / CARTON PACK BLACK - 802 D4 |
|
|
GRILLE / CARTON PACK GREY - 802 D4 |
|
|
GRILLE BOX 802 D4 |
|
|
GROMMET FLUSH WHITE 600 S5 |
|
|
HARNESS LINK C103 SPADE TO SPADE |
|
|
HEAD 6" GLOSS BLACK |
|
|
HEAD 6" SILVER |
|
|
HEAD 6" WHITE |
|
|
HF BAFF TUBE - 800 D4 |
|
|
HF GRILLE ASSY BLACK 800 S3/700 S2 |
|
|
HF MOTOR SYSTEM - D4 |
|
|

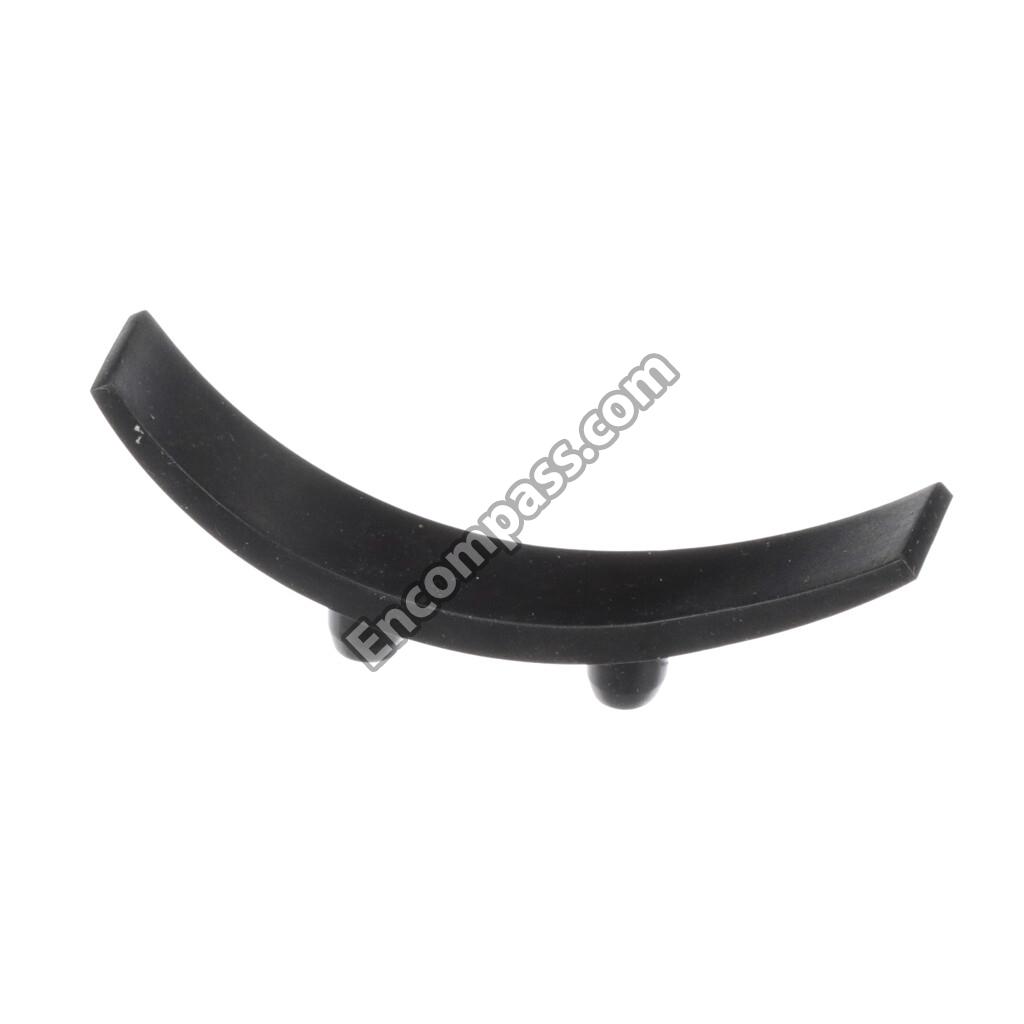

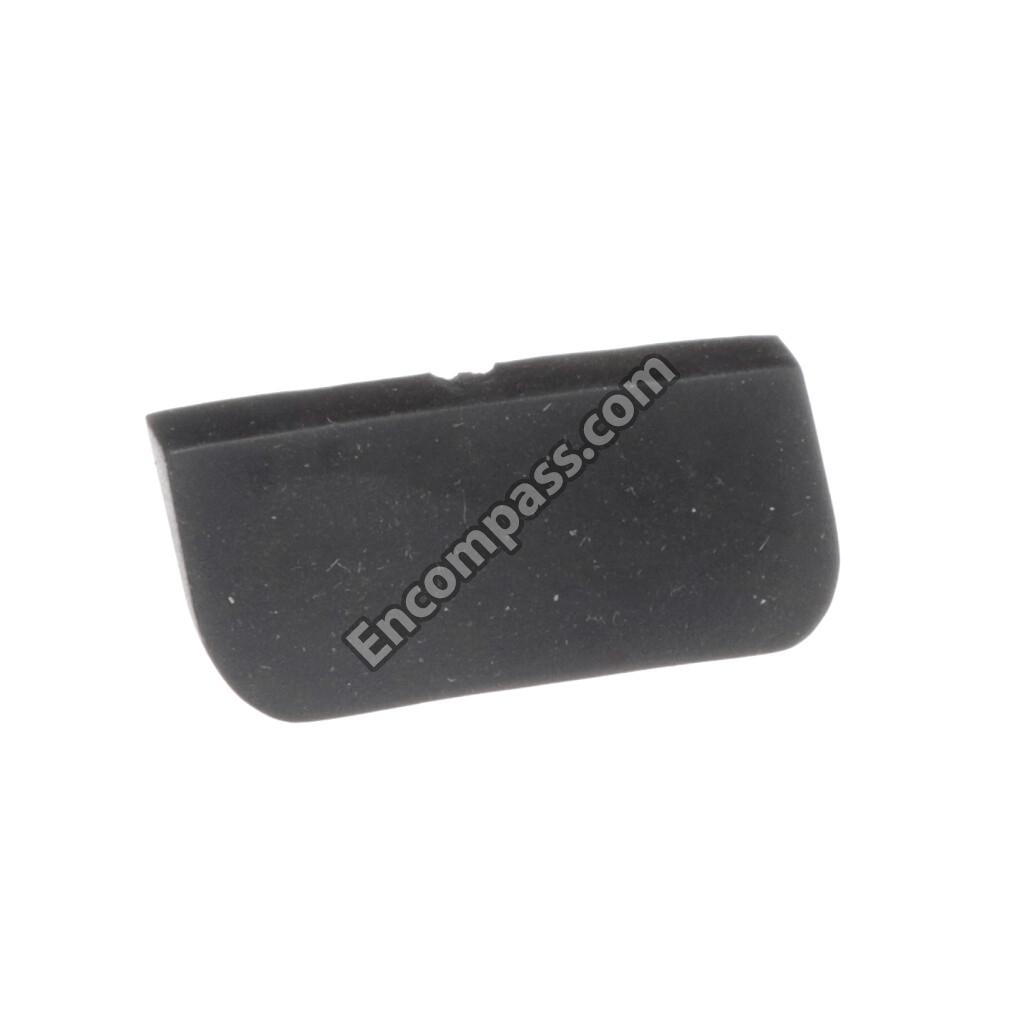

ISOLATOR PAD FRONT - CAB TO LARGE HEAD |
|
|
ISOLATOR PAD LEFT - CAB TO LARGE HEAD |
|
|
ISOLATOR PAD REAR - CAB TO LARGE HEAD |
|
|
ISOLATOR PAD RIGHT - CAB TO LARGE HEAD |
|
|
LF GRILLE 8" BLK 802/HTM81 D4 - SPARES ONLY |
|
|
LF GRILLE 8" GREY 802/HTM81 D4 - SPARES ONLY |
|
|
LOCK NUT - C103 COPPER - AU 0.1 M |
|
|
M6X50 BUTTON FLANGE HD HEX IN Z/C |
|
|
MANUAL 801D4/802D4/803D4 |
|
|
MF CENTRALISER NUT |
|
|
MF GRILLE 6" BLACK 801/802 D4 - SPARES ONLY |
|
|
MF GRILLE 6" GREY 801/802 D4 - SPARES ONLY |
|
|
MF UNIT 6 INCH D4 ANTHRACITE - SPARES ONLY |
|
|
MF UNIT 6 INCH D4 LIGHT TINT - SPARES ONLY |
|
|
MICRO FIBRE CLEANING CLOTH 800 SERIES |
|
|
PAIR PALLET 800/802 |
|
|
PLINTH 802 D4 BLACK - SPARES ONLY |
|
|
PLINTH 802 D4 SILV - SPARES ONLY |
|
|
PLINTH SPIKE CAP DARK 800 D4 |
|
|
PLINTH SPIKE CAP GREY 800 D4 |
|
|
PORT FACIA GASKET SCR 100MM - 801/802 D4 |
|
|
PORT FACIA SCREWED 100MM - 801/802 D4 |
|
|
PORT FLARE INNER 100MM |
|
|
PORT TUBE 100MM DIA 323MM LONG |
|
|
RAMP EPP 800/2 (MF) |
|
|
RAMP INSERT EPP 800/2/3 (MF) |
|
|
REGISTRATION CARD - 2020 |
|
|
RES 1R0 1% POWERTRON |
|
|
RES 3R0 1% POWERTRON |
|
|
RETAINING PLATE LARGE HEAD - 800 D4 |
|
|
RETAINING PLATE SMALL - 800 D4 |
|
|
ROLLER ASSEMBLY 30X28 WHEEL 44 H FIXED |
|
|
ROLLER ASSEMBLY 30X28 WHEEL 44 H ROTATE |
|
|
RUBBER FOOT SPIKE 800 D4 SUS303 BRIGHT N |
|
|
SCR M4X16 CSK POZI HD Z/C |
|
|
SCR M4X30 CSK 6-SPLINE BLACK |
|
|

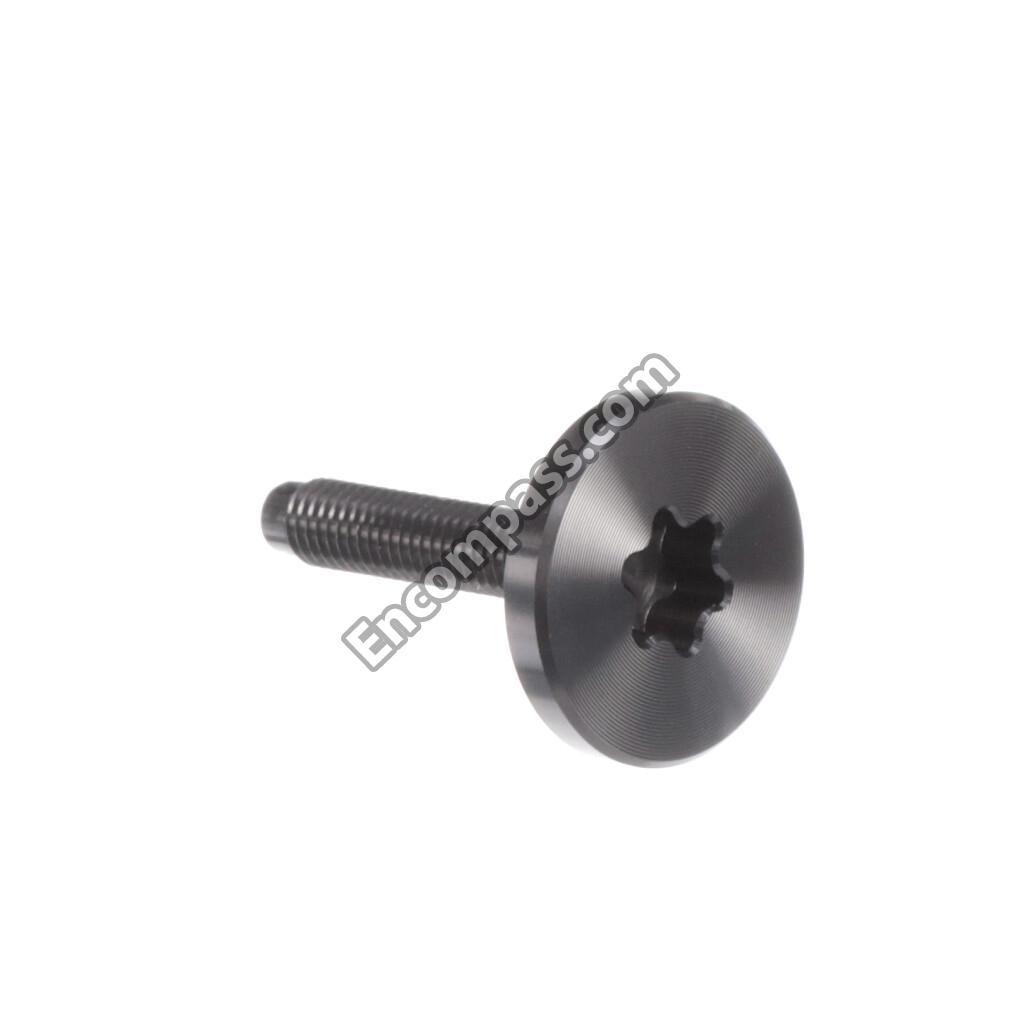

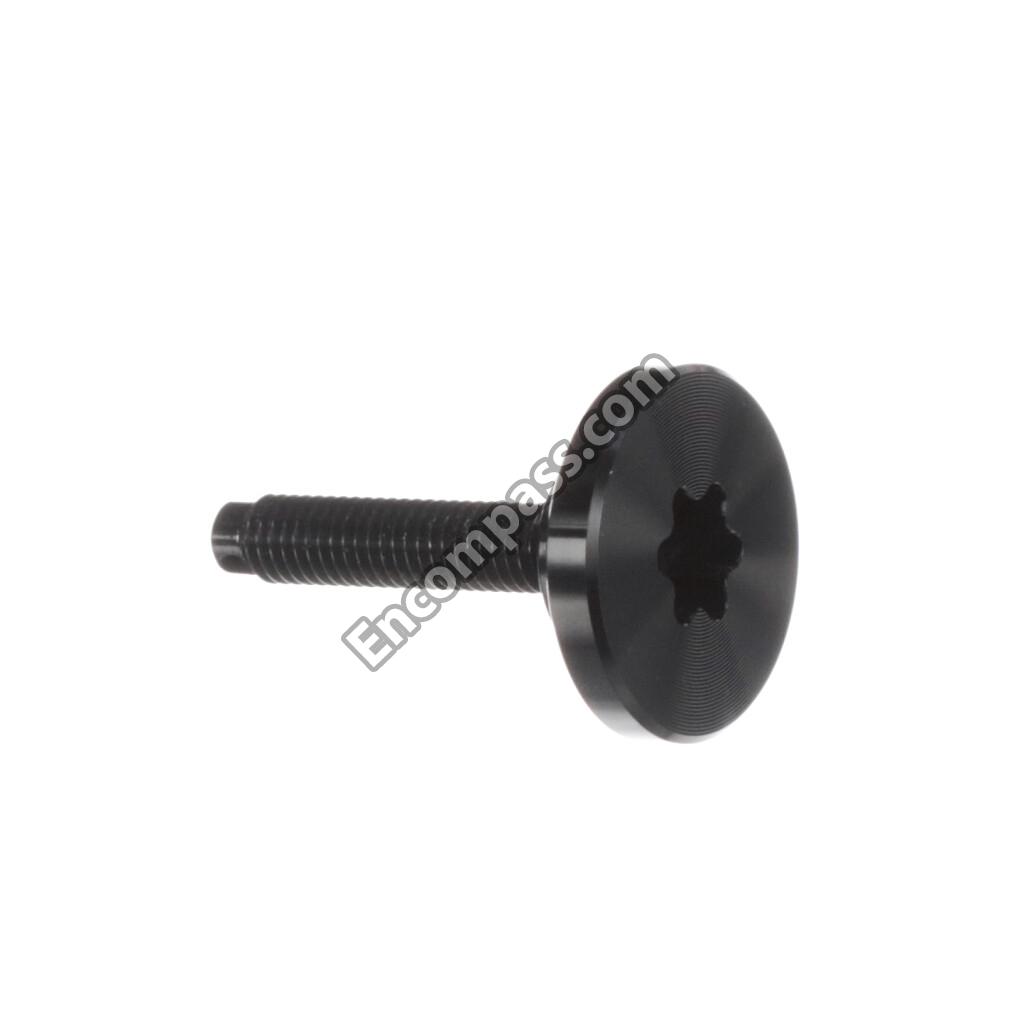

SCR M5X10 TORX B/H STEEL Z/IRON BLACK |
|
|
SCR M5X25 SOC CAP BKPH |
|
|
SCR M6 X 12 BUTTON HD SOC Z/C |
|
|
SCR M6X12 CSK POZI BKPH |
|
|
SCR M8X30 SOC HEAD CAP TRIVALENT ZINC & |
|
|
SCREW M4X20 CSK SKT CR3 Z/C |
|
|
SCREW M4X8 BUTTON HEAD Z/B |
|
|
SCREW M4X8 CSK TORX Z/C |
|
|

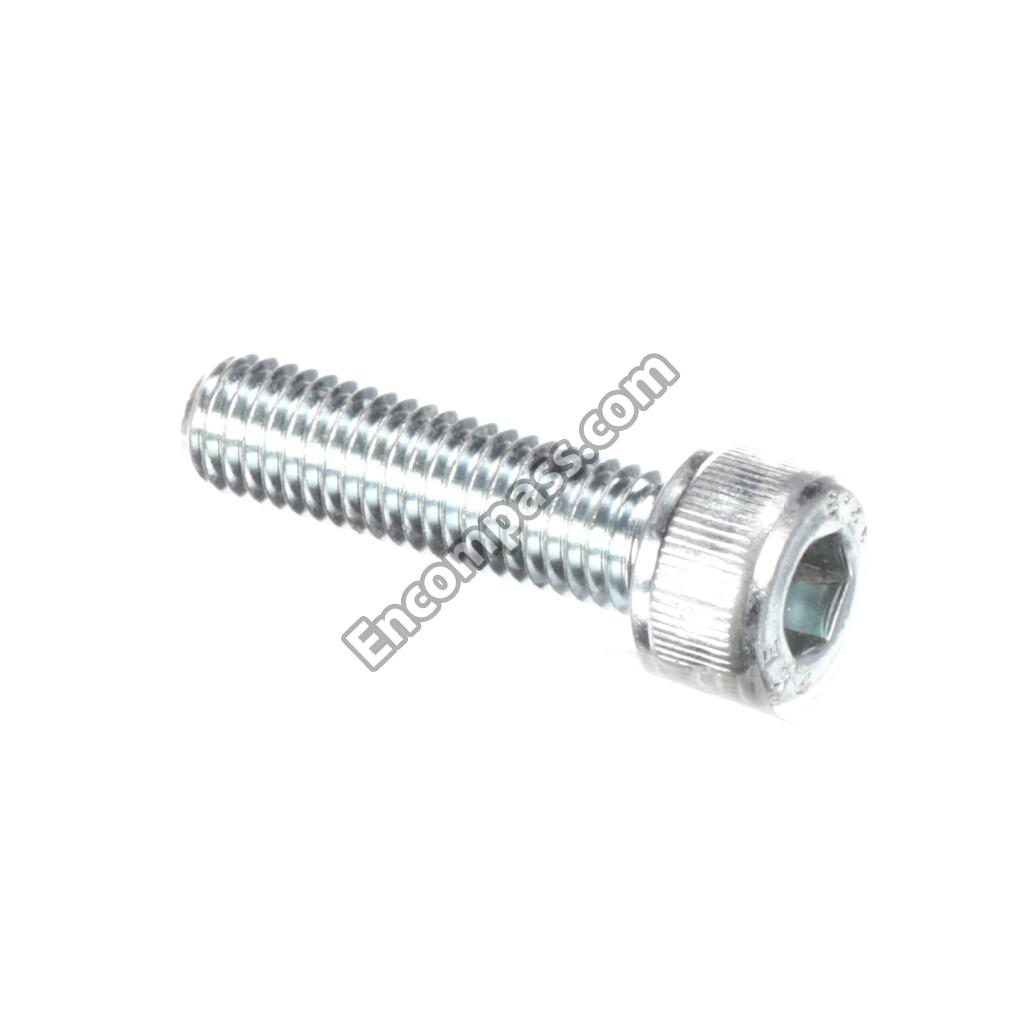

SCREW M5X20 SOC CAP HD Z/C |
|
|
SCREW NO.6X3/8" PAN POZI BLACK |
|
|
SPACE FILLER ACCY BOX 800 SERIES |
|
|
SPIKE CUP RING MAGNET ASSEMBLY |
|
|
SPINE / EXTRUSION ASSY LIGHT TINT 802 D4 |
|
|
SPINE HOOK ASSEMBLY D4 |
|
|
SPINE/EXTRUSION ASSY ANTHRACITE 802 D4 |
|
|

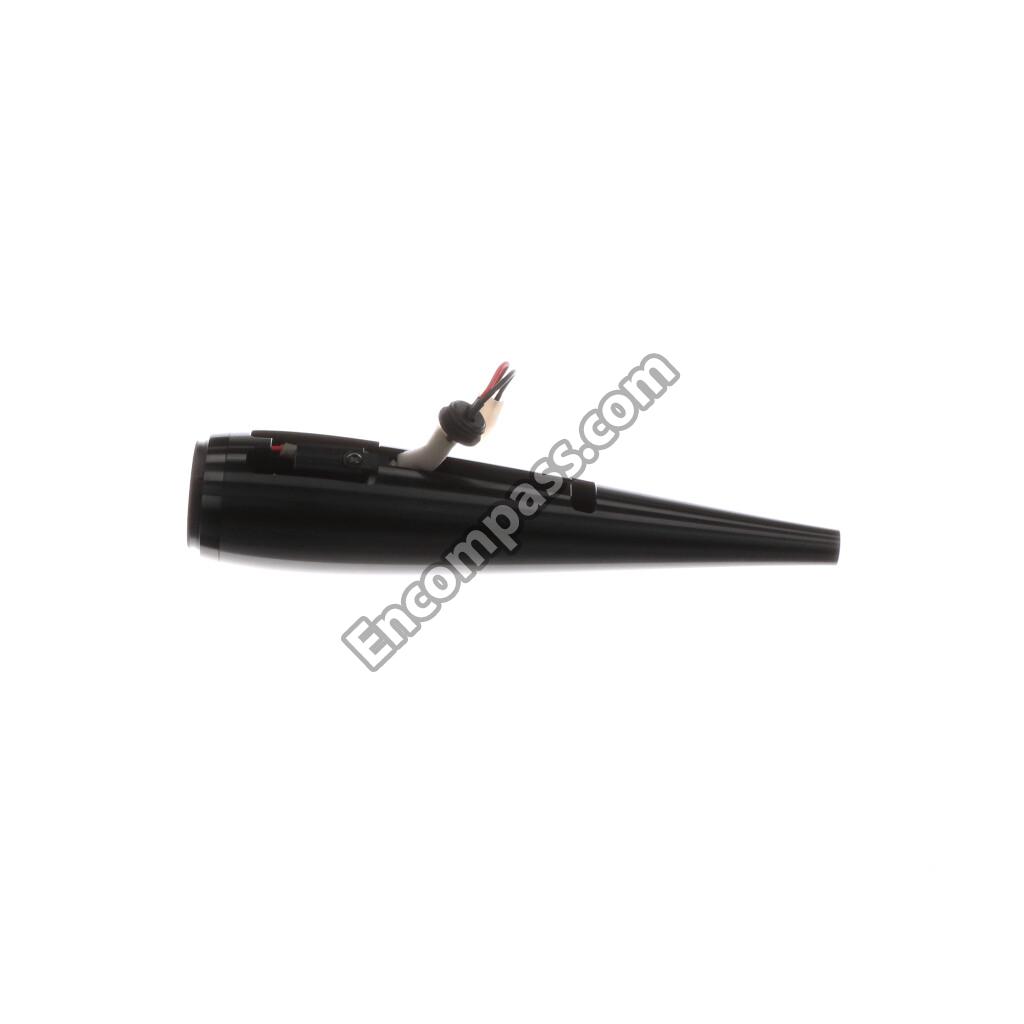

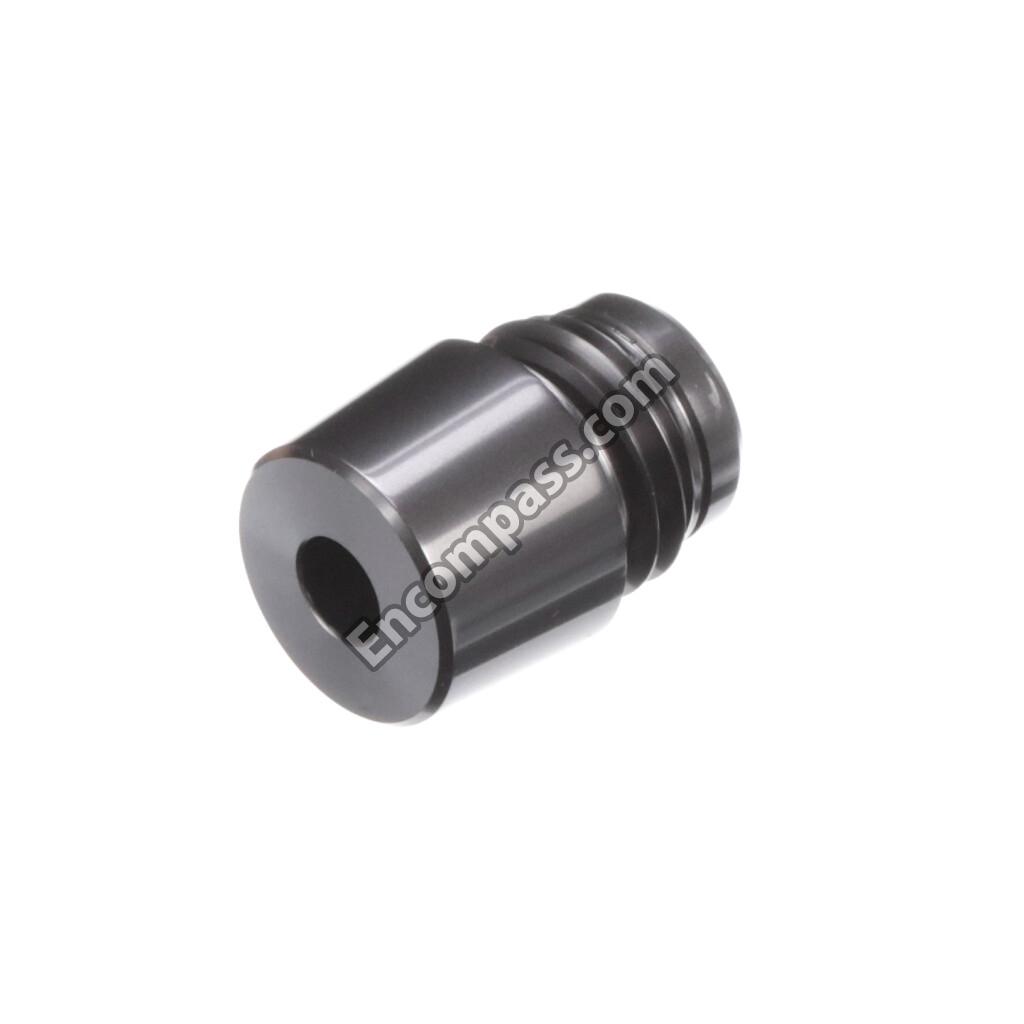

TAIL PIECE HF ANTHRACITE - 800 D4 |
|
|
TERMINAL CUP - PLATED ABS |
|
|
TERMINAL HEAD ASSEMBLY 800D4 |
|
|
TERMINAL PLUG BLACK POLYPROPYLENE |
|
|
TERMINAL PLUG RED POLYPROPYLENE |
|
|
TERMINAL TRAY ANTHRACITE - 802 D4 |
|
|
TERMINAL TRAY LIGHT TINT - 802 D4 |
|
|
TOMMY BAR 800 D4 |
|
|
TOP FOAM ASSEMBLY 802 D4 |
|
|
TOP HAT INSULATOR BLACK 20% G/F ABS |
|
|
TOP HAT INSULATOR RED 20% G/F ABS |
|
|
TOP RIM METAL CSTG ANTHRACITE - 802 D4 |
|
|
TOP RIM METAL CSTG LIGHT TINT - 802 D4 |
|
|

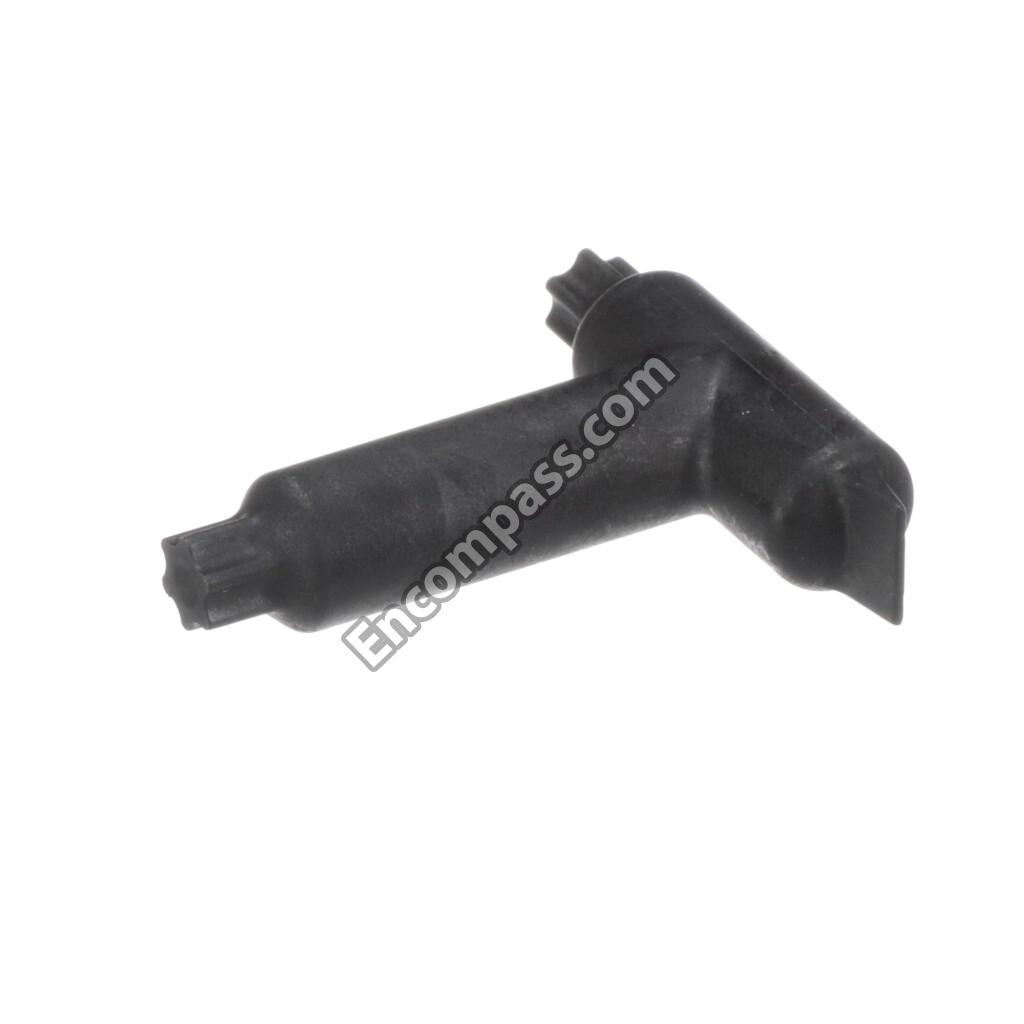

TORX KEY T45 / WEDGE TOOL |
|
|
TRIM & MAG ASSY 6"" CHAMF ANTHRACITE-D4 |
|
|
TRIM & MAGNET ASSY 8" LF ANTHRACITE |
|
|
TRIM & MAGNET ASSY 8" LF LIGHT TINT |
|
|
TUBE 8 INCH CAB ANTHRACITE - 802 D4 |
|
|
TUBE 8 INCH CAB LITE TINT - 802 D4 |
|
|
TUBE CARDBOARD 32 OD 26 ID 945 LONG |
|
|
TUBE TO CHASSIS ISOLATOR - 802D3 |
|
|

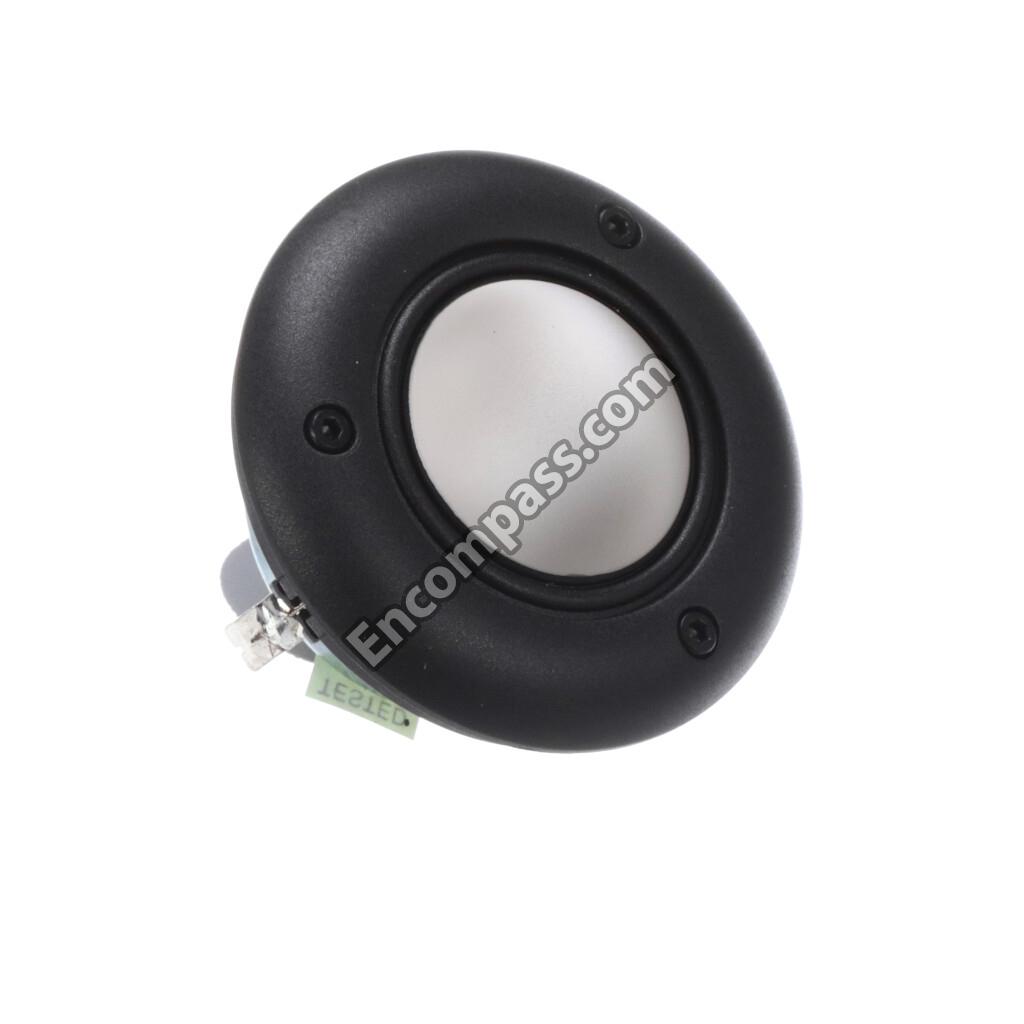

TWEETER BODY ASSY BLACK - 800 D4 |
|
|
TWEETER BODY ASSY LONG SILVER - 800 D4 |
|
|
WADDING 310 X 23MM 340GMS |
|
|
WASHER - RUBBER 19OD 10.3ID 3T NBR70 |
|
|
WASHER M5X20X1.25 STEEL ZINC/IRON BLACK |
|
|

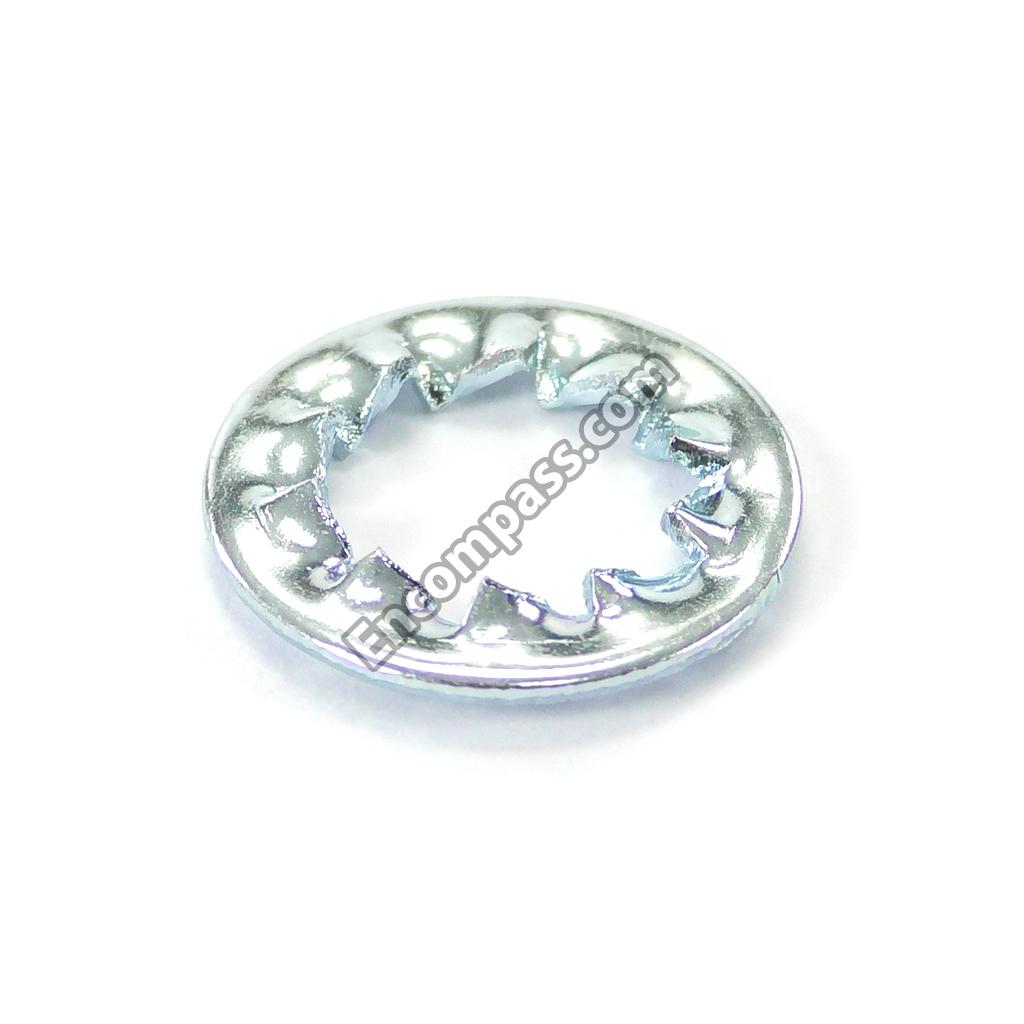

WASHER M6 INTERNAL SHAKEPROOF ZINC |
|
|
WASHER M8 SHAKEPROOF ZINC |
|
|
WASHER S/STL 6.4 I/D20 O/D1.5 THICK |
|
|

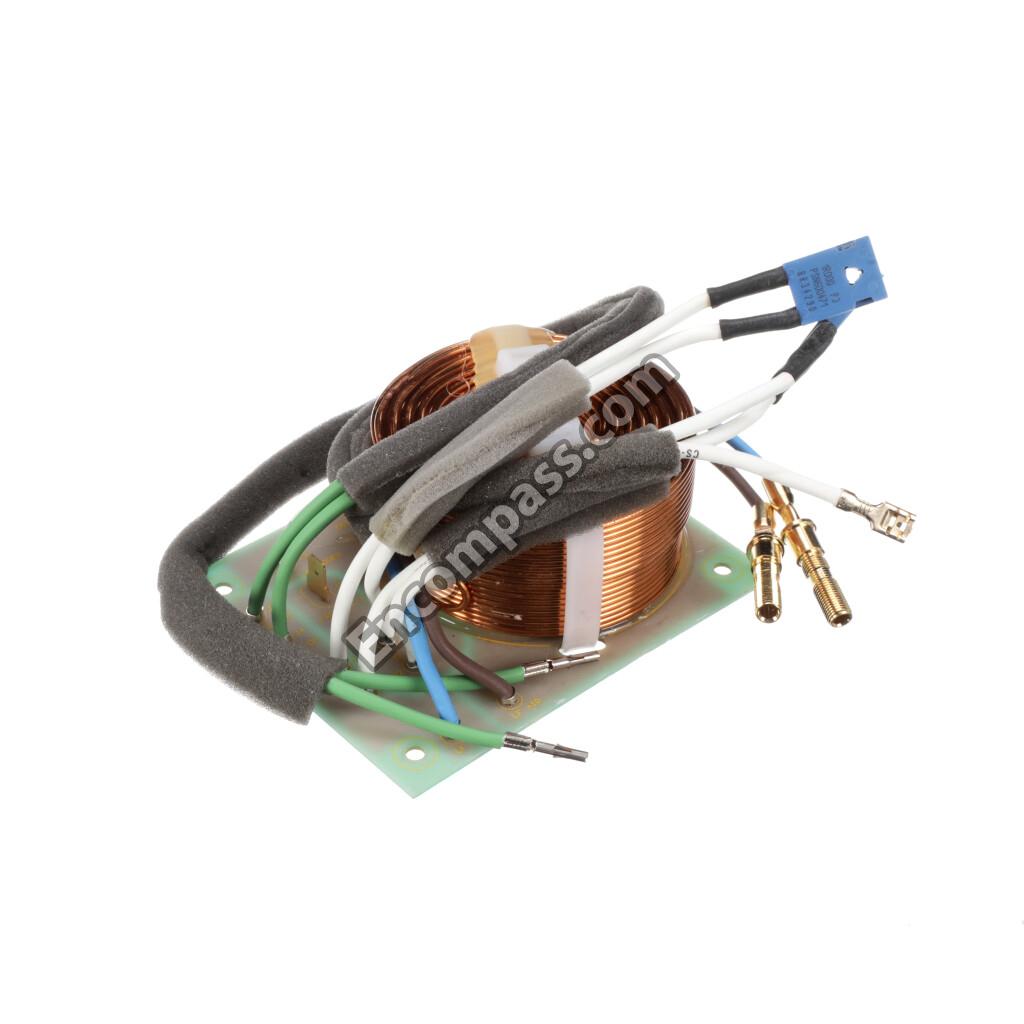

X-OVER HF/MF - 802 D4 |
|
|
X-OVER LF (1) - 802 D4 |
|
|
X-OVER LF (2) - 802 D4 |
