Manufacturer
Bowers &Wilkins
Model Number
802DIAMOND
Description
802 D3 800 Series Diamond Speaker (5 Year)
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
800 SERIES SPIKE KIT (4 PIECES) |
|
|
800 TERMINAL NUT RUNNER TOOL |
|
|
802 DIAMOND MF/LF GRILLE PACK |
|
|
BADGE BOWERS&WILKINS 60MM SPIGOT |
|
|
BAG WHITE CLOTH - 1650X900MM - 802 D2 |
|
|

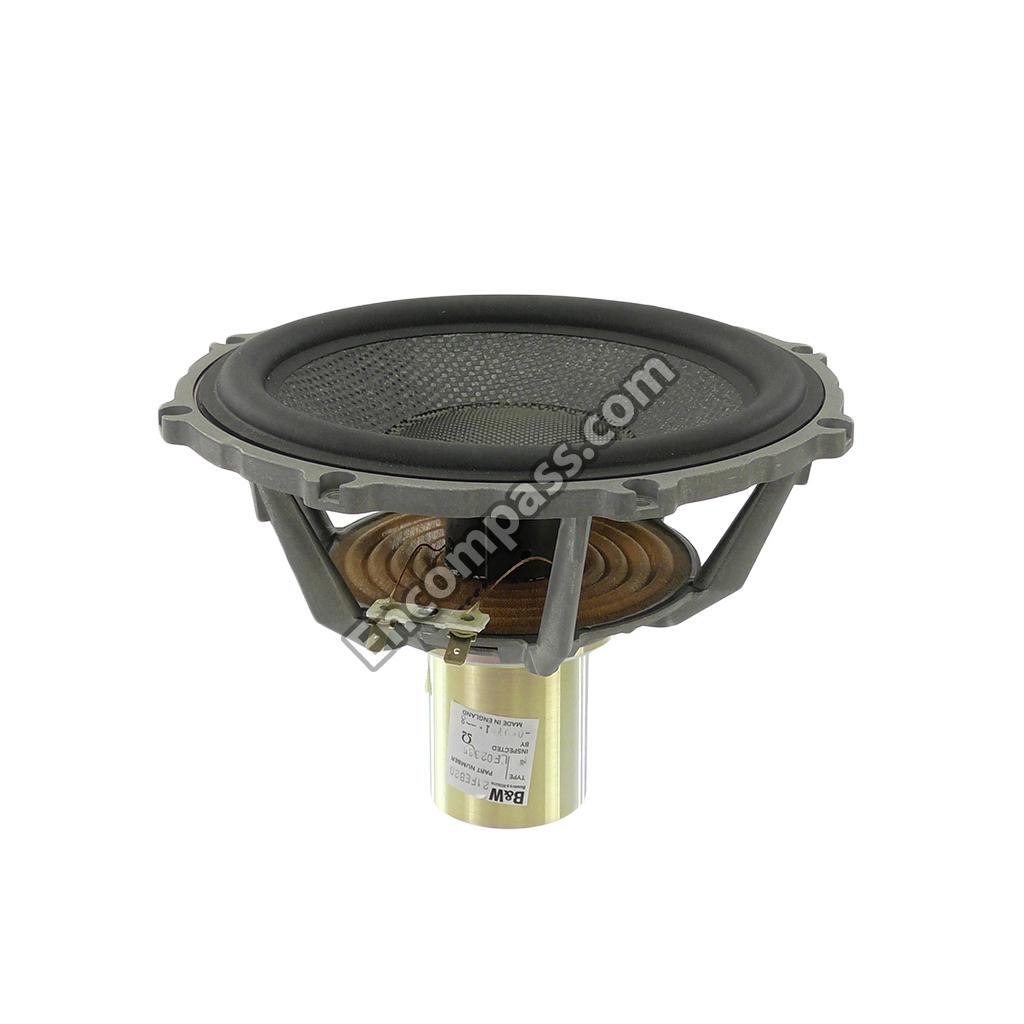

BASS UNIT 8" CCP BLK D-CAP 802D2 |
|
|
BULLET 55.1X29.3MM ALI POLISH & ANODISED |
|
|
DRAWBAR 800/2D2 454XM8 MILD STEEL HEX |
|
|
DRAWBAR FIXING M6 SATIN ANODISED ALI |
|
|
GLIDE DELRIN BALLS (QUIET) |
|
|
GRILLE 802 D2 FULL LENGTH BLACK |
|
|
GRILLE ASSEMBLY MF 800D2 HEADED PRODUCTS |
|
|
HALF NUT M16 Z/C |
|
|
HARNESS LINK C103 SPADE TO BANANA |
|
|
HEAD ASSY 800 D2 / 802 D2 BLACK |
|
|
HEAD LOCATION MOULDING HIPS BLACK |
|
|
HEAD MARLAN 800/802 BLK GLOSS |
|
|

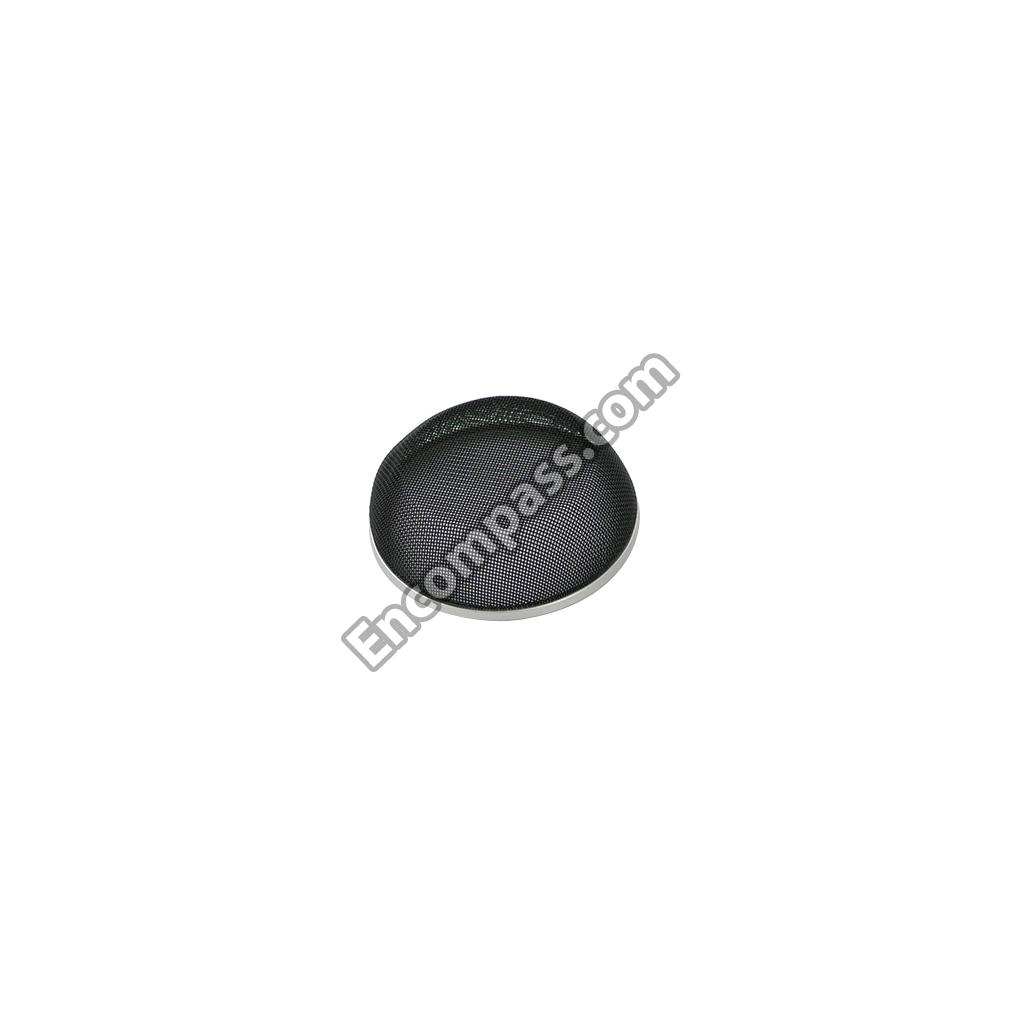

HF GRILLE 800 D2 / PM SERIES |
|
|
HF HOUSING METAL 800 D2 BLACK (LONG) |
|
|
HF MOTOR SYSTEM 800 SERIES D2 |
|
|
INTERFACE PLEATHER COVERED 802 DIAMOND |
|
|
ISOLATOR HEAD MOUNT ELASTOMER BLACK |
|
|
ISOLATOR HF BASE HEADED 2004 800 SERIES |
|
|
ISOLATOR HF TAIL |
|
|
ISOLATOR HF TUBE REAR BLACK |
|
|
ISOLATOR MIDRANGE SHORE 1A/0ASHORTFLANGE |
|
|
ISOLATOR REAR ELASTOMER BLACK SHORE 0 |
|
|
ISOLATOR REAR HEAD ELASTOMER BLACK |
|
|
ISOLATOR WASHER HF ELASTOMER BLK |
|
|
LOCK NUT - C103 COPPER - AU 0.1 M |
|
|
MICRO FIBRE CLEANING CLOTH 800 SERIES |
|
|
MID RANGE 6" KEVLAR 800/2/3/4/HTM D2 |
|
|
MOUNTING STUD HF 2004 800 SERIES |
|
|
NEW CARTON SLEEVE 802 D2 V2 - 75487 |
|
|
NEW CARTON TOP 802 D / D2 V2 - 75597 |
|
|
PAD THERMAL HF |
|
|
PLINTH COVER 802 D 6MM MDF BLACK CARB P2 |
|
|
PLINTH PAINTED BLK/ANTH ALUMINIUM 802 D |
|
|
PLUG MF ACCESS EVOPRENE SPARK BLK |
|
|
PORT FACIA GOLF 103ID HIPS BLACK |
|
|
PORT FACIA INNER GOLF 103ID ABS BLACK |
|
|
REINFORCED CARD PACKAGING CORNER |
|
|
RES NIKKOHM 2.0 OHM RNP-50S A |
|
|
RES NIKKOHM 3.0 OHM RNP-50S A |
|
|
SCR M5X16 PAN 6 SPLINE Z/C |
|
|
SCR M5X20 SOC CAP BKPH NO H/MARK |
|
|
SLEEVE REAR ISOLATOR 58X17 SATIN ANO ALI |
|
|
TAIL CLAMP HF 801/2 D |
|
|
TERMINAL ASSY BLK 800 SERIES CU C103 |
|
|
TERMINAL ASSY RED 800 SERIES CU C103 |
|
|
TERMINAL CORE - C103 COPPER - AU 0.1 M |
|
|
TERMINAL INSULATOR BAR 802 BLACK |
|
|
TERMINAL INSULATOR BAR 802 RED |
|
|
TRANSIT CAP BLACK ANODISED |
|
|
TRIM RING 8" 2MM ALUMINIUM D2 |
|
|
TRIM RING ASSEMBLY 6" PROFILED |
|
|
TWEETER 800 D2 SERIES METAL (LONG) |
|
|
TWEETER TUBE 800 D2 SERIES METAL (LONG) |
|
|
X-OVER HF/MF 802 D2 |
|
|
X-OVER LF 802 D2 |
