Manufacturer
Bowers &Wilkins
Model Number
805S
Description
805 S Bookshelf Speaker (5 Year)
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCESSORY PACK CLOTH LINKS BUMP ON FEET |
|
|
ACCESSORY PACK N805 STAND |
|
|
BADGE ALUMINIUM 18X18 WITH SPIGOT BLACK |
|
|
BASS UNIT 6" KEVLAR BLACK SURR&BLT U/S |
|
|
FOAM BUNG 50MM DUNLOP D2 BLACK |
|
|
GRILLE ASSY 805 S BLACK |
|
|
GRILLE PEG |
|
|
GROMMET GRILLE RUBBER BLACK |
|
|
HF MOTOR ASSY 800 S SERIES |
|
|
MICRO FIBRE CLEANING CLOTH |
|
|
NUT M6 SERRATED FLANGED 'M'STL ZINC YELL |
|
|
NUT NYLON 28ODX18ID M24 FINE THREAD |
|
|
OWNERS MANUAL |
|
|
POLY BOTTOM |
|
|
POLY TOP LEFT |
|
|
POLY TOP RIGHT |
|
|
PORT TUBE ASSEMBLY W/ TRIM RING |
|
|
RES NIKKOHM 1.0 OHM RNP-50S A |
|
|
SCR M4X20 SOC CAP NO H MARKS BKPH / CR3 |
|
|
TAIL CLAMP HF 803/4/5 S |
|
|

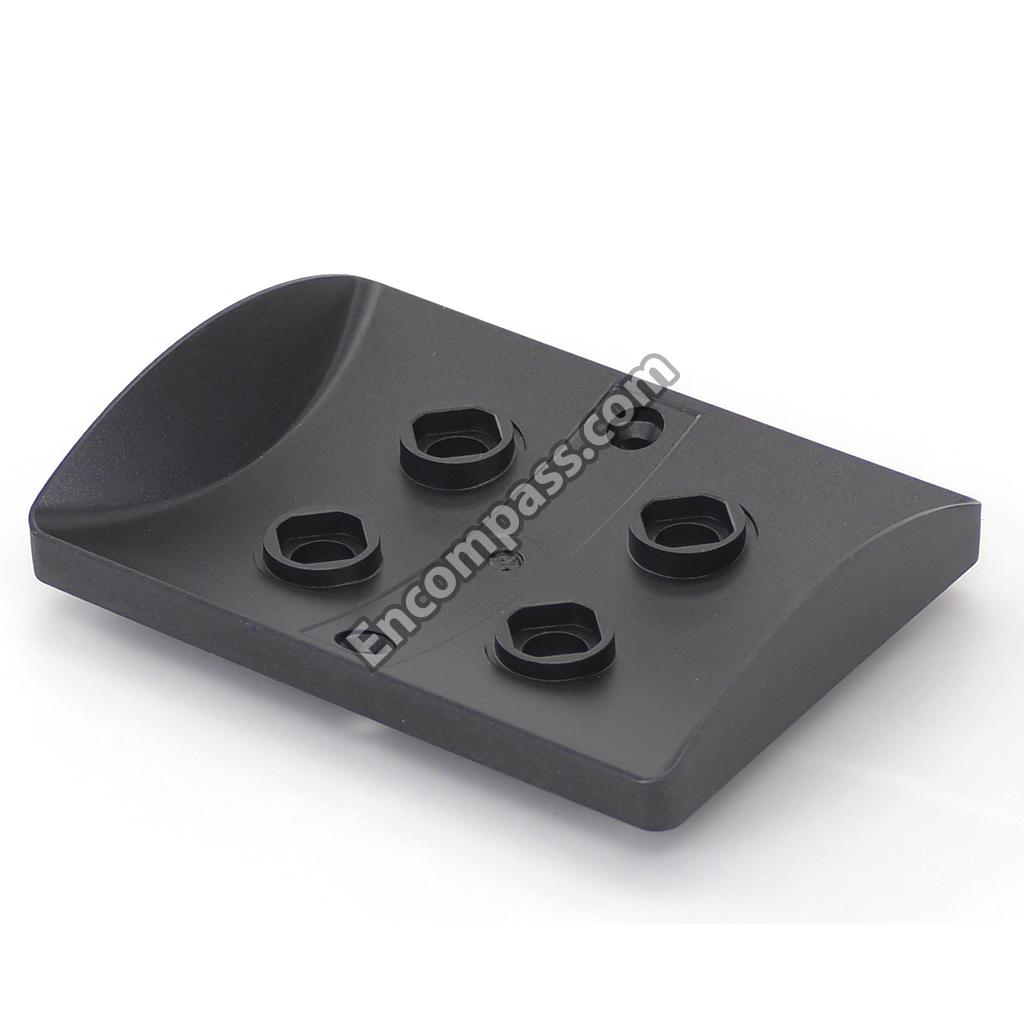

TERM TRAY FLAT 804/5 S BLK/ANTH PAINTED |
|
|
TERMINAL BLACK WBT-0745 BW B |
|
|
TERMINAL RED WBT-0745 BW R |
|
|
TERMINAL TRAY ASSY 4 POST BLK 804/5 S |
|
|
TWEETER 800 SERIES PLASTIC BLK/ANTH U/S |
|
|
TWEETER GRILLE HF 800 S2 MATT |
|
|
TWEETER HOUSING ABS BLK/ANTH |
|
|
TWEETER ISOLATOR |
|
|
TWEETER TUBE INTERNAL ISOLATOR |
|
|
TWEETER TUBE REAR ISOLATOR |
|
|
WASHER STEEL ID 6.3MM OD 20MM |
|
|
X-OVER HF/LF 805 S |
