Manufacturer
Bowers &Wilkins
Model Number
CM7
Description
Cm7 Floorstanding Speaker (5 Year)
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCESSORY PACK SPIKES RUBBER FEET CLR X4 |
|
|
BAFFLE PROTECTION COVER CM7 |
|
|
BASS UNIT 6" BLK BLK D-CAP*SEE NOTE* |
|
|
BASS UNIT 6" PPR BLK SUR D-CAP *SEE NOTE |
|
|
CARTON |
|
|
CROSSOVER LF |
|
|
FOAM BUNG 2 PART (55OD- 32ID/OD)X45-50MM |
|
|
GASKET RA106 FOAM 25MM X 16MM X 2MM |
|
|
GRILLE ASSY CM7 BLACK |
|
|
GRILLE ASSY CM7 DARK GREY |
|
|
GRILLE BLACK |
|
|
HF MOTOR SYSTEM CM1/7/8 SERIES |
|
|

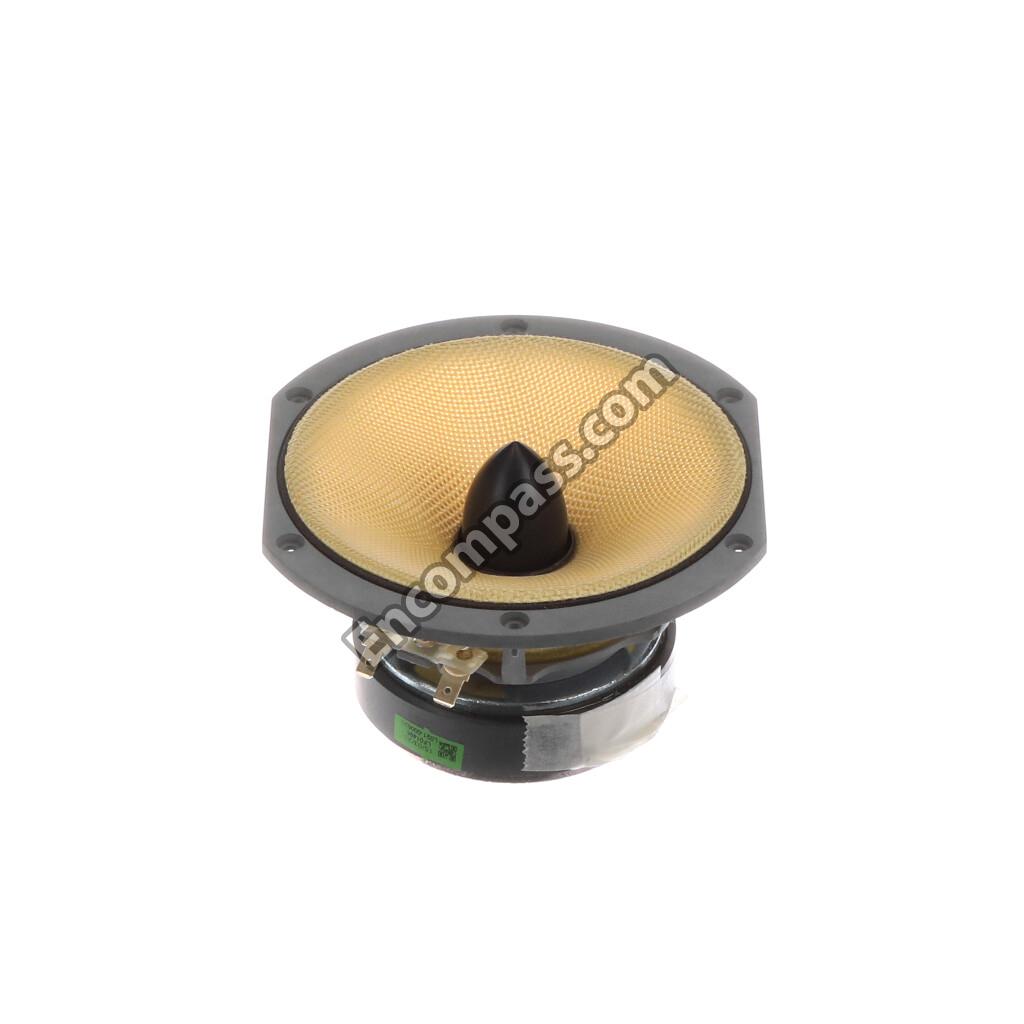

MID UNIT 5" KEV BLK SURR BLK BLT |
|
|
MIDRANGE TRIM RING |
|
|
OWNERS MANUAL |
|
|
PHASE PLUG ABS PAINTED TRAFFIC BLACK |
|
|
POLY BOTTOM |
|
|
POLY TOP |
|
|
SCR M3X20 S/STEEL SELF FINISH |
|
|
TERMINAL BLACK GOLD PLATED ELY SHORT |
|
|
TERMINAL LINK ANGLED COPPER GOLD PLATE |
|
|
TERMINAL RED GOLD PLATED ELY SHORT |
|
|
TERMINAL TRAY |
|
|
TERMINAL TRAY W/ BINDING POSTS |
|
|
TRIM RING ASSY LF 6" CM TURNED ALI 0.2 |
|
|
TRIM RING ASSY MF 5" CM TURNED ALI 0.2 |
|
|
TWEETER CM SERIES U/S ALI PLATE 0.2 TRIM |
|
|
TWEETER TRIM ASSY CM1/7 TURNED 0.21 MATT |
|
|
TWEETER TUBE |
|
|
WOOFER TRIM RING |
|
|
X-OVER HF/MF CM7 |
|
|
X-OVER TERM TRAY ASSY LF CM7 |
