Manufacturer
Bowers &Wilkins
Model Number
CWM85
Description
Cwm 8i Wall Mount Speaker (5 Year)
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BACK BOX QUICK START GUIDE |
|
|
BAG POLY 360MM X 550MM |
|
|
BASS UNIT 7" CWM8.5 |
|
|
BINDING POST CORE |
|
|
BINDING POST HEAD BLACK |
|
|
BINDING POST HEAD RED |
|
|
BINDING POST LOCK NUT |
|
|
BRACKET BACK BOX CI800 |
|
|

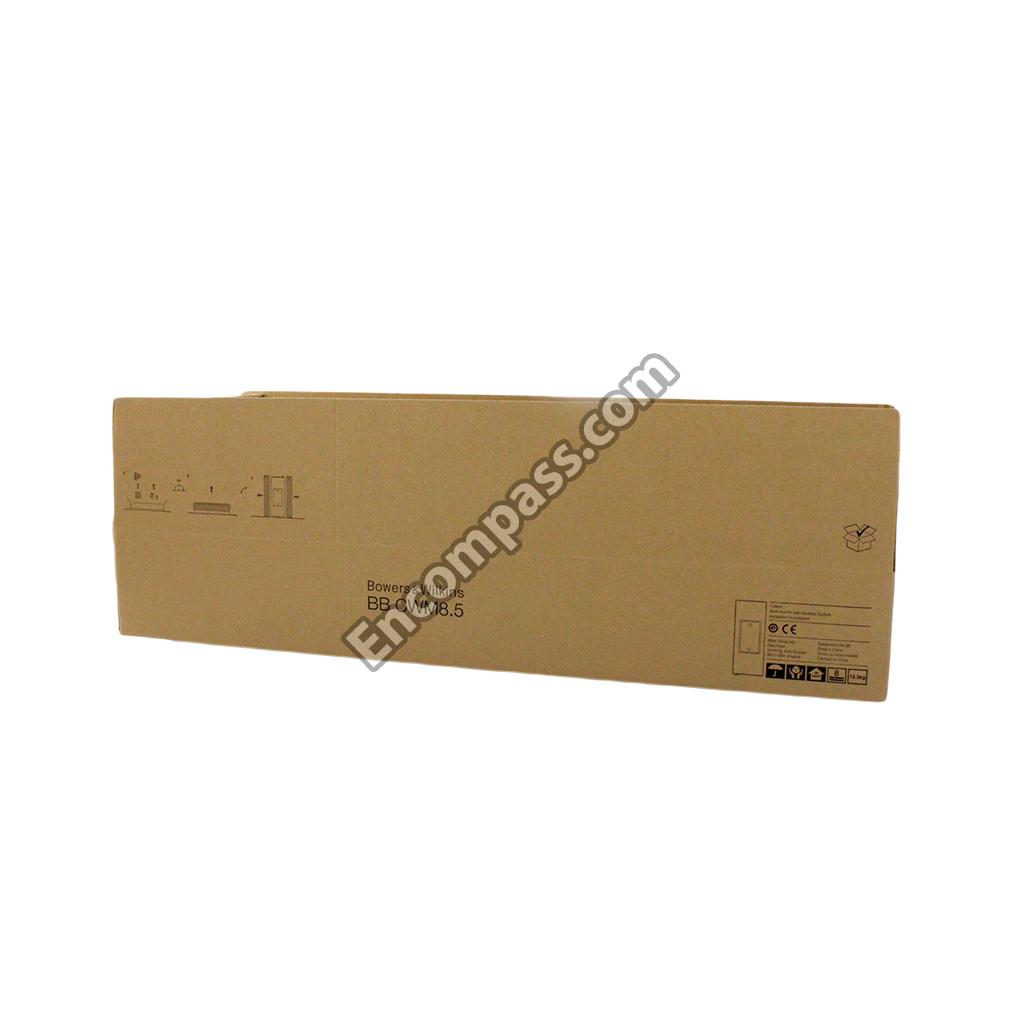

CARTON CWM8.5 BACK BOX |
|
|
CARTON CWM8.5 UPRIGHT |
|
|
CI 800 BAFFLE MOUNT |
|
|
CONNECTOR 4WAY SOC MOLEX 50-84-2040 |
|
|
CONNECTOR HARNESS BRACKET |
|
|
CWM8.5 APERTURE TEMPLATE |
|
|
CWM8.5 BAFFLE SATIN FINISH |
|
|
CWM8.5 BB/BAFFLE GASKET |
|
|
CWM8.5 HF ASSEMBLY |
|
|
CWM8.5 PAINT MASK |
|
|
CWM8.5 T'TRAY HARNESS/CORES ASSEMBLY |
|
|
CWM8.5 TERMINAL TRAY ASSEMBLY |
|
|
CWM8.5 TWEETER BRACE |
|
|
FOAM BUNG 2 PART (45OD- 22ID/OD) X 40MM |
|
|
FRAME & BAFFLE |
|
|

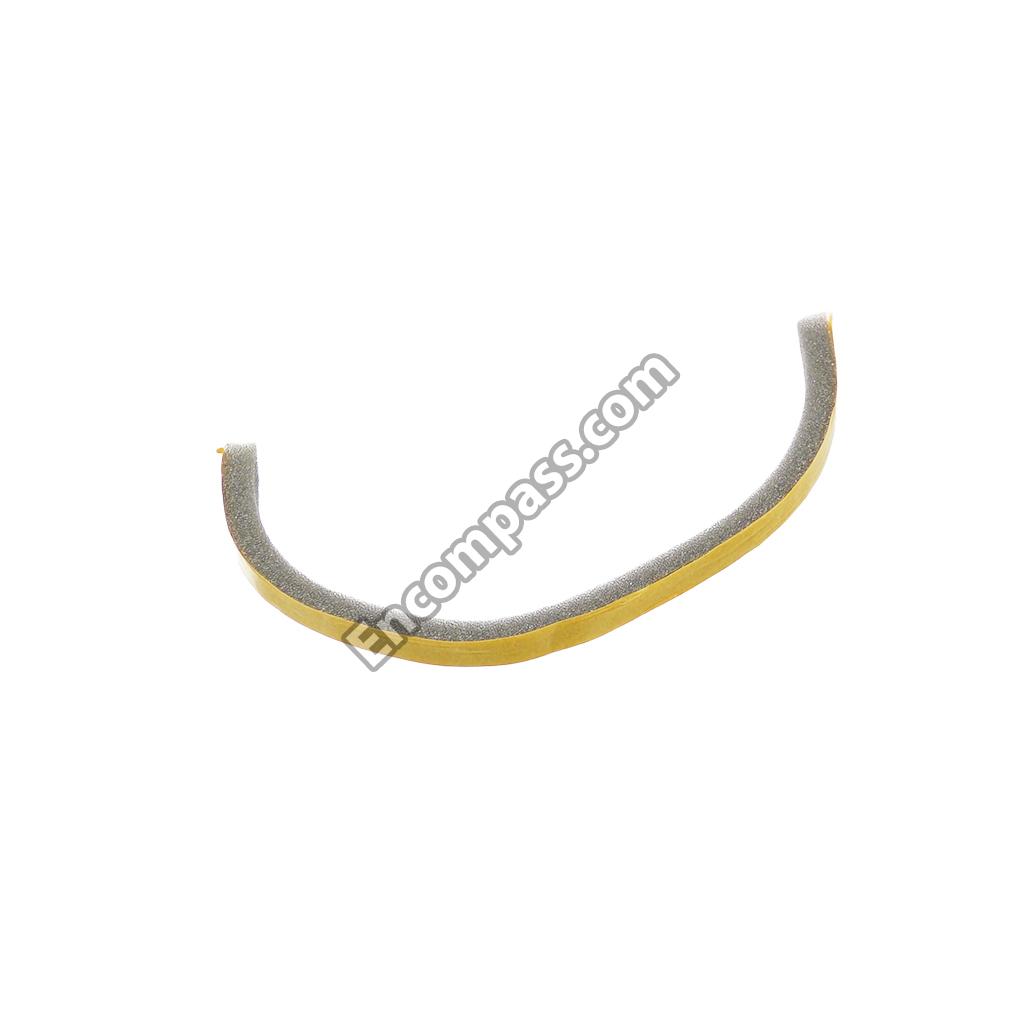

GASKET 7" LF POLYETHYLENE |
|
|
GASKET TWEETER HOUSING |
|
|
GRILLE |
|
|
GRILLE ASSEMBLY CWM7.4 / CWM8.5 |
|
|
ISOLATOR - LF - CWM8.3 |
|
|
M5 SPRING WASHER |
|
|
M5 WASHER |
|
|
MOLEX CONNECTOR |
|
|
ORIENTATION PLATE |
|
|
POLY BOTTOM CWM8.5 UPRIGHT |
|
|
POLY CWM8.5 BACK BOX |
|
|
POLY TOP CWM8.5 UPRIGHT |
|
|
QUICK START GUIDE |
|
|
SCR M3X20 TORX CSK CAT ELECT SATIN BLK |
|
|
SCREW M5 X 55 TORX (CI800) |
|
|
TERMINAL TRAY ASSEMBLY OUTER |
|
|
TORX KEY T20 |
|
|
TRIM RING HF CWM8.5 |
|
|
TWEETER CWM8.3 |
|
|
TWEETER TUBE CWM 8XX SERIES |
|
|
X/OVER CWM8.5 |
