Manufacturer
Bowers &Wilkins
Model Number
HTM71S2
Description
700 Series Htm71 S2 3-way Center-channel Speaker (
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
680 S2 6" WOOFER GASKET 68 S2 |
|
|

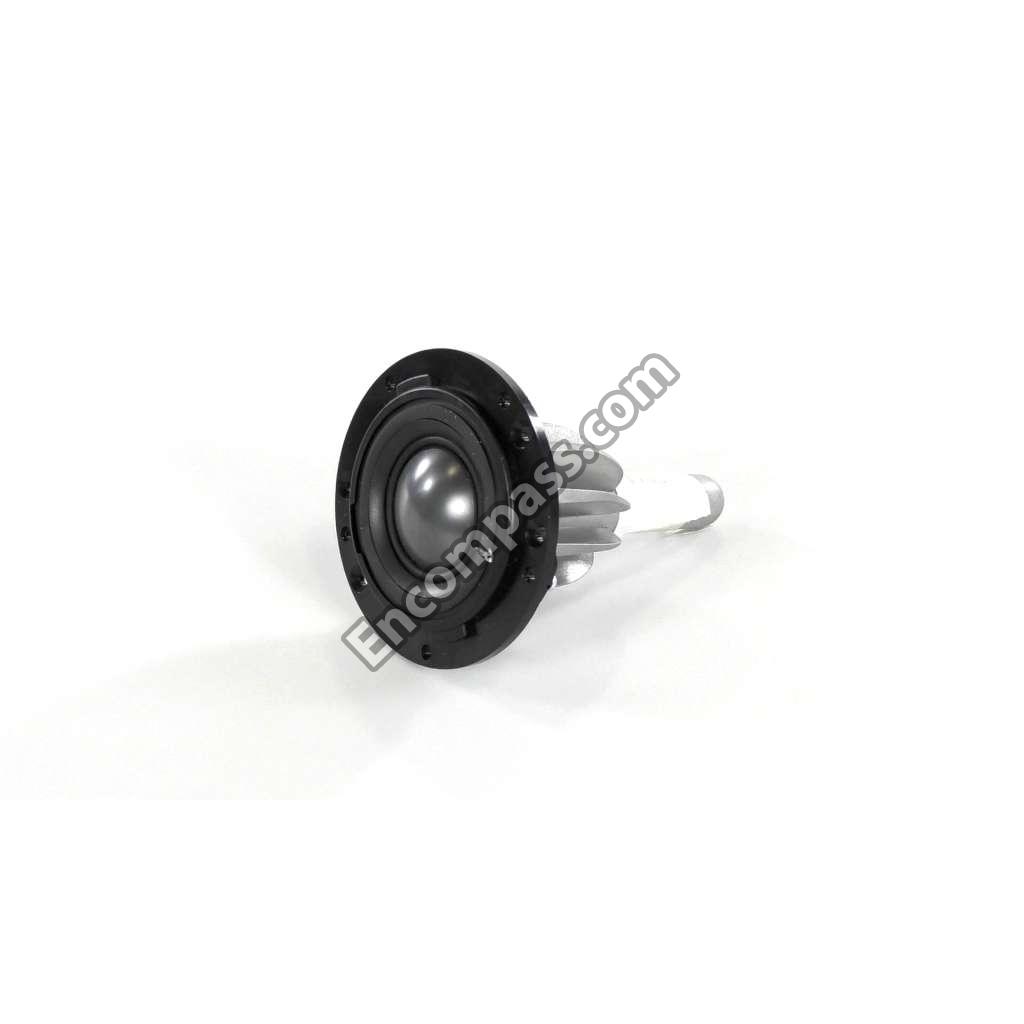

700 SERIES 2 TWEETER |
|
|
703 S2 / HTM71 S2 BASS UNIT |
|
|
BAG PARAFOAM 570(OPEN END)X840 |
|
|
CARTON HTM71 S2 |
|
|
CM CENTRE 2 S2 GRILLE BLACK |
|
|
CM CENTRE 2 S2 GRILLE DARK GREY |
|
|
CMC2 S2, HTM 71 S2 BAFFLE PROTECT COVER |
|
|
FOAM BUNG 2 PART (45OD- 22ID/OD) X 40MM |
|
|
GASKET 4 INCH CHASSIS GROMMET CLEARANCE |
|
|
GASKET T/T POLYETHYLENE 142.5X84.5 |
|
|
GRILLE MESH 700 S2 HF (I/B) BLACK |
|
|
GRILLE MESH 700 S2 HF (I/B)SATIN CHROME |
|
|
HTM71 S2 MID RANGE |
|
|
MANUAL HTM72/HTM71 S2 |
|
|
PARAFOAM SHEET PROTECTION 0.7X345X710 |
|
|
POLY BOTTOM CMC 2 S2, HTM 71 S2 |
|
|
POLY TOP CMC 2 S2, HTM 71 S2 |
|
|
RUBBER FOOT (1 PC) CLEAR BUMPON 14.9X10 ROUND |
|
|

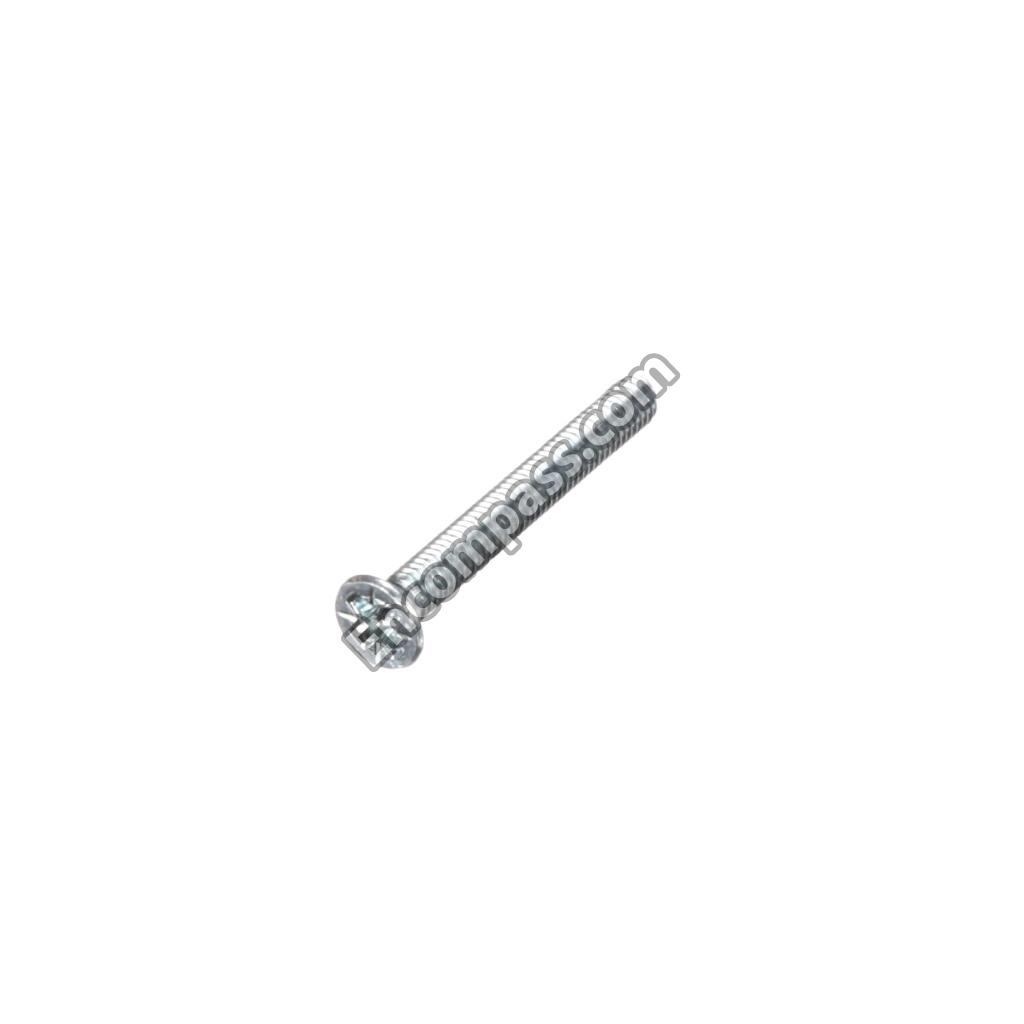

SCREW M3X25 CSK POZI Z/C |
|
|
SCREW M4X12 CAP HD CR3 BLACK |
|
|
T/RING ASSY FST 4" HTM 71 S2 DARK |
|
|
T/RING ASSY FST 4" HTM 71 S2 LIGHT |
|
|
T/RING ASSY LF 6" 700 S2 DARK |
|
|
T/RING ASSY LF 6" 700 S2 LIGHT |
|
|
TERM TRAY ASSY 4 POST ANGLED NICKEL |
|
|
TRIM ASSY HF 700 S2 (BAFFLE) DARK |
|
|
TRIM ASSY HF 700 S2 (BAFFLE) LIGHT |
|
|
X-OVER ASSY HF/MF HTM71 S2 |
|
|
X-OVER ASSY LF HTM71 S2 |
