Manufacturer
Carrier
Model Number
25HPA518A0031010
Description

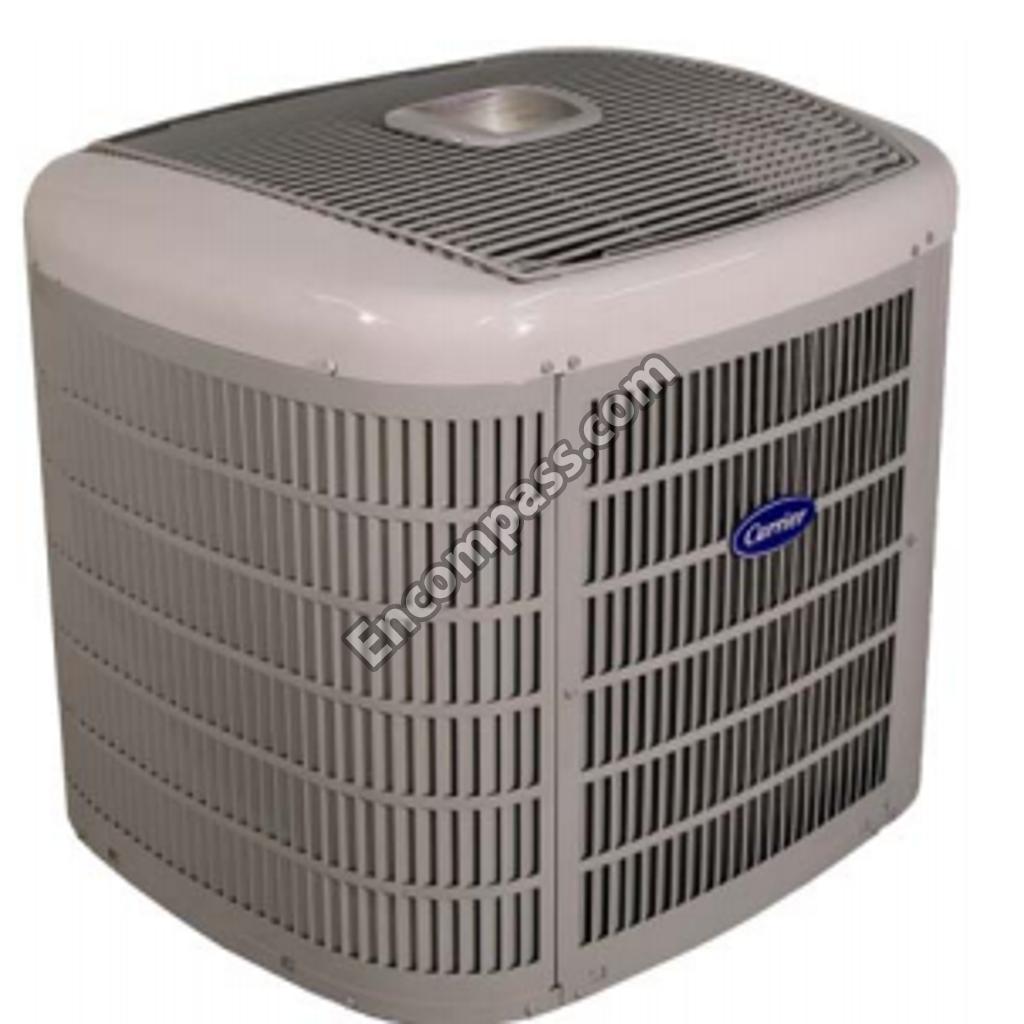

Split System Heat Pump 15 Seer (deluxe)
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/10HP 1PH 208/230V 800 RPM MOTOR |
|
|
175-216MFD 330V STARTCAPACITOR |
|
|
24V 4-WAY 1/2-INCHX5/8-INCH REV VALVE |
|
|
2TON R410A 3/8XFLR TXV VALVE |
|
|
3/8-INCH 24V SOLENOID VALVE |
|
|
3/8-INCH LIQUID LINE SERVICE VALVE |
|
|
670/470# HIGH PRESSURE SWITCH |
|
|
ACCUMULATOR |
|
|
ADAPTER ASSEMBLY |
|
|
BODY COUPLING |
|
|
CAP SEAL |
|
|
CARRIER KSALA0301410 LOW AMBIENT PRESSUR |
|
|
CHECK VALVE |
|
|
CHECK VALVE |
|
|
CONTACTOR 1 POLE 40 AM |
|
|
COVER ASSY |
|
|
CRANKCASE HEATER |
|
|
DISTRIBUTOR |
|
|
FAN BLADE |
|
|
FAN CENTER RELAY |
|
|
FLARE CAP |
|
|
FLARE NUT |
|
|
GROMMET |
|
|
GROMMET |
|
|
GROUND LUG |
|
|
HANDLE |
|
|
HARD START KIT |
|
|
HARNESS |
|
|
HIGH PRESSURE SWITCH |
|
|
HIGH PRESSURE SWITCH |
|
|
HOUSING PLUG |
|
|
HOUSING TERMINAL |
|
|
ISOLATOR VIBRATION |
|
|
KIT REPLACEMENT COIL |
|
|
KIT SNOW STAND; |
|
|
LIQUID LINE SOLENOID VALVE KIT |
|
|
LOW PRESSURE SWITCH-PURONHP |
|
|
METERING DEVICE |
|
|
MOUNTING PLATE |
|
|
MUFFLER S/T TYPE |
|
|
NAMEPLATE |
|
|
PAINT |
|
|
PAINT |
|
|
PISTON RETAINER |
|
|
PISTON SERVICE TOOL |
|
|
PLUG |
|
|
PURON DRIER; R410A |
|
|
RACEWAY |
|
|
RELAY |
|
|
RELAY TIME DELAY |
|
|
RUN CAPACITOR ROUND 370V;DUAL 30/5MFD |
|
|
SCHRAEDER VALVE CORE |
|
|
SOUND BLANKET |
|
|
START ASSIST |
|
|
START RELAY |
|
|
STRAP |
|
|
STRAP DUAL CAPACITOR |
|
|
SUCTION LINE FILTER DRIER |
|
|
SUPPORT-COIL |
|
|
SUPPORT-TOP |
|
|
SWITCH ASY PRESSURE |
|
|
TEMPERATURE LIMIT SWITCH |
|
|
TERMINAL BLOCK |
|
|
THERMISTOR OAT/OCT |
|
|
TXV KIT PURON 1.5 - 2.5 TON |
|
|
VALVE CAP |
|
|
VALVE SERVICE 5/8-INCH |
|
|
WARNING LABEL |
|
|
WHITEPTFEGSKT QTY-12 |
|
|
WIRE, RECEPTACLE COM |
