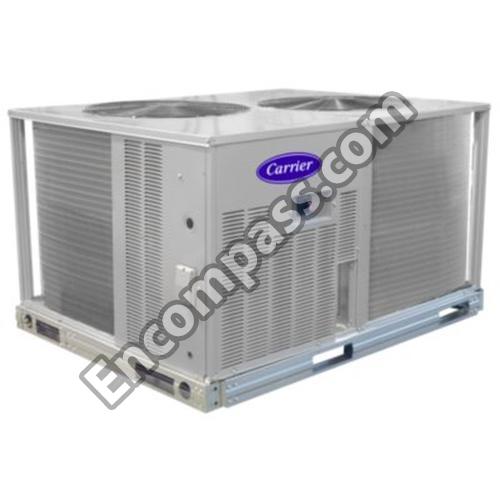

Model Image
Manufacturer

Carrier

Model Number

38AUQE08A01A0A

Description

Split System Condensing Unit

Interactive Exploded View

Parts List

Part Number Description
HN52TC040 HN52TC040 24V COIL 2P 40AMP CONT
EF19ZG239 EF19ZG239 24V REV VALVE COIL
HN52TC024 HN52TC024 2P 32AMP 24V CONTACTOR
HK02SB027 HK02SB027 44-27# LOW PRESSURE SWITCH
EC31EZ212 EC31EZ212 5/8-INCH CHECK VALVE
KM680005 KM680005 5/8-INCHODF SIGHT GLASS
KH71KJ201 KH71KJ201 ACCUMULATOR
38AU500462 38AU500462 ACCUMULATOR BRACKET
38AU500001 38AU500001 BASE PAN
EF680039 EF680039 BI FLOW SOLENOID VALVE
50HJ500613 50HJ500613 BOX
HX38FZ010 HX38FZ010 BOX COVER
38AU500385 38AU500385 BRACKET
50DK502805 50DK502805 BRACKET
50HJ540876 50HJ540876 BRACKET
48TC500013 48TC500013 BRACKET MOUNT
38AU500013 38AU500013 BRACKET MOUNT
38AU500026 38AU500026 BRACKET SUPPORT
HY93NH016 HY93NH016 BUSHING
HY93NH008 HY93NH008 BUSHING
HY93NH063 HY93NH063 BUSHING
HY93NH069 HY93NH069 BUSHING
HY93NH081 HY93NH081 BUSHING
P291-1013 P291-1013 CAPACITOR
P281-0021 P281-0021 CAPACITOR STRAP
50HJ501200 50HJ501200 CARRIER 50HJ501200 OUTLET GRILL FAN GUAR
HK02SA420 HK02SA420 CARRIER HK02SA420 PRESSURE SWITCH
EC31EZ184 EC31EZ184 CHECK VALVE
38AU000036 38AU000036 COIL COND. FORMED AL/CU
38AU000064 38AU000064 COIL COND. FORMED CU/CU
38AU000036C 38AU000036C COIL COND. FORMEDAL/CU ECOAT
38AU000066 38AU000066 COIL COND. FORMEDAL/CU P-CT
EF680037 EF680037 COIL LIQ.LINE SOLENOID VALVE
EF19XZ061 EF19XZ061 COIL SOLENOID
HK60EC002 HK60EC002 COMFORT ALERT MODULE
HC40GQ463 HC40GQ463 COMPATIBLE CONDENSER F
HC39GE579 HC39GE579 CONDENSER MOTOR
50HJ542740 50HJ542740 COVENIENCE OUTLET
50HJ500614 50HJ500614 COVER
38AU501222 38AU501222 COVER CONTROL BOX
HK32EA005 HK32EA005 DEFROST CONTROL BOARD
HR61AQ001 HR61AQ001 DISCONNECT ASSEMBLY
KH43LG089 KH43LG089 DRIER
LA01RA044 LA01RA044 FAN PROP 3 BLADES
99CC409372 99CC409372 FLARE CAP
38AU500061 38AU500061 FRONT PANEL CTRL BOX SI
HY10AK014 HY10AK014 FUSE
KA56ZZ150 KA56ZZ150 GROMMET
KA56TR057 KA56TR057 GROMMET COMPRESSOR
HY90AZ009 HY90AZ009 GROUND LUG
329799-401 329799-401 HANDLE
HT32TC903 HT32TC903 HEATER CRANKCASE
38AU500012 38AU500012 HOUSING SERV CONN
HY06ZZ025 HY06ZZ025 HY06ZZ025 PLUG COMPRESSOR
KM680008 KM680008 INDICATOR MOISTURE
HH18SA261 HH18SA261 L80F-50 DEFROST TEMPERATURE
CU000034 CU000034 LABEL
EP71BA183 EP71BA183 LIQ LINE SERVICE VALVE
KM680004 KM680004 MOISTURE INDICATOR
32LT900645 32LT900645 MOTOR MASTER CONTROLLER
38AU500901 38AU500901 MOUNTING BRACKET
313974-751 313974-751 PAINT STERLING
48TC500015 48TC500015 PAN CONDENSER
38AU400319 38AU400319 PANEL ASSY
48TM500183 48TM500183 PANEL OUTDOOR
KA51PC175 KA51PC175 PLUG BUTTON
48TM500272 48TM500272 POST CORNER
48TM400809 48TM400809 POST CORNER
319421311 319421311 RACE WAY
319421-307 319421-307 RACEWAY, WIRE
48TC500011 48TC500011 RAIL BASE
48TC500008 48TC500008 RAIL BASE
48TC500012 48TC500012 RAIL BASE CENTER
48TC500010 48TC500010 RAIL BASESVC VLVRHT SIDE
HY01GF001 HY01GF001 RECEPTACLE WHITE
HN61PK052 HN61PK052 RELAY
HN61PC005 HN61PC005 RELAY 240V 14A
HN67SZ001 HN67SZ001 RELAY TIME DELAY
38AU500691 38AU500691 SEAL
EF680035 EF680035 SOLENOID VALVE
EP71BA343 EP71BA343 SUCTION VALVE
50HJ501202 50HJ501202 SWITCH COVER
HY90AZ001 HY90AZ001 TERMINAL
HY84DA018 HY84DA018 TERMINAL BOARD
HY84DA013 HY84DA013 TERMINAL BOARD
HY84DA005 HY84DA005 TERMINAL BOARD
38AU400386 38AU400386 TOP COVER ASSY
HT01AH859 HT01AH859 TRANSFORMER
HT01BD902 HT01BD902 TRANSFORMER
HT01AH858 HT01AH858 TRANSFORMER
38AK500257 38AK500257 TRANSFORMER BRACKET
HX28ZZ001 HX28ZZ001 UTILITY BOX
HX30FZ012 HX30FZ012 UTILITY BOX
HX28ZZ008 HX28ZZ008 UTILITY COVER
EF17BG285 EF17BG285 VALVE 5/8-INCHX7/8-INCHODF 24V REVERSING VLV
EC39EZ065 EC39EZ065 VALVE BODY
EC39EZ067 EC39EZ067 VALVE CORE
EF28XZ121 EF28XZ121 VALVE SOLENOID
38AUHSSAH-1A00 38AUHSSAH-1A00 WIRE HARNESS
