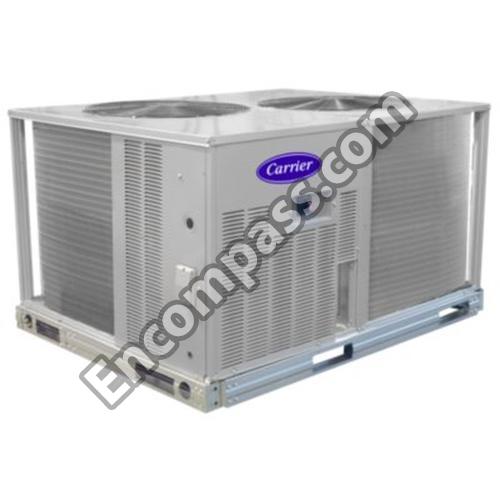

Model Image
Manufacturer

Carrier

Model Number

38AUZD08A060A

Description

Air Cooled Condensing Unit

Interactive Exploded View

Parts List

Part Number Description
HT01AH851 HT01AH851 1000VA 240/480VPRIM120/240VSEC
HN52TC040 HN52TC040 24V COIL 2P 40AMP CONT
HT01BD702 HT01BD702 460V PRI 24V SEC TRANSFORMER
38AU500001 38AU500001 BASE PAN
50HJ500613 50HJ500613 BOX
HX38FZ010 HX38FZ010 BOX COVER
38AU500385 38AU500385 BRACKET
50DK502805 50DK502805 BRACKET
50HJ540876 50HJ540876 BRACKET
48TC500013 48TC500013 BRACKET MOUNT
38AU500013 38AU500013 BRACKET MOUNT
38AU500007 38AU500007 BRACKET SUPPORT
HY93NH016 HY93NH016 BUSHING
HY93NH008 HY93NH008 BUSHING
HY93NH063 HY93NH063 BUSHING
HY93NH069 HY93NH069 BUSHING
HY93NH081 HY93NH081 BUSHING
P281-0021 P281-0021 CAPACITOR STRAP
50HJ501200 50HJ501200 CARRIER 50HJ501200 OUTLET GRILL FAN GUAR
HK02SA420 HK02SA420 CARRIER HK02SA420 PRESSURE SWITCH
38AU000009 38AU000009 COIL COND. FORMED AL/CU
38AU000014 38AU000014 COIL COND. FORMED CU/CU
38AU000009C 38AU000009C COIL COND. FORMEDAL/CU ECOAT
38AU000020 38AU000020 COIL COND. FORMEDAL/CU P-CT
EF680037 EF680037 COIL LIQ.LINE SOLENOID VALVE
EF19XZ061 EF19XZ061 COIL SOLENOID
HK60EC002 HK60EC002 COMFORT ALERT MODULE
HK60EA009 HK60EA009 COMFORT MODULE ALERT
HC39GE468 HC39GE468 CONDENSOR FAN MOTOR
HL38MG029 HL38MG029 CONTROL HUMIDISTAT
50HJ542740 50HJ542740 COVENIENCE OUTLET
50HJ500614 50HJ500614 COVER
38AU501222 38AU501222 COVER CONTROL BOX
HR61AQ001 HR61AQ001 DISCONNECT ASSEMBLY
33CS2PP2S-03 33CS2PP2S-03 EDGE PRO TWO STAGE PROG STAT
38AU400346 38AU400346 FAN ASSEMBLY
LA01RA044 LA01RA044 FAN PROP 3 BLADES
KH43LG085 KH43LG085 FILTER DRIER
KH680011 KH680011 FILTER DRIER LIQUID LINE
KH680010 KH680010 FILTER DRIER LIQUID LINE
KH680009 KH680009 FILTER DRIER LIQUID LINE
99CC409372 99CC409372 FLARE CAP
38AU500005 38AU500005 FRONT PANEL CTRL BOX SI
HY10AK014 HY10AK014 FUSE
KA56ZZ150 KA56ZZ150 GROMMET
KA56TR057 KA56TR057 GROMMET COMPRESSOR
HY90AZ009 HY90AZ009 GROUND LUG
38AU500497 38AU500497 GUARD COIL RTPF
329799-401 329799-401 HANDLE
38AUHSSAP-1A01 38AUHSSAP-1A01 HARNESS ASY PAC 1 COMP
38AU500012 38AU500012 HOUSING SERV CONN
HY06ZZ025 HY06ZZ025 HY06ZZ025 PLUG COMPRESSOR
KM680008 KM680008 INDICATOR MOISTURE
CU000034 CU000034 LABEL
EP71BA183 EP71BA183 LIQ LINE SERVICE VALVE
EF680036 EF680036 LIQUID LINE SOLENOID VALVE 5/8-INCH
HK02SB020 HK02SB020 LOW PRESSURE SWITCH
KM680004 KM680004 MOISTURE INDICATOR
912-990010-2 912-990010-2 NAVIGATOR CONTROL COMM CABLE
33ZCSENOAT 33ZCSENOAT OUTDOOR AIR SENSOR
313974-751 313974-751 PAINT STERLING
48TC500015 48TC500015 PAN CONDENSER
38AU500245 38AU500245 PANEL ASSEMBLY POWER EN TRY SI
38AU400255 38AU400255 PANEL ASSY RT SIDE
38AU400250 38AU400250 PLATE ASY COMP
LF39RZ017 LF39RZ017 PLUG
KA51PC175 KA51PC175 PLUG BUTTON
HY07MP323 HY07MP323 PLUG COMPRESSOR
48TM500273 48TM500273 POST CORNER
48TM400808 48TM400808 POST CRNR CNTRL BX SIDE
319421311 319421311 RACE WAY
319421-307 319421-307 RACEWAY, WIRE
48TC500011 48TC500011 RAIL BASE
48TC500008 48TC500008 RAIL BASE
48TC500012 48TC500012 RAIL BASE CENTER
48TC500010 48TC500010 RAIL BASESVC VLVRHT SIDE
HY01GF001 HY01GF001 RECEPTACLE WHITE
HN61PK052 HN61PK052 RELAY
HN61PC005 HN61PC005 RELAY 240V 14A
HN67SZ001 HN67SZ001 RELAY TIME DELAY
38AU500691 38AU500691 SEAL
EF680035 EF680035 SOLENOID VALVE
EF680033 EF680033 SOLENOID VALVE
EP71BA343 EP71BA343 SUCTION VALVE
50HJ501202 50HJ501202 SWITCH COVER
33ZCT55SPT 33ZCT55SPT TEMP SENSOR
HY90AZ001 HY90AZ001 TERMINAL
HY84DA018 HY84DA018 TERMINAL BOARD
HY84DA013 HY84DA013 TERMINAL BOARD
HY84DA005 HY84DA005 TERMINAL BOARD
33CSCNACHP-01 33CSCNACHP-01 THERMOSTAT
38AU400386 38AU400386 TOP COVER ASSY
38AK500257 38AK500257 TRANSFORMER BRACKET
HX28ZZ001 HX28ZZ001 UTILITY BOX
HX30FZ012 HX30FZ012 UTILITY BOX
HX28ZZ008 HX28ZZ008 UTILITY COVER
EC39EZ065 EC39EZ065 VALVE BODY
EC39EZ067 EC39EZ067 VALVE CORE
EF28XZ121 EF28XZ121 VALVE SOLENOID
HH51BX006 HH51BX006 WALL SENSOR, . MODEL NUMBER 30RBA1
