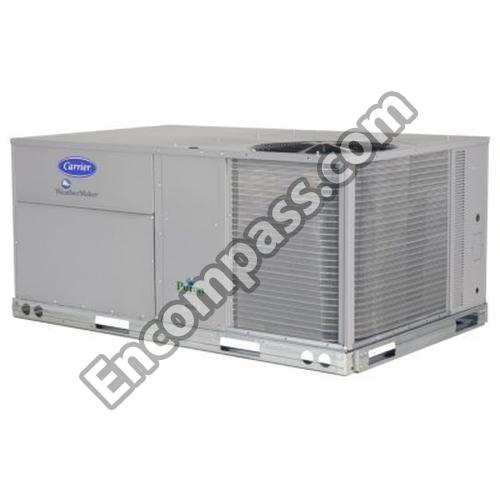

Model Image
Manufacturer

Carrier

Model Number

48HCDE075A

Description

Packaged Rooftop Gas Heating/electric Cooling Unit

Interactive Exploded View

Parts List

Part Number Description
HD56FR233 HD56FR233 1.7HP BLOWER MOTOR
HD58FR233 HD58FR233 208-230/460V 3PH 1725 RPM 2.9HP
HD58FE654 HD58FE654 208-230/460V3PH 2.9HP 1725 RPM
HC30GR230 HC30GR230 208-230V 1/16HP 3450RPM MOTOR
48TM000646 48TM000646 208/230V 1PH DRAFT IND MOTOR
32LT660004 32LT660004 208/230V 1PH MOTORMASTER DRIVE
HD60FK658 HD60FK658 230/460V3PH 5.25HP 1745RPM MTR
EF19XS027 EF19XS027 24V 15WATT SOLENOID COIL
HN52TC040 HN52TC040 24V COIL 2P 40AMP CONT
EF19XS017 EF19XS017 24V SOLENOID COIL
HK02SB027 HK02SB027 44-27# LOW PRESSURE SWITCH
KR11AD612 KR11AD612 6.95-INCH 1GRV CI SHEAVE; 1-INCHBORE
48TM500843 48TM500843 ACCESS PANEL
48TM500136 48TM500136 ACCESS PANEL
48TM400089C 48TM400089C AL FIN/CU TUBE COND COIL ECOAT
50DK503372 50DK503372 BASE RAIL
50DK503371 50DK503371 BASE RAIL
50DK503370 50DK503370 BASE RAIL
KT61DZ060 KT61DZ060 BEARING
48HG500422 48HG500422 BEARING BRACKET
HD60ZR651 HD60ZR651 BELTDRIVEBLOWERMOTOR 4.9HP230V
50DK502257 50DK502257 BLANK OFF PLT
50HJ441156 50HJ441156 BLOWER ASSEMBLY
50HJ542488 50HJ542488 BLOWER BRACKET
KR11AD912 KR11AD912 BLOWER PULLEY
LA22LA125 LA22LA125 BLOWER WHEEL
LA21RB550 LA21RB550 BLOWER WHEEL
50DK506594 50DK506594 BRACKET
50DK502805 50DK502805 BRACKET
50DK500523 50DK500523 BRACKET
48TM500577 48TM500577 BRACKET
38AK540093 38AK540093 BRACKET
50HJ501360 50HJ501360 BRACKET COIL
48TM503400 48TM503400 BRACKET SENSOR
48TM505275 48TM505275 BURNER SUPPORT
50DK407030 50DK407030 BURNER TUBE (OUTER)
HY93NH063 HY93NH063 BUSHING
P291-1013 P291-1013 CAPACITOR
P281-0002 P281-0002 CAPACITOR PROTECTIVE BOOT
P281-0021 P281-0021 CAPACITOR STRAP
48TMHSRAM-1A00 48TMHSRAM-1A00 CARRIER 48TMHSRAM-1A00 HARNESS ASSY
50DK500942 50DK500942 CARRIER 50DK500942 HEAT EXCHANGER SUPPOR
50DK504557 50DK504557 CARRIER 50DK504557 SHIELD
50DK505989 50DK505989 CARRIER 50DK505989 CHANNEL DRAFT INDUCER
50DK506176 50DK506176 CARRIER 50DK506176 INSULATION
50HJ501200 50HJ501200 CARRIER 50HJ501200 OUTLET GRILL FAN GUAR
HD56FR235 HD56FR235 CARRIER HD56FR235 BLOWER MOTOR
HK02SA420 HK02SA420 CARRIER HK02SA420 PRESSURE SWITCH
HH83XB230 HH83XB230 CIRCUIT BREAKER
48TM400089 48TM400089 COIL COND AL/CU
48TM405070 48TM405070 COIL EVAP AL/CU
48TM402044 48TM402044 COIL.SUBCOOLER AL/CU
HY06ZZ020 HY06ZZ020 COMPRESSOR PLUG
HC40GE233 HC40GE233 COND FAN MOTOR
50DK407017 50DK407017 CONDENSATE PAN
HL38MG029 HL38MG029 CONTROL HUMIDISTAT
HL39ZZ008 HL39ZZ008 CONTROLLER CONDENSATE S
48TM400585 48TM400585 CORNER POST
50DK400834 50DK400834 COVER ASSEMBLY
50DK400832 50DK400832 COVER ASSEMBLY
48TM400575 48TM400575 COVER ASY GAS HEAT
48TM504178 48TM504178 COVER CONTROL BOX
48TMFSRBWD-AL0 48TMFSRBWD-AL0 DISCONNECT
33ZCSENDRH-02 33ZCSENDRH-02 DUCT RELATIVE HUMIDITY SENSOR
CRECOMZR021A03 CRECOMZR021A03 ECONOMIZER
50HJ400345 50HJ400345 ECONOMIZER BYPASS PLUG
33CS2PP2S-03 33CS2PP2S-03 EDGE PRO TWO STAGE PROG STAT
HH57AC078 HH57AC078 ENTHALPY SENSOR
50DK500688 50DK500688 FAN DECK
50DK500692 50DK500692 FAN PLATE
50DK500691 50DK500691 FAN PLATE
LA01RA044 LA01RA044 FAN PROP 3 BLADES
LA01ZC003 LA01ZC003 FAN PROPELLAR
50DK500693 50DK500693 FAN SCROLL
48HG501457 48HG501457 FAN SHAFT
KH43LG085 KH43LG085 FILTER DRIER
50DK506602 50DK506602 FILTER RETAINER
50DK506598 50DK506598 FILTER RETAINER
48TM501727 48TM501727 FLAME RETAINER
50HJ401431 50HJ401431 FLAME SENSOR
99CC409372 99CC409372 FLARE CAP
CRFLUEDS001A00 CRFLUEDS001A00 FLUE DISCHARGE DEFLECTOR FOR GAS HEATIN
50HJ441618 50HJ441618 FLUE HOOD KIT
HH18HB016 HH18HB016 FREEZE THERMOSTAT
48TM500114 48TM500114 GAS PARTITION
50HJ541238 50HJ541238 GAS VALVE BRACKET;
EF33CW201 EF33CW201 GAS VALVE [NAT]
KA56ZZ150 KA56ZZ150 GROMMET
KA56TR057 KA56TR057 GROMMET COMPRESSOR
KA56DS001 KA56DS001 GROMMET WIRE
HY90AZ009 HY90AZ009 GROUND LUG
50HJ542453 50HJ542453 HAIL GUARD RTPF COIL
50HJ542451 50HJ542451 HAIL GUARD RTPF COIL
329799-401 329799-401 HANDLE
48TM403898 48TM403898 HARNESS ASSY
48TM402679 48TM402679 HARNESS ASSY
48TM400923 48TM400923 HARNESS ASY IFM
48TMHSRAY--A12 48TMHSRAY--A12 HARNESS ASYYAC CTRL
48TJ660009 48TJ660009 HEAT EXCHANGER
CRLPELEV003A00 CRLPELEV003A00 HIGH ALTITUDE LIQUID PROPANE (LP) KIT FO
50DK505913 50DK505913 HOUSING INDUCED DRAFT
LH33EP001 LH33EP001 IGNITION BOARD
50HJ403022 50HJ403022 IGNITOR
50DK401017 50DK401017 INDOOR BASE PAN
48TM400810 48TM400810 INSUL ASY CRNR POST
48TM000742 48TM000742 INSULATION
50HC660003 50HC660003 INSULATION KIT TXV BULB
AW01DA096 AW01DA096 KEY BLOWER SHAFT (5 PACK)
HH18HA138 HH18HA138 LIMIT SWITCH
48TM405277 48TM405277 MANIFOLD ASSY
CRMANDPR002A03 CRMANDPR002A03 MANUAL DAMPER
32LT900245 32LT900245 MOTOR CONTROLLER
KR11HY310 KR11HY310 MOTOR PULLEY
P461-3503 P461-3503 MOTORPULLEY 3-INCH 5/8-INCHBORE
P461-3706 P461-3706 MOTORPULLEY 7/8-INCH BORE3.4-4.4-INCH
33ZCSENOAT 33ZCSENOAT OUTDOOR AIR SENSOR
313974-751 313974-751 PAINT STERLING
50DK502826 50DK502826 PANEL
48TM500288 48TM500288 PANEL ACCESS CNTRL BX
48TM400573 48TM400573 PANEL ASY INDOOR FAN
48TM500189 48TM500189 PANEL OUTDOOR
50HJ442447 50HJ442447 PANEL WITH DUCTS
50DK409559 50DK409559 PLATE ASSEMBLY
48TM502017 48TM502017 PLATE MOUNTINGCOMPR. R TPF
KA51PC175 KA51PC175 PLUG BUTTON
KA51AD468 KA51AD468 PLUG BUTTON
50DK500714 50DK500714 POST CENTER
48TM500273 48TM500273 POST CORNER
48TM400808 48TM400808 POST CRNR CNTRL BX SIDE
48TM400814 48TM400814 POST CTR CNTRL BX SIDE
CRPWREXH022A01 CRPWREXH022A01 POWER EXHAUST
HK06WC061 HK06WC061 PRESSURE SWITCH
HK06MB061 HK06MB061 PRESSURE SWITCH
50DK503912 50DK503912 REGULATER GASKET
48TM501728 48TM501728 REGULATOR EXHAUST
HK50AA050 HK50AA050 REHEAT CONTROL BOARD
CRDISKIT001A00 CRDISKIT001A00 REMOTE KEYPAD & DISPLAY
KA99ZT003 KA99ZT003 REMOTE TEST STAT KIT
HH18HZ195 HH18HZ195 ROLLOUT SWITCH
EC39DM062 EC39DM062 SCHRAEDER VALVE CORE
50DK500235 50DK500235 SEAL DRAIN LINE
50DK500432 50DK500432 SEAL INDOOR COIL/PARTITI ON
99SR120112041401 99SR120112041401 SEAL STRIPS
33ZCSENORH-02 33ZCSENORH-02 SENSOR
32LT660007 32LT660007 SENSOR (REHEAT/MOTOR MASTER)
KR11AZ002 KR11AZ002 SHAFT BLOWER WHEEL
48TM400980 48TM400980 SMOKE DETECTOR
48TM400979 48TM400979 SMOKE DETECTOR WITH BRACKET
EF23VS184 EF23VS184 SOLENOID VALVE
EF23VS183 EF23VS183 SOLENOID VALVE
33ZCSENSRH-02 33ZCSENSRH-02 SPACE RELATIVE HUMIDITY SENSOR
33ZCT56SPT 33ZCT56SPT SPACESENSORW/OVERRIDEBUTTON
LH32RF113 LH32RF113 SPUD/ORIFICE
P281-0031 P281-0031 STRAP
48TM000802 48TM000802 SUPPORT ASSEMBLY
50HJ542486 50HJ542486 SUPPORT BRACKET
50DK506758 50DK506758 SUPPORT TRACK
HH22QB047 HH22QB047 SWITCH TEMP
48TMHSRAST-A00 48TMHSRAST-A00 TEL-AIRE SMOKE HARNESS
33ZCT55SPT 33ZCT55SPT TEMP SENSOR
33ZCT59SPT 33ZCT59SPT TEMP SENSOR W/OVERRIDE DIGITAL
HK50AA051 HK50AA051 TERMINAL BOARD
33CSCNACHP-01 33CSCNACHP-01 THERMOSTAT
HT01BD202 HT01BD202 TRANSFORMER
EA660004 EA660004 TXV VALVE
EC39EZ065 EC39EZ065 VALVE BODY
EC39EZ067 EC39EZ067 VALVE CORE
HH79NZ074 HH79NZ074 VVT4 ZONE SENSOR
CRWINSTR001A00 CRWINSTR001A00 WINTER START PACK
48TM001802 48TM001802 WIRING KIT
