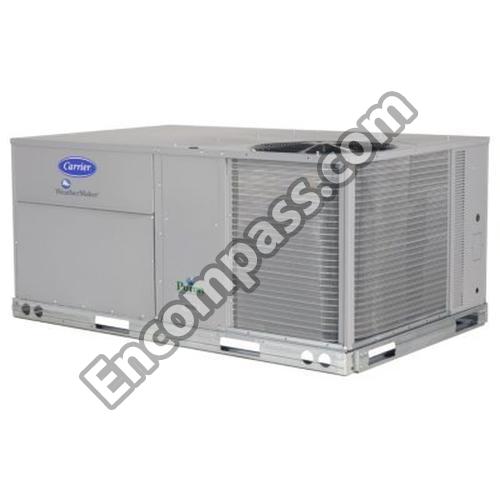

Model Image
Manufacturer

Carrier

Model Number

48HCDE096A

Description

Packaged Rooftop Gas Heating/electric Cooling Unit

Interactive Exploded View

Parts List

Part Number Description
HD56FR462 HD56FR462 208-230/460 3PH 1725RPM MOTOR
HD58FR231 HD58FR231 208-230/460V3PH 2.4HP 1750 RPM
EF19XS027 EF19XS027 24V 15WATT SOLENOID COIL
HN52TC040 HN52TC040 24V COIL 2P 40AMP CONT
EF19XS017 EF19XS017 24V SOLENOID COIL
HN52TC024 HN52TC024 2P 32AMP 24V CONTACTOR
HC30GR460 HC30GR460 400/460V 2875/3450RPM IND MTR
HK02SB029 HK02SB029 44-27# LOW PRESSURE SWITCH
HK02SB027 HK02SB027 44-27# LOW PRESSURE SWITCH
HT01BD702 HT01BD702 460V PRI 24V SEC TRANSFORMER
HD56FR463 HD56FR463 460V3PH 1.7HP 1690RPM MOTOR
HK02SA440 HK02SA440 660/505# HIGH PRESSURE CUTOUT
48TM500136 48TM500136 ACCESS PANEL
48TM400207 48TM400207 ALUMINUM CONDENSING COIL
50DK503372 50DK503372 BASE RAIL
50DK503371 50DK503371 BASE RAIL
50DK503370 50DK503370 BASE RAIL
KT61DZ060 KT61DZ060 BEARING
48HG500422 48HG500422 BEARING BRACKET
P463-A48 P463-A48 BELT
50HJ441157 50HJ441157 BLOWER ASSEMBLY;
50HJ542488 50HJ542488 BLOWER BRACKET
HD60FE655 HD60FE655 BLOWER MOTOR
LA22LA125 LA22LA125 BLOWER WHEEL
LA21RB550 LA21RB550 BLOWER WHEEL
EC39DM061 EC39DM061 BODY COUPLING
AH19AB552 AH19AB552 BOLT
50DK502805 50DK502805 BRACKET
50DK500523 50DK500523 BRACKET
48TM500577 48TM500577 BRACKET
38AK540093 38AK540093 BRACKET
50HJ542491 50HJ542491 BRACKET MOTOR ADJUST
50HJ542489 50HJ542489 BRACKET MOTOR ADJUST
48TM503400 48TM503400 BRACKET SENSOR
50DK407029 50DK407029 BURNER ASSEMBLY
48TM505275 48TM505275 BURNER SUPPORT
50DK407030 50DK407030 BURNER TUBE (OUTER)
HY93NH063 HY93NH063 BUSHING
P281-0002 P281-0002 CAPACITOR PROTECTIVE BOOT
P281-0021 P281-0021 CAPACITOR STRAP
AH20AB204 AH20AB204 CARRIAGE BOLT
AH19AB198 AH19AB198 CARRIAGE BOLT
48TMHSRAM-1A00 48TMHSRAM-1A00 CARRIER 48TMHSRAM-1A00 HARNESS ASSY
50DK500942 50DK500942 CARRIER 50DK500942 HEAT EXCHANGER SUPPOR
50DK504557 50DK504557 CARRIER 50DK504557 SHIELD
50DK505989 50DK505989 CARRIER 50DK505989 CHANNEL DRAFT INDUCER
50DK506176 50DK506176 CARRIER 50DK506176 INSULATION
50HJ501200 50HJ501200 CARRIER 50HJ501200 OUTLET GRILL FAN GUAR
HD56FR235 HD56FR235 CARRIER HD56FR235 BLOWER MOTOR
HK02SA420 HK02SA420 CARRIER HK02SA420 PRESSURE SWITCH
LH32RF120 LH32RF120 CARRIER LH32RF120 ORIFICE
50DK502637 50DK502637 COIL BRACKET
48TM400208 48TM400208 COIL COND CU/CU
48TM400207C 48TM400207C COIL.COND AL/CU E-COAT
48TM402991 48TM402991 COIL.SUBCOOLER AL/CU
HC40GQ463 HC40GQ463 COMPATIBLE CONDENSER F
48TM500286 48TM500286 COMPRESSOR ACCESS PANEL
50DK407017 50DK407017 CONDENSATE PAN
48TM400209 48TM400209 CONDENSER COIL AL VINYL/CU
HL39ZZ008 HL39ZZ008 CONTROLLER CONDENSATE S
48TM400584 48TM400584 CORNER POST INSULATION A
48TM400811 48TM400811 CORNER POST ISULATION AS
50DK400833 50DK400833 COVER
50DK400832 50DK400832 COVER ASSEMBLY
48TM400575 48TM400575 COVER ASY GAS HEAT
48TM504178 48TM504178 COVER CONTROL BOX
HT32TC743 HT32TC743 CRANKCASE HEATER
48TMFSRBWD-AL0 48TMFSRBWD-AL0 DISCONNECT
CRECOMZR021A03 CRECOMZR021A03 ECONOMIZER
50HJ400345 50HJ400345 ECONOMIZER BYPASS PLUG
HH57AC078 HH57AC078 ENTHALPY SENSOR
50DK506334 50DK506334 EXHAUST REGULATOR
50DK500688 50DK500688 FAN DECK
LA01RA044 LA01RA044 FAN PROP 3 BLADES
LA01ZC003 LA01ZC003 FAN PROPELLAR
48HG501457 48HG501457 FAN SHAFT
KH43LE102 KH43LE102 FILTER DRIER
50DK406603 50DK406603 FILTER FRAME ASSEMBLY
50DK506601 50DK506601 FILTER RETAINER
50DK506598 50DK506598 FILTER RETAINER
48TMFSRMTX2600 48TMFSRMTX2600 FIOP REHEAT ASYFOR HUM IDIMIZ
50DK501892 50DK501892 FLAME RETAINER
50HJ401431 50HJ401431 FLAME SENSOR
99CC409372 99CC409372 FLARE CAP
CRFLUEDS001A00 CRFLUEDS001A00 FLUE DISCHARGE DEFLECTOR FOR GAS HEATIN
48TM500114 48TM500114 GAS PARTITION
50HJ541238 50HJ541238 GAS VALVE BRACKET;
EF33CW201 EF33CW201 GAS VALVE [NAT]
KA56ZZ150 KA56ZZ150 GROMMET
KA56TR057 KA56TR057 GROMMET COMPRESSOR
KA56DS001 KA56DS001 GROMMET WIRE
HY90AZ009 HY90AZ009 GROUND LUG
CRLVHLGD016A00 CRLVHLGD016A00 HAIL GUARD
50HJ442730 50HJ442730 HALL EFFECT SENSOR
329799-401 329799-401 HANDLE
48TM402679 48TM402679 HARNESS ASSY
48TMHSRMTX2A00 48TMHSRMTX2A00 HARNESS ASY
48TMHSRAM-2A00 48TMHSRAM-2A00 HARNESS ASY CLO1/COMP2
48TM400923 48TM400923 HARNESS ASY IFM
48TMHSRAY--A12 48TMHSRAY--A12 HARNESS ASYYAC CTRL
HC30GL460 HC30GL460 HC30GL460 MOTOR DRAFT INDUCED
48TM401755 48TM401755 HEADER ASYMETERING DEVICE
48TJ660004 48TJ660004 HEAT EXCHANGER
ZP42K5E-TFD-830 ZP42K5E-TFD-830 HERMETIC SCROLL COMPRESSOR 41900 BTU 46
CRLPELEV003A00 CRLPELEV003A00 HIGH ALTITUDE LIQUID PROPANE (LP) KIT FO
50DK505913 50DK505913 HOUSING INDUCED DRAFT
HY06ZZ025 HY06ZZ025 HY06ZZ025 PLUG COMPRESSOR
LH33WP002 LH33WP002 IGC BOARD
LH33EP001 LH33EP001 IGNITION BOARD
50HJ403022 50HJ403022 IGNITOR
50DK401017 50DK401017 INDOOR BASE PAN
48TM000647 48TM000647 INDUCER ASSEMBLY
50DK406816 50DK406816 INDUCER MOTOR ASSEMBLY
50HC660003 50HC660003 INSULATION KIT TXV BULB
AW01DA096 AW01DA096 KEY BLOWER SHAFT (5 PACK)
HH18HA138 HH18HA138 LIMIT SWITCH
50HJ542454 50HJ542454 LOUVER PANEL
50HJ542452 50HJ542452 LOUVER PANEL
48TM405276 48TM405276 MANIFOLD ASSY
CRMANDPR002A03 CRMANDPR002A03 MANUAL DAMPER
HD58FR232 HD58FR232 MOTOR
HD56FE652 HD56FE652 MOTOR
50HJ542490 50HJ542490 MOTOR BRACKET
32LT900645 32LT900645 MOTOR MASTER CONTROLLER
50HJ542487 50HJ542487 MOTOR MOUNT
P461-3706 P461-3706 MOTORPULLEY 7/8-INCH BORE3.4-4.4-INCH
33ZCSENOAT 33ZCSENOAT OUTDOOR AIR SENSOR
48TM500190 48TM500190 OUTDOOR PANEL
313974-751 313974-751 PAINT STERLING
50DK502826 50DK502826 PANEL
48TM500842 48TM500842 PANEL ACCESS CNTRL BOX
50HJ442448 50HJ442448 PANEL ASSY
48TM400574 48TM400574 PANEL ASSY BLOWER ACCESS
P461-3507 P461-3507 PD PULLEY
HY06ZZ026 HY06ZZ026 PLUG ASSEMBLY/WIRING HARNESS
KA51PC175 KA51PC175 PLUG BUTTON
KA51AD468 KA51AD468 PLUG BUTTON
48TM500272 48TM500272 POST CORNER
48TM400809 48TM400809 POST CORNER
48TM400815 48TM400815 POST CTR CNTRL BX SIDE
HK06WC061 HK06WC061 PRESSURE SWITCH
HK06MB061 HK06MB061 PRESSURE SWITCH
KR11AZ712 KR11AZ712 PULLEY
P461-3505 P461-3505 PULLEY 4X5/8 IN
50DK503912 50DK503912 REGULATER GASKET
HK50AA050 HK50AA050 REHEAT CONTROL BOARD
HN61KK324 HN61KK324 RELAY
HN61PC005 HN61PC005 RELAY 240V 14A
KA99ZT003 KA99ZT003 REMOTE TEST STAT KIT
HH18HZ195 HH18HZ195 ROLLOUT SWITCH
EC39DM062 EC39DM062 SCHRAEDER VALVE CORE
50DK501626 50DK501626 SCROLL
50DK500235 50DK500235 SEAL DRAIN LINE
50DK500432 50DK500432 SEAL INDOOR COIL/PARTITI ON
32LT660007 32LT660007 SENSOR (REHEAT/MOTOR MASTER)
KR11AZ002 KR11AZ002 SHAFT BLOWER WHEEL
50DK501625 50DK501625 SIDEPLATE FAN BACK SIDE
50DK501624 50DK501624 SIDEPLATE FAN DRIVE SIDE
48TM400980 48TM400980 SMOKE DETECTOR
48TM400979 48TM400979 SMOKE DETECTOR WITH BRACKET
EF23VS184 EF23VS184 SOLENOID VALVE
EF23VS183 EF23VS183 SOLENOID VALVE
33ZCT56SPT 33ZCT56SPT SPACESENSORW/OVERRIDEBUTTON
P281-0031 P281-0031 STRAP
50DK506551 50DK506551 SUPPORT
50DK406552 50DK406552 SUPPORT ASSEMBLY
48TM000802 48TM000802 SUPPORT ASSEMBLY
50DK506758 50DK506758 SUPPORT TRACK
HH22QB047 HH22QB047 SWITCH TEMP
48TMHSRAST-A00 48TMHSRAST-A00 TEL-AIRE SMOKE HARNESS
33ZCT55SPT 33ZCT55SPT TEMP SENSOR
33ZCT59SPT 33ZCT59SPT TEMP SENSOR W/OVERRIDE DIGITAL
HK50AA051 HK50AA051 TERMINAL BOARD
HK05YZ007 HK05YZ007 TRANSDUCER
EA660003 EA660003 TXV VALVE (5 TON)
EC39EZ065 EC39EZ065 VALVE BODY
EC39EZ067 EC39EZ067 VALVE CORE
HH79NZ074 HH79NZ074 VVT4 ZONE SENSOR
50HJ440193 50HJ440193 WIRING KIT
48TM001802 48TM001802 WIRING KIT
