Manufacturer
Carrier
Model Number
48HCDE2066A
Description

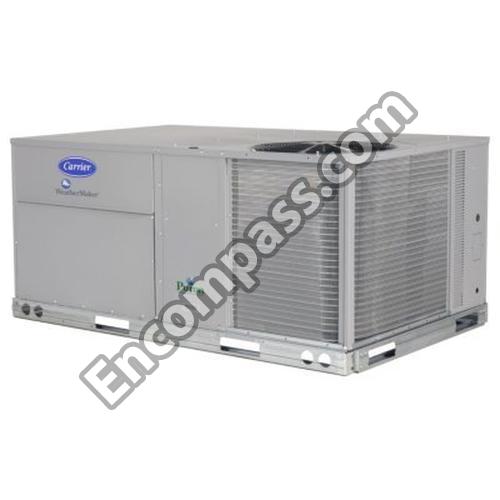

Single Package Rooftop Gas Heating Electric Coolin
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1000VA 240/480VPRIM120/240VSEC |
|
|
2.834-INCH SAMPLING TUBE |
|
|
24V SOLENOID COIL |
|
|
3 POLE 100AMP DISCONNECT |
|
|
460V PRI 24V SEC TRANSFORMER |
|
|
5' CABLE ASSEMBLY |
|
|
5/8-INCH TUBE CLAMP |
|
|
660/505# HIGH PRESSURE SWITCH |
|
|
ANGLE IFM MOUNTING |
|
|
ANGLE MOUNTING |
|
|
ANGLE SUPPORT |
|
|
BAFFLE FAN |
|
|
BAFFLE FAN |
|
|
BEARING |
|
|
BEARING BRACKET |
|
|
BLOCKOFF |
|
|
BLOWER WHEEL |
|
|
BLOWER WHEEL |
|
|
BOLT HEX HEAD |
|
|
BRACKET |
|
|
BRACKET BAFFLE SUPPORT |
|
|
BRACKET BAFFLE SUPPORT |
|
|
BRACKET BEARING |
|
|
BRACKET BEARING |
|
|
BRACKET BEARING |
|
|
BRACKET COND SWITCH |
|
|
BRACKET CONTROLLER |
|
|
BRACKET MOTOR CHANNEL |
|
|
BRACKET SUPPORT |
|
|
BUSHING |
|
|
CABLE ASSEMBLY FOR SUPPLY SENS |
|
|
CARRIER 50HE401986 DRAIN PAN |
|
|
CARRIER 50HJ501200 OUTLET GRILL FAN GUAR |
|
|
CHANNEL |
|
|
CLAMP |
|
|
CLAMP FILTER DRIER |
|
|
COIL CONDENSER AL/CU |
|
|
COIL CONDENSER AL/CU |
|
|
COIL CONDENSER CU/CU |
|
|
COIL EVAP AL |
|
|
COIL REHEAT AL |
|
|
COIL.COND AL/CU E-COAT |
|
|
COIL.COND AL/CU E-COAT |
|
|
COIL.COND AL/CU PRE-COAT |
|
|
COIL.COND AL/CU PRE-COAT |
|
|
COIL.EVAP AL/CU |
|
|
COIL.REHEAT AL/CU |
|
|
COIL.REHEAT CU/CU |
|
|
COMPATIBLE CONDENSER F |
|
|
COMPRESSION FITTING |
|
|
CONDENSOR FAN MOTOR |
|
|
CONNECTOR |
|
|
CONTROLLER CONDENSATE S |
|
|
COUPLING |
|
|
COVENIENCE OUTLET |
|
|
DECK FAN INSULATED |
|
|
DISTRIBUTOR |
|
|
DISTRIBUTOR |
|
|
DRAIN PAN EXTENSION |
|
|
FAN ORIFICE |
|
|
FAN PROP 3 BLADES |
|
|
FAN SIDE PLATE |
|
|
FAN SIDE PLATE |
|
|
FILTER DRIER |
|
|
FLARE CAP |
|
|
FLEXIBLE TUBE |
|
|
FLEXIBLE TUBE |
|
|
FUSE BRACKET |
|
|
GROMMET |
|
|
GROMMET |
|
|
GROMMET COMPRESSOR |
|
|
GROMMET PARTITION |
|
|
HANDLE |
|
|
HARNESS ASSY |
|
|
IFM PANEL BRACKET |
|
|
INSUL ASY CORNER POST |
|
|
INSUL ASY TOP COVER |
|
|
INSUL ASY TOP COVER |
|
|
KEY (PULLEY) |
|
|
LOW PRESSURE SWITCH |
|
|
MOTOR CHANNEL |
|
|
MOTOR CHANNEL |
|
|
MOTOR MASTER CONTROLLER |
|
|
MOUNT BRACKET |
|
|
NOZZLE |
|
|
PAINT STERLING |
|
|
PHOTOELECTRIC DUCT SMOKE SENSR |
|
|
PICK-UP TUBE |
|
|
RECEPTACLE WHITE |
|
|
REHEAT CONTROL BOARD |
|
|
RELAY 240V 14A |
|
|
SCHRAEDER VALVE CORE |
|
|
SCROLL PANEL |
|
|
SENSOR (REHEAT/MOTOR MASTER) |
|
|
SENSOR WITHOUT DISPLAY |
|
|
SHAFT |
|
|
SHAFT FAN |
|
|
SIDEPLATE FAN |
|
|
SIDEPLATE FAN |
|
|
SMOKE DETECTOR CONTROL W/WIRE |
|
|
SOLENOID COIL |
|
|
STRIP GROMMET 100FT LEN GTH |
|
|
SWITCH TOGGLE |
|
|
TERMINAL BLOCK |
|
|
TOP PNL |
|
|
TRANSDUCER |
|
|
TXV |
|
|
UTILITY BOX |
|
|
VALVE BODY |
|
|
VALVE BODY |
|
|
VALVE CORE |
|
|
VALVE SOLENOID LESS COI L |
|
|
VESTIBULE PLATE ANGLE |
|
|
VVT4 ZONE SENSOR |
|
|
WINTER START PACK |
|
|
WIRE HARNESS OUTDOOR FAN RE |
|
|
WIRING HARNESS |
|
|
WIRING HARNESS CC HEATER |
|
|
ZEE BRACKET |
|
|
ZEE BRACKET |
