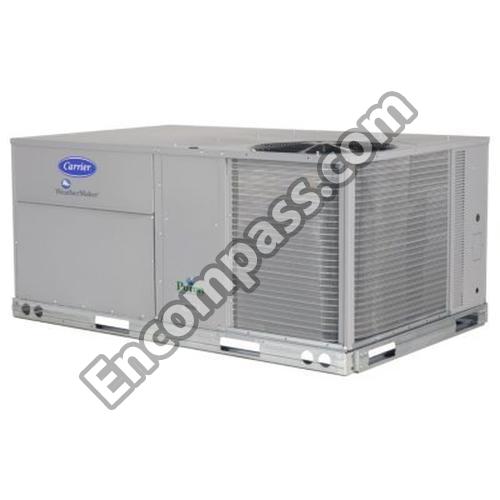

Model Image
Manufacturer

Carrier

Model Number

48HCED2016A

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
LH32RF067 LH32RF067 #51 BURNER ORIFICE SPUD
HT01AH851 HT01AH851 1000VA 240/480VPRIM120/240VSEC
LA22LA108 LA22LA108 11 7/8"X 10 11/16" CW WHEEL
HK02SB022 HK02SB022 117/054# LOW PRESSURE SWITCH
LA660001 LA660001 15.5X15 BLOWER WHEEL
KR51BH615 KR51BH615 1GRV SHEAVE,8.75-INCH OD,1 3/16BORE
48HG503589 48HG503589 2.834-INCH SAMPLING TUBE
HD60FE656 HD60FE656 208-230/460V3PH 1750RPM MOTOR
HF23BJ065 HF23BJ065 24V 2-10VDC 180# ACTUATOR
EF33CW271 EF33CW271 24V 3.5" WC NAT 1/8" GAS VALVE
HN52TC040 HN52TC040 24V COIL 2P 40AMP CONT
HT01BD702 HT01BD702 460V PRI 24V SEC TRANSFORMER
RM91ZT005 RM91ZT005 5' CABLE ASSEMBLY
50DJ404793 50DJ404793 50DJ404793 DOOR LATCH
50DJ504652 50DJ504652 50DJ504652 HINGE
HY06MP106 HY06MP106 6 PIN CONNECTOR PLUG
HY10KB095 HY10KB095 600V TIME DELAY 30 AMP
HK02SA445 HK02SA445 660/505# HIGH PRESSURE SWITCH
50HE400890 50HE400890 ACCESS PANEL
50HE400672 50HE400672 ACCESS PANEL
50HE400671 50HE400671 ACCESS PANEL
50HE400640 50HE400640 ACCESS PANEL
50HE402512 50HE402512 ACCESS PANEL INSULATED
50HE402510 50HE402510 ACCESS PANEL INSULATED
50HE400642 50HE400642 ACCESS PNL
HF680025 HF680025 ACTUATOR MOTOR
HF23BJ061 HF23BJ061 ACTUATOR MOTOR
HF680026 HF680026 ACTUATOR REPLACEMENT KIT
LD24AA001 LD24AA001 AIR DAMPER VENT
50TG500204 50TG500204 ANGLE IFM MOUNTING
50TG500879 50TG500879 ANGLE MOUNTING
50HE500258 50HE500258 ANGLE SUPPORT
50HE500595 50HE500595 ANGLE SUPPORT
AT96AB170 AT96AB170 AT96AB170 CAGE NUT
50HE501951 50HE501951 BAFFLE FAN
50HE501950 50HE501950 BAFFLE FAN
50HE501439 50HE501439 BARO RELIEF ANGLE
50HE500788 50HE500788 BARO RELIEF DOOR
50HE500927 50HE500927 BARO RELIEF HINGE
50HE500280 50HE500280 BASE PAN
50HE400698 50HE400698 BASE PAN OUTDOOR INSULATED
50HE500286 50HE500286 BASE RAIL
50HE500283 50HE500283 BASE RAIL
50HE500281 50HE500281 BASE RAIL END
KT63CZ086 KT63CZ086 BEARING
50HE500936 50HE500936 BEARING BRACKET
50HE500892 50HE500892 BEARING BRACKET
KR29BF047 KR29BF047 BELT
HT32TC705 HT32TC705 BELT 480V 70W 7-8"DIA 91" HTR
50HE500381 50HE500381 BLANK OFF
50HE500422 50HE500422 BLANKOFF
50HE500371 50HE500371 BLOCKOFF
50HE500968 50HE500968 BLOCKOFF
HD60FE655 HD60FE655 BLOWER MOTOR
AH07BZ734 AH07BZ734 BOLT HEX HEAD
HX38FZ010 HX38FZ010 BOX COVER
50HE502836 50HE502836 BRACKET
50HE500602 50HE500602 BRACKET
50HE502207 50HE502207 BRACKET BAFFLE SUPPORT
50HE502128 50HE502128 BRACKET BAFFLE SUPPORT
50HE501832 50HE501832 BRACKET BASE
50HE502399 50HE502399 BRACKET COND SWITCH
50HE500897 50HE500897 BRACKET CONTROLLER
50HE501764 50HE501764 BRACKET GUARD
50TG500202 50TG500202 BRACKET MOTOR CHANNEL
50HE502845 50HE502845 BRACKET MOUNT
50HE502558 50HE502558 BRACKET MOUNT
48HG500813 48HG500813 BRACKET ROLL OUT
50HE000361 50HE000361 BRACKET SMOKE SENSOR
50TM501829 50TM501829 BRACKET SUPPORT
50DK407027 50DK407027 BURNER
50DK407028 50DK407028 BURNER ASSY
48HG501550 48HG501550 BURNER BRACKET
LH32RF104 LH32RF104 BURNER ORIFICE, NATURAL GAS
LH32RF060 LH32RF060 BURNER SPUD
48HG501551 48HG501551 BURNER SUPPORT
HY93NH028 HY93NH028 BUSHING
RM91ZT010 RM91ZT010 CABLE ASSEMBLY FOR SUPPLY SENS
50HE400792 50HE400792 CARRIER 50HE400792 DRAFT INDUCE MOTOR
50HE401986 50HE401986 CARRIER 50HE401986 DRAIN PAN
50HJ501200 50HJ501200 CARRIER 50HJ501200 OUTLET GRILL FAN GUAR
AU02AB171 AU02AB171 CARRIER AU02AB171 PLATE WASHER
AU11AS171 AU11AS171 CARRIER AU11AS171 LOCK WASHER
LH32RF116 LH32RF116 CARRIER HVAC PART
62M680368 62M680368 CARRIER HVAC PART
62M680354 62M680354 CARRIER HVAC PART
62M680314 62M680314 CARRIER HVAC PART
62M680295 62M680295 CARRIER HVAC PART
62M680249 62M680249 CARRIER HVAC PART
62M680241 62M680241 CARRIER HVAC PART
62M680080 62M680080 CARRIER HVAC PART
50HE500771 50HE500771 CARRIER HVAC PART
50HC680002 50HC680002 CARRIER HVAC PART
LH32RF120 LH32RF120 CARRIER LH32RF120 ORIFICE
LH32RF129 LH32RF129 CARRIER LH32RF129 SPUD ORIFICE
50HE501430 50HE501430 CHANNEL
50HE500931 50HE500931 CHANNEL
EC36SZ063 EC36SZ063 CHECK VALVE
KR11HY216 KR11HY216 CISHEAVE7/8-INCH BORE4.15-INCH DIA SINGL
KA66AA088 KA66AA088 CLAMP
KA69ZC306 KA69ZC306 CLAMP FILTER DRIER
50HE400641 50HE400641 COIL CENTER POST INSUL ASSY
50HE401812 50HE401812 COIL CONDENSER AL/CU
50HE401808 50HE401808 COIL CONDENSER AL/CU
50HE401809 50HE401809 COIL CONDENSER CU/CU
50HE401828 50HE401828 COIL EVAP AL/CU
50HE401825 50HE401825 COIL EVAPORATOR AL/CU
50HE502791 50HE502791 COIL HAIL GUARD (SIDE)
50HE502790 50HE502790 COIL HAIL GUARD(SIDE)
50HE401815 50HE401815 COIL.COND AL/CU E-COAT
50HE401811 50HE401811 COIL.COND AL/CU E-COAT
50HE401814 50HE401814 COIL.COND AL/CU PRE-COAT
50HE401810 50HE401810 COIL.COND AL/CU PRE-COAT
50HE402709 50HE402709 COIL.EVAP AL/CU
HC40GQ463 HC40GQ463 COMPATIBLE CONDENSER F
DC07DA045 DC07DA045 COMPRESSION FITTING
HC39GE468 HC39GE468 CONDENSOR FAN MOTOR
DC09DA028 DC09DA028 CONNECTOR
HW92JY003 HW92JY003 CONNECTOR
HK50ZA002 HK50ZA002 CONTROL BOARD
HK50AA047 HK50AA047 CONTROL BOARD, RTU-OPEN
HH63AW002 HH63AW002 CONTROLLER
HL39ZZ008 HL39ZZ008 CONTROLLER CONDENSATE S
50HE502424 50HE502424 CORNER BRACE
48HG501713 48HG501713 COUPLING
50HJ542740 50HJ542740 COVENIENCE OUTLET
50HE500564 50HE500564 COVER HEAT
50HE502842 50HE502842 COVER INNER CONTROL BOX
50HE502927 50HE502927 COVER INNER CONTROL BOX HNG
50HE400530 50HE400530 DAMPER ASSEMBLY
50HE500739 50HE500739 DECK BLOWER
EA07LD213 EA07LD213 DISTRIBUTOR
EA07KC107 EA07KC107 DISTRIBUTOR
50HE403233 50HE403233 DOOR & FRAME ASY INSULA TED
50HE401240 50HE401240 DOOR ACCESS INSULATED
50HE503057 50HE503057 DRAIN PAN EXTENSION
50HE500441 50HE500441 DUCT EXHAUST GAS
50HE500440 50HE500440 DUCT EXHAUST GAS
50HE501431 50HE501431 ECON HOOD ANGLE
50HE500768 50HE500768 ECON HOOD BRACKET
50HE402445 50HE402445 ECONOMIZER
50HE402442 50HE402442 ECONOMIZER
HF23BJ047 HF23BJ047 ECONOMIZER ACTUATOR
50HE402447 50HE402447 ECONOMIZER ASSEMBLY
HF23BE024 HF23BE024 ECONOMIZER CONTROL
HH63AW001 HH63AW001 ECONOMIZER CONTROL
50HE401095 50HE401095 ECONOMIZER WIRE HARNESS
KA99FT060 KA99FT060 END STOP
HH57AC078 HH57AC078 ENTHALPY SENSOR
HH57ZC003 HH57ZC003 ENTHALPY SWITCH
50HE400769 50HE400769 EXHAUST HOOD ASSY
LA01RA044 LA01RA044 FAN PROP 3 BLADES
50HE500272 50HE500272 FAN SIDE PLATE
50HE500271 50HE500271 FAN SIDE PLATE
KH03DU330 KH03DU330 FILTER
50HE500749 50HE500749 FILTER BRACKET
50HE500529 50HE500529 FILTER BRACKET
50HE501237 50HE501237 FILTER DOOR BRACKET
KH43LG085 KH43LG085 FILTER DRIER
50HE500259 50HE500259 FILTER TRACK
50HE500251 50HE500251 FILTER TRACK BOTTOM
50HE500250 50HE500250 FILTER TRACK TOP
99CC409372 99CC409372 FLARE CAP
50HE501447 50HE501447 FLEXIBLE TUBE
50HE501410 50HE501410 FLEXIBLE TUBE
HH18HB016 HH18HB016 FREEZE THERMOSTAT
HY10KB200 HY10KB200 FUSE
50HE501287 50HE501287 FUSE BRACKET
HY12BM004 HY12BM004 FUSE COVER
HY11MR033 HY11MR033 FUSE HOLDER
50HE400650 50HE400650 GAS CNTR POST INSUL ASS Y
KA56ZZ150 KA56ZZ150 GROMMET
KA56GR140 KA56GR140 GROMMET
50HE500630 50HE500630 GROMMET
KA56TR057 KA56TR057 GROMMET COMPRESSOR
50HE500390 50HE500390 GROMMET PARTITION
KA56DS001 KA56DS001 GROMMET WIRE
329799-401 329799-401 HANDLE
50HE402324 50HE402324 HARNESS ASSY
48TM403791 48TM403791 HARNESS ASY
50HE402561 50HE402561 HARNESS ASY
50HE401050 50HE401050 HARNESS ASY ECON
50HEHMRMTC-A00 50HEHMRMTC-A00 HARNESS ASY MBB TO LDV/ RDV/
48EJ400551 48EJ400551 HARNESS WIRE
50HE000343 50HE000343 HEAT EXCHANGER
50HE400022 50HE400022 HEAT EXCHANGER
AL67JU218 AL67JU218 HINGE PIN (PIVOT SCREW) QTY 2
50HE400976 50HE400976 HOOD ASSY PACKAGE
50HE501429 50HE501429 HOOD SIDE
50HE501428 50HE501428 HOOD SIDE
50HE500716 50HE500716 HOOD SIDE
50HE500715 50HE500715 HOOD SIDE
50HE500389 50HE500389 IFM PANEL BRACKET
LH33WP002 LH33WP002 IGC BOARD
LH33EP001 LH33EP001 IGNITION BOARD
LH33WZ010 LH33WZ010 IGNITOR
LH33WZ019 LH33WZ019 IGNITOR ASSEMBLY
LA21RB554 LA21RB554 INDUCER BLOWER WHEEL
50HE400791 50HE400791 INDUCER HOUSING
HC30CL461 HC30CL461 INDUCER MOTOR
50HE000301 50HE000301 INDUCER MOTOR ASSEMBLY
50HE400651 50HE400651 INSUL ASY ACCESS PANEL
50HE400649 50HE400649 INSUL ASY ACCESS PANEL
50HE400648 50HE400648 INSUL ASY ACCESS PANEL
50HE400652 50HE400652 INSUL ASY CENTER POST
50HE400643 50HE400643 INSUL ASY CORNER POST
50HE400910 50HE400910 INSUL ASY CORNER POST
50HE401530 50HE401530 INSUL ASY FAN DECK
50HE400997 50HE400997 INSUL ASY PANEL ACCESS
50HE400947 50HE400947 INSUL ASY PANEL ACCESS
50HE400433 50HE400433 INSUL ASY PARTITION
50HE400431 50HE400431 INSUL ASY RETURN PAN
50HE400432 50HE400432 INSUL ASY SUPPLY PAN
50HE400430 50HE400430 INSUL ASY TOP COVER
50HE400429 50HE400429 INSUL ASY TOP COVER
50HE400966 50HE400966 INSULATED PANEL
50HE400965 50HE400965 INSULATED PANEL
HH79AH001 HH79AH001 JADE TEMP.SENSOR(20K NTC)
KA99AA001 KA99AA001 KA99AA001 PIN
AW01DA100 AW01DA100 KEY (PULLEY)
HH12ZB140 HH12ZB140 L140F-40 LIMIT SWITCH
50HE500691 50HE500691 LATCH PLATE
32LT900646 32LT900646 LOW AMBIENT MOTOR MASTER CNTRL
HH79NZ099 HH79NZ099 LOW AMBIENT SENSOR
HK02LB008 HK02LB008 LP PRESSURE SWITCH
HK50AA029 HK50AA029 MAIN BASE CONTROL BOARD
50HE500002 50HE500002 MANIFOLD 7 CELL
HC52AE464 HC52AE464 MOTOR
HD58FR232 HD58FR232 MOTOR
HC98ZZ485 HC98ZZ485 MOTOR BAND
50HE500274 50HE500274 MOTOR CHANNEL
50HE500273 50HE500273 MOTOR CHANNEL
HC30CR460 HC30CR460 MOTOR INDUCED DRAFT
HC98ZZ245 HC98ZZ245 MOTOR MOUNT ARM
50HE501185 50HE501185 MOUNT BRACKET
LH32RF076 LH32RF076 NATURAL GAS ORIFICE #48 SIZE
EF39ZW023 EF39ZW023 NATURAL TO LP GAS VALVE CONVERSION KIT
EA19CY907 EA19CY907 NOZZLE
62M680342 62M680342 OUTDOOR AIR FAN ASY 460
HH57AC081 HH57AC081 OUTSIDE AIR SENSOR
313974-751 313974-751 PAINT STERLING
50HE500762 50HE500762 PANEL ASSEMBLY LOWERINSULAT
50HE500745 50HE500745 PANEL ASSEMBLY UPPERINSULAT
50HE400998 50HE400998 PANEL ASSEMBLY UPPERINSULAT
50HE400644 50HE400644 PANEL ASY CENTER POST
50HE401248 50HE401248 PANEL ASY DOOR HINGED
50HE401243 50HE401243 PANEL ASY DOOR HINGED
50HE401238 50HE401238 PANEL ASY DOOR HINGED
50HE400670 50HE400670 PANEL ASY GAS ACCESS
50HE400948 50HE400948 PANEL END INSULATED
50HE401278 50HE401278 PANEL INSULATED
HK50ZT001 HK50ZT001 PHOTOELECTRIC DUCT SMOKE SENSR
RN20ZT060 RN20ZT060 PICK-UP TUBE
50HE400600 50HE400600 PLATE ASY COMPR MTG
50HE400599 50HE400599 PLATE ASY COMPR MTG
50HE401003 50HE401003 PLUG ASSY
KA51BH138 KA51BH138 PLUG BUTTON
50HE500373 50HE500373 POST CORNER
CRPWREXH069A00 CRPWREXH069A00 POWER EXHAUST
HK50AA039 HK50AA039 PREMIER LINK BOARD
HK06WC039 HK06WC039 PRESSURE SWITCH
HK06MB061 HK06MB061 PRESSURE SWITCH
HK06WC027 HK06WC027 PRESSURE SWITCH
50HE500486 50HE500486 PROTECTOR
HY01GF001 HY01GF001 RECEPTACLE WHITE
HK50AA050 HK50AA050 REHEAT BOARD
HN61ZP032 HN61ZP032 RELAY
HN65CT003 HN65CT003 RELAY
HN61PC005 HN61PC005 RELAY 240V 14A
HY11TC032 HY11TC032 RELAY SOCKET
62M680240 62M680240 RELAY3PDT 24V
50HJ680061 50HJ680061 RESISTOR
50DK502266 50DK502266 RING INSERT
HH18HZ195 HH18HZ195 ROLLOUT SWITCH
EC39DM062 EC39DM062 SCHRAEDER VALVE CORE
AA06BS168 AA06BS168 SCREW
48EJ500745 48EJ500745 SCROLL FAN
48HG500177 48HG500177 SCROLL PANEL
50HE501765 50HE501765 SEAL CONDENSATE OUTLET
48HE660001 48HE660001 SEAL STRIP KIT HEAT EXCH ANGER
HH57AC080 HH57AC080 SENSOR
HH99ZZ019 HH99ZZ019 SENSOR WITHOUT DISPLAY
48DD404272 48DD404272 SHAFT FAN
50HE402775 50HE402775 SHROUD ASSEMBLY LOW LEAK ECON
48EJ500322 48EJ500322 SIDE PLATE
HK28ZT001 HK28ZT001 SMOKE DETECTOR CONTROL W/WIRE
LH32RF103 LH32RF103 SPUD
LH32RF073 LH32RF073 SPUD
LH32RF070 LH32RF070 SPUD
LH32RF065 LH32RF065 SPUD
LH32RF110 LH32RF110 SPUD
LH32RF111 LH32RF111 SPUD ASSEMBLY
KA56MN105 KA56MN105 STRIP GROMMET 100FT LEN GTH
50HE501445 50HE501445 SUPPORT BRACKET
50HE500728 50HE500728 SUPPORT BRACKET
50HE502215 50HE502215 SUPPORT HEAT
331617-401 331617-401 SUPPORT-COIL
62M680250 62M680250 SWITCH ADJ DIFF. PRESSURE
HK02ZB080 HK02ZB080 SWITCH LOW PRESSURE
HR53AC038 HR53AC038 SWITCH TOGGLE
48GS500584 48GS500584 TAB
HH79NZ039 HH79NZ039 TEMPERATURE SENSOR
HH18HA286 HH18HA286 TEMPERATURE SWITCH
HY84DA010 HY84DA010 TERMINAL BLOCK
HY84HA096 HY84HA096 TERMINAL BOARD
HK50AA051 HK50AA051 TERMINAL BOARD
HY84HA101 HY84HA101 TERMINAL BOARD
HH79ZZ007 HH79ZZ007 THERMISTER SENSOR OAT
HH79NZ100 HH79NZ100 THERMISTOR
HH79NZ038 HH79NZ038 THERMISTOR OAT/SAT
HH79TZ039 HH79TZ039 THERMISTOR PROBE
HN67XZ210 HN67XZ210 TIME DELAY
HN67ZZ001 HN67ZZ001 TIME DELAY; COMPRESSOR
50HE500718 50HE500718 TOP HOOD
48EJ500274 48EJ500274 TOP HOOD
50HE500278 50HE500278 TOP PNL
HK05YZ007 HK05YZ007 TRANSDUCER
62M680298 62M680298 TRANSDUCER PRESS. 5.0 I
EA36UZ154 EA36UZ154 TXV
HX30FZ012 HX30FZ012 UTILITY BOX
EC39EZ065 EC39EZ065 VALVE BODY
EC39DM066 EC39DM066 VALVE BODY
EC39EZ067 EC39EZ067 VALVE CORE
HK30WA318 HK30WA318 VARIABLE FREQUENCY DRIVE
50HE500266 50HE500266 VESTIBULE PLATE ANGLE
50HE500690 50HE500690 VESTIBULE PLATE ANGLE
HK30WB320 HK30WB320 VFD
HH79NZ074 HH79NZ074 VVT4 ZONE SENSOR
50TM000462 50TM000462 WIND CAP ASSY
CRWINSTR001A00 CRWINSTR001A00 WINTER START PACK
50HE500597 50HE500597 WIRE GUARD
48TMHSRADP-A00 48TMHSRADP-A00 WIRE HARNESS CONTROL
50HEHMRAAHCA00 50HEHMRAAHCA00 WIRE HARNESS OUTDOOR FAN RE
48TMHSRADR-A00 48TMHSRADR-A00 WIRING HARNESS
50HEHMRAST-A00 50HEHMRAST-A00 WIRING HARNESS
50HEHMRAH-2A10 50HEHMRAH-2A10 WIRING HARNESS CC HEATER
50HE501042 50HE501042 ZEE BRACKET
50HE500943 50HE500943 ZEE BRACKET
Main Menu x
