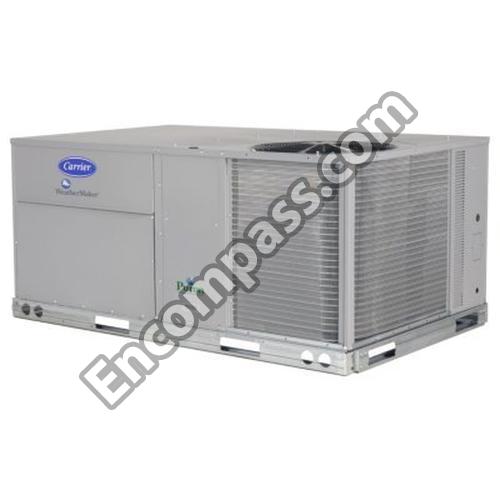

Model Image
Manufacturer

Carrier

Model Number

48HCTG24G5A

Description

Single Package Rooftop Gas Heating Electric Coolin

Interactive Exploded View

Parts List

Part Number Description
LH32RF067 LH32RF067 #51 BURNER ORIFICE SPUD
EA36UZ151 EA36UZ151 1/2-INCHX7/8-INCH TXV VALVE
HT01AH851 HT01AH851 1000VA 240/480VPRIM120/240VSEC
LA22LA108 LA22LA108 11 7/8"X 10 11/16" CW WHEEL
HK02SB022 HK02SB022 117/054# LOW PRESSURE SWITCH
48HG503589 48HG503589 2.834-INCH SAMPLING TUBE
HF23BJ065 HF23BJ065 24V 2-10VDC 180# ACTUATOR
EF33CW271 EF33CW271 24V 3.5" WC NAT 1/8" GAS VALVE
HN52TC040 HN52TC040 24V COIL 2P 40AMP CONT
HR61ZQ004 HR61ZQ004 3 POLE 100AMP DISCONNECT
RM91ZT005 RM91ZT005 5' CABLE ASSEMBLY
50DJ404793 50DJ404793 50DJ404793 DOOR LATCH
50DJ504652 50DJ504652 50DJ504652 HINGE
HY06MP106 HY06MP106 6 PIN CONNECTOR PLUG
HK02SA445 HK02SA445 660/505# HIGH PRESSURE SWITCH
50HE401490 50HE401490 ACCESS PANEL
50HE400890 50HE400890 ACCESS PANEL
50HE400662 50HE400662 ACCESS PANEL
50HE400661 50HE400661 ACCESS PANEL
50HE400655 50HE400655 ACCESS PANEL
50HE400673 50HE400673 ACCESS PANEL
50HE402513 50HE402513 ACCESS PANEL INSULATED
50HE402504 50HE402504 ACCESS PANEL INSULATED
50HE400664 50HE400664 ACCESS PANEL INSULATED
HF680025 HF680025 ACTUATOR MOTOR
HF23BJ061 HF23BJ061 ACTUATOR MOTOR
LD24AA001 LD24AA001 AIR DAMPER VENT
KH01AA075 KH01AA075 AIR FILTER
50TG500204 50TG500204 ANGLE IFM MOUNTING
50TG500879 50TG500879 ANGLE MOUNTING
50HE500258 50HE500258 ANGLE SUPPORT
50HE502893 50HE502893 ANGLE SUPPORT
AT96AB170 AT96AB170 AT96AB170 CAGE NUT
50HE501439 50HE501439 BARO RELIEF ANGLE
50HE500788 50HE500788 BARO RELIEF DOOR
50HE500927 50HE500927 BARO RELIEF HINGE
50HE500280 50HE500280 BASE PAN
50HE400698 50HE400698 BASE PAN OUTDOOR INSULATED
50HE500286 50HE500286 BASE RAIL
50HE500283 50HE500283 BASE RAIL
50HE500281 50HE500281 BASE RAIL END
KT63CZ086 KT63CZ086 BEARING
50HE500936 50HE500936 BEARING BRACKET
KR29BF047 KR29BF047 BELT
50HE500381 50HE500381 BLANK OFF
50HE500422 50HE500422 BLANKOFF
50HE500396 50HE500396 BLOCKOFF
LA22LA145 LA22LA145 BLOWER WHEEL
LA22LA140 LA22LA140 BLOWER WHEEL
AH07BZ734 AH07BZ734 BOLT HEX HEAD
HX38FZ010 HX38FZ010 BOX COVER
50HE502836 50HE502836 BRACKET
50HE500602 50HE500602 BRACKET
50HE502207 50HE502207 BRACKET BAFFLE SUPPORT
50HE502128 50HE502128 BRACKET BAFFLE SUPPORT
50HE501832 50HE501832 BRACKET BASE
50HE502892 50HE502892 BRACKET BEARING
50HE502891 50HE502891 BRACKET BEARING
50HE501043 50HE501043 BRACKET BEARING
50HE502399 50HE502399 BRACKET COND SWITCH
50HE500897 50HE500897 BRACKET CONTROLLER
50HE501764 50HE501764 BRACKET GUARD
50TG500202 50TG500202 BRACKET MOTOR CHANNEL
48HG500813 48HG500813 BRACKET ROLL OUT
50HE000361 50HE000361 BRACKET SMOKE SENSOR
50TM501829 50TM501829 BRACKET SUPPORT
HH83XB333 HH83XB333 BREAKER CIRCUIT
HH83XB302 HH83XB302 BREAKER CIRCUIT
50DK407027 50DK407027 BURNER
50HE400026 50HE400026 BURNER ASSEMBLY
50DK407028 50DK407028 BURNER ASSY
48HG501550 48HG501550 BURNER BRACKET
LH32RF104 LH32RF104 BURNER ORIFICE, NATURAL GAS
LH32RF060 LH32RF060 BURNER SPUD
48HG501551 48HG501551 BURNER SUPPORT
HY93NH028 HY93NH028 BUSHING
RM91ZT010 RM91ZT010 CABLE ASSEMBLY FOR SUPPLY SENS
50HE401986 50HE401986 CARRIER 50HE401986 DRAIN PAN
50HJ501200 50HJ501200 CARRIER 50HJ501200 OUTLET GRILL FAN GUAR
AU02AB171 AU02AB171 CARRIER AU02AB171 PLATE WASHER
AU11AS171 AU11AS171 CARRIER AU11AS171 LOCK WASHER
LH32RF116 LH32RF116 CARRIER HVAC PART
50HE500771 50HE500771 CARRIER HVAC PART
50HE400021 50HE400021 CARRIER HVAC PART
LH32RF120 LH32RF120 CARRIER LH32RF120 ORIFICE
LH32RF129 LH32RF129 CARRIER LH32RF129 SPUD ORIFICE
50HE503000 50HE503000 CENTER POST
50HE400665 50HE400665 CENTER POST
50HE400663 50HE400663 CENTER POST
50HE400657 50HE400657 CENTER POST
50HE501430 50HE501430 CHANNEL
50HE502894 50HE502894 CHANNEL
EC36SZ063 EC36SZ063 CHECK VALVE
HH83XB555 HH83XB555 CIRCUIT BREAKER
KA66AA088 KA66AA088 CLAMP
KA69ZC306 KA69ZC306 CLAMP FILTER DRIER
50HE401722 50HE401722 COIL CONDENSER AL/CU
50HE401723 50HE401723 COIL CONDENSER CU/CU
50HE401719 50HE401719 COIL CONDENSER CU/CU
50HE402715 50HE402715 COIL.EVAP AL/CU
DC07DA045 DC07DA045 COMPRESSION FITTING
50HE401718 50HE401718 COND COIL AL/CU
50HE401720 50HE401720 COND COIL CK A PRE-COAT
50HE401724 50HE401724 COND COIL CK B PRE-COAT
HC40GE233 HC40GE233 COND FAN MOTOR
HC39GE208 HC39GE208 CONDENSOR FAN MOTOR
DC09DA028 DC09DA028 CONNECTOR
HW92JY003 HW92JY003 CONNECTOR
HN53TZ024 HN53TZ024 CONTACTOR C-A1 3POLE24V
HK50AA047 HK50AA047 CONTROL BOARD, RTU-OPEN
HH63AW002 HH63AW002 CONTROLLER
HL39ZZ008 HL39ZZ008 CONTROLLER CONDENSATE S
50HE502425 50HE502425 CORNER BRACE
50HE500415 50HE500415 CORNER POST
50HE400656 50HE400656 CORNER POST INSULATED
50HE400913 50HE400913 CORNER POST INSULATED
48HG501713 48HG501713 COUPLING
50HJ542740 50HJ542740 COVENIENCE OUTLET
50HE500564 50HE500564 COVER HEAT
50HE502842 50HE502842 COVER INNER CONTROL BOX
50HE502927 50HE502927 COVER INNER CONTROL BOX HNG
HT32TC205 HT32TC205 CRANK CASE HEATER
50HE400530 50HE400530 DAMPER ASSEMBLY
50HE500739 50HE500739 DECK BLOWER
50HE402895 50HE402895 DECK FAN INSULATED
EA07KC105 EA07KC105 DISTRIBUTOR 17 CKT
50HE401258 50HE401258 DOOR & FRAME ASY INSULA TED
50HE401265 50HE401265 DOOR ACCESS INSULATED
50HE401260 50HE401260 DOOR ACCESS INSULATED
50HE401284 50HE401284 DOOR FRAME
50HE402598 50HE402598 DOOR FRAME INSULATED
50HE503057 50HE503057 DRAIN PAN EXTENSION
50HE500441 50HE500441 DUCT EXHAUST GAS
50HE500440 50HE500440 DUCT EXHAUST GAS
50HE501431 50HE501431 ECON HOOD ANGLE
50HE500768 50HE500768 ECON HOOD BRACKET
50HE402442 50HE402442 ECONOMIZER
HF23BJ047 HF23BJ047 ECONOMIZER ACTUATOR
HF23BE024 HF23BE024 ECONOMIZER CONTROL
HH63AW001 HH63AW001 ECONOMIZER CONTROL
50HE401095 50HE401095 ECONOMIZER WIRE HARNESS
KA99FT060 KA99FT060 END STOP
HH57AC078 HH57AC078 ENTHALPY SENSOR
HH57ZC003 HH57ZC003 ENTHALPY SWITCH
50HE401691 50HE401691 EVAPORATOR COIL
50HE400769 50HE400769 EXHAUST HOOD ASSY
48EJ500055 48EJ500055 FAN ORIFICE
LA01RA044 LA01RA044 FAN PROP 3 BLADES
50HE500272 50HE500272 FAN SIDE PLATE
50HE500271 50HE500271 FAN SIDE PLATE
KH03DU330 KH03DU330 FILTER
50HE500749 50HE500749 FILTER BRACKET
50HE500529 50HE500529 FILTER BRACKET
50HE501237 50HE501237 FILTER DOOR BRACKET
KH43LG085 KH43LG085 FILTER DRIER
50HE500259 50HE500259 FILTER TRACK
50HE500251 50HE500251 FILTER TRACK BOTTOM
50HE500250 50HE500250 FILTER TRACK TOP
99CC409372 99CC409372 FLARE CAP
50HE501447 50HE501447 FLEXIBLE TUBE
50HE501410 50HE501410 FLEXIBLE TUBE
HH18HB016 HH18HB016 FREEZE THERMOSTAT
50HE501287 50HE501287 FUSE BRACKET
HY12BM004 HY12BM004 FUSE COVER
KA56ZZ150 KA56ZZ150 GROMMET
KA56GR140 KA56GR140 GROMMET
50HE500630 50HE500630 GROMMET
KA56TR057 KA56TR057 GROMMET COMPRESSOR
50HE500390 50HE500390 GROMMET PARTITION
KA56DS001 KA56DS001 GROMMET WIRE
50HE500598 50HE500598 GUARD WIRE COMPRESSOR
HR69ZQ001 HR69ZQ001 HANDLE
329799-401 329799-401 HANDLE
50HE402324 50HE402324 HARNESS ASSY
50HE401050 50HE401050 HARNESS ASY ECON
50HEHMRMTC-A00 50HEHMRMTC-A00 HARNESS ASY MBB TO LDV/ RDV/
48EJ400551 48EJ400551 HARNESS WIRE
50HE000346 50HE000346 HEAT EXCHANGER SS
AL67JU218 AL67JU218 HINGE PIN (PIVOT SCREW) QTY 2
50HE400976 50HE400976 HOOD ASSY PACKAGE
50HE501429 50HE501429 HOOD SIDE
50HE501428 50HE501428 HOOD SIDE
50HE500716 50HE500716 HOOD SIDE
50HE500715 50HE500715 HOOD SIDE
HT32TC202 HT32TC202 HTR CC WP 90W 240V CH255
50HE500389 50HE500389 IFM PANEL BRACKET
LH33WP002 LH33WP002 IGC BOARD
LH33EP001 LH33EP001 IGNITION BOARD
LH33WZ010 LH33WZ010 IGNITOR
LH33WZ019 LH33WZ019 IGNITOR ASSEMBLY
50HE000302 50HE000302 INDUCER ASSEMBLY
LA21RB554 LA21RB554 INDUCER BLOWER WHEEL
50HE400791 50HE400791 INDUCER HOUSING
HC30CR230 HC30CR230 INDUCER MOTOR
50HE400674 50HE400674 INSUL ASSY ACCESS PANEL
50HE401530 50HE401530 INSUL ASY FAN DECK
50HE400430 50HE400430 INSUL ASY TOP COVER
50HE400429 50HE400429 INSUL ASY TOP COVER
50HE401270 50HE401270 INSULATED ACCESS DOOR
50HE400660 50HE400660 INSULATED CENTER POST
50HE400966 50HE400966 INSULATED PANEL
50HE400965 50HE400965 INSULATED PANEL
HH79AH001 HH79AH001 JADE TEMP.SENSOR(20K NTC)
KA99AA001 KA99AA001 KA99AA001 PIN
AW01DA100 AW01DA100 KEY (PULLEY)
KR51BH915 KR51BH915 KR51BH915 PULLEY
HH12ZB140 HH12ZB140 L140F-40 LIMIT SWITCH
50HE500691 50HE500691 LATCH PLATE
HH79NZ099 HH79NZ099 LOW AMBIENT SENSOR
HK02SB031 HK02SB031 LOW PRESSURE SWITCH
HK02LB008 HK02LB008 LP PRESSURE SWITCH
HK50AA029 HK50AA029 MAIN BASE CONTROL BOARD
50HE500001 50HE500001 MANIFOLD
HC30CK235 HC30CK235 MOTOR
HC52AQ208 HC52AQ208 MOTOR
HD62FK654 HD62FK654 MOTOR 7.5HP 3PH
HC98ZZ485 HC98ZZ485 MOTOR BAND
50HE500274 50HE500274 MOTOR CHANNEL
50HE500273 50HE500273 MOTOR CHANNEL
32LT900245 32LT900245 MOTOR CONTROLLER
32LT900246 32LT900246 MOTOR MASTER CONTROLLER
HC98ZZ245 HC98ZZ245 MOTOR MOUNT ARM
KR11HY239 KR11HY239 MOTOR PULLEY
50HE501185 50HE501185 MOUNT BRACKET
LH32RF076 LH32RF076 NATURAL GAS ORIFICE #48 SIZE
EF39ZW023 EF39ZW023 NATURAL TO LP GAS VALVE CONVERSION KIT
EA19CY907 EA19CY907 NOZZLE
HH57AC081 HH57AC081 OUTSIDE AIR SENSOR
313974-751 313974-751 PAINT STERLING
50HE500762 50HE500762 PANEL ASSEMBLY LOWERINSULAT
50HE401268 50HE401268 PANEL ASY DOOR HINGED
50HE401263 50HE401263 PANEL ASY DOOR HINGED
50HE400670 50HE400670 PANEL ASY GAS ACCESS
50HE400950 50HE400950 PANEL END INSULATED
50HE401283 50HE401283 PANEL INSULATED
50HE401282 50HE401282 PANEL INSULATED
HK50ZT001 HK50ZT001 PHOTOELECTRIC DUCT SMOKE SENSR
RN20ZT060 RN20ZT060 PICK-UP TUBE
50HE400743 50HE400743 PLATE ASSEMBLY
50HE400600 50HE400600 PLATE ASY COMPR MTG
50HE400599 50HE400599 PLATE ASY COMPR MTG
50HE401003 50HE401003 PLUG ASSY
KA51BH138 KA51BH138 PLUG BUTTON
50HE400654 50HE400654 POST CENTER
HK50AA039 HK50AA039 PREMIER LINK BOARD
HK06WC039 HK06WC039 PRESSURE SWITCH
HK06MB061 HK06MB061 PRESSURE SWITCH
HK06WC027 HK06WC027 PRESSURE SWITCH
50HE500486 50HE500486 PROTECTOR
HY01GF001 HY01GF001 RECEPTACLE WHITE
HK50AA050 HK50AA050 REHEAT BOARD
HN61ZP032 HN61ZP032 RELAY
HN61PK052 HN61PK052 RELAY
HN65CT003 HN65CT003 RELAY
HN61PC005 HN61PC005 RELAY 240V 14A
HY11TC032 HY11TC032 RELAY SOCKET
50HJ680061 50HJ680061 RESISTOR
50DK502266 50DK502266 RING INSERT
HH18HZ195 HH18HZ195 ROLLOUT SWITCH
EC39DM062 EC39DM062 SCHRAEDER VALVE CORE
AA06BS168 AA06BS168 SCREW
ZP104KCE-TF5-950 ZP104KCE-TF5-950 SCROLL COMPRESSOR - R410 REFRIGERANT
48EJ500745 48EJ500745 SCROLL FAN
50HE500624 50HE500624 SCROLL FAN
50HE500627 50HE500627 SCROLL FAN
48HG500177 48HG500177 SCROLL PANEL
50HE501765 50HE501765 SEAL CONDENSATE OUTLET
48HE660001 48HE660001 SEAL STRIP KIT HEAT EXCH ANGER
HH57AC080 HH57AC080 SENSOR
32LT660007 32LT660007 SENSOR (REHEAT/MOTOR MASTER)
HH99ZZ019 HH99ZZ019 SENSOR WITHOUT DISPLAY
50HE402887 50HE402887 SERVICE CORNER POST INS ULATED
50HE402886 50HE402886 SERVICE CORNER POST INS ULATED
50HE400912 50HE400912 SERVICE CORNER POST INS ULATED
HR69ZQ003 HR69ZQ003 SHAFT
48DD404272 48DD404272 SHAFT FAN
50HE402775 50HE402775 SHROUD ASSEMBLY LOW LEAK ECON
48EJ500322 48EJ500322 SIDE PLATE
50HE500626 50HE500626 SIDEPLATE FAN
50HE500625 50HE500625 SIDEPLATE FAN
HK28ZT001 HK28ZT001 SMOKE DETECTOR CONTROL W/WIRE
LH32RF103 LH32RF103 SPUD
LH32RF073 LH32RF073 SPUD
LH32RF070 LH32RF070 SPUD
LH32RF065 LH32RF065 SPUD
LH32RF110 LH32RF110 SPUD
LH32RF111 LH32RF111 SPUD ASSEMBLY
KA56MN105 KA56MN105 STRIP GROMMET 100FT LEN GTH
50HE501445 50HE501445 SUPPORT BRACKET
50HE502215 50HE502215 SUPPORT HEAT
331617-401 331617-401 SUPPORT-COIL
HK02ZB080 HK02ZB080 SWITCH LOW PRESSURE
HH18HA268 HH18HA268 SWITCH TEMP. LAS
HR53AC038 HR53AC038 SWITCH TOGGLE
48GS500584 48GS500584 TAB
HH79NZ039 HH79NZ039 TEMPERATURE SENSOR
HH18HA286 HH18HA286 TEMPERATURE SWITCH
HY84DA010 HY84DA010 TERMINAL BLOCK
HY84HA096 HY84HA096 TERMINAL BOARD
HY11UC313 HY11UC313 TERMINAL BOARD
HK50AA051 HK50AA051 TERMINAL BOARD
HY84HA101 HY84HA101 TERMINAL BOARD
HH79ZZ007 HH79ZZ007 THERMISTER SENSOR OAT
HH79NZ100 HH79NZ100 THERMISTOR
HH79NZ038 HH79NZ038 THERMISTOR OAT/SAT
HH79TZ039 HH79TZ039 THERMISTOR PROBE
HN67XZ210 HN67XZ210 TIME DELAY
HN67ZZ001 HN67ZZ001 TIME DELAY; COMPRESSOR
50HE500718 50HE500718 TOP HOOD
48EJ500274 48EJ500274 TOP HOOD
50HE500278 50HE500278 TOP PNL
HK05YZ007 HK05YZ007 TRANSDUCER
HT01BD202 HT01BD202 TRANSFORMER
50HE400995 50HE400995 UPPER PANEL INSULATED
HX30FZ012 HX30FZ012 UTILITY BOX
EC39EZ065 EC39EZ065 VALVE BODY
EC39DM066 EC39DM066 VALVE BODY
EC39EZ067 EC39EZ067 VALVE CORE
50HE500266 50HE500266 VESTIBULE PLATE ANGLE
50HE500690 50HE500690 VESTIBULE PLATE ANGLE
HH79NZ074 HH79NZ074 VVT4 ZONE SENSOR
50TM000462 50TM000462 WIND CAP ASSY
CRWINSTR001A00 CRWINSTR001A00 WINTER START PACK
50HEHMRAACCA00 50HEHMRAACCA00 WIRE HARNESS COMPRESSOR CONTR
48TMHSRADP-A00 48TMHSRADP-A00 WIRE HARNESS CONTROL
50HEHMRAF-2A00 50HEHMRAF-2A00 WIRE HARNESS IFC TO IFC B
50HEHMRAAHCA00 50HEHMRAAHCA00 WIRE HARNESS OUTDOOR FAN RE
48TMHSRADR-A00 48TMHSRADR-A00 WIRING HARNESS
50HEHMRAST-A00 50HEHMRAST-A00 WIRING HARNESS
50HE501042 50HE501042 ZEE BRACKET
50HE500943 50HE500943 ZEE BRACKET
Main Menu x
