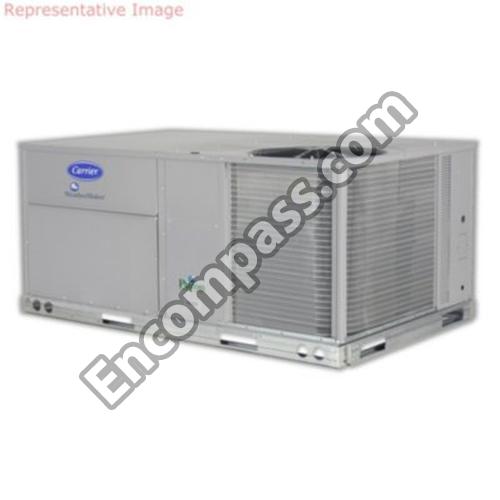

Model Image
Manufacturer

Carrier

Model Number

48TCSD095A

Description

Single Package Rooftop Gas Heating Electric Coolin

Interactive Exploded View

Parts List

Part Number Description
HD56FR233 HD56FR233 1.7HP BLOWER MOTOR
HK02SB024 HK02SB024 117-054# PRESSURE SWITCH
HD56FE653 HD56FE653 2.4HP 460/3P MED STATIC MOTOR
HD60FE656 HD60FE656 208-230/460V3PH 1750RPM MOTOR
HD58FR231 HD58FR231 208-230/460V3PH 2.4HP 1750 RPM
HC30GR230 HC30GR230 208-230V 1/16HP 3450RPM MOTOR
HD56FR652 HD56FR652 208-230V3PH 1725 RPM BLOWER MOTOR
48TM000646 48TM000646 208/230V 1PH DRAFT IND MOTOR
32LT660004 32LT660004 208/230V 1PH MOTORMASTER DRIVE
EF32CW035 EF32CW035 24V 3.2-INCHWC NAT 1/2-INCH GAS VALVE
HN52TC040 HN52TC040 24V COIL 2P 40AMP CONT
HN52TC024 HN52TC024 2P 32AMP 24V CONTACTOR
HK02SA440 HK02SA440 660/505# HIGH PRESSURE CUTOUT
48TM500136 48TM500136 ACCESS PANEL
50TJ680018 50TJ680018 ALUMINUM AIR CENTER - MC
50TJ680015 50TJ680015 ALUMINUM AIR CENTER - MC HX
48TM400207 48TM400207 ALUMINUM CONDENSING COIL
50DK503372 50DK503372 BASE RAIL
50DK503371 50DK503371 BASE RAIL
50DK503370 50DK503370 BASE RAIL
KT61DZ060 KT61DZ060 BEARING
48HG500422 48HG500422 BEARING BRACKET
P463-A48 P463-A48 BELT
50HJ441157 50HJ441157 BLOWER ASSEMBLY;
50HJ542488 50HJ542488 BLOWER BRACKET
HD60FE655 HD60FE655 BLOWER MOTOR
LA22LA125 LA22LA125 BLOWER WHEEL
LA21RB550 LA21RB550 BLOWER WHEEL
AH19AB552 AH19AB552 BOLT
50DK502805 50DK502805 BRACKET
50DK500523 50DK500523 BRACKET
48TM500577 48TM500577 BRACKET
50HJ542491 50HJ542491 BRACKET MOTOR ADJUST
50HJ542489 50HJ542489 BRACKET MOTOR ADJUST
48TM503400 48TM503400 BRACKET SENSOR
50DK407029 50DK407029 BURNER ASSEMBLY
48TM505275 48TM505275 BURNER SUPPORT
50DK407030 50DK407030 BURNER TUBE (OUTER)
HY93NH063 HY93NH063 BUSHING
P291-1013 P291-1013 CAPACITOR
P281-0002 P281-0002 CAPACITOR PROTECTIVE BOOT
P281-0021 P281-0021 CAPACITOR STRAP
AH20AB204 AH20AB204 CARRIAGE BOLT
AH19AB198 AH19AB198 CARRIAGE BOLT
48TMHSRAM-1A00 48TMHSRAM-1A00 CARRIER 48TMHSRAM-1A00 HARNESS ASSY
50DK500942 50DK500942 CARRIER 50DK500942 HEAT EXCHANGER SUPPOR
50DK504557 50DK504557 CARRIER 50DK504557 SHIELD
50DK505989 50DK505989 CARRIER 50DK505989 CHANNEL DRAFT INDUCER
50DK506176 50DK506176 CARRIER 50DK506176 INSULATION
50HJ501200 50HJ501200 CARRIER 50HJ501200 OUTLET GRILL FAN GUAR
HD56FR235 HD56FR235 CARRIER HD56FR235 BLOWER MOTOR
HK02SA420 HK02SA420 CARRIER HK02SA420 PRESSURE SWITCH
LH32RF120 LH32RF120 CARRIER LH32RF120 ORIFICE
LH33WP003 LH33WP003 CIRCUIT BOARD
50DK502637 50DK502637 COIL BRACKET
48TM400208 48TM400208 COIL COND CU/CU
48TM405132 48TM405132 COIL EVAP AL/CU
48TM405132C 48TM405132C COIL EVAP AL/CU E-COAT
48TM400207C 48TM400207C COIL.COND AL/CU E-COAT
48TM402174C 48TM402174C COIL.EVAP AL/CU E-COAT
50DK406815 50DK406815 COMBUSTION BLOWER MOTOR
48TM500286 48TM500286 COMPRESSOR ACCESS PANEL
HY06ZZ021 HY06ZZ021 COMPRESSOR PLUG
HY06ZZ020 HY06ZZ020 COMPRESSOR PLUG
HC40GE233 HC40GE233 COND FAN MOTOR
50DK407017 50DK407017 CONDENSATE PAN
48TM400209 48TM400209 CONDENSER COIL AL VINYL/CU
HC39GE208 HC39GE208 CONDENSOR FAN MOTOR
HL39ZZ008 HL39ZZ008 CONTROLLER CONDENSATE S
48TM400584 48TM400584 CORNER POST INSULATION A
48TM400811 48TM400811 CORNER POST ISULATION AS
50DK400833 50DK400833 COVER
50DK400832 50DK400832 COVER ASSEMBLY
48TM400575 48TM400575 COVER ASY GAS HEAT
48TM504178 48TM504178 COVER CONTROL BOX
48TMFSRBWD-AL0 48TMFSRBWD-AL0 DISCONNECT
CRECOMZR021A03 CRECOMZR021A03 ECONOMIZER
50HJ400345 50HJ400345 ECONOMIZER BYPASS PLUG
HH57AC078 HH57AC078 ENTHALPY SENSOR
48TM402174 48TM402174 EVAP COIL AL. FIN/CU. TUBE
50DK506334 50DK506334 EXHAUST REGULATOR
50DK500688 50DK500688 FAN DECK
LA01RA044 LA01RA044 FAN PROP 3 BLADES
LA01ZC003 LA01ZC003 FAN PROPELLAR
48HG501457 48HG501457 FAN SHAFT
KH43LE102 KH43LE102 FILTER DRIER
50DK406603 50DK406603 FILTER FRAME ASSEMBLY
50DK506601 50DK506601 FILTER RETAINER
50DK506598 50DK506598 FILTER RETAINER
50DK501892 50DK501892 FLAME RETAINER
50DK501890 50DK501890 FLAME RETAINER
50HJ401431 50HJ401431 FLAME SENSOR
99CC409372 99CC409372 FLARE CAP
CRFLUEDS001A00 CRFLUEDS001A00 FLUE DISCHARGE DEFLECTOR FOR GAS HEATIN
48TM500114 48TM500114 GAS PARTITION
50HJ541238 50HJ541238 GAS VALVE BRACKET;
KA56ZZ150 KA56ZZ150 GROMMET
KA56TR057 KA56TR057 GROMMET COMPRESSOR
KA56DS001 KA56DS001 GROMMET WIRE
HY90AZ009 HY90AZ009 GROUND LUG
CRLVHLGD016A00 CRLVHLGD016A00 HAIL GUARD
50HJ442730 50HJ442730 HALL EFFECT SENSOR
329799-401 329799-401 HANDLE
48TM403898 48TM403898 HARNESS ASSY
48TMHSRAM-2A00 48TMHSRAM-2A00 HARNESS ASY CLO1/COMP2
48TM400923 48TM400923 HARNESS ASY IFM
48TMHSRAY--A12 48TMHSRAY--A12 HARNESS ASYYAC CTRL
48TM402176 48TM402176 HEADER ASSY W/ METERING DEVICE
48TF660004 48TF660004 HEAT EXCHANGER
HT32TC243 HT32TC243 HEATER CRANKCASE
CRLPELEV003A00 CRLPELEV003A00 HIGH ALTITUDE LIQUID PROPANE (LP) KIT FO
50DK505913 50DK505913 HOUSING INDUCED DRAFT
LH33EP001 LH33EP001 IGNITION BOARD
50HJ403022 50HJ403022 IGNITOR
50DK401017 50DK401017 INDOOR BASE PAN
AW01DA096 AW01DA096 KEY BLOWER SHAFT (5 PACK)
HH18HA138 HH18HA138 LIMIT SWITCH
50HJ542454 50HJ542454 LOUVER PANEL
50HJ542452 50HJ542452 LOUVER PANEL
HK02SB020 HK02SB020 LOW PRESSURE SWITCH
48TM405276 48TM405276 MANIFOLD ASSY
CRMANDPR002A03 CRMANDPR002A03 MANUAL DAMPER
50TJ660008 50TJ660008 MCHX CONDENSER REPAIR KIT
HD58FR232 HD58FR232 MOTOR
HD56FE652 HD56FE652 MOTOR
50HJ542490 50HJ542490 MOTOR BRACKET
HC30GB232 HC30GB232 MOTOR INDUCER
50HJ542487 50HJ542487 MOTOR MOUNT
CPLOWAMB001A00 CPLOWAMB001A00 MOTORMASTER II HEAD PRESSURE CONTROLER F
P461-3706 P461-3706 MOTORPULLEY 7/8-INCH BORE3.4-4.4-INCH
33ZCSENOAT 33ZCSENOAT OUTDOOR AIR SENSOR
48TM500190 48TM500190 OUTDOOR PANEL
313974-751 313974-751 PAINT STERLING
50DK502826 50DK502826 PANEL
48TM500842 48TM500842 PANEL ACCESS CNTRL BOX
50HJ442448 50HJ442448 PANEL ASSY
48TM400574 48TM400574 PANEL ASSY BLOWER ACCESS
P461-3507 P461-3507 PD PULLEY
KA51PC175 KA51PC175 PLUG BUTTON
KA51AD468 KA51AD468 PLUG BUTTON
48TM500272 48TM500272 POST CORNER
48TM400809 48TM400809 POST CORNER
48TM400815 48TM400815 POST CTR CNTRL BX SIDE
CRPWREXH022A01 CRPWREXH022A01 POWER EXHAUST
HK06MB061 HK06MB061 PRESSURE SWITCH
HK06WC061 HK06WC061 PRESSURE SWITCH
KR11AZ712 KR11AZ712 PULLEY
P461-3505 P461-3505 PULLEY 4X5/8 IN
50DK503912 50DK503912 REGULATER GASKET
HN61KK324 HN61KK324 RELAY
HN61PC005 HN61PC005 RELAY 240V 14A
KA99ZT003 KA99ZT003 REMOTE TEST STAT KIT
50TJ660007 50TJ660007 REPAIR KIT
HH18HZ195 HH18HZ195 ROLLOUT SWITCH
50DK501626 50DK501626 SCROLL
50DK500235 50DK500235 SEAL DRAIN LINE
32LT660001 32LT660001 SENSOR FOR MOTOR CONTROLLER
KR11AZ002 KR11AZ002 SHAFT BLOWER WHEEL
50DK501625 50DK501625 SIDEPLATE FAN BACK SIDE
50DK501624 50DK501624 SIDEPLATE FAN DRIVE SIDE
48TM400980 48TM400980 SMOKE DETECTOR
48TM400979 48TM400979 SMOKE DETECTOR WITH BRACKET
33ZCT56SPT 33ZCT56SPT SPACESENSORW/OVERRIDEBUTTON
P281-0031 P281-0031 STRAP
50DK506551 50DK506551 SUPPORT
50DK406552 50DK406552 SUPPORT ASSEMBLY
48TM000802 48TM000802 SUPPORT ASSEMBLY
50DK506758 50DK506758 SUPPORT TRACK
48TMHSRAST-A00 48TMHSRAST-A00 TEL-AIRE SMOKE HARNESS
33ZCT55SPT 33ZCT55SPT TEMP SENSOR
33ZCT59SPT 33ZCT59SPT TEMP SENSOR W/OVERRIDE DIGITAL
HT01BD202 HT01BD202 TRANSFORMER
EC39EZ065 EC39EZ065 VALVE BODY
EC39EZ067 EC39EZ067 VALVE CORE
HH79NZ074 HH79NZ074 VVT4 ZONE SENSOR
50HJ440193 50HJ440193 WIRING KIT
48TM001802 48TM001802 WIRING KIT
