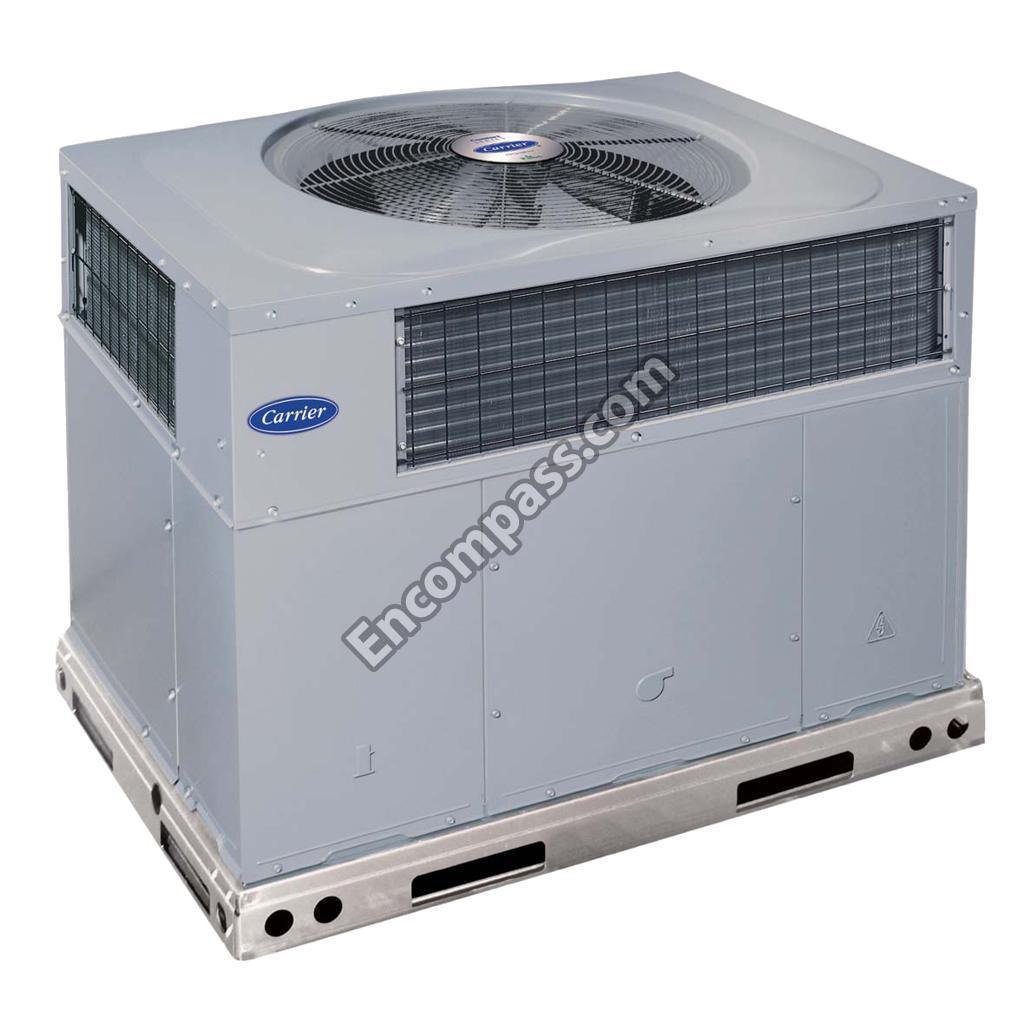

Model Image
Manufacturer

Carrier

Model Number

48VLE6009030

Description

Single-package Air Conditioner And Gas Furnace Sys

Interactive Exploded View

Parts List

Part Number Description
LA22RC001 LA22RC001 11X10 1/2-INCHBORE CCW BLOWER WHL
HN51JD024 HN51JD024 1POLE 40AMP 24V CONTACTOR
HC30CK240 HC30CK240 230V1PH 1/25HP 3200RPM IND MOTOR
LA01RA327 LA01RA327 3 BLADE FAN PROPELLER
HH18HA226 HH18HA226 320F-50F SPST AUTO ROLLOUT SWT
LA21RB549 LA21RB549 5.25-INCHDIA 1-INCHWIDE INDUCER WHEEL
HK02ZA404 HK02ZA404 650/420# HIGH PRESSURE SWITCH
P291-7054R P291-7054R 70/5 440V DUAL CAPACITOR
50ES500458 50ES500458 BASE PANLARGE CHASSIS
50ES500110 50ES500110 BASE RAIL
50ES500104 50ES500104 BASE RAIL
50ES500103 50ES500103 BASE RAIL
48GS500243 48GS500243 BLOWER SUPPORT
48GS500059 48GS500059 BLOWER SUPPORT
48VL500221 48VL500221 BRACKET SWITCH
50DK407029 50DK407029 BURNER ASSEMBLY
48VL500013 48VL500013 BURNER BRACKET
LH32RF102 LH32RF102 BURNER ORIFICE, SPUD
50DK407030 50DK407030 BURNER TUBE (OUTER)
48GS500121 48GS500121 CAP HOOD
48VL400001 48VL400001 CARRIER 48VL400001 FLAME SENSOR
48VL400002 48VL400002 CARRIER 48VL400002 IGNITER
AA06BS228 AA06BS228 CARRIER AA06BS228 SCREW
50SD400527 50SD400527 CARRIER HVAC PART
50SD400528 50SD400528 CARRIER HVAC PART
50SD400529 50SD400529 CARRIER HVAC PART
KA56TR056 KA56TR056 CARRIER KA56TR056 GROMMET
317739-303 317739-303 CLAMP 2 1/2-INCH OD
50VL400612 50VL400612 COIL EVAP AL/CUFORMED
50VL400668 50VL400668 COIL EVAP TIN PLFORMED
HB37GQ240 HB37GQ240 CONDENSER FAN MOTOR
LH33WP009 LH33WP009 CONTROL BOARD, IGC
50SD500388 50SD500388 COVER TOP COND
48GS400552 48GS400552 COVERS
HD52MM231 HD52MM231 ECM BLOWER MOTOR
EF32CW031 EF32CW031 EF32CW031 GAS VALVE
48GS400244 48GS400244 EVAP TOP ASSY
48GS500241 48GS500241 FAN PLATE
KH43LG094 KH43LG094 FILTER DRIER
99CC409372 99CC409372 FLARE CAP
48VL500216 48VL500216 FLUE BAFFLE
50VL400536 50VL400536 FRONT CONDENSER COIL
50SD500653 50SD500653 GRILLE OUTLET
KA56GR140 KA56GR140 GROMMET
KA56TR057 KA56TR057 GROMMET COMPRESSOR
KA56DS001 KA56DS001 GROMMET WIRE
48VL400333 48VL400333 HARNESS ASSY CONTROL
48GS660004 48GS660004 HEAT EXCHANGER
48VL400234 48VL400234 INDUCER HOUSING
50ES500090 50ES500090 INSUL ASY BLOWER PANEL
50ES400148 50ES400148 INSUL ASY BLOWER PANEL
50ES400428 50ES400428 INSUL ASY COIL PARTITION LG
50ES400427 50ES400427 INSUL ASY COIL PARTITION LG
50ES400425 50ES400425 INSUL ASY FAN PARTITION LG
50ES400434 50ES400434 INSUL ASY PANEL COIL LAR GE
50ES400433 50ES400433 INSUL ASY PANEL DUCT LAR GE
48SS500601 48SS500601 INSULATION
48GS500110 48GS500110 INSULATION
48VL400049 48VL400049 INSULATION ASSEMBLY/FLUE BOX
HH18HA525 HH18HA525 L125-20F LIMIT SWITCH
312250-407 312250-407 LOGO BRAND
48ES400209 48ES400209 MANIFOLD 3 SPUD
HC98ZZ250 HC98ZZ250 MOTOR MOUNT ARM
P251-0078 P251-0078 MOTOR MOUNT BAND
50ES400435 50ES400435 PANEL ASSY
50ES500092 50ES500092 PANEL COMP ACCESS;
EA52PT084 EA52PT084 PISTON
50VL400218 50VL400218 PLATE
50SS500879 50SS500879 PLATE
HY07MP273 HY07MP273 PLUG COMPRESSOR
HK06MB061 HK06MB061 PRESSURE SWITCH
HK06WC061 HK06WC061 PRESSURE SWITCH
50ES500419 50ES500419 RACEWAY OFM 14-INCH
50VL400534 50VL400534 REAR CONDENSER COIL
50SS501020 50SS501020 RETAINERPANEL INSULATION
48XZ660004 48XZ660004 S.S. HEAT EXCHANGER
48GS500242 48GS500242 SCROLL
48GS500461 48GS500461 SUPPORT BRACKET
HT01BD209 HT01BD209 TRANSFORMER
48VL500227 48VL500227 TUBE VENT PRESSURE-2 FT
EC39EZ065 EC39EZ065 VALVE BODY
EC39EZ067 EC39EZ067 VALVE CORE
