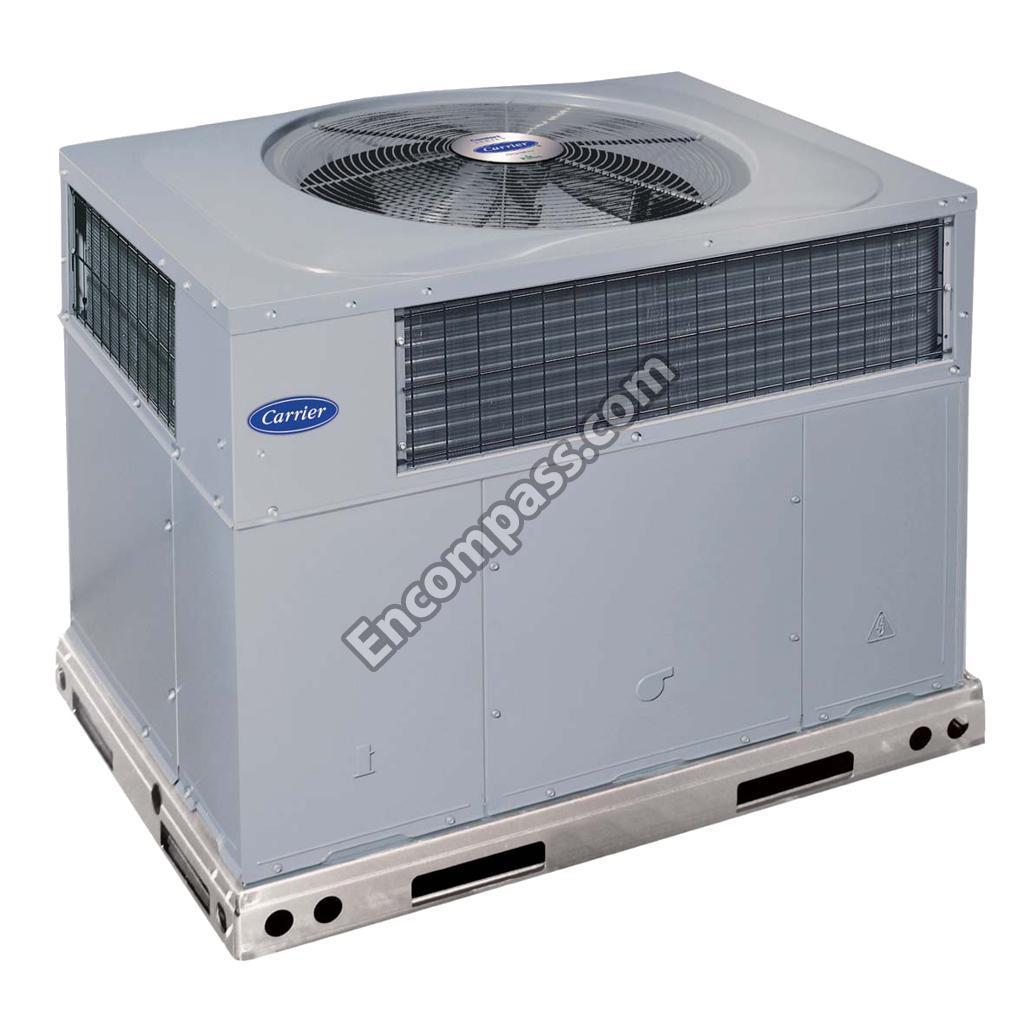

Model Image
Manufacturer

Carrier

Model Number

48VLNB6013050

Description

Single-package Gas Heating Electric Cooling Unit

Interactive Exploded View

Parts List

Part Number Description
HH18HA430 HH18HA430 100-130F AUTO LIMIT SWITCH
LA22RC001 LA22RC001 11X10 1/2-INCHBORE CCW BLOWER WHL
HD52AE137 HD52AE137 1HP 208/230V 1050RPM 48FR CWLE
9460-3975 9460-3975 20.5X16.5X1 ALUMINUM FILTER
LA01RA327 LA01RA327 3 BLADE FAN PROPELLER
KH43LG073 KH43LG073 3/8-INCHSWT LIQUIDLINEFILTERDRIER
HH18HA226 HH18HA226 320F-50F SPST AUTO ROLLOUT SWT
HK02ZA404 HK02ZA404 650/420# HIGH PRESSURE SWITCH
HF23BJ054 HF23BJ054 ACTUATOR MOTOR
48VL500212 48VL500212 BAFFLE FLUE
48ES500222 48ES500222 BAFFLE NOX
50ES500110 50ES500110 BASE RAIL
50ES500104 50ES500104 BASE RAIL
50ES500103 50ES500103 BASE RAIL
48GS500243 48GS500243 BLOWER SUPPORT
48GS500059 48GS500059 BLOWER SUPPORT
LA21RB548 LA21RB548 BLOWER WHEEL
48VL500221 48VL500221 BRACKET SWITCH
50DK407029 50DK407029 BURNER ASSEMBLY
48VL500013 48VL500013 BURNER BRACKET
50DK407030 50DK407030 BURNER TUBE (OUTER)
48GS500121 48GS500121 CAP HOOD
48VL400001 48VL400001 CARRIER 48VL400001 FLAME SENSOR
48VL400002 48VL400002 CARRIER 48VL400002 IGNITER
AA06BS228 AA06BS228 CARRIER AA06BS228 SCREW
HK52ER241 HK52ER241 CARRIER HVAC PART
KA56TR056 KA56TR056 CARRIER KA56TR056 GROMMET
LH32RF120 LH32RF120 CARRIER LH32RF120 ORIFICE
HK61EA021 HK61EA021 CIRCUIT BOARD
50VL400292 50VL400292 COIL EVAP AL/CU
50VL400336 50VL400336 COIL.COND AL/CU
50VL400334 50VL400334 COIL.COND AL/CU
HN52KC024 HN52KC024 CONTACTOR
50SD500388 50SD500388 COVER TOP COND
48GS400552 48GS400552 COVERS
HT32BH282 HT32BH282 CRANKCASE HEATER
50HJ400345 50HJ400345 ECONOMIZER BYPASS PLUG
HH63AW001 HH63AW001 ECONOMIZER CONTROL
EF32CW031 EF32CW031 EF32CW031 GAS VALVE
48GS400244 48GS400244 EVAP TOP ASSY
50VL400310 50VL400310 EVAPORATOR COIL ASSEMBLY
48GS500241 48GS500241 FAN PLATE
99CC409372 99CC409372 FLARE CAP
48GS400358 48GS400358 FLUE BOX COVER
48GS500302 48GS500302 GAS SIDE PANEL INSULATION
50SZ400159 50SZ400159 GRILLE ASY COMPR.
50SZ400158 50SZ400158 GRILLE ASY PWR ENTRY & F RONT
50SZ400157 50SZ400157 GRILLE ASY REAR
50SD500653 50SD500653 GRILLE OUTLET
KA56GR140 KA56GR140 GROMMET
KA56TR057 KA56TR057 GROMMET COMPRESSOR
KA56DS001 KA56DS001 GROMMET WIRE
48VL400371 48VL400371 HARNESS ASY CONTROL
48GS660008 48GS660008 HEAT EXCHANGER KIT
LH33WP007 LH33WP007 IGNITION CONTROL BOARD
48VL400078 48VL400078 IGNITOR WIRE ASSEMBLY
48VL400195 48VL400195 INDUCER ASSEMBLY
50ES500090 50ES500090 INSUL ASY BLOWER PANEL
50ES400148 50ES400148 INSUL ASY BLOWER PANEL
48SS500601 48SS500601 INSULATION
312250-407 312250-407 LOGO BRAND
HK02ZB062 HK02ZB062 LOW PRESSURE SWITCH
48ES400209 48ES400209 MANIFOLD 3 SPUD
HC98ZZ250 HC98ZZ250 MOTOR MOUNT ARM
P251-0078 P251-0078 MOTOR MOUNT BAND
313974-751 313974-751 PAINT STERLING
48GS500236 48GS500236 PANEL
50ES500093 50ES500093 PANEL COMP ACCESS
50ES500092 50ES500092 PANEL COMP ACCESS;
50VL400218 50VL400218 PLATE
50SS500879 50SS500879 PLATE
50ES500410 50ES500410 PLATE COMP MTG
HY07MP275 HY07MP275 PLUG COMPRESSOR
HK06MB061 HK06MB061 PRESSURE SWITCH
HK06WC061 HK06WC061 PRESSURE SWITCH
50ES500419 50ES500419 RACEWAY OFM 14-INCH
48GS500235 48GS500235 REAR DUCT PANEL
48GS500307 48GS500307 REAR PANEL
50SS501020 50SS501020 RETAINERPANEL INSULATION
48XZ660004 48XZ660004 S.S. HEAT EXCHANGER
48GS500242 48GS500242 SCROLL
ZP51K5E-TF5-830 ZP51K5E-TF5-830 SCROLL COMPRESSOR
P281-0031 P281-0031 STRAP
48GS500461 48GS500461 SUPPORT BRACKET
HH18HA286 HH18HA286 TEMPERATURE SWITCH
HY60AM059 HY60AM059 TERMINAL
HH79TZ039 HH79TZ039 THERMISTOR PROBE
HT01BD209 HT01BD209 TRANSFORMER
48VL500227 48VL500227 TUBE VENT PRESSURE-2 FT
EC39EZ065 EC39EZ065 VALVE BODY
EC39EZ067 EC39EZ067 VALVE CORE
