48VLNC4813060

Description

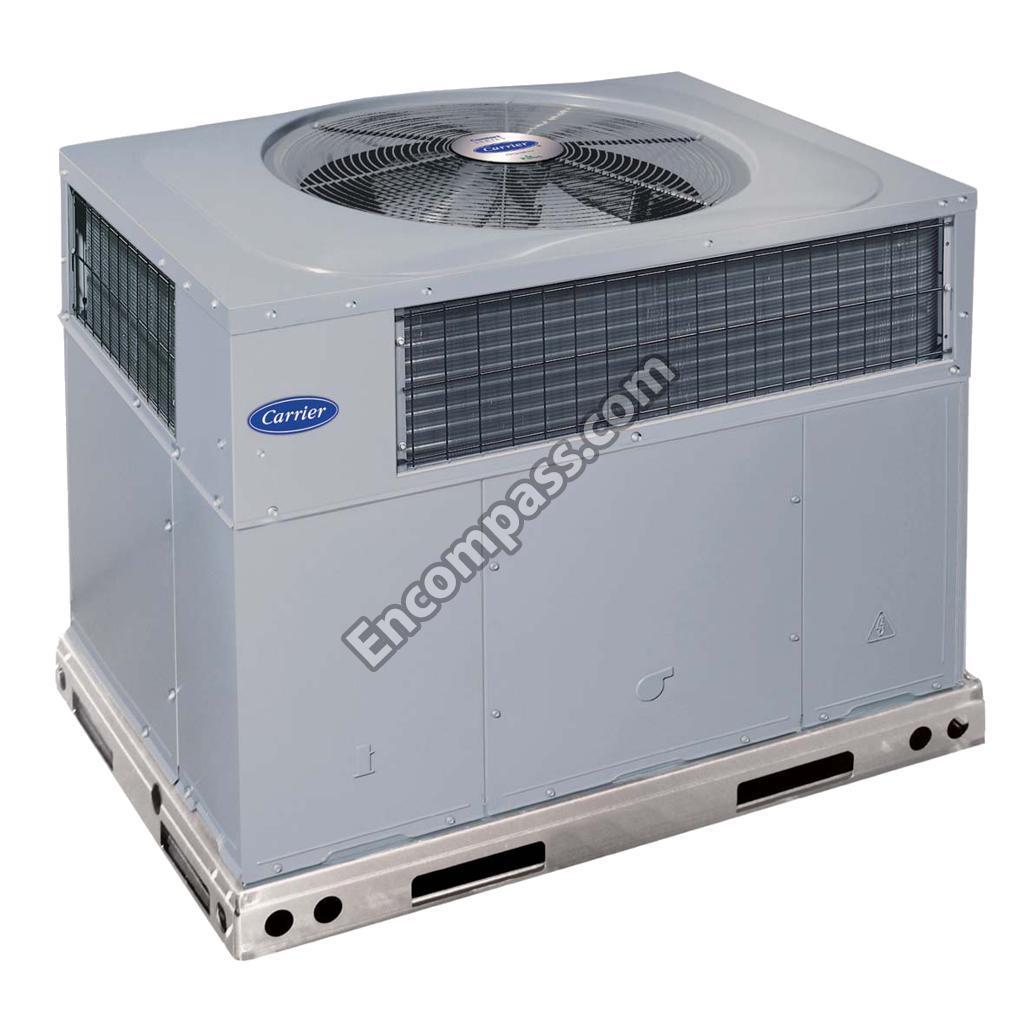

Single-package Air Conditioner And Gas Furnace Sys

Interactive Exploded View

Parts List

Part Number Description
HH18HA430 HH18HA430 100-130F AUTO LIMIT SWITCH
LA22RC001 LA22RC001 11X10 1/2-INCHBORE CCW BLOWER WHL
LA01RA327 LA01RA327 3 BLADE FAN PROPELLER
HH18HA226 HH18HA226 320F-50F SPST AUTO ROLLOUT SWT
HC37GE464 HC37GE464 460V1PH 1/5HP 825RPM MOTOR
HK02ZA404 HK02ZA404 650/420# HIGH PRESSURE SWITCH
48VL500212 48VL500212 BAFFLE FLUE
48ES500222 48ES500222 BAFFLE NOX
50ES500458 50ES500458 BASE PANLARGE CHASSIS
50ES500110 50ES500110 BASE RAIL
50ES500104 50ES500104 BASE RAIL
50ES500103 50ES500103 BASE RAIL
48GS500243 48GS500243 BLOWER SUPPORT
48GS500059 48GS500059 BLOWER SUPPORT
LA21RB548 LA21RB548 BLOWER WHEEL
48VL500221 48VL500221 BRACKET SWITCH
50DK407029 50DK407029 BURNER ASSEMBLY
48VL500013 48VL500013 BURNER BRACKET
50DK407030 50DK407030 BURNER TUBE (OUTER)
48GS500121 48GS500121 CAP HOOD
48VL400001 48VL400001 CARRIER 48VL400001 FLAME SENSOR
48VL400002 48VL400002 CARRIER 48VL400002 IGNITER
AA06BS228 AA06BS228 CARRIER AA06BS228 SCREW
50SD400521 50SD400521 CARRIER HVAC PART
50SD400522 50SD400522 CARRIER HVAC PART
50SD400523 50SD400523 CARRIER HVAC PART
KA56TR056 KA56TR056 CARRIER KA56TR056 GROMMET
LH32RF120 LH32RF120 CARRIER LH32RF120 ORIFICE
HK61EA021 HK61EA021 CIRCUIT BOARD
50VL400530 50VL400530 COIL COND AL/CU
50VL400528 50VL400528 COIL COND AL/CU
50VL400613 50VL400613 COIL EVAP AL/CU
50VL400666 50VL400666 COIL EVAP TIN PL
ZP42K6E-TFD-830 ZP42K6E-TFD-830 COMPRESSOR
HN52KC024 HN52KC024 CONTACTOR
50SD500388 50SD500388 COVER TOP COND
48GS400552 48GS400552 COVERS
50HJ400345 50HJ400345 ECONOMIZER BYPASS PLUG
EF32CW031 EF32CW031 EF32CW031 GAS VALVE
48GS400244 48GS400244 EVAP TOP ASSY
48GS500241 48GS500241 FAN PLATE
KH43LG094 KH43LG094 FILTER DRIER
99CC409372 99CC409372 FLARE CAP
48GS400358 48GS400358 FLUE BOX COVER
50SZ400159 50SZ400159 GRILLE ASY COMPR.
50SZ400158 50SZ400158 GRILLE ASY PWR ENTRY & F RONT
50SZ400157 50SZ400157 GRILLE ASY REAR
50SD500653 50SD500653 GRILLE OUTLET
KA56GR140 KA56GR140 GROMMET
KA56TR057 KA56TR057 GROMMET COMPRESSOR
KA56DS001 KA56DS001 GROMMET WIRE
48VL400371 48VL400371 HARNESS ASY CONTROL
48GS660008 48GS660008 HEAT EXCHANGER KIT
LH33WP006 LH33WP006 IGNITION CONTROL MODULE
48VL400078 48VL400078 IGNITOR WIRE ASSEMBLY
50ES500090 50ES500090 INSUL ASY BLOWER PANEL
50ES400148 50ES400148 INSUL ASY BLOWER PANEL
50ES400429 50ES400429 INSUL ASY COIL PARTITION LG
50ES400427 50ES400427 INSUL ASY COIL PARTITION LG
50ES400425 50ES400425 INSUL ASY FAN PARTITION LG
50ES400434 50ES400434 INSUL ASY PANEL COIL LAR GE
50ES400433 50ES400433 INSUL ASY PANEL DUCT LAR GE
48SS500601 48SS500601 INSULATION
48GS500110 48GS500110 INSULATION
312250-407 312250-407 LOGO BRAND
48ES400209 48ES400209 MANIFOLD 3 SPUD
HD52AR485 HD52AR485 MOTOR ECM. 1 HP X13
HC98ZZ250 HC98ZZ250 MOTOR MOUNT ARM
P251-0078 P251-0078 MOTOR MOUNT BAND
313974-751 313974-751 PAINT STERLING
50ES400435 50ES400435 PANEL ASSY
50ES400170 50ES400170 PANEL ASY COMPR.
50ES400169 50ES400169 PANEL ASY PWR ENTRY & FR ONT
50ES400168 50ES400168 PANEL ASY REAR
50ES500092 50ES500092 PANEL COMP ACCESS;
48GS500234 48GS500234 PANEL INSULATION
EA52PH080 EA52PH080 PISTON
50VL400218 50VL400218 PLATE
50SS500879 50SS500879 PLATE
HY07MP275 HY07MP275 PLUG COMPRESSOR
HK06MB061 HK06MB061 PRESSURE SWITCH
HK06WC061 HK06WC061 PRESSURE SWITCH
50ES500419 50ES500419 RACEWAY OFM 14-INCH
50SS501020 50SS501020 RETAINERPANEL INSULATION
48XZ660004 48XZ660004 S.S. HEAT EXCHANGER
48GS500242 48GS500242 SCROLL
P281-0031 P281-0031 STRAP
48GS500461 48GS500461 SUPPORT BRACKET
48GS500584 48GS500584 TAB
HT01BD464 HT01BD464 TRANSFORMER
48VL500227 48VL500227 TUBE VENT PRESSURE-2 FT
EC39EZ065 EC39EZ065 VALVE BODY
EC39EZ067 EC39EZ067 VALVE CORE
