Manufacturer
Carrier
Model Number
50ZPB04832
Description

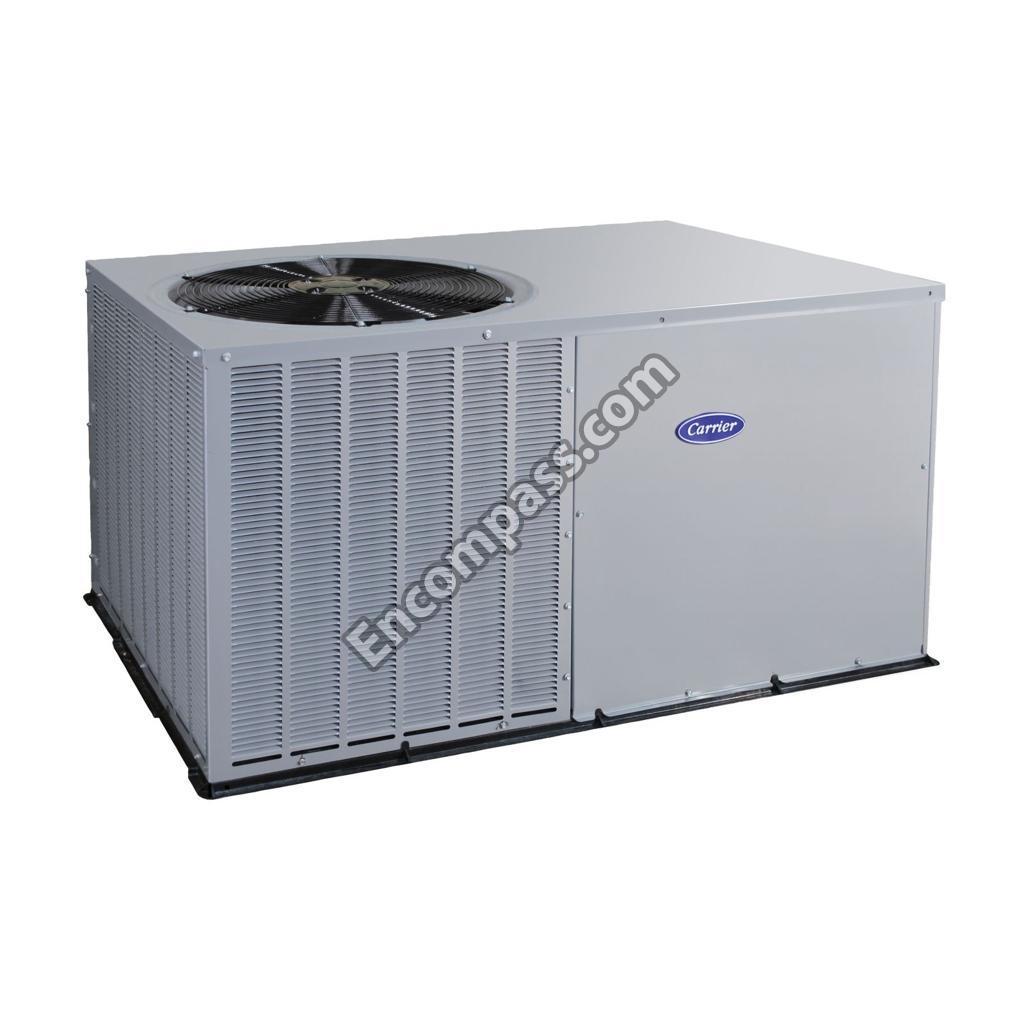

Single Package Electric Cooling Unit
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1POLE 40AMP 24V CONTACTOR |
|
|
20-INCHDIA 34DEG 1/2-INCH CW 3BLD FAN |
|
|
650/420# HIGH PRESSURE SWITCH |
|
|
ACCESS PANEL |
|
|
BARRIER 24V |
|
|
BASEPAN |
|
|
BLOWER WHEEL |
|
|
BLOWERSUPPORTBRACKET |
|
|
BUSHING |
|
|
BUSHING |
|
|
CARRIER AA06BS228 SCREW |
|
|
CARRIER KA56TR056 GROMMET |
|
|
COIL CONDAL ON 50ZP4 00137 |
|
|
COIL EVAPAL |
|
|
COIL EVAPTP |
|
|
COND. FAN MOTOR |
|
|
CONTROL BOX |
|
|
COUPLING DISTRIBUTOR |
|
|
DISTRIBUTOR ASSY |
|
|
ELECTRICAL PANEL |
|
|
FAN GRILLE OUTLET |
|
|
FILTER DRIER |
|
|
FLANGE DUCT 14-INCH X 20-INCH |
|
|
FLARE CAP |
|
|
GASKET COND COIL SEAL |
|
|
GROMMET |
|
|
GROMMET COMPRESSOR |
|
|
GROMMET SLEEVE |
|
|
GROMMET WIRE |
|
|
GROUND LUG |
|
|
HARNESS ASSY |
|
|
HERMETIC SCROLL COMPRESSOR 42000 BTU 20 |
|
|
INSUL ASY COMPR SUPPLY 34-INCH |
|
|
INSUL ASY PARTITION 34-INCH |
|
|
INSUL ASY SIDE WRAPPER 34-INCH |
|
|
LOGO BRAND |
|
|
MOTOR BAND |
|
|
MOTOR MOUNT ARM |
|
|
MOTORMASTER II HEAD PRESSURE CONTROLER F |
|
|
P298-001 COMPRESSOR PLUG ASSY. |
|
|
PANEL ACCESSCOMPR & CON TROL |
|
|
PARTITION COIL 34-INCH |
|
|
PISTON |
|
|
PLUG BUTTON |
|
|
RECEWAY |
|
|
RING AIR DUCT METAL |
|
|
SEAL DRAIN |
|
|
TAIL PIECE KIT FOR N COIL |
|
|
TOP COVER ASSY |
|
|
TRANSFORMER |
|
|
VALVE BODY |
|
|
VALVE CORE |
|
|
WRAPPER SIDE LOUVER 34-INCH |
