Manufacturer
Carrier
Model Number
50ZPC02430
Description

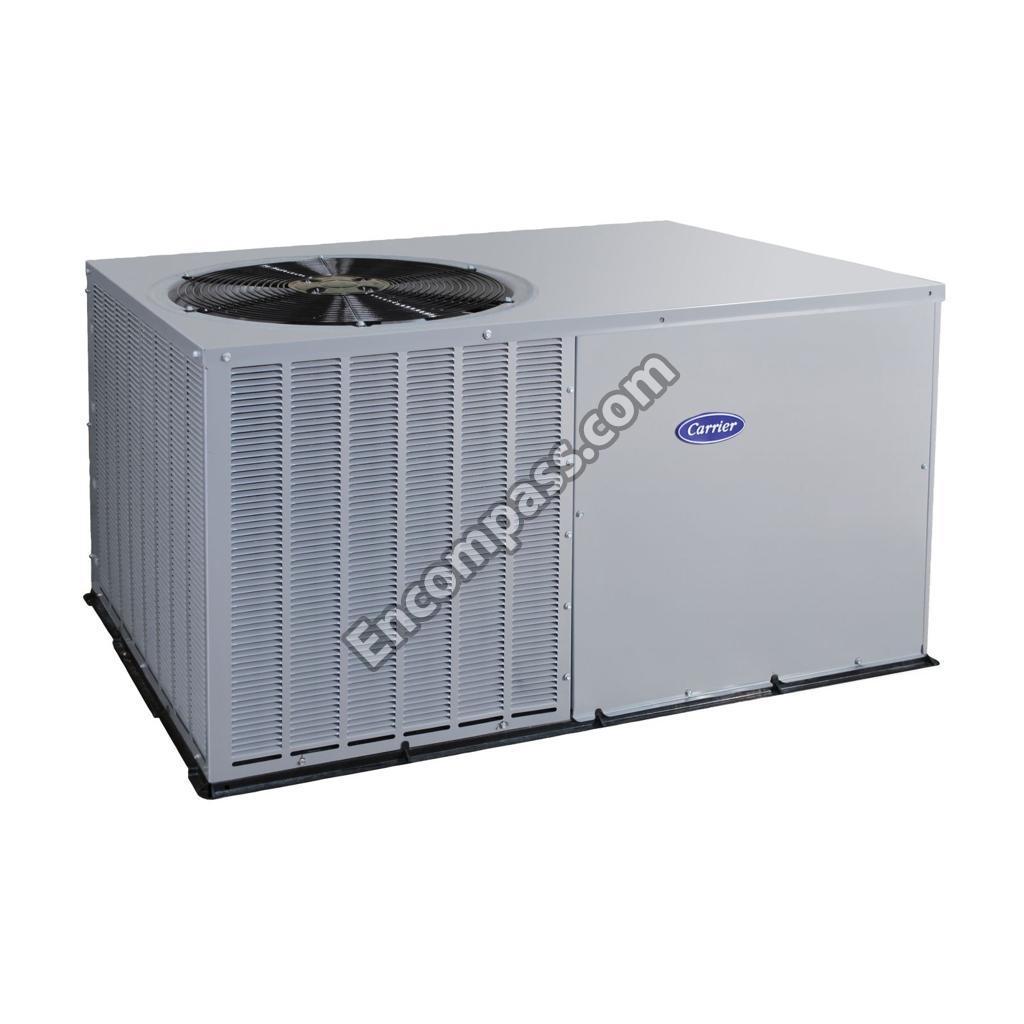

Single Package Electric Cooling Unit
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
20-INCHDIA 34DEG 1/2-INCH CW 3BLD FAN |
|
|
208-230V 1/8HP 825 RPM MOTOR |
|
|
35/5 MFD 440 DUAL CAPACITOR |
|
|
650/420# HIGH PRESSURE SWITCH |
|
|
ACCESS PANEL |
|
|
BARRIER 24V |
|
|
BASEPAN |
|
|
BLOWER PANEL ASSY |
|
|
BLOWER WHEEL |
|
|
BLOWERSUPPORTBRACKET |
|
|
BUSHING |
|
|
BUSHING |
|
|
CARRIER AA06BS228 SCREW |
|
|
CARRIER KA56TR056 GROMMET |
|
|
COIL EVAP AL/CU |
|
|
COIL EVAP AL/CU TIN PLATED |
|
|
COND COIL ASSY,ALUMINUM FIN |
|
|
CONTACTOR 1 POLE 40 AM |
|
|
CONTROL BOX |
|
|
ELECTRICAL PANEL |
|
|
FAN GRILLE OUTLET |
|
|
FILTER DRIER |
|
|
FLARE CAP |
|
|
GASKET COND COIL SEAL |
|
|
GROMMET |
|
|
GROMMET SLEEVE |
|
|
GROMMET WIRE |
|
|
GROUND LUG |
|
|
HARNESS ASSY |
|
|
HOUSING.BLOWER |
|
|
INSUL ASY COMPR SUPPLY 30-INCH |
|
|
INSUL ASY SIDE WRAPPER 30-INCH |
|
|
LOGO BRAND |
|
|
MOTOR BAND |
|
|
MOTOR MOUNT ARM |
|
|
MOTORMASTER II HEAD PRESSURE CONTROLER F |
|
|
PAINT STERLING |
|
|
PARTITION COIL 30-INCH |
|
|
PISTON |
|
|
PLATE SUPPORT CAPACITOR |
|
|
PLUG BUTTON |
|
|
RECEWAY |
|
|
RING AIR DUCT METAL |
|
|
SEAL DRAIN |
|
|
TAIL PIECE KIT FOR N COIL |
|
|
TOP COVER ASSY |
|
|
TRANSFORMER |
|
|
VALVE BODY |
|
|
VALVE CORE |
|
|
WRAPPER SIDE LOUVER 30-INCH |
