Manufacturer
Carrier
Model Number
58MTA100F12120
Description

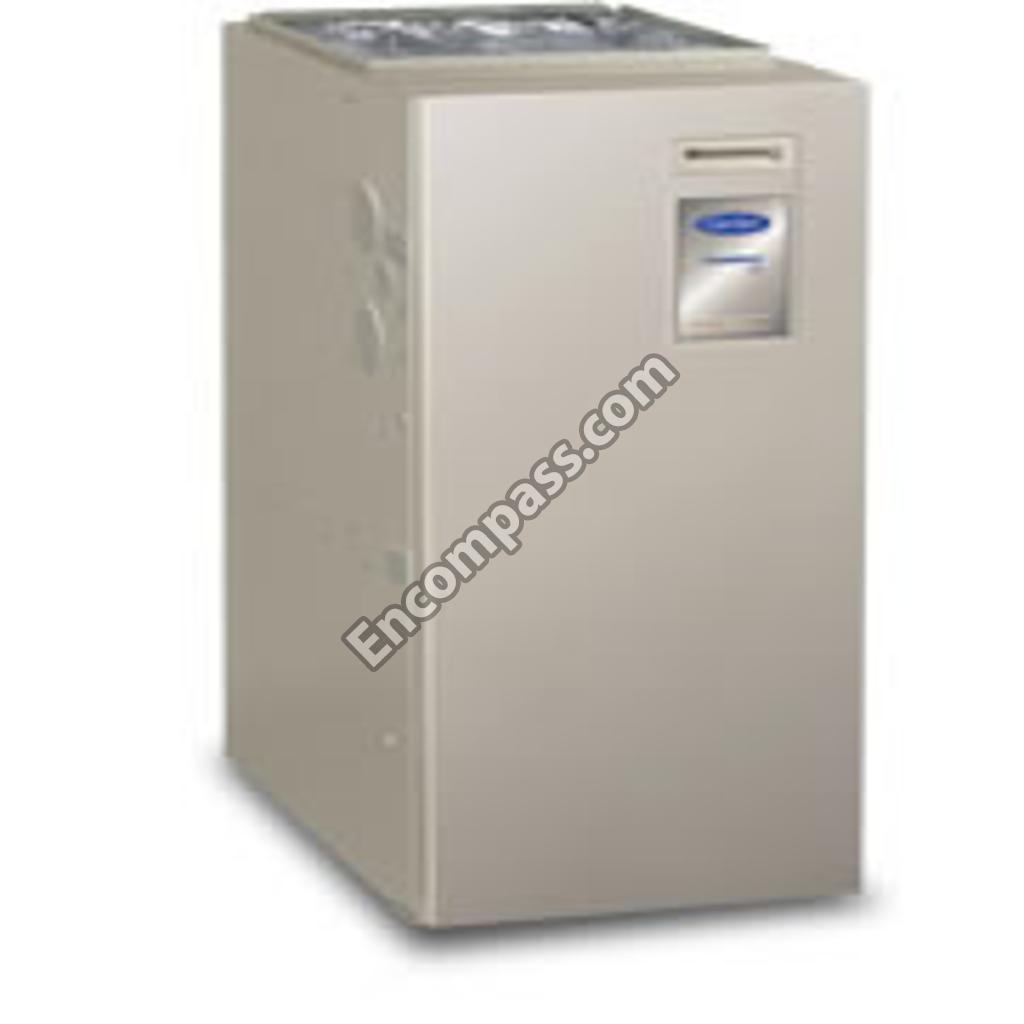

2-stage Multipoise Condensing Furnace (90%)
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
115V 3/4HP 1075RPM MOTOR |
|
|
11X10 1/2-INCHBORE CW BLOWER WHEEL |
|
|
150-190F AUTO LIMIT SWITCH |
|
|
AIR INLET BOX |
|
|
BAFFLE |
|
|
BLOWER CUTOFF |
|
|
BLOWER DOOR SAFETY SWITCH |
|
|
BLOWER HOUSING |
|
|
BURNER |
|
|
BURNER BRACKET |
|
|
BURNER MANIFOLD |
|
|
CAP |
|
|
CAP END |
|
|
CAPAC 3 MFD 250V RECTANGLE |
|
|
CELL PANEL KIT(INLET |
|
|
CIRCUIT BOARD |
|
|
CLAMP |
|
|
CLAMPS |
|
|
COLLECTOR BOX |
|
|
COMB AIR DISC |
|
|
CONDENSATE FREEZE PROTECTION KIT |
|
|
CONDENSATE TRAP |
|
|
CONDENSATEDRAINPARTSKIT |
|
|
CONNECTOR DRAIN |
|
|
CONTROL BOX BRACKET |
|
|
CONTROL PANEL |
|
|
COVER PLATE |
|
|
DOOR LATCH |
|
|
FAN CLIP |
|
|
FILTER RETAINER |
|
|
FLAME ROLLOUT SWITCH |
|
|
FLAME SENSOR |
|
|
GASKET |
|
|
GASKET |
|
|
GASKET IGNITOR |
|
|
GROMMET |
|
|
HEAT EXCHANGER CELL |
|
|
IGNITOR |
|
|
INDUCER DRAIN TUBE |
|
|
INDUCER WHEEL ASSEMBLY |
|
|
INDUCER/TRAP ELBOW |
|
|
INSULATION FIBERGLASS |
|
|
LIMIT SHIELD |
|
|
MANIFOLD GROMMET |
|
|
MEDIA CABINET |
|
|
PLUG |
|
|
Q.C. INSUL |
|
|
QUICK CONNECT TERMINAL |
|
|
RETAINER |
|
|
SCREW |
|
|
SIGHT GLASS |
|
|
STANDOFF |
|
|
SUBBASE KIT FOR DOWNFLOW GAS FURNACE |
|
|
SUPPORT |
|
|
TAUPE METALLIC TOUCH-UP PAINT |
|
|
TERMINAL |
|
|
THUMB SCREW |
|
|
TOP/FRONT PLATESTRIKE |
|
|
TRAP DRAIN TUBE |
|
|
TUBING |
|
|
TUBING ASSEMBLY |
|
|
UNFRAMED 20 X 25-INCH MESH FILTER |
|
|
VENT COUPLING |
