Manufacturer
Carrier
Model Number
58SB1A070E171112
Description

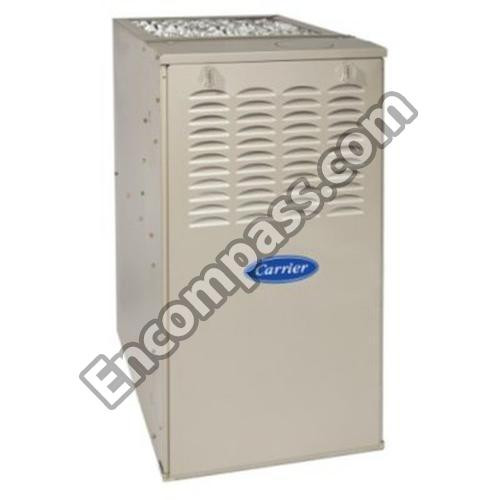

80% Carrier Single Stage Low Nox Gas Furnace
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/2-INCHBORE CW 11 7/8-INCHDIA WHEEL |
|
|
101-200F AUTO LIMIT SWITCH |
|
|
120-160F AUTO LIMIT SWITCH |
|
|
24V 3.5-INCHWC NAT 1/2-INCH GAS VALVE |
|
|
BAFFLE ASSY |
|
|
BLOWER DOOR SAFETY SWITCH |
|
|
BLOWER HSG KIT |
|
|
BLOWER MOTOR 1/3 HP |
|
|
BOTTOM PLATE |
|
|
BOX AUX J |
|
|
BRACKET BLOWERMTG |
|
|
BRACKET CTL MTG |
|
|
BURNER ASSEMBLY |
|
|
BURNER SUPPORT ASSEMBLY |
|
|
CELL PANEL KIT |
|
|
CLIP |
|
|
CONTROL BOARD |
|
|
COVER BOX AUX J |
|
|
DOOR BRKT. |
|
|
DOOR LATCH |
|
|
FAN CLIP |
|
|
GASKET |
|
|
GASKET INLET |
|
|
GASKET KIT |
|
|
GASKET OUTLET |
|
|
GROMMET |
|
|
HARNESS ADAPTER |
|
|
HEAT EXCHANGER ASSEMBLY |
|
|
HI LIMIT |
|
|
HOT SURFACE IGNITOR |
|
|
IGNITOR BRACKET |
|
|
INDUCEDDRAFTMOTOR 115V1PH CW |
|
|
INDUCER ELBOW KIT |
|
|
INDUCER FAN |
|
|
INDUCER GASKET |
|
|
INDUCER HOUSING KIT |
|
|
INDUCER MOTOR |
|
|
INDUCER MOTOR ASSEMBLY |
|
|
INDUCER MOTOR KIT |
|
|
INDUCER MOTOR KIT ASSEMBLY |
|
|
INDUCER WHEEL |
|
|
INLET GASKET |
|
|
KNOB |
|
|
LOGO BRAND |
|
|
MAIN HARNESS |
|
|
MANIFOLD |
|
|
NYLON HARNESS RETAINER CLIP |
|
|
OUTER DOOR KIT |
|
|
OUTLET GASKET |
|
|
RADIATOR FLAME |
|
|
SHELF ASSY BLOWER |
|
|
SIGHT GLASS |
|
|
SPECIAL SCREW |
|
|
TOP PANEL |
|
|
TUBE |
