Manufacturer

Carrier

Model Number

58STX135E10116

Description

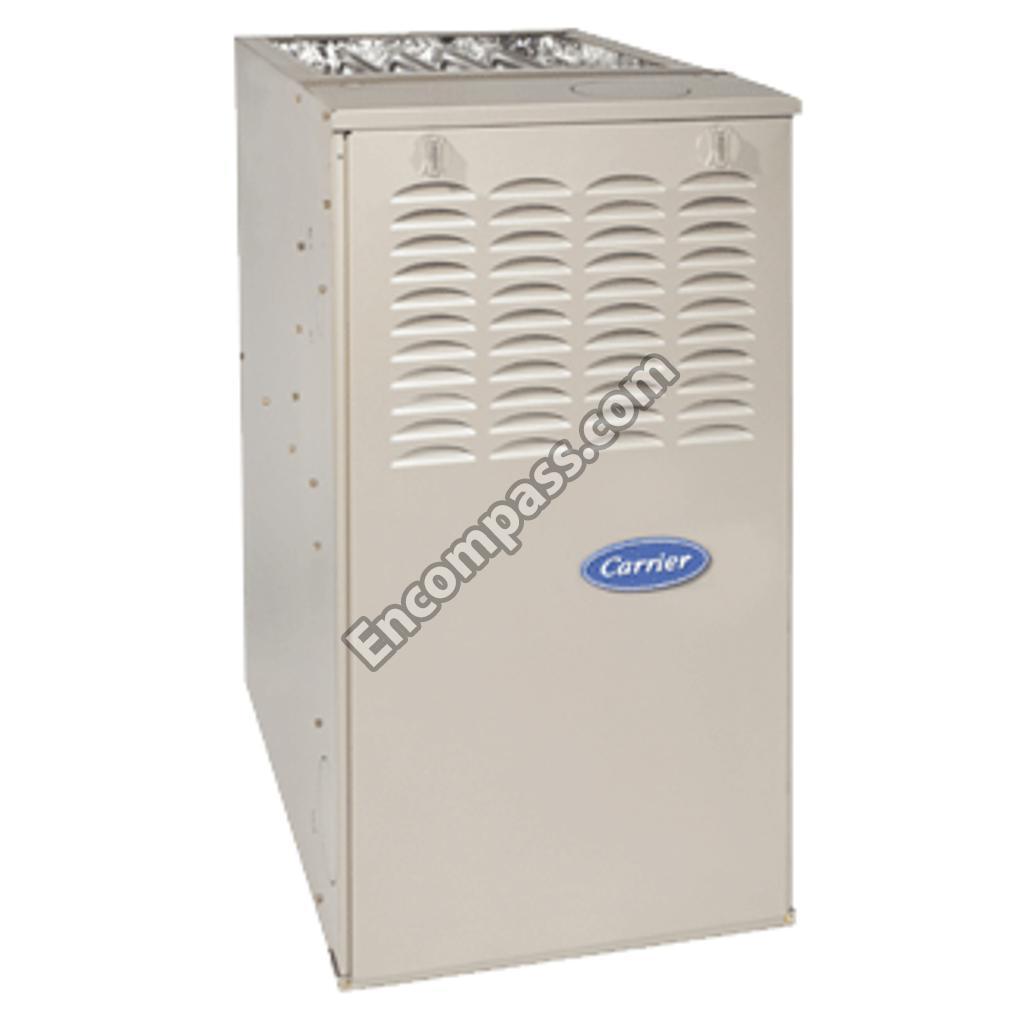

Single Stage Standard Furnace

Interactive Exploded View

Parts List

Part Number Description
323751-702 323751-702 1.30MM GAS ORIFICE KIT
LA22ZA123 LA22ZA123 10 5/8-INCHDIA BLOWERWHEEL 1/2-INCHBOR
HH18HA493 HH18HA493 101-200F AUTO LIMIT SWITCH
HC43TE113 HC43TE113 115V 1/2HP 1075 RPM 3SPEED MOTOR
HH18HA499 HH18HA499 125-165F AUTO LIMIT SWITCH
HH12HA142 HH12HA142 140F M/R LIMIT SWITCH
HK06WC069 HK06WC069 3-INCHWC SPST PRESSURE SWITCH
326700-401 326700-401 AUX. JUNCTION BOX
326701-401 326701-401 AUX. JUNCTION BOX COVER
310283-304 310283-304 BLOWER CUTOFF
HR54ZA006 HR54ZA006 BLOWER DOOR SAFETY SWITCH
327265-753 327265-753 BLOWER HOUSING KIT
HC43TQ113 HC43TQ113 BLOWER MOTOR, PSC
326725-406 326725-406 BLOWER SHELF
326715-401 326715-401 BLOWER SHELF
326606-403 326606-403 BOTTOM CLOSURE
326711-401 326711-401 BRACKET CONTROL MOUNT
326643-705 326643-705 BURNER ASSEMBLY
323269-704 323269-704 BURNER ORIFICE FOR LP GAS
326718-705 326718-705 BURNER SUPPORT ASSY
326624-755 326624-755 CELL PANEL KIT
327293-401 327293-401 CLIP
326723-753 326723-753 CONTROL DOOR KIT
326614-701 326614-701 DOOR ASMBLY
326706-401 326706-401 DOOR SWITCH BRACKET
325531-404 325531-404 FILTER
328988-403 328988-403 FILTER RETAINER 21 LONG
LH680014 LH680014 FLAME SENSOR
323269-703 323269-703 GAS ORIFICE KIT 7 SPUDS
327260-401 327260-401 GASKET
327257-401 327257-401 GASKET
KA56GR140 KA56GR140 GROMMET
AS88PD005 AS88PD005 GROMMET CLIP
327957-701 327957-701 HARNESS ASSY
327959-701 327959-701 HARNESS ASSY
327257-403 327257-403 HEAT EXCHANGE GASKET
326600-751 326600-751 HEAT EXCHANGER ASSEMBLY
HH18HA495 HH18HA495 HI LIMIT
LH33ZG001 LH33ZG001 HOT SURFACE IGNITOR
HY06AM015 HY06AM015 HOUSING PLUG
329749-401 329749-401 IGNITOR BRACKET
326628-763 326628-763 INDUCER ASSEMBLY
327263-401 327263-401 INDUCER GASKET
326628-765 326628-765 INDUCER MOTOR
326628-764 326628-764 INDUCER MOTOR KIT
349336-765 349336-765 INDUCER MOTOR KIT
327258-405 327258-405 INLET GASKET
327258-401 327258-401 INLET GASKET
HH18HA417 HH18HA417 LIMIT SWITCH
312250-407 312250-407 LOGO BRAND
323272-702 323272-702 LP BURNER ORIFICE #56
HK02LB008 HK02LB008 LP PRESSURE SWITCH
EF39ZW037 EF39ZW037 LP->NAT GAS CONVERSION KIT
326648-405 326648-405 MANIFOLD
327753-401 327753-401 MOTOR MOUNT KIT
323267-702 323267-702 NAT BURNER ORIFICE #43
323267-703 323267-703 NAT BURNER ORIFICE (QTY-1)
323267-704 323267-704 NAT GAS BURNER ORIFICE 7 PACK
EF39ZW023 EF39ZW023 NATURAL TO LP GAS VALVE CONVERSION KIT
323267-701 323267-701 NATURALORIFICEFORMANIFOLD
327595-401 327595-401 NYLON HARNESS RETAINER CLIP
323269-701 323269-701 ORIFICE ON MANIFOLD KIT(QTY 1)
327259-405 327259-405 OUTLET GASKET
327259-401 327259-401 OUTLET GASKET
P291-1003 P291-1003 OVAL RUN CAPACITOR
HY60AM065 HY60AM065 Q.C. INSUL
HY60CM500 HY60CM500 QUICK CONNECT TERMINAL
329134-401 329134-401 SCREW
310260-401 310260-401 SIDE BLOWER
KGASB0201ALL KGASB0201ALL SUBBASE KIT FOR DOWNFLOW GAS FURNACE
661858 661858 TAUPE METALLIC TOUCH-UP PAINT
326612-403 326612-403 TOP PLATE
325531-403 325531-403 UNFRAMED 20 X 25-INCH MESH FILTER
325531-402 325531-402 UNFRAMED FILTER
326629-751 326629-751 VENT ELBOW KIT
329986-701 329986-701 WIRE HARNESS
327262-701 327262-701 WIRE HARNESS
