Manufacturer
Carrier
Model Number
CA16NA03600GBABA
Description

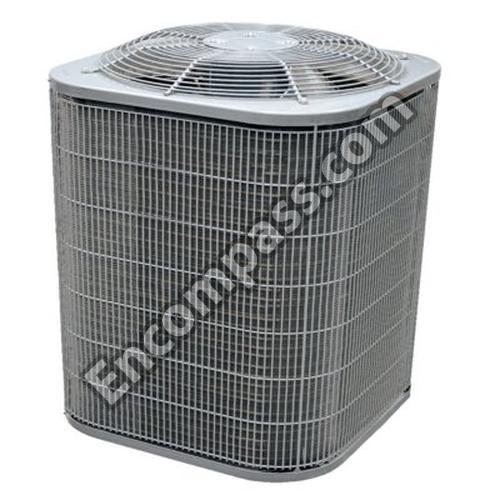

Condensing Unit, Split System, Air Conditioner, 16
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1 PHASE MOTOR 1 12 HP |
|
|
26-INCH DIA 3BLADE 1/2-INCHBORE FAN |
|
|
3 8 24V LIQUID LINE SOLENOID VALVE KIT |
|
|
610-420# PRESSURE SWITCH |
|
|
7/8-INCH SUCTION SERVICE VALVE |
|
|
95-50# LOW PRESSURE SWITCH |
|
|
BODY COUPLING |
|
|
CARRIER KSALA0301410 LOW AMBIENT PRESSUR |
|
|
CESO130062-00 TIME DELAY RELAY |
|
|
CHECK VALVE |
|
|
CLAMP 2 1/2-INCH OD |
|
|
COIL KIT |
|
|
CONTACTOR 1 POLE 40 AM |
|
|
CONTROL BOX |
|
|
COVER |
|
|
CRANKCASE HEATER (018-036) |
|
|
FAN GUARD |
|
|
FLARE NUT |
|
|
GASKET |
|
|
GROMMET COMPRESSOR |
|
|
GROUND LUG |
|
|
HARD START KIT |
|
|
HIGH PRESSURE SWITCH |
|
|
HIGH PRESSURE SWITCH KIT |
|
|
HTR CC WP 40W240V TCH268 |
|
|
LIQUID LINE SERVICE VALVE |
|
|
LOW PRESSURE SWITCH KIT |
|
|
MOTORMASTER LOW AMBIENT CONTROL |
|
|
PAINT |
|
|
PISTON |
|
|
RELAY TIME DELAY |
|
|
START ASSIST |
|
|
STRAP |
|
|
SUCTION LINE FILTER DRIER |
|
|
TEMPERATURE LIMIT SWITCH |
|
|
TIME DELAY; COMPRESSOR |
|
|
TOP COVER ASSEMBLY |
|
|
TX VALVE VALVE KIT |
|
|
TXV EXPANSION VALVE R-410 |
|
|
VALVE-SOLENOID |
|
|
WINTER START CONTL-RESIDENTIAL |
|
|
WIRING HARNESS |
