Manufacturer
Carrier

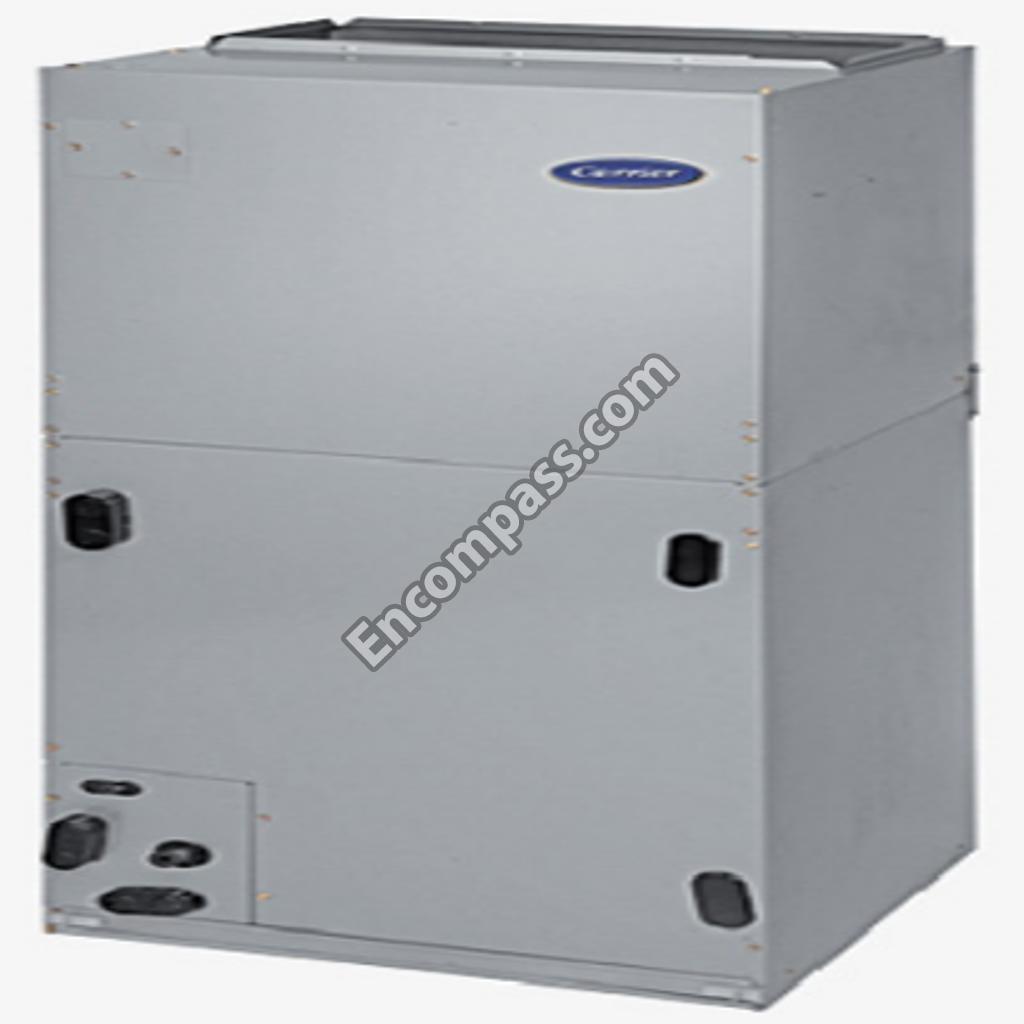

Model Number
FA4CNF036008AAAA
Description
Rnc Multi-poise Fan Coil
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/3HP 208/230V 1075 RPM 3SPEED |
|
|
100-155F AUTO LIMIT SWITCH |
|
|
11 1/8-INCHD X 7 1/8-INCH BLOWER WHEEL |
|
|
115-165F AUTO LIMIT SWITCH |
|
|
40VA 208/230VPRIM 24VSEC TRANSFORMER |
|
|
5KW HEAT STRIP |
|
|
5KW1PH CIRCUITBRKR ELECTRC |
|
|
85-140F AUTO LIMIT SWITCH |
|
|
9KW1PH NON-FUSED ELECTRIC HTR |
|
|
AIR SEAL |
|
|
CIRCUIT BOARD |
|
|
CIRCUIT BREAKER |
|
|
CLAMP TXV BULB |
|
|
COIL GROMMET |
|
|
COND CHANNEL |
|
|
CONNECTOR |
|
|
CONNECTOR 12PIN PL3 |
|
|
CONTROL BOARD |
|
|
COVER DISCONNECT |
|
|
COVER PLATE |
|
|
DISCONNECT |
|
|
DISCONNECT KIT |
|
|
DOOR FITTING |
|
|
DOOR LOWER |
|
|
DOWNFLOW KIT FOR AIR HANDLERS |
|
|
ELECTRIC HEATER 8 KW |
|
|
ELECTRIC HEATER KIT 10KW |
|
|
FILTER COVER LATCH |
|
|
FUSE BLOCK |
|
|
FUSE BLOCK30A@250V |
|
|
GASKET KIT |
|
|
GROMMET |
|
|
HARNESS ASSEMBLY |
|
|
HARNESS ASSEMBLY |
|
|
HARNESS ASSEMBLY |
|
|
HEATER ELEMENT |
|
|
HEATER PACKS - 10 KW ELECTRIC HEATER WIT |
|
|
HEATER PACKS - 15 KW ELECTRIC HEATER FUS |
|
|
HEATER PACKS - 15 KW ELECTRIC HEATER WIT |
|
|
HEATER PACKS - 15 KW HEATER - NON-FUSED |
|
|
HEATER PACKS - 20 KW ELECTRIC HEATER FUS |
|
|
HEATER PACKS - 20 KW ELECTRIC HEATER WIT |
|
|
HEATER PACKS - 5 KW HEATER - NON-FUSED |
|
|
HEATER PACKS - 8 KW ELECTRIC HEATER WITH |
|
|
HOUSING BRACKET |
|
|
HOUSING PLUG |
|
|
HOUSING, BLOWER |
|
|
L130-40F LIMIT SWITCH |
|
|
LOGO BRAND |
|
|
MOTOR ARM & GROMMET ASSEMBLY |
|
|
MOTOR MOUNT BAND |
|
|
PAINT STERLING |
|
|
PLUG |
|
|
RECTIFIER CNTL W/TIME |
|
|
RELAY |
|
|
RUN CAPACITOR OVAL 370V;SINGLE 15MFD |
|
|
SPECIAL SCREW |
|
|
STRAINER |
|
|
TEMPERATURE SWITCH |
|
|
TEMPSWITCH |
|
|
THERMAL DISC |
|
|
TXV REPLACEMENT KIT |
|
|
WASHABLE FILTER |
|
|
WIRE HARNESS |
