Manufacturer
Dacor
Model Number
CER304BT
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 83346 | 1/2 FLEX CONDUIT |
| 82195 | 1/2 FLEX CONNECTOR, 90 |
| 83056 | BUSHING |
| 83133 | BUSHING, 1/2 RED CONDUIT |
| 82400 | CABLE CLAMP |
| 13320R | CERAN PANEL ASSEMBLY AFTERSN TA8230286 |
| 13320BT | CERAN PANEL ASSEMBLY AFTERSN TA8230286 |
| 26802W | CERAN PANEL ASSEMBLY BEFORESN TA8230286 |
| 26802B | CERAN PANEL ASSEMBLY BEFORESN TA8230286 |
| 13273 | CHASSIS ASSEMBLY |
| 82167W | CONTROL KNOB |
|
|
CONTROL KNOB |
| 26651 | CONTROL PANEL |
|
|
COUNTER GASKET |
| 13274 | ELEMENT WELD BOX |
| 82803 | ELEMENT, CF, 1200W |
|
|
ELEMENT, LF, 1900W |
|
|
ELEMENT, LR, 1800W |
| 66844 | ELMNT, DUAL,RR,2000/1000W |
| 14267 | GREEN GROUND WIRE |
| 700568 | HEAT INDICATOR |
| 82180 | INFNI ITE SWITCH, SINGLE |
| 14359 | L1 POWER LEAD, BLACK |
| 14360 | L2 POWER LEAD, RED |
| 82169 | LIGHT RING |
| 83024 | SCREW, 8 X 3/8 |
| 86218 | SPILL PROTECTOR RING |
| 83277 | SPRING, COMPLETE ELEMENTMOUNTING |
|
|

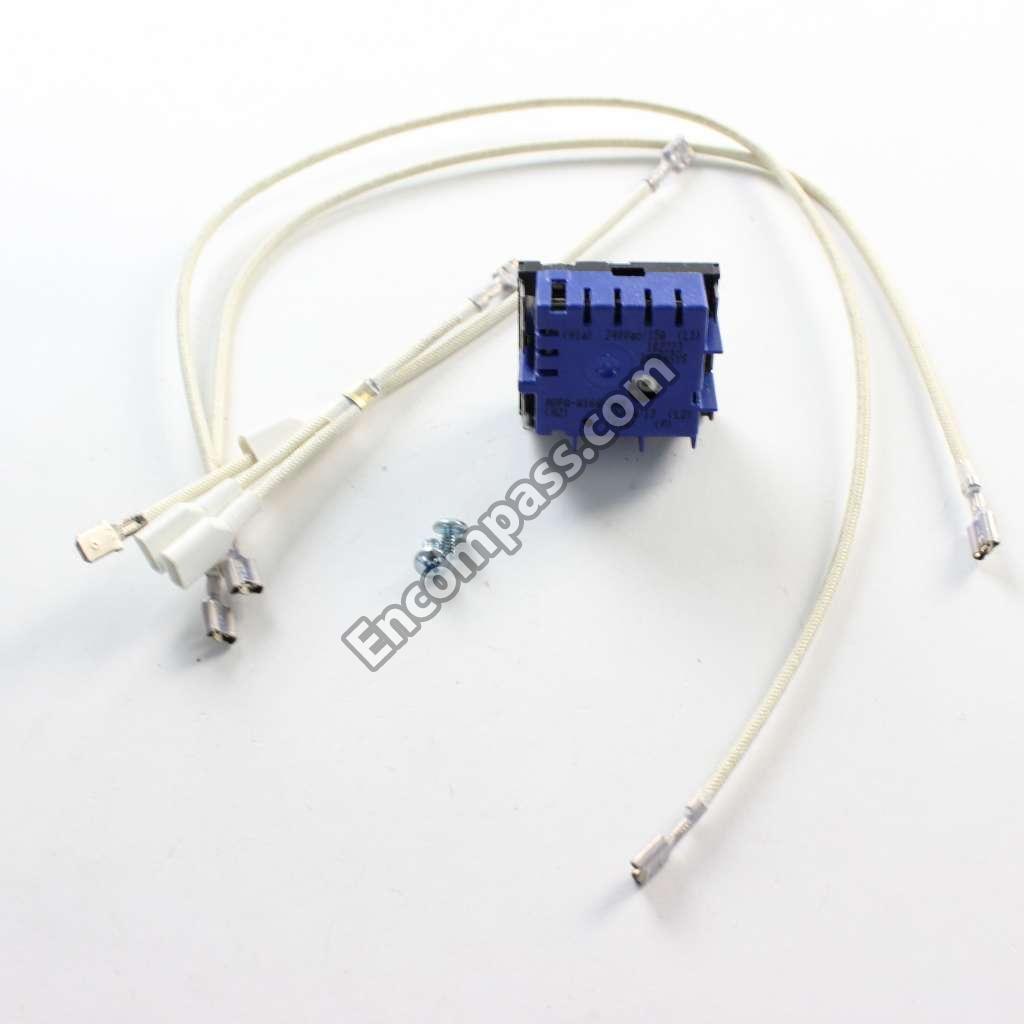

SWITCH, DUAL CIRCUIT |
| 62631 | WIRE HARNESS |
