Manufacturer
Dacor
Model Number
CPO130
Description
Wall Ovens
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 26420 | 1/2-INCHES FLEX CONDUIT, 60-INCHES CPO130 UL |
| 83024 | 8 X 3/8 PHILLIPS PAN HEAD |
|
|
APPLIANCE LIGHT BULB, 40W |
| 26537 | BACK SHIELD, CPO130 |
| 27422 | BACKSHIELD, TOP |

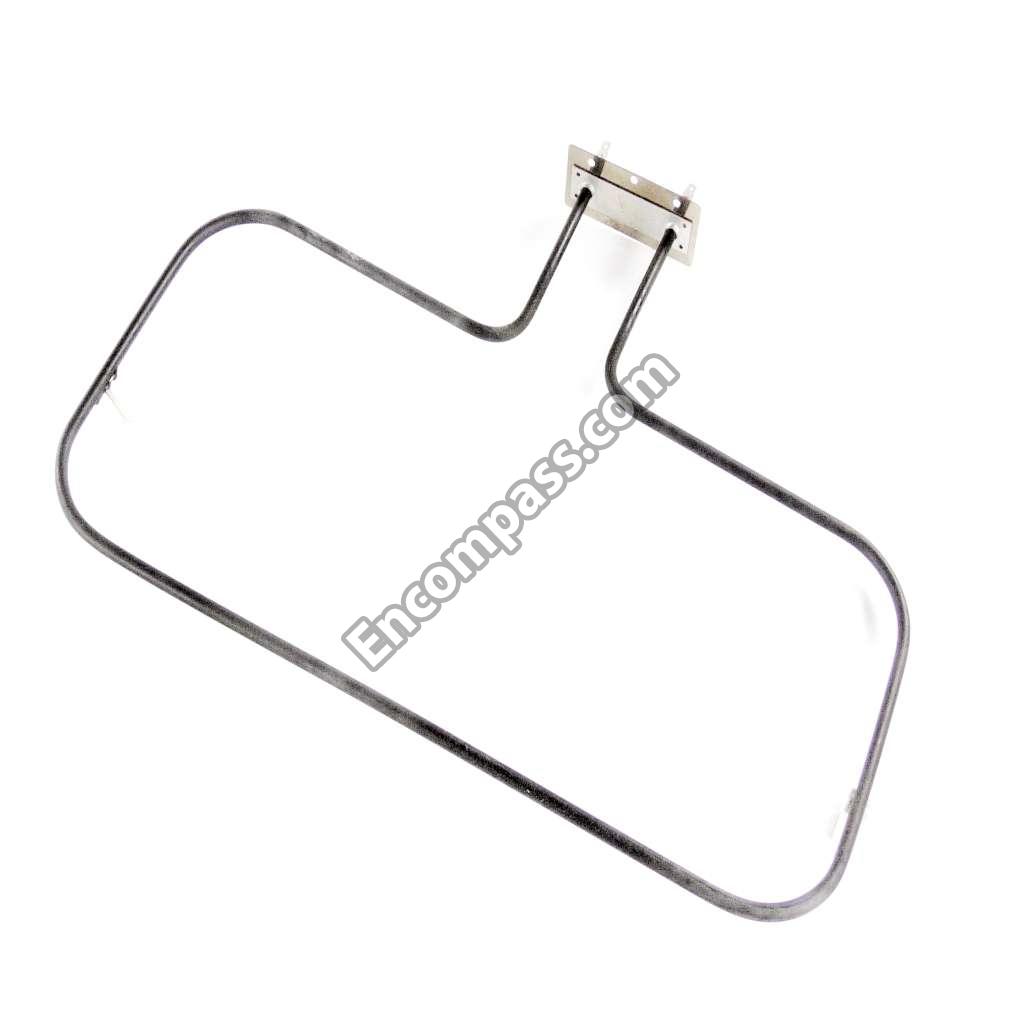

| 82881 | BAKE ELEMENT, 208V |
|
|
BAKE ELEMENT, 240V |
| 83539 | BALL STUD |
| 26142 | BROIL ELEMENT SUPPORT |
| 82249 | BROIL ELEMENT, 208V |
| 82099 | BROIL ELEMENT, 240V |
| 82106 | BROILER GRILL |
| 82107 | BROILER PAN |
| 26542 | CASE BACK |
| 26569 | CASE BOTTOM |
| 27405 | CASE SIDE, LEFT |
| 27404 | CASE SIDE, RIGHT |
| 26539 | CASE TOP |
| 12320 | COMPLETE DOOR ASSEMBLY |
| 82195 | CONDUIT CONNECTOR, 90 DEG, 1/2-INCHESFLEX, CPO130 |
| 82853 | CONTROL PANEL GLASS, CPO130 |
| 26553 | CONTROL PANEL TRIM |
| 26556BP | CONVECTION BAFFLE |
| 82251 | CONVECTION ELEMENT, 208V |
| 82887 | CONVECTION ELEMENT, 240V |
| 82651 | CONVECTION FAN BLADE |
|
|
CONVECTION FILTER |
| 82661 | CONVECTION OVEN RACK |
| 82889 | COOLING BLOWER |
| 82860 | COOLING FAN SWITCH |
| 26560 | COVER PLATE, LIGHT HOUSING |
| 86166 | DOOR DOOR LATCH |
| 82124 | DOOR GASKET |
| 27414B | DOOR GLASS FRAME, BLACK |
| 13236 | DOOR HANDLE ASSEMBLY |
| 13101 | DOOR INSULATION |
| 26565 | DOOR LATCH BAFFLE |
| 26541 | DOOR LATCH COVER |
| 26538 | DOOR LATCH PLATE |
| 82870 | END CAP, LEFT |
| 82869 | END CAP, RT |
| 26558-1 | EXHAUST DUCT, CPO130 |
| 28250 | EXHAUST TUBE, SHORT |
| 26567 | EXTRUSION SUPPORT BRACKET |
| 83555 | FIBER WASHER |
| 82659 | FINGER GUARD |
| 83240 | FOAM TAPE, SINGLE SIDED 3.75-INCHESLONG |
| 82506 | FUSE SOCKET |
| 83112 | FUSE, 30 AMP |
| 82213 | GLASS HEAT BARRIER |
| 26555BS | HANDLE SUPPORT |
| 27348 | HANDLE WELDMENT |
| 82844 | HARNESS ASSEMBLY, ERC TO MAINRELAY POWER CONTROL BOARD, CPO130 |
| 82847 | HARNESS ASSEMBLY, ERC TO RO-TARY SW CPO130 |
| 82842 | HARNESS ASSEMBLY, OVEN LIGHT,CPO130 |
| 82871 | HARNESS ASSEMBLY, SENSOR -DOOR DOOR LATCH, CPO130 |
| 83056 | HEYCO BUSHING |
|
|

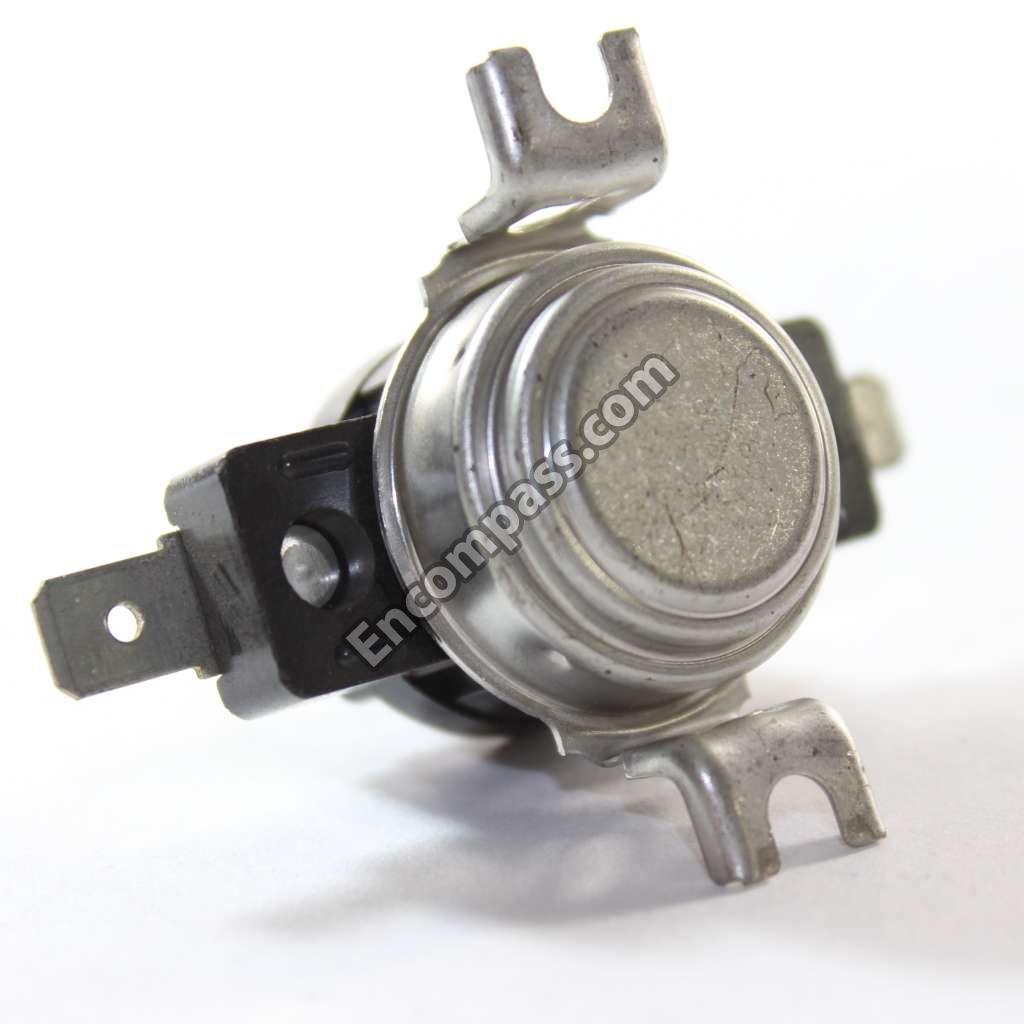

HI TEMP LIMIT SWITCH |
| 82849 | HINGE ASSEMBLY |
| 82851 | HINGE RECEPTACLE |
| 83149 | HOLE PLUG, CPO130, |
| 27111BP | INNER DOOR LINER - BLACK PORCELAIN |
| 27411BP | INSULATION BOX |
| 82822 | KNOB, MODE SELECTOR |
| 82821 | KNOB, TIME/TEMP |
| 26400B | MOUNTING BRACKET, INNER DOORGLASS, BLACK |
| 26393 | MOUNTING BRACKET, OUTER DOORGLASS |
| 27332 | MOUNTING BRACKET, TERMINALBLOCK AND BLOWER |
| 26561 | MOUNTING PLATE, CONVECTION MOTOR |
| 13056 | NUT PLATE, DOOR HANDLE |
| 83308 | NUT, 6-32 KEPS |
| 83120 | NUT, 8-32 TINNERMAN |
| 83048 | NUT, 8-32-INCHES |
| 82647 | NUT, CONVECTION FAN BLADE RE- TAINING |
| 82862 | OUTER DOOR GLASS |
| 27415BP | OUTER DOOR LINER - BLACK PORCELAIN |
| 27408BP | OVEN CELL |
| 82874 | OVEN CONTROL, CPO130 |
| 86123 | OVEN LIGHT ASSEMBLY, CAMERA LENS |
| 82863 | OVEN LIGHT ASSEMBLY, HOUSING |
| 12322 | OVEN TOP BRACE ASSEMBLY |
| 83262 | POP RIVET, 1/8-INCHES |
|
|
POWER CONTROL BOARD STANDOFF, NYLON |
| 82820 | PUSH BUTTON |
| 82650 | RACK SUPPORT, BLACK PORCELAIN |
| 82837 | RELAY POWER CONTROL BOARD, CPO130 |
| 26428 | RETAINING BRACKET, NUT PLATE |
| 82810 | ROTARY SWITCH POWER CONTROL BOARD, CPO130 |
| 83022 | SCREW, 10 X 1/2 PHILLIPS TRUSS HEAD |
| 83026 | SCREW, 10 X 3/4 |
|
|
SCREW, 10 X 3/8 HEX WASHER HEAD |
| 83298 | SCREW, 10-24 BUTTON HEAD |
| 83297 | SCREW, 10-24 BUTTON HEAD |
| 83296 | SCREW, 10-24 BUTTON HEAD |
| 83018 | SCREW, 10-24 X 5/8-INCHES PHILLIPS TRUSS HEAD |
| 83559 | SCREW, 6-32 X 3/8-INCHES THREAD CUT- TING |
| 83010 | SCREW, 8 X 3/4-INCHES PHILLIPS PAN HEAD |
| 83019 | SCREW, 8 X 3/8 HEX WASHER HEAD |
| 83263 | SCREW, 8 X 3/8 PHILLIPS WAFER HEAD |
|
|
SCREW, 8 X 3/8-INCHES ENAMEL PANEL |
| 83336 | SCREW, 8-32 X 1/2-INCHES PHILLIPS PAN HEAD, BLACK |
| 83341 | SCREW, 8-32 X 5/16-INCHES PHILLIPS PAN HEAD |
| 82826 | SMOKE ELIMINATOR |
| 83333 | SPACER, 8-32 X 1/2 HEX X 7/16-INCHES LONG |
| 83549 | SPRING CLIP, 0.35-INCHES DIAMETER SHAFT |
| 83552 | SPRING CLIP, HINGE |
| 26548 | STIFFENER BRACKET, CASE BACK |
| 26549 | STIFFENER, CASE BOTTOM ANDSIDES |
| 83349 | STUD, 8-32 X 1-5/32-INCHES |
| 26551 | SUB PANEL |
| 27410 | SUB-CHASSIS, CPO130 |
| 26563 | SUPPORT BRACKET, OUTER DOOR GLASS |
| 26550 | SUPPORT BRACKET, SUB PANEL |
| 83224 | TAPE, DOUBLE SIDED, 0.5-INCHESW X 17.625-INCHESL |
|
|

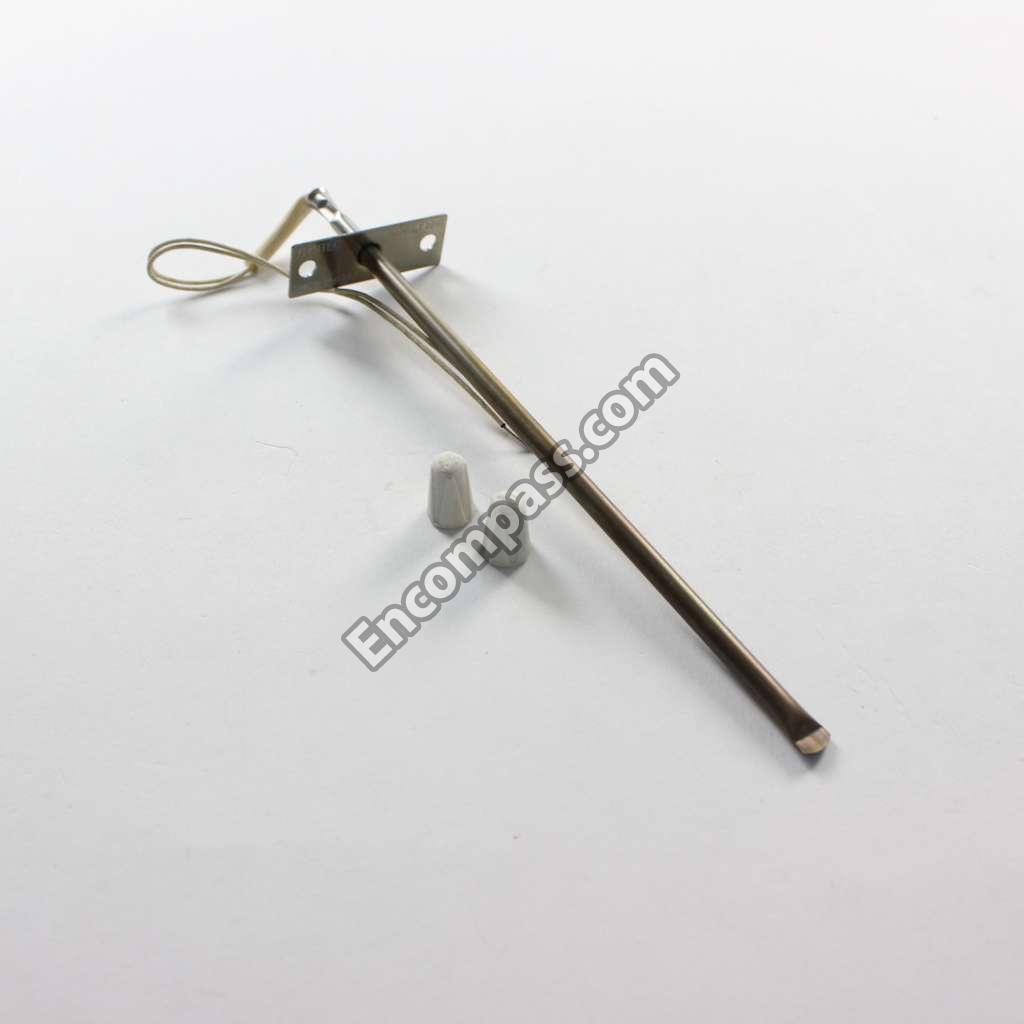

TEMPERATURE SENSOR |
| 82151 | TERMINAL BLOCK |
| 26357 | TERMINAL BLOCK COVER |
| 26566 | TOP SHIELD |
| 82855 | TOP TRIM EXTRUSION |
| 27409 | TRIM PANEL, CPO130 |
| 27420 | TRIM POST, LEFT |
| 27419 | TRIM POST, RIGHT - CPO130 |
|
|
WASHER, 10 EXT. TOOTH LOCK |
| 82218 | WINDOW PACK |
| 26552 | WIRE RACEWAY |
