Manufacturer
Dacor
Model Number
DCM24R
Description
Dcm24r - Microwaves
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

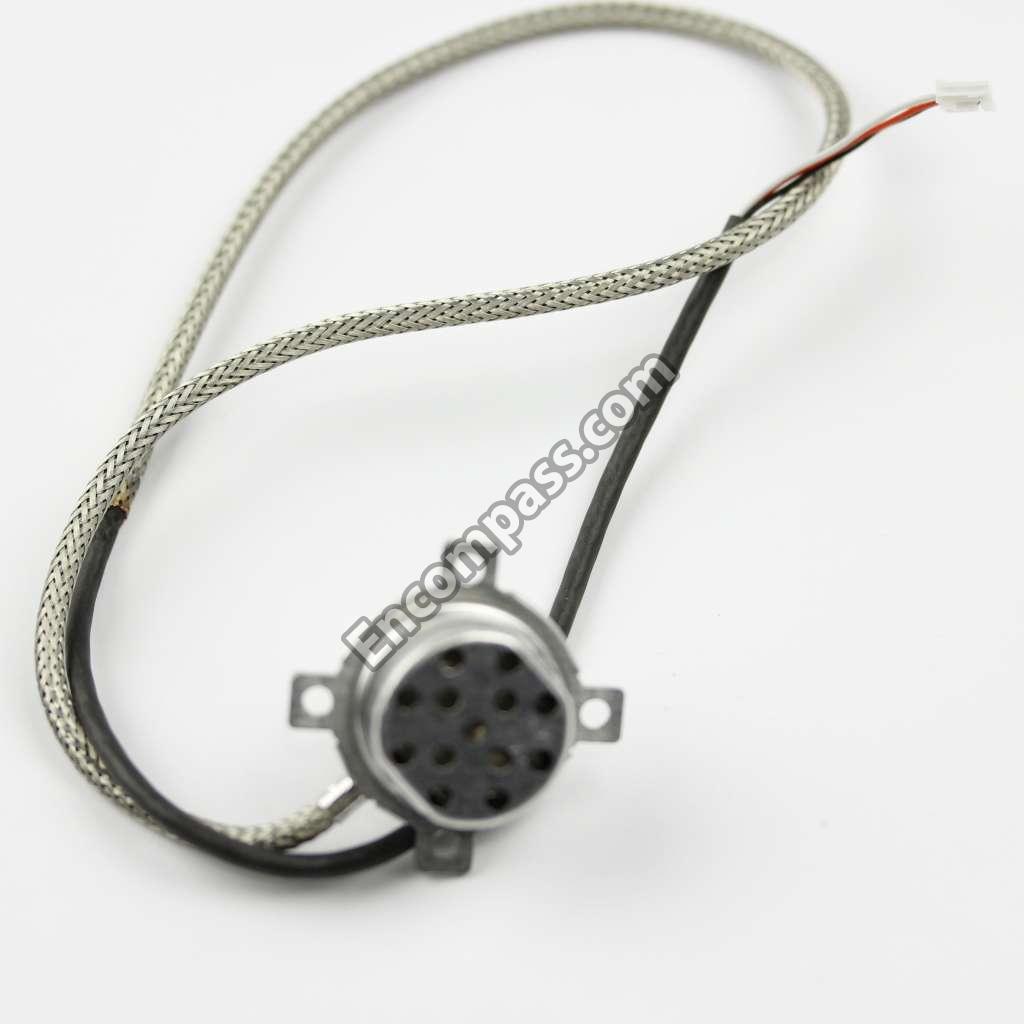

ASY AH SENSOR;66389,DCM24B |
| 66393 | ASY BOTTOM PLATE;66393,DCM24B |
| 66509R | ASY DOOR FULL ARCTIC;66509R,DCM24B |
| 66509B | ASY DOOR FULL BLK;66509B,DCM24B |
| 66512 | ASY DOOR PANEL;66512,DCM24B |
| 66528 | ASY HIGH RACK;66528,DCM24R |
| 66527 | ASY LOW RACK;66527,DCM24R |
| 702190 | ASY ROLLER DCM24;702190,DCM24B |
| 66375 | ASY THERMISTOR;66375,DCM24B |
|
|

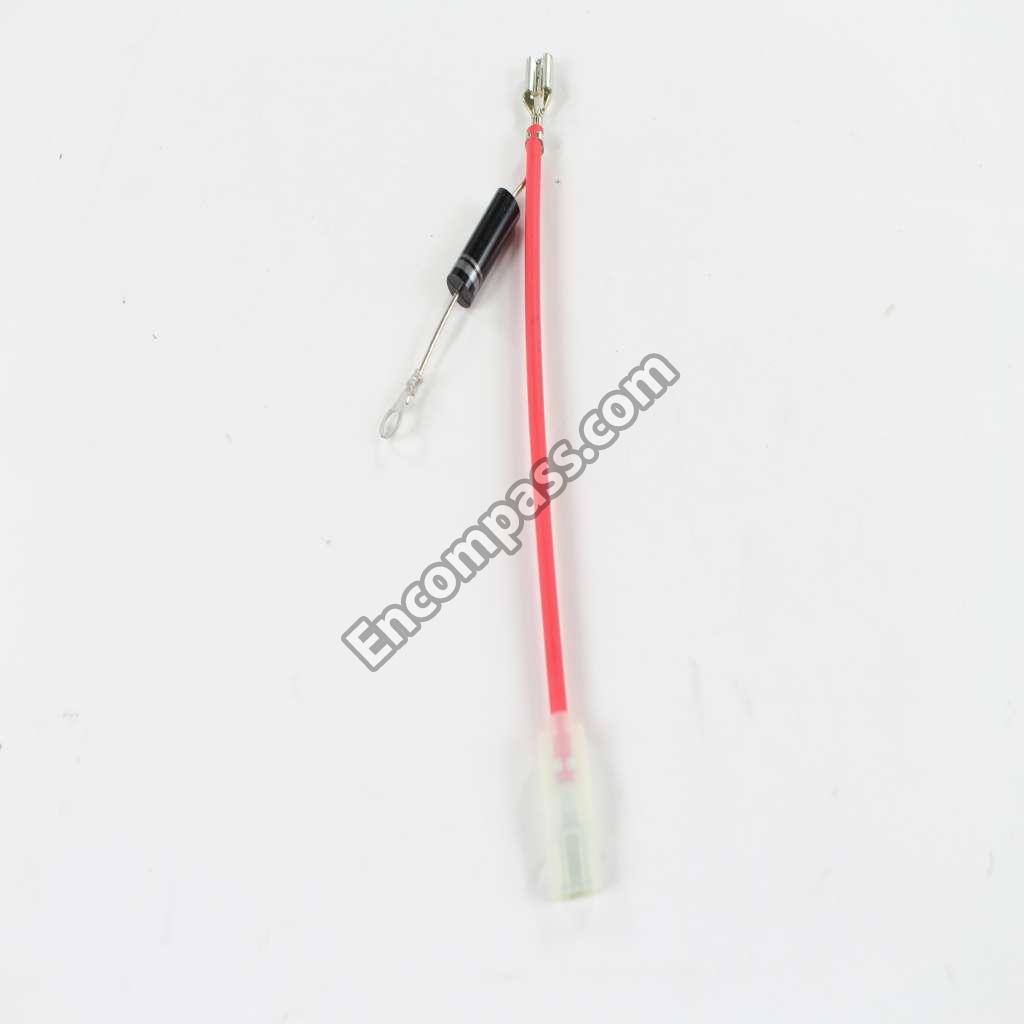

ASY, H.V. RECTIFIER |
| 66396 | BACK PLATE;66396,DCM24B |
| 66466 | BEARING ASSY;66466,DCM24R |
| 66468 | BEARING MOUNTING PLATE |
| 66515 | CHOKE COVER;66515,DCM24B |
| 106830 | CONTROL PANEL BLK DCM24;106830,DCM24 |
| 66411S | CONTROL PANEL DCR SST;66411S,DCM24R |
| 106829 | CONTROL PANEL, SS, DCM24 |
| 66402 | CONTROL UNIT |
| 66503 | CONVECTION FAN BELT;66503,DCM24B |
| 66471 | CONVECTION FAN;66471,DCM24B |
| 66381 | CONVECTION MOTOR 120V;66381,DCM24B |
| 66500 | COOLING FAN DUCT;66500,DCM24R |
| 66397 | CORD HOLDER;66397,DCM24B |
| 106395 | CUSHION DCM24;106395,DCM24B |
| 106396 | CUSHION DCM24;106396,DCM24B |
| 106397 | CUSHION DCM24;106397,DCM24B |
| 66479 | CUSHION;66479,DCM24B |
| 66484 | CUSHION;66484,DCM24B |
| 66485 | CUSHION;66485,DCM24B |
| 66482 | DAMPER CAM;66482,DCM24R |
| 66487 | DAMPER DUCT |
| 66378 | DAMPER MOTOR;66378,DCM24R |
| 66483 | DAMPER SHAFT;66483,DCM24B |
| 66486 | DAMPER;66486,DCM24B |
| 66516 | DOOR FRAME;66516,DCM24B |
| 66513 | DOOR GLASS;66513,DCM24R |
| 66514 | DOOR GLASS;66514,DCM24B |
| 106887 | DOOR PANEL ASY SS DCM24;106887,DCM24 |
| 66499 | FAN BLADE;66499,DCM24B |
| 66382 | FAN MOTOR 120V;66382,DCM24R |
| 66395 | FOOT;66395,DCM24R |
| 66373 | FUSE HOLDER DCM24;66373,DCM24B |
| 66383 | HEATER;66383,DCM24R |
| 66385 | HIGH VOLTAGE CAPACITOR |
| 66384 | HIGH VOLTAGE TRANSFORMER;66384,DCM24 |
| 66521 | LATCH ANGLE;66521,DCM24R |
|
|
LATCH HEAD;66522,DCM24R |
|
|
LATCH HOOK |
| 66401 | LATCH LEVER;66401,DCM24R |
| 66399 | LOWER OVEN HINGE;66399,DCM24R |
| 66775 | MACHINE SCREW PCOR30;66775,PCOR30B |
|
|

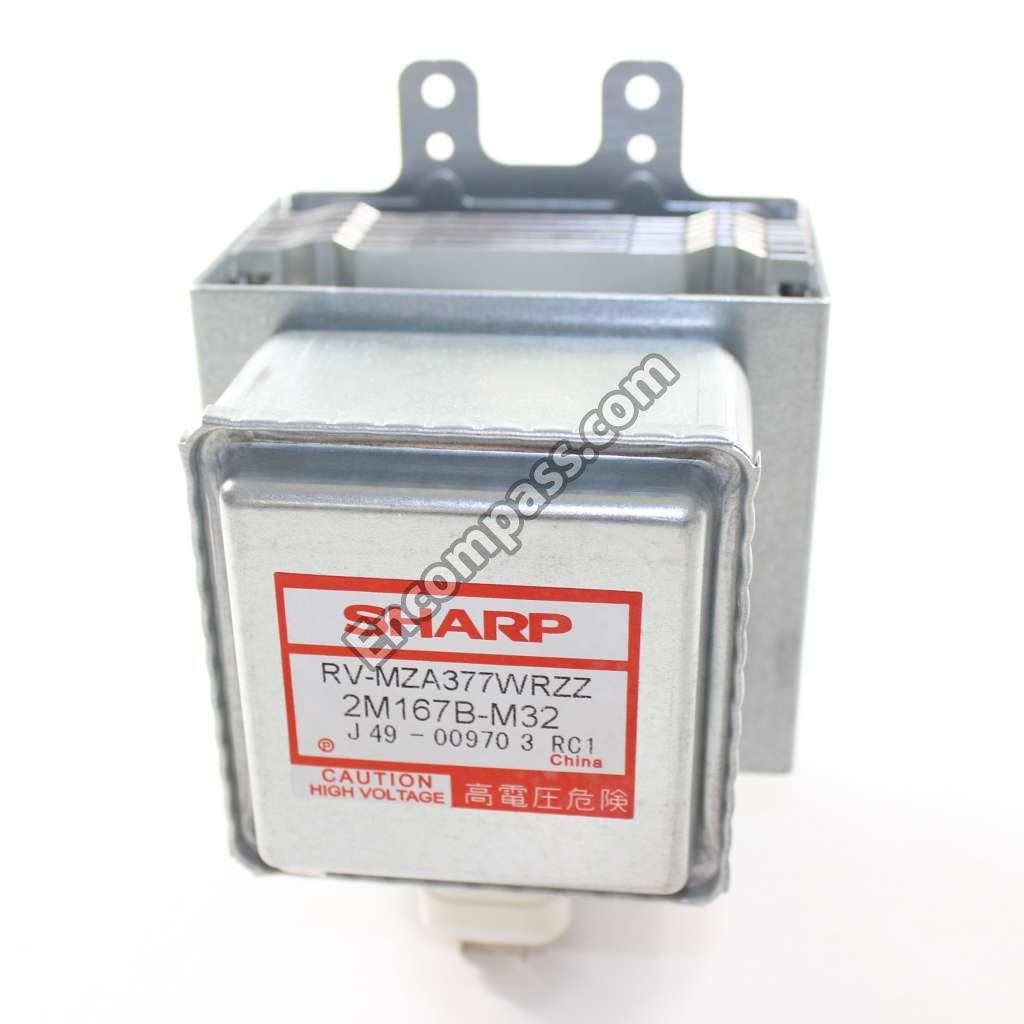

MAGNETRON |
| 66531 | MAIN WIRE HARNESS;66531,DCM24B |
| 66508 | MG RECTIFIER PLATE;66508,DCM24B |
| 66374 | MICRO SWITCH A |
|
|
MONITOR FUSE/SWITCH |
| 101989 | NOISE FILTER, DCM24 |
| 66445 | NUT DCM24S;66445,4MM X 3 2MM,DCM24R |
| 66444 | NUT4MM X 32MM;66444,DCM24B |
| 66408 | OPEN BUTTON |
| 66409 | OPEN BUTTON;66409,DCM24B |
| 66417 | OPEN SHAFT;66417,DCM24R |
| 66390B | OUTER CASE CABINET BLK;66390B,DCM24R |
|
|
OVEN LAMP 125V 20W;76233,PMOR3021B |
| 66380 | OVEN LAMP SOCKET;66380,DCM24R |
| 103754 | POWER SUPPLY CORD DCM24;103754,DCM24 |
| 66472 | PULLEY F;66472,DCM24R |
| 66498 | PULLEY M;66498,DCM24B |
|
|

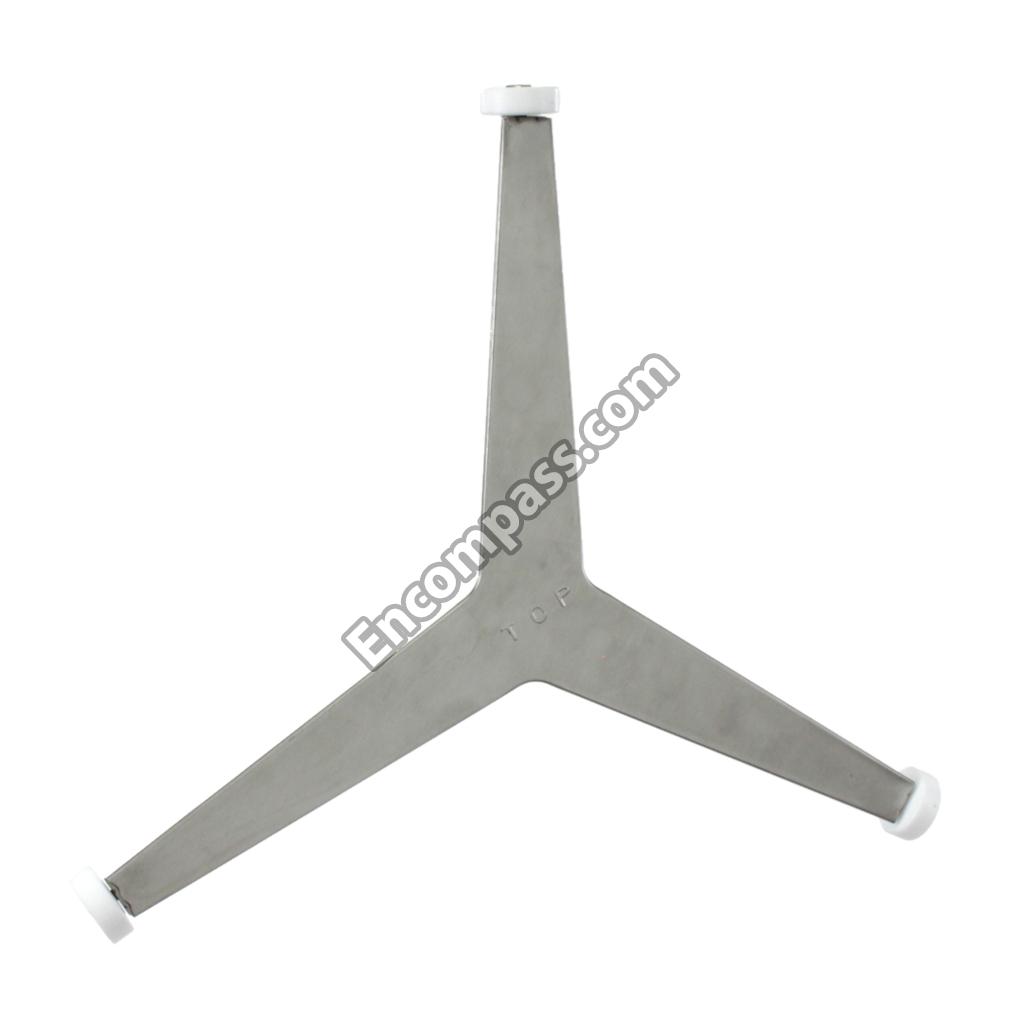

ROLLER ASSY;66464,DCM24R |
| 66488 | RUBBER CUSHION;66488,DCM24B |
| 66428 | SCREW 3 MM X 14 MM;66428,DCM24B |
| 66429 | SCREW 4MM X 25 MM;66429,DCM24B |
| 66432 | SCREW4MM X 10MM;66432,DCM24B |
| 66438 | SCREW4MM X 12MM;66438,DCM24B |
| 66441 | SCREW6MM X 14MM;66441,DCM24B |
| 66540 | SPECIAL SCREW;66540,DCM24B |
| 66542 | SPECIAL SCREW;66542,DCM24B |
| 66539 | SPECIAL WASHER;66539,DCM24B |
| 66523 | SPRING;66523,DCM24B |
| 66376 | TEMP FUSE, 150 DEG. C |
| 66494 | THERMAL COVER RIGHT;66494,DCM24B |
| 66377 | THERMAL CUT OUT;66377,DCM24B |
| 108486 | TRAY TURNTABLE DCM24;108486,DCM24R |
| 106393 | TURNTABLE COUPLING DCM24;106393,DCM2 |
| 66388 | TURNTABLE MOTOR;66388,DCM24B |
| 102427 | TURNTABLE TRAY DCM24;102427,DCM24R |
| 66541 | WASHER;66541,DCM24B |
| 66490 | WAVEGUIDE COVER;66490,DCM24R |
