Manufacturer
Dacor
Model Number
DMR24M977WS
Description
Dmr24m977ws - Microwaves
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 110438 | 20A FUSE PCOR30SY;110438,DMR30M977WM |
| 106063 | 4X6MM SCREW |
| 109937 | AIR FLOW CUSHION;109937,RNMD24B |
| 109918 | ANTENNA ASSY;109918,RNMD24B |
| 109931 | ANTENNA COVER;109931,RNMD24B |
| 109899 | AUTO DRAWER GEAR ASSY;109899,RNMD24B |
| 109919 | BACKPLATE;109919,RNMD24B |
| 109921 | BASE PLATE;109921,RNMD24B |
| 109914 | C P BOTTOM MOUNT INSERT;109914,RNMD2 |
|
|
CABINET SCREW;86905,MMD30B |
| 109929 | CANOE CLIP |
| 101247 | CAP NUT;101247,MMD30B |
| 109965 | CAP NUT;109965,RNMD24B |
| 109960 | CHOKE COVER RNMD24B S;109960,RNMD24B |
| 109930 | CP REAR COVER;109930,RNMD24B |
| 109909 | CPU DRAWER RELAY BOARD;109909,RNMD24 |
| 113897 | CPU DRAWER;113897,DMR24M977WM |
| 109900 | CPU HARNESS;109900,RNMD24B |
| 109938 | CUSHION;109938,RNMD24B |
| 109962 | DOOR CUSHION HORIZONTAL;109962,RNMD2 |
| 109963 | DOOR CUSHION VERTICAL;109963,RNMD24B |
| 113441 | DOOR FRAME ASY 30S;113441,DMR24M977W |
| 113440 | DOOR FRAME ASY.24M |
| 113442 | DOOR FRAME ASY.30M |
| 109953 | DOOR PANEL ASSY;109953,RNMD24B |
| 109916 | DOOR STOPPER;109916,RNMD24B |
| 109920 | DOOR SUPPORT COVER;109920,RNMD24B |
| 109898 | DRAWER HARNESS;109898,RNMD24B |
| 109935 | EXHAUST DUCT CUSHION;109935,RNMD24B |
| 109942 | EXHAUST DUCT;109942,RNMD24B |
| 109948 | FACEPLATE OUTERCASE COVER;109948,RNM |
| 109893 | FAN MOTOR ASSY;109893,RNMD24B |
| 109936 | FAN MOTOR SUPPORT CUSHION;109936,RNM |
| 109888 | HVC ASSY. |
| 109924 | HVC BAND;109924,RNMD24B |
| 109934 | HVT CUSHION;109934,RNMD24B |
| 109933 | INLET CUSHION;109933,RNMD24B |
| 109943 | LAMP FILTER;109943,RNMD24B |
| 109955 | LATCH HEAD L;109955,RNMD24B |
| 109954 | LATCH HEAD R;109954,RNMD24B |
| 109947 | LATCH HOOK L;109947,RNMD24B |
| 109946 | LATCH HOOK R;109946,RNMD24B |
| 86820 | LATCH HOOK SCREW;86820,MMD30B |
| 109956 | LATCH SPRING;109956,RNMD24B |
| 66205 | M4POINTED8;66205,RNMD24B |
| 109940 | MAG DUCT;109940,RNMD24B |
| 86794 | MAGNETRON TEMP FUSE;86794,PCOR30B |
| 109897 | MAGNETRON;109897,RNMD24B |
| 110440 | MONITOR SWITCH PCOR30SY;110440,DMR24 |
|
|

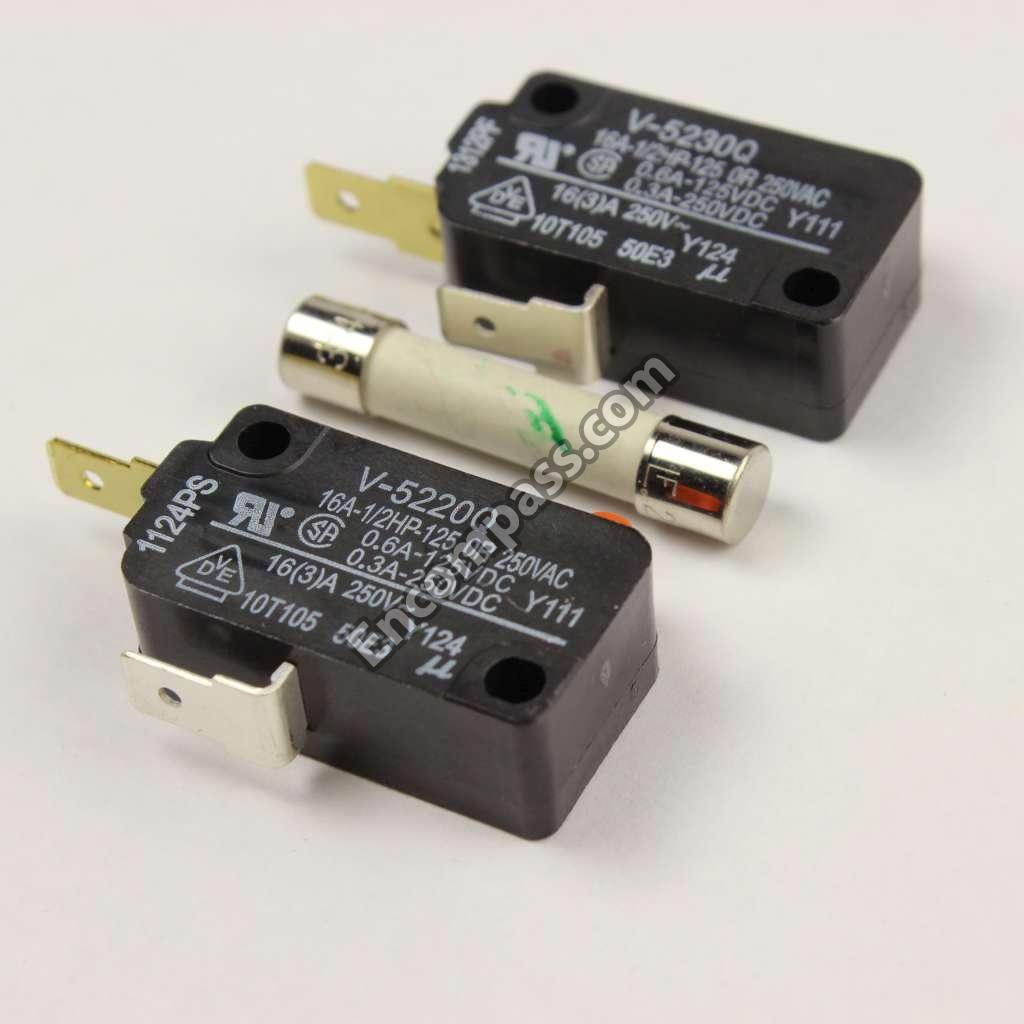

MONITOR SWITCH W FUSE AS;66006,MMD30 |
| 109894 | NOISE FILTER UNIT;109894,RNMD24B |
| 109939 | OIL DAMPER;109939,RNMD24B |
| 109932 | OVEN LAMP COVER;109932,RNMD24B |
| 106062 | OVEN LAMP SOCKET;106062,RNMD24B |
| 109917 | OVEN TRAY ASSY;109917,RNMD24B |
| 109944 | PARTITION AG BOTTOM;109944,RNMD24B |
| 109945 | PARTITION AG REAR;109945,RNMD24B |
| 109891 | POWER SUPPLY CORD;109891,RNMD24B |
| 109889 | PSU - DRAWER RELAY BOARD |
| 113873 | PSU DRAWER;113873,DMR24M977WM |
| 114353 | PSU DRAWER;114353,DMR30M977WM |
| 109925 | PSU HOLDER;109925,RNMD24B |
| 109928 | RACK GEAR;109928,RNMD24B |
| 109966 | SCREW COMMON ROHS;109966,M4 X 12,RNM |
| 106050 | SCREW M4 X 12 (ROHS);106050,DMR24M97 |
| 109970 | SCREW T TAP TRUSS RO;109970,M4 X 8,R |
| 109959 | SCREW TAP PAN HEAD;109959,M4 X 8,RNM |
| 109964 | SCREW WITH WASHER;109964,RNMD24B |
| 106060 | SCREW;106060,MMD30B |
| 109915 | SCREW;109915,RNMD24B |
| 109967 | SCREW;109967,4MM X 8MM,RNMD24B |
| 86780 | SCREW;86780,MMD30B |
| 86819 | SCREW;86819,MMD30B |
| 109957 | SEALER FILM;109957,RNMD24B |
| 112235 | SECONDARY INTERLOCK, 3RD |
| 109892 | SENSOR ASSY;109892,RNMD24B |
| 101215 | SENSOR ASY MMDV30S;101215,MMD30B |
| 109941 | SENSOR DUCT;109941,RNMD24B |
| 109927 | SLIDE RAIL |
| 109958 | SPECIAL SCREW |
| 109895 | STIRRER MOTOR |
| 109926 | SW PSU HOLDER;109926,RNMD24B |
| 109890 | SW PSU;109890,RNMD24B |
| 113432 | SW PSU;113432,DMR30M977WM |
| 109427 | SWITCH, SECONDARY INTER- |
| 86847 | TEMP FUSE SCREW;86847,M3X8,PMOR3021B |
| 66376 | TEMP FUSE, 150 DEG. C |
| 113433 | TOUCH CNTRL PANEL ASSY;113433,DMR30M |
| 113434 | TOUCH CNTRL PANEL ASSY;113434,DMR24M |
| 113435 | TOUCH CNTRL PANEL ASSY;113435,DMR30M |
| 113436 | TOUCH CNTRL PANEL ASY;113436,DMR24M9 |
| 114361 | TOUCH CONTROL PANEL ASSY |
| 114360 | TOUCH CONTROL PANEL ASSY |
| 113905 | TOUCH CTRL PNL ASY 24BK;113905,DMR24 |
| 113904 | TOUCH CTRL PNL ASY 24SS;113904,DMR30 |
| 113907 | TOUCH CTRL PNL ASY 30BK;113907,DMR24 |
| 113906 | TOUCH CTRL PNL ASY 30SS;113906,DMR30 |
| 109896 | TRANSFORMER;109896,RNMD24B |
