Manufacturer
Dacor
Model Number
DMT2420RC
Description
Dmt2420rc - Microwaves
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 66856 | AH SENSOR;66856,DMT2420B |
| 66858AG | ASY CONTROL PANEL AG;66858AG,DMT2420 |
| 66858BK | ASY CONTROL PANEL BK;66858BK,DMT2420 |
| 66858BU | ASY CONTROL PANEL BU;66858BU,DMT2420 |
| 66858GN | ASY CONTROL PANEL GN;66858GN,DMT2420 |
| 66858SG | ASY CONTROL PANEL SG;66858SG,DMT2420 |
| 86782AG | ASY DOOR FRAME AG;86782AG,DMT2420AG |
| 86782BU | ASY DOOR FRAME BU;86782BU,DMT2420AG |
| 86782GN | ASY DOOR FRAME GN;86782GN,DMT2420AG |
| 86782SG | ASY DOOR FRAME SG |
| 66858S | ASY,CONTROL PANEL |
| 66858R | ASY,CONTROL PANEL |
| 66863 | C P DEC PLATE;66863,DMT2420B |
| 66872 | C T FUSE;66872,DMT2420B |
|
|
CABINET SCREW;86905,MMD30B |
| 86795 | CAVITY TEMP FUSE;86795,DMO24B |
| 86784 | CHOKE COVER DMT2420;86784,DMO24B |
| 86836 | CONTROL PANEL CUSHION;86836,MMD30B |
|
|

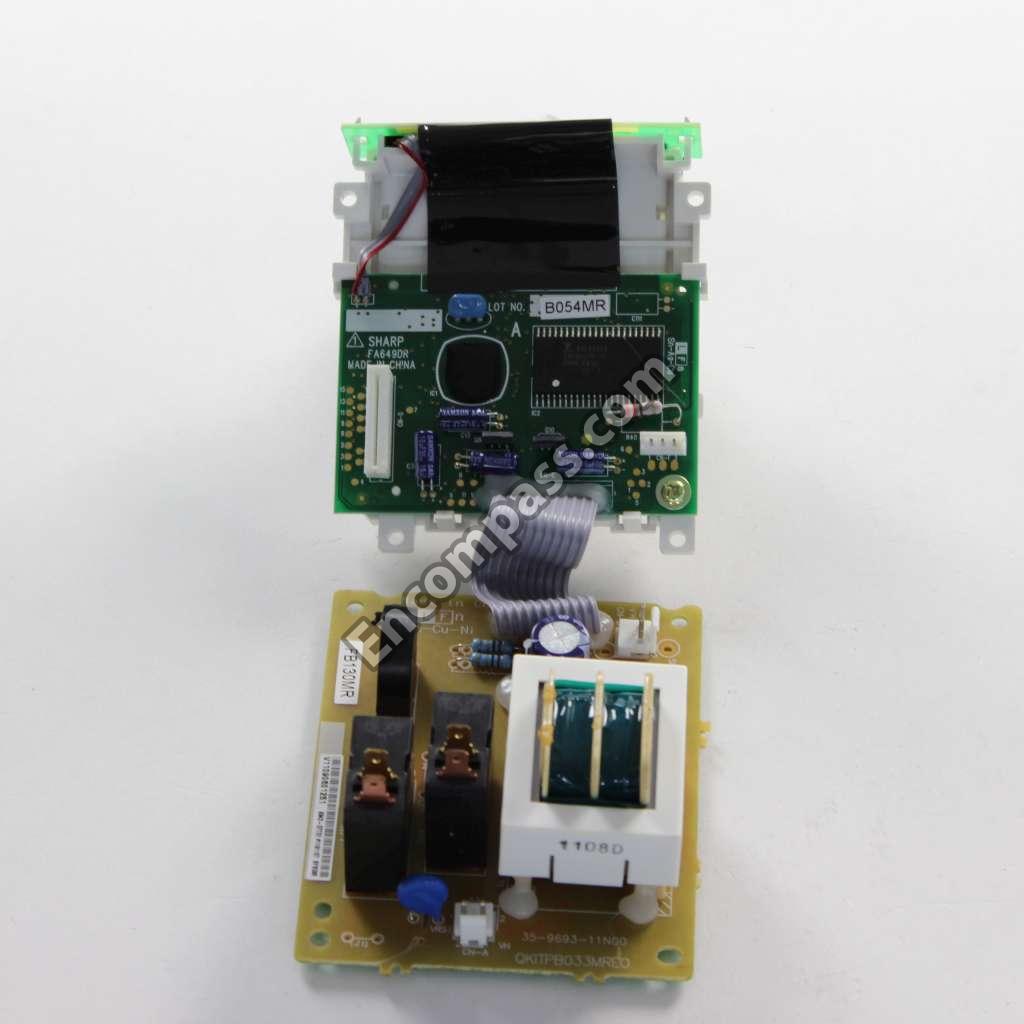

CPU UNIT DMT2420;101871,DMT2420B |
| 72945CH | DACOR LOGO 2 25 X 0 06;72945CH,EOSB1 |
| 86782TS | DOOR ASSY - DMT2420TS |
| 66858TS | DOOR FRAME ASSEMBLY |
| 86783 | DOOR PANEL;86783,DMO24B |
| 86782R | DOOR SCREEN ARCTIC;86782R,DMO24B |
| 86782B | DOOR SCREEN BLK;86782B,DMO24B |
| 105442 | DOOR STOPPER DMW2420;105442,DMT2420S |
| 66868 | FAN DUCT;66868,DMT2420B |
|
|

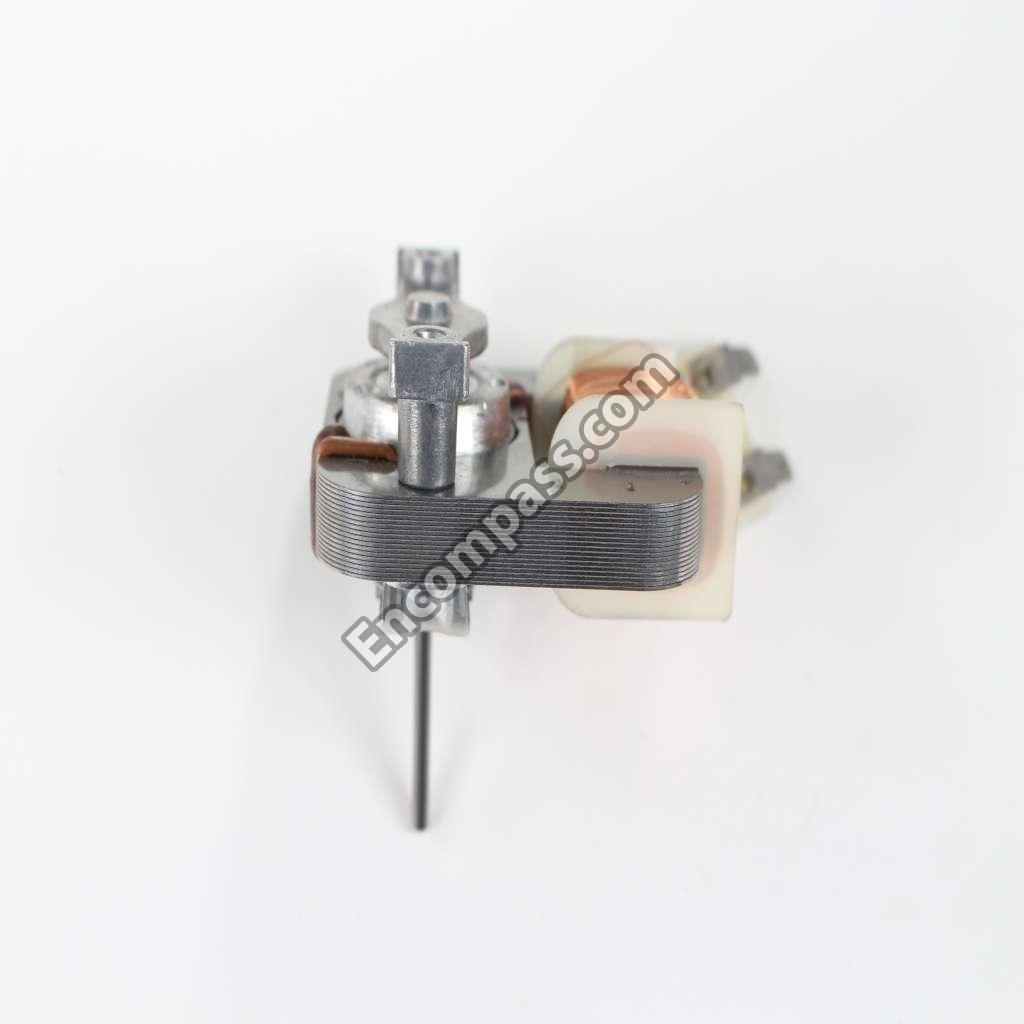

FAN MOTOR;86805,DMO24B |
| 66862 | FOOT;66862,DMT2420SG |
| 86799 | H V WIRE;86799,DMO24B |
| 66857 | HV RECT ASSY;66857,DMT2420SG |
| 76123 | HV TRANSFORMER DMT2420;76123,DMT2420 |
| 86817 | HVC BAND;86817,MMD30B |
| 86797 | LAMP SOCKET;86797,DMO24B |
| 86785 | LATCH HEAD;86785,PMOR3021B |
| 66871 | LATCH HOOK |
| 86820 | LATCH HOOK SCREW;86820,MMD30B |
| 86786 | LATCH SPRING;86786,PMOR30B |
| 66870 | MAGNETRON DUCT;66870,DMT2420B |
|
|
MAGNETRON;66354,DMO2420S |

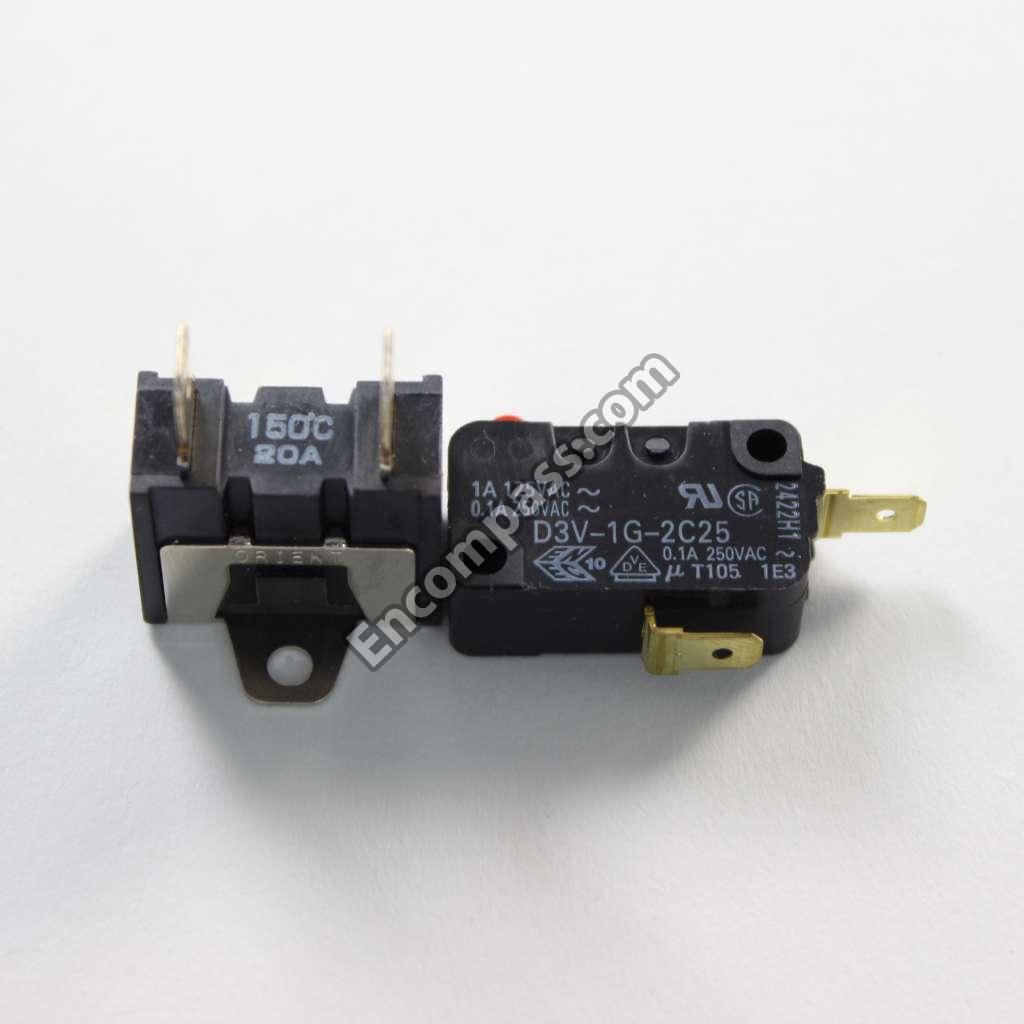

| 66236 | MICROSWITCH |
|
|
MONITOR SWITCH CT FUSE;66890,DMT2420 |
| 106061 | NOISE FILTER UNIT;106061,DMT2420SG |
| 86946B | OCC SCREW BLK;86946B,DMT2420AG |

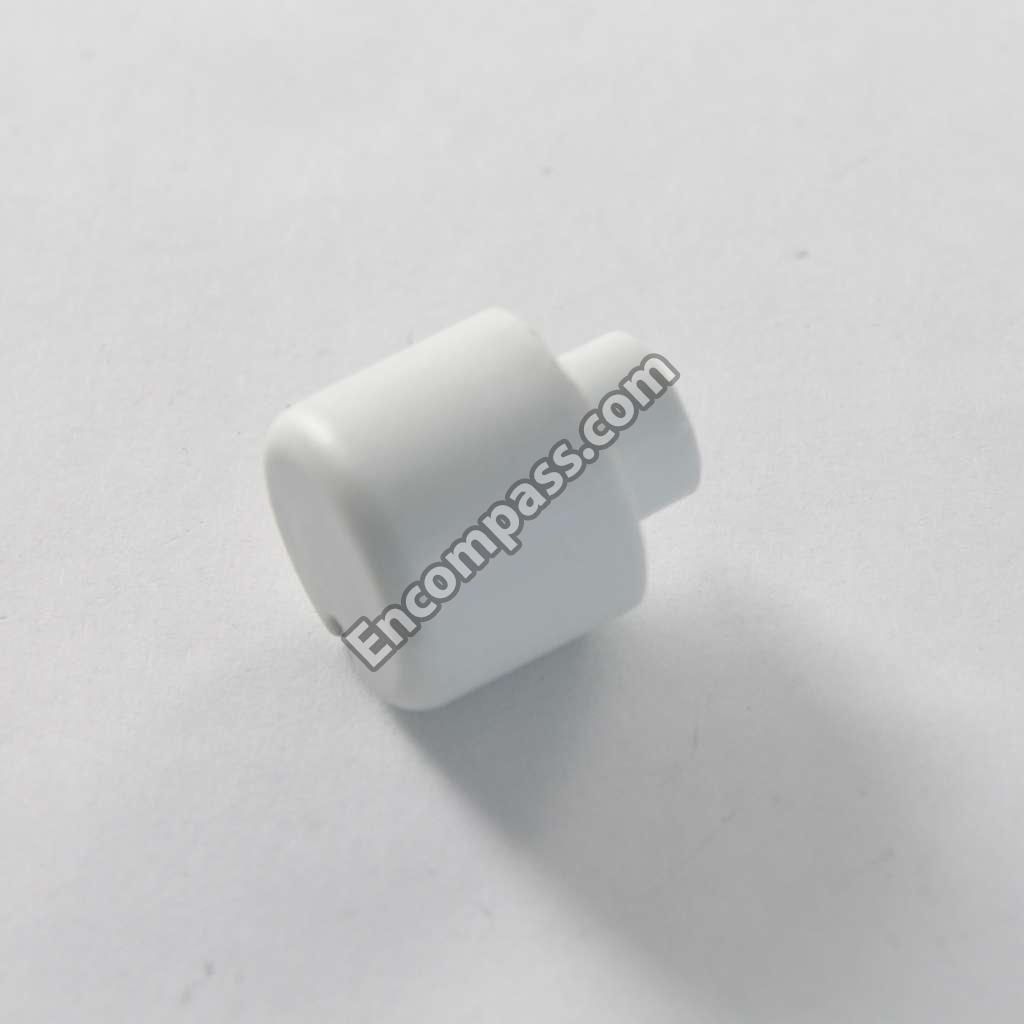

| 66337AG | OPEN BUTTON AG;66337AG,DMT2420AG |
| 66337BK | OPEN BUTTON BK;66337BK,DMT2420SG |
| 66337BU | OPEN BUTTON BU;66337BU,DMT2420AG |
| 66337GN | OPEN BUTTON GN;66337GN,DMT2420AG |
| 66337SG | OPEN BUTTON SG;66337SG,DMT2420AG |
| 66337TS | OPEN BUTTON TS;66337TS,DMT2420AG |
| 86824 | OPEN LEVER |
|
|

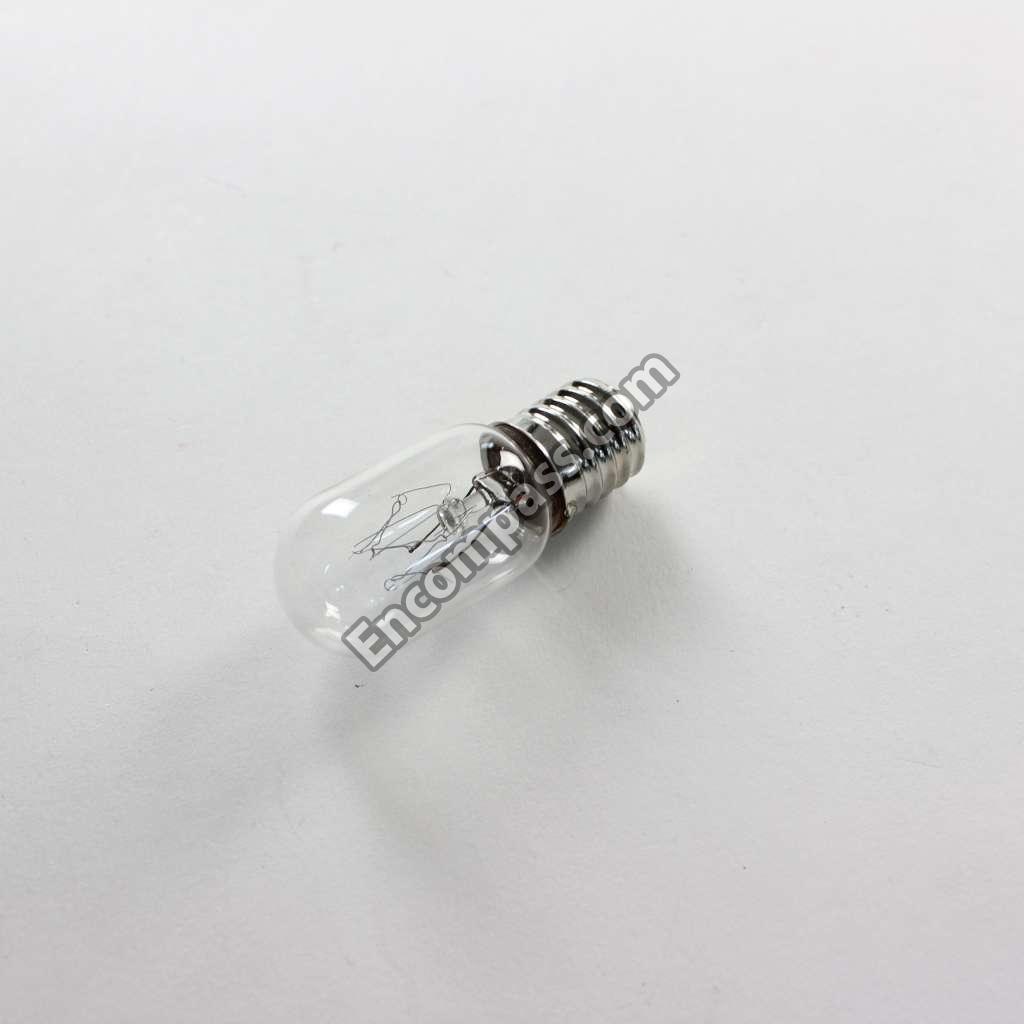

OVEN LAMP 125V 20W;76233,PMOR3021B |
| 66362 | OVEN LAMP SOCKET ASY DMT;66362,DMT24 |
| 66854 | POWER CORD;66854,DMT2420AG |
| 66852 | POWER SUPPLY UNIT |
|
|

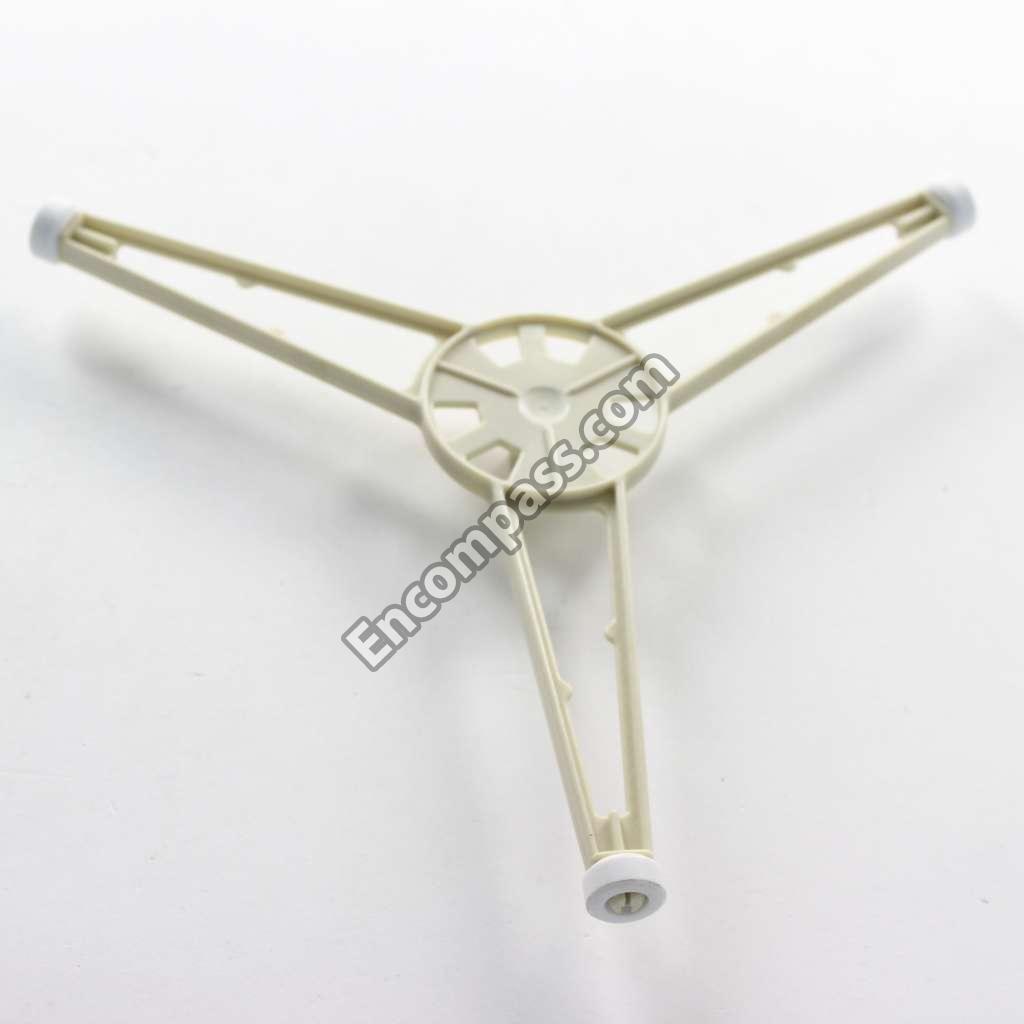

ROLLER ASSEMBLY |
| 86902 | SCREW W WASHER;86902,DMO24R |
| 86780 | SCREW;86780,MMD30B |
| 86819 | SCREW;86819,MMD30B |
| 86901 | SCREW;86901,4MM X 8MM,PMOR3021B |
| 86788 | SEALER FILM |
| 66869 | SENSOR DUCT;66869,DMT2420AG |
| 86792 | STOP SW HARNESS;86792,DMO24B |
| 86843 | T T M PACKING;86843,DMO24B |
| 86847 | TEMP FUSE SCREW;86847,M3X8,PMOR3021B |
| 66344 | TURN TABLE TRAY |
|
|

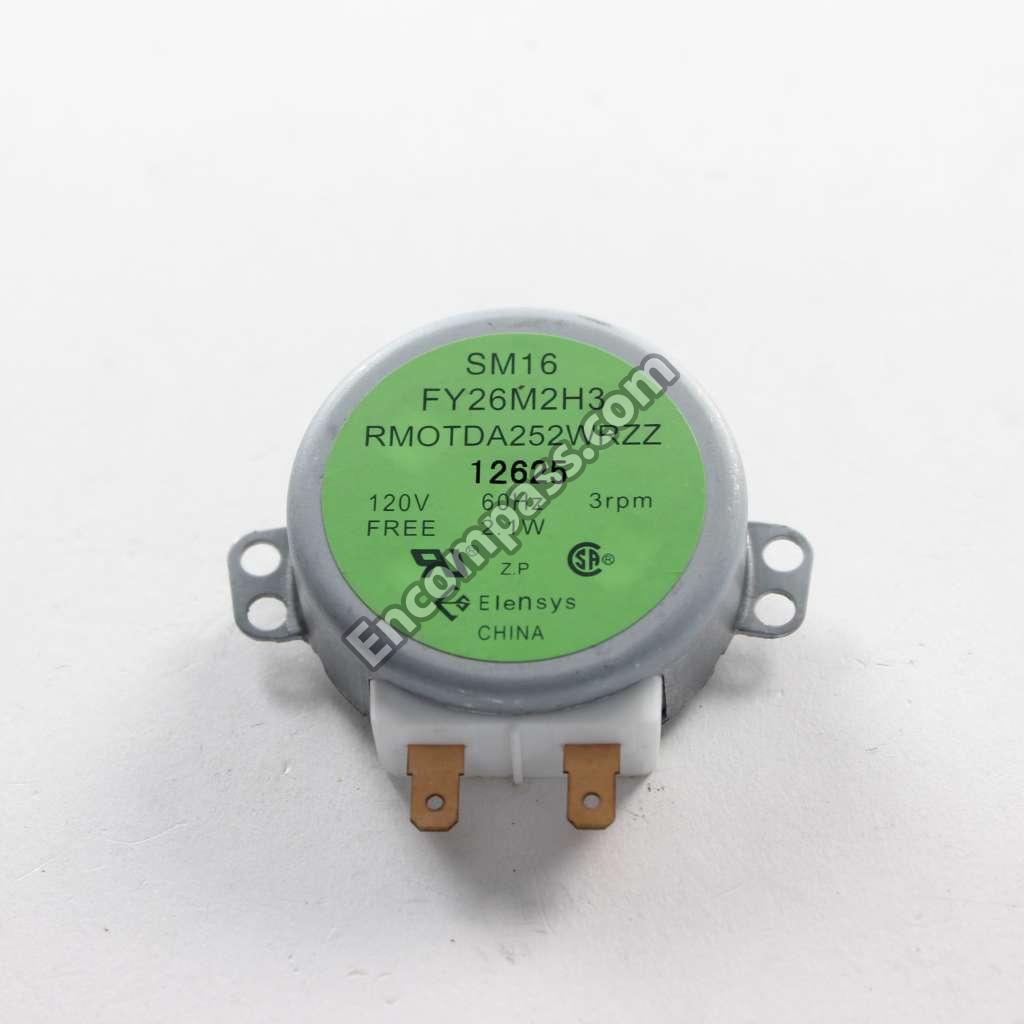

TURNTABLE MOTOR |
| 106074 | WAVE GUIDE COVER;106074,DMT2420B |
