Manufacturer
Dacor
Model Number
DR30EIFS
Description
Dr30eifs - Ranges
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 105288 | 16 GA CRS, 48 X 96" |
| 80518 | 16GA GALVANIZED, STE |
| 80532 | 18 GA 201SST #4 48"X |
| 80208 | 18 GA GALVANIZED STE |
| 105520 | 18 GA VIT, 30.969X24 |
| 80517 | 18GA GALVANIZED, 48" |
| 80509 | 18GA.VIT,52.5"X96"ST |
| 80310 | 20 GA 201 SS, 36"X10 |
| 80522 | 20 GA 201 SS, 48"X96 |
| 80074 | 20 GA GALVANIZED,48" |
| 80516 | 20 GA GALVANIZED;80516,"48""X96""",D |
| 80550 | 20 GA,GALVANIZED STE |
| 80551 | 24 GA GALVANIZED STE |
| 83308 | 6 32 KEPS NUT;83308,DH3006 |
|
|
ACCY SS CLEANER;100852,DCT305B/LP |
| 102385-02 | ADAPTOR, HOLE REDUCER |
| 105989 | AIR DEFLECTOR COOL FAN;105989,DR30EF |
| 80434 | ALUMINIZED,18 GA, 48 |
| 105769 | ANCHOR;105769,"#8-#10X7/8, BANT",DOP |
| 105733-02 | ANTI TIP BRACKET DUAL;105733-02,DOP3 |
| 701636 | ASY BROIL PAN;701636,DR30EFS |
| 701692 | ASY CASE SIDE RH;701692,DR30EFS |
| 701428-05 | ASY DOOR LINER;701428-05,DR30EFS |
| 701621 | ASY GLASS PANEL;701621,DR30EFS |
| 107111 | ASY LIGHT;107111,DR30EFS |
| 701284 | ASY MEMBRANE PANEL;701284,DR30D-C/LP |
| 701659 | ASY PANEL KICK;701659,DR30EFS |
| 701677-01 | ASY PANEL SIDE 3 25LH;701677-01,DR30 |
| 701677-02 | ASY PANEL SIDE 3 25RH;701677-02,DR30 |
| 701283 | ASY PLATE MEMBRANE;701283,DR30D-C/LP |
| 701739-01 | ASY POST TRIM LH;701739-01,DR30EFS |
| 701739-02 | ASY POST TRIM RH;701739-02,DR30EFS |
| 113664-02 | ASY SLIDE LEFT;113664-02,DR30EFS |
| 113664-01 | ASY SLIDE RIGHT;113664-01,DR30EFS |
| 701620 | ASY, BAKE |
| 701623 | ASY, BURNER CHASSIS |
| 701693 | ASY, CASE SIDE, LH |
| 701697 | ASY, DOOR SKIN |
| 701698-02 | ASY, DOOR, W/FLUSH HNDLE |
| 701464 | ASY, GLIDE RACK |
| 106573 | BAKE ELEMENT 2500W;106573,DO130 |
| 105919 | BAKE PAN DR30E;105919,DR30EFS |
| 83540 | BALL STUD CATCH;83540,DO130 |
| 83539 | BALL STUD TRIM PANEL;83539,DO130 |
| 107210 | BASE BOX;107210,DR30EFS |
| 106009 | BLACK PORCELAIN, DRY |
| 106007 | BLACK PORCELAIN, WET |
| 107117 | BOX REAR PANEL;107117,DR30EFS |
| 105997 | BOX, ELECTRICAL, DR30E |
| 107246-01 | BRACKET CONTROL PANEL;107246-01,DR30 |
| 107246-02 | BRACKET CONTROL PANEL;107246-02,DR30 |
| 107273 | BRACKET DOOR SKIN;107273,DR30EFS |
| 38464 | BRACKET HINGE MTG LEFT;38464,DR30D-C |
| 38472 | BRACKET HINGE MTG RIGHT;38472,DR30D- |
| 105916 | BRACKET INDICATOR LIGHT;105916,DR30E |
| 101127 | BRACKET PALLET;101127,DR30D-C/LP |
| 107138 | BRACKET SWITCH;107138,DR30EFS |
| 102369 | BROIL ELEMENT 3100W;102369,DO130 |
| 12530 | BROILER PACKAGE OVENS;12530,DR30EFS |
| 92191-02 | BUSHING SPLIT 1 00 DIA;92191-02,DH30 |
| 92191-03 | BUSHING SPLIT 1 375 DIA;92191-03,DO1 |
| 92191-01 | BUSHING SPLIT 75 DIA;92191-01,DO230 |
| 102429-01 | BUSHING, SNAP, 1 1/8" |
| 83167 | CABLE CLAMP CPS127;83167,DH3006 |
| 92023-02 | CABLE MOUNTING SADDLE |
| 83565 | CABLE TIE,NYLON,11" LONG |
| 81086 | CARTON, ACCESSORIES |
| 105918 | CASE BOTTOM DR30E;105918,DR30EFS |
| 107164 | CASE SIDE LH;107164,DR30EFS |
| 107163 | CASE SIDE RH;107163,DR30EFS |
| 105917 | CASE TOP DR30E;105917,DR30EFS |
|
|

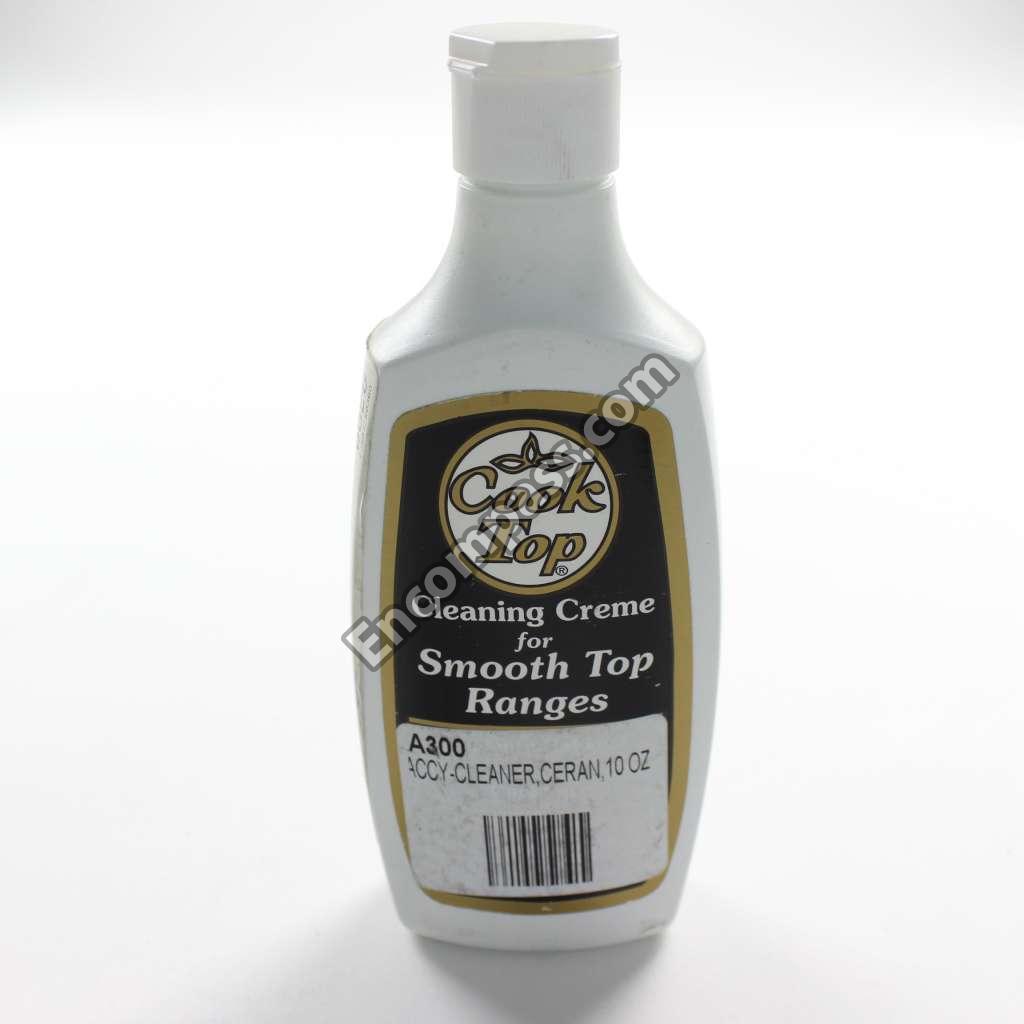

CLEANING CREME, CERAN |
| 83152 | COIN ENVELOPE S-6285 |
| 105329BP | CONVECTION BAFFLE BLK P;105329BP,DR3 |
| 105329 | CONVECTION BAFFLE;105329,DR30EFS |
|
|
CONVECTION ELEMENT |
| 82377 | CONVECTION ELEMENT 240V;82377,DO130 |
| 101511 | CONVECTION FAN BLADE;101511,DO130 |
| 82986 | COOLING FAN |
| 81266 | CORNER POST, 3 X 3X.400X |
| 105999 | CORNER RR COVER DR30E;105999,DR30EFS |
| 105468BP | COVER CELL GASKET BP;105468BP,DR30EF |
| 105993 | COVER COOLING FAN;105993,DR30EFS |
| 107183 | COVER MEAT PROBE;107183,DR30EFS |
| 107119 | COVER RELAY;107119,DR30EFS |
| 105998 | COVER, ELECTRICAL, DR30E |
| 102402 | CUP WASHER ER30D;102402,DHD30M967WM |
| 107290B | DEFLECTOR TOP DOOR BK;107290B,DR30EF |
| 107290 | DEFLECTOR TOP DOOR;107290,DR30EFS |
| 105995 | DISPLAY MODULE DR30E;105995,DR30EFS |
| 100090 | DOOR LATCH,CLASSIC |
| 105312 | DOOR LINER;105312,DR30EFS |
| 107116 | DUCT SMOKE ELIMINATOR;107116,DR30EFS |
| 105987 | ELECTRICAL CHASSIS;105987,DR30EFS |
| 105903 | ELEMENT 900 1800 2500W;105903,DR30EF |
| 100656-01 | ELEMENT DUAL;100656-01,DR30EFS |
| 107213 | EXHAUST DEFLECTOR;107213,DR30EFS |
| 105922 | EXHAUST PLATE DR30E;105922,DR30EFS |
| 83555 | FIBER WASHER W ADHESIVE;83555,DO130 |
|
|
FILTER, CONVECTION |
| 701555 | FLOOR ANCHOR KIT;701555,DOP36M86DAM |
| 36773 | FRAME TOP ELEMENT;36773,DR30EFS |
| 105366 | GASKET CELL;105366,DR30EFS |
| 100015 | GASKET WINDOW PACK;100015,DR30EFS |
| 105982 | GLASS PANEL, BLK, DR |
| 107172 | GLASS, DOOR |
| 106993 | GLIDE RACK, RO130/230S |
| 107202B | GRILL INTAKE BLK;107202B,DR30EFS |
| 100811 | GROMMET BAKE WIRES;100811,DR30EFS |
| 102403 | GROUND SCREW;102403,"#10, ER30D",DHD |
| 36834 | GUTTER,TOP SECTION |
| 107206 | HARNESS POWER BOARD;107206,DR30EFS |
| 107221 | HEAT SHIELD DR30G;107221,DR30EFS |
| 107118 | HEAT SHIELD TOP FRONT;107118,DR30EFS |
| 107221B | HEAT SHIELD, BLK, DR30G |
| 66128 | HEATER SERIES 8 1200W;66128,DR30EFS |
| 66129 | HEATER SERIES 8 1500W;66129,DR30EFS |
| 110168 | HERITAGE LOGO 4 INCH;110168,DR30D-C/ |
| 102137 | HEX NUT CONVECTION FAN E;102137,DO13 |
| 105510-02 | HINGE COVER LH;105510-02,DR30EFS |
| 105510-01 | HINGE COVER RH;105510-01,DR30EFS |
| 72711 | HINGE, LEFT |
| 72710 | HINGE, RIGHT |
| 107239 | HOLDER BAKE ELEMENT;107239,DR30EFS |
| 105915 | INDICATOR LIGHT 4 ZONE;105915,DR30EF |
| 107125 | INDICATOR LIGHT SET;107125,DR30EFS |
| 81073 | INNER DOOR PROTECTOR |
| 100934 | INSERT TOP;100934,DR30D-C/LP |
| 81238 | INSERT, DOOR HANDLE |
| 80168 | INSULATION CONV MTR;80168,DO130 |
| 107104 | INSULATION, BROIL |
| 106976 | INSULATION, BROIL, T |
| 106978 | INSULATION, CASE BAC |
| 106581 | INSULATION, CASE BOT |
| 106977 | INSULATION, CASE SID |
| 105353 | INSULATION, DOOR SIDE |
| 105352 | INSULATION, DOOR TOP |
|
|
KIT CONVECTION FAN;700633,DR30EFS |
| 107122-02 | KNOB DOUBLE;107122-02,DR30EFS |
| 107122-01 | KNOB SINGLE;107122-01,DR30EFS |
| 107123-01 | KNOB TRIPLE;107123-01,DR30EFS |
| 105705 | LABEL WARNING STABILIT;105705,DR30D- |
| 85136 | LABEL, "MADE WITH PRIDE" |
| 106802 | LABEL, SELF CLEAN,FR |
| 85249 | LABEL,"DIELECTRIC TE |
| 85648 | LABEL,EXTRU CONTAINER,CP |
| 105991 | LATCH PLATE DR30E;105991,DR30EFS |
|
|
LEG |
| 72717 | MEAT PROBE SOCKET;72717,DO130 |
| 72723 | MEAT PROBE;72723,DO130 |
| 108799 | MEMBRANE, DR30D |
| 81070 | MICROFOAM,12"X6"X.06 THK |

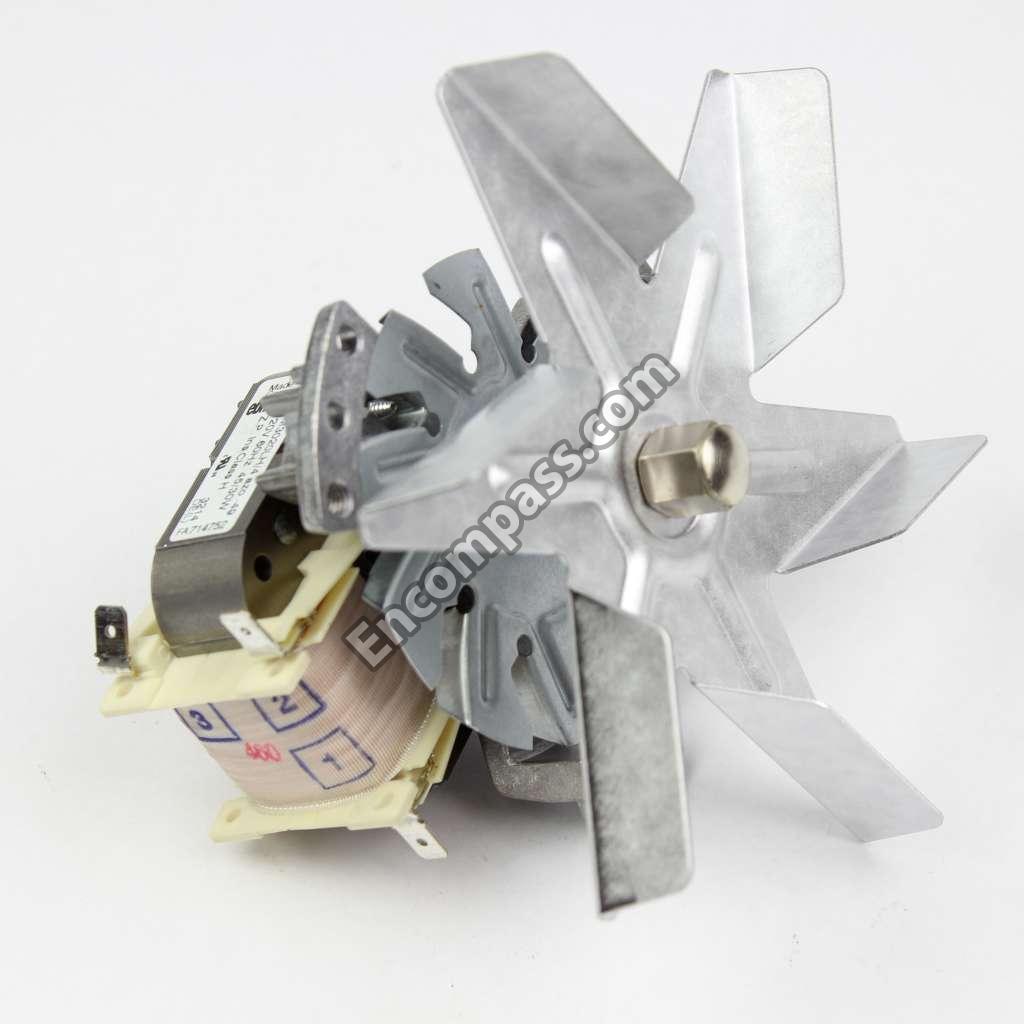

| 102145 | MOTOR, CONVECTION EO |
| 36280 | MOUNTING PLATE;36280,ERSD36S |
| 82873 | NAMEPLATE SELF CLEAN INF;82873,DO130 |
| 102275 | NUT WELD 10-32 TAB B |
| 106992 | OVEN RACK RO130;106992,DR30EFS |
| 107170B | PANEL BACKING BTM BLK;107170B,DR30EF |
| 107170 | PANEL BACKING BTM;107170,DR30EFS |
| 107278 | PANEL BACKING TOP;107278,DR30EFS |
| 107278B | PANEL BACKING TOP;107278B,DR30EFS |
| 107212 | PANEL BASE;107212,DR30EFS |
| 102383 | PANEL LUG SINGLE WIRE;102383,DR30EFS |
|
|
PCB SUPPORT (NOT SHOWN) |
| 106637 | PLATE MEMBRANE DR30D;106637,DR30D-C/ |
| 82106 | PORCELAIN GRILL;82106,DR30EFS |
| 82107 | PORCELAIN PAN;82107,DR30EFS |
| 106991 | RACK SUPPORT;106991,DR30EFS |
|
|
RANGE BROIL TRAY ASSY;12157,DR30EFS |
| 105992 | REAR COVER;105992,DR30EFS |
| 105990 | REAR EXHAUST RH;105990,DR30EFS |
| 105985 | REAR PANEL TOP DR30E;105985,DR30EFS |
|
|

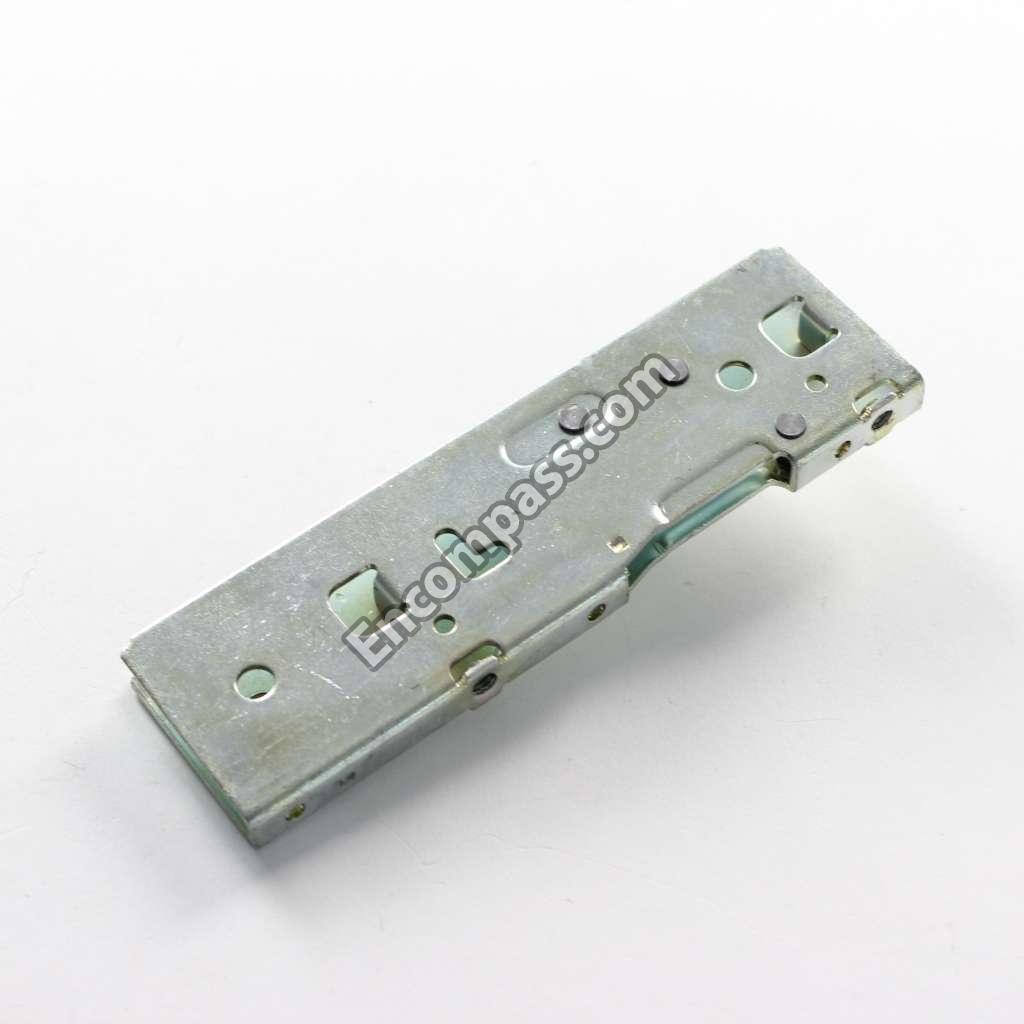

RECEPTACLE, HINGE |
| 107105 | REFLECTIVE BROIL PAN;107105,DR30EFS |
| 105988 | RELAY BOARD SUPPORT;105988,DR30EFS |
|
|

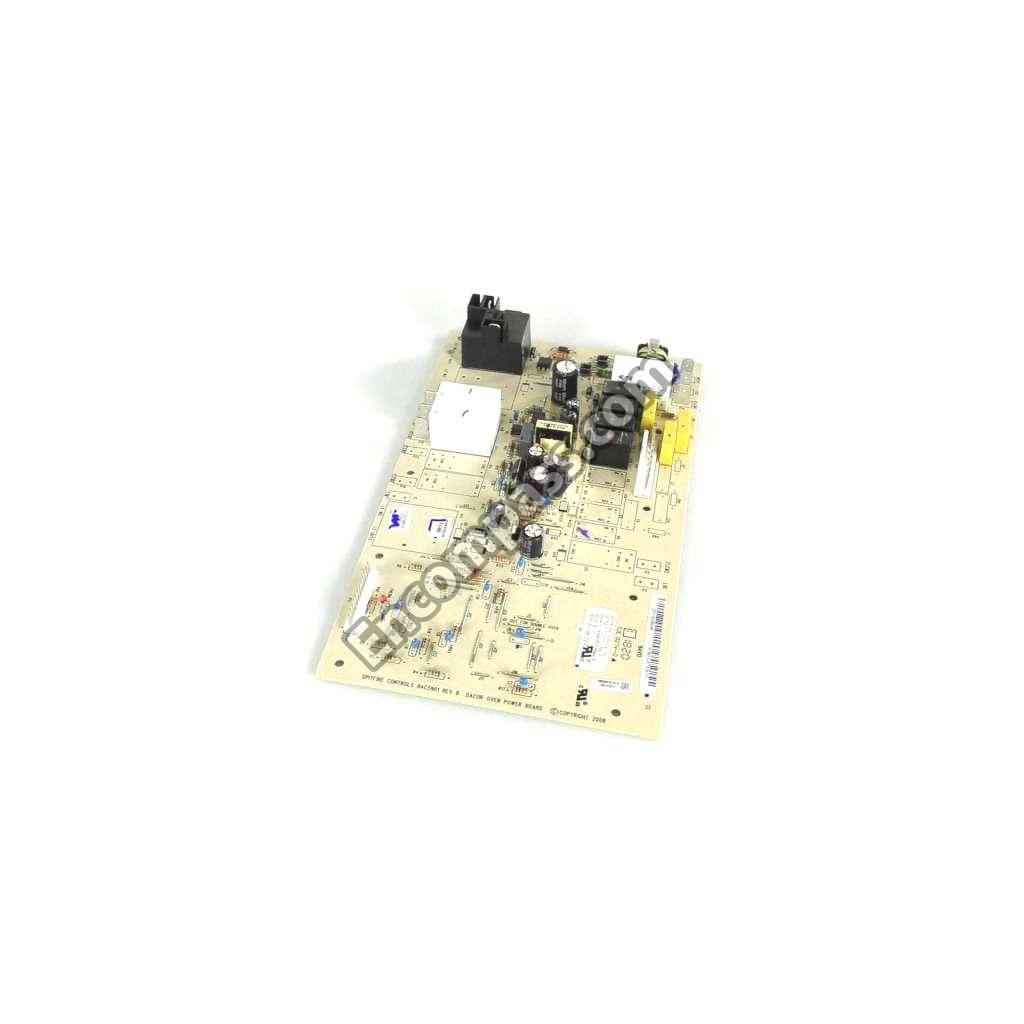

RELAY BOARD, SNGL WALL |
|
|

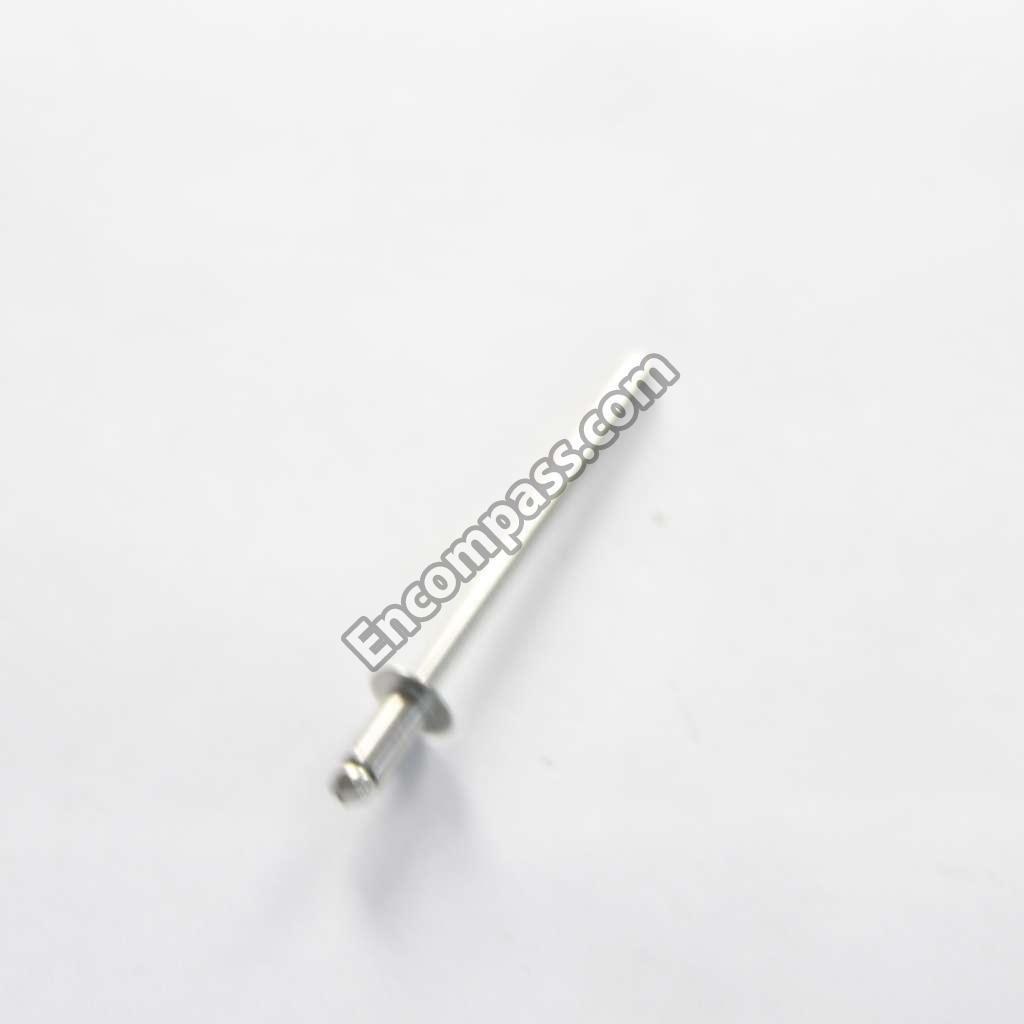

RIVET SS;83652,1/8X1/8,DH3006 |
| 83618 | RUBBER BUMPER;83618,DO130 |
|
|

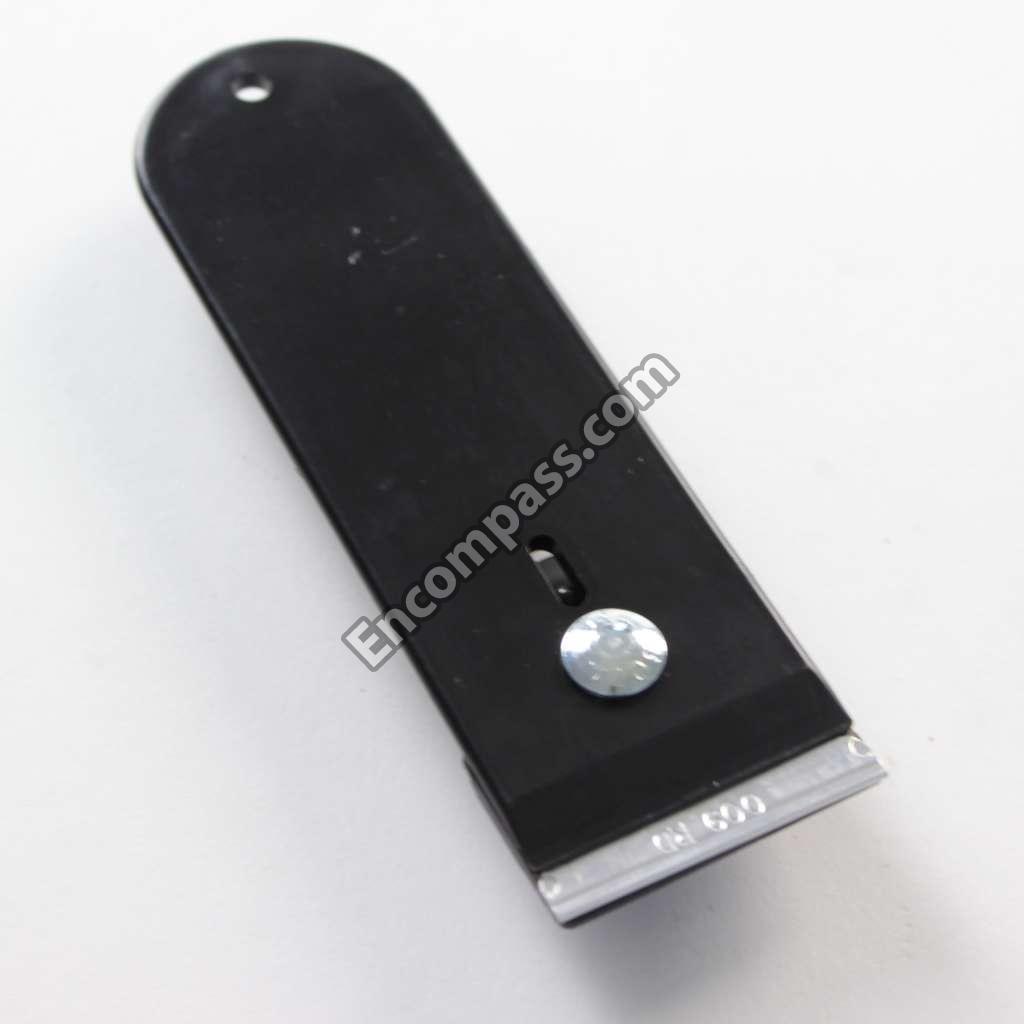

SCRAPER, CERAN |
| 83379 | SCREW HWH;83379,"#8X1/2,TYPEA",DO130 |
| 83569 | SCREW HWH;83569,"#8 X 1,TYPE A",DO13 |
| 105514 | SCREW LG PAN HD;105514,M4X6MM,DO130 |
|
|
SCREW PHIL PAN HD;83001,#8X1/4,DCT30 |
| 83409 | SCREW PHIL PAN;83409,#8-1.00,DOP36M8 |
| 83024 | SCREW PHIL TRS;83024,#8 X 3/8,DR30EF |
| 83263 | SCREW PHIL WAFER;83263,#8X3/8,DCT305 |
| 83181 | SCREW PHIL;83181,8-32X1/4,DR30EFS |
|
|
SCREW WAFER HD;83534,#8 X 3/8,DH3006 |
|
|

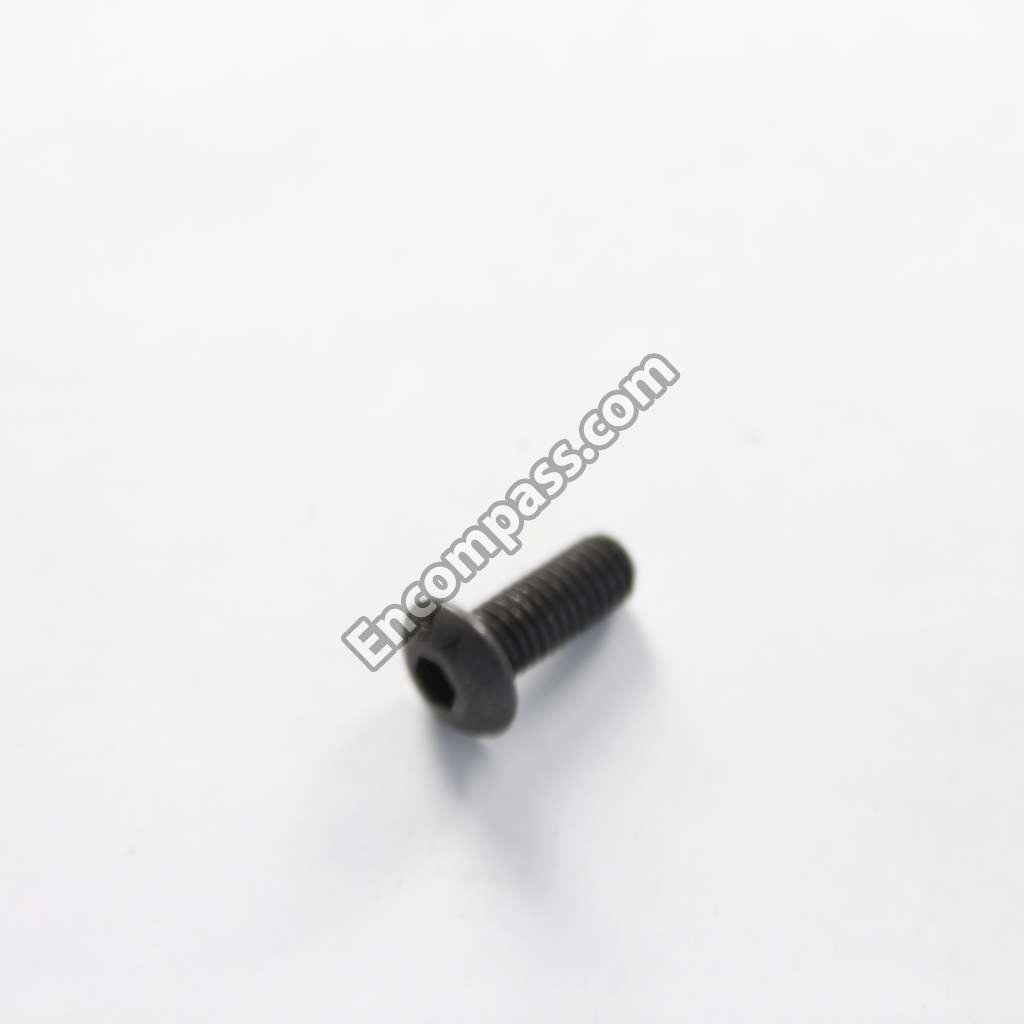

SCREW, #8 X 1/2, TORX |
|
|
SCREW, SLOT, #10 X 3/8" |
|
|
SCREW, TRX WFR HD, #8 X 1/2" |
| 105735 | SCREW;105735,"#12X 1-3/4, TP AB",DOP |
| 105737 | SCREW;105737,#8X 1-1/4PHIL PAN,DOP36 |
| 83026 | SCREW;83026,#10 X 3/4 SLOT HWH,DO130 |
| 83408 | SCREW;83408,#8-32X 3/4 PHIL,DR30D-C/ |
|
|
SCREW;83420,10-32 X 500,DR30D-C/LP |
|
|
SCREW;83505,#8 X 3/8 TYPE A,DHD30M96 |
| 83661 | SCREW;83661,"#8 X 3/8, TORX",DR30EFS |
| 107171B | SHIELD HEAT SIDE BLK;107171B,DR30EFS |
| 107171 | SHIELD HEAT SIDE;107171,DR30EFS |
| 107234 | SHIELD INDICATOR LIGHT;107234,DR30EF |
| 103769 | SIDE RAIL LINER DOOR;103769,DR30EFS |
| 105983 | SIDE SUPPORT LH DR30E;105983,DR30EFS |
| 105984 | SIDE SUPPORT RH DR30E;105984,DR30EFS |
| 83353 | SILICONE RUBR,PACTAN |
| 105485 | SMOKE ELIMINATOR TOP;105485,DR30EFS |
| 72755 | SMOKE ELIMINATOR;72755,DO130 |
| 83189 | SPACER 138 IDX 25 OD;83189,DO130 |
| 106795 | SPACER MEMBRANE;106795,DR30D-C/LP |
| 100644 | SPRING HEATER;100644,DR30EFS |
| 107287 | STIFFENER DOOR LINER;107287,DR30EFS |
| 38453 | STRIKER PLATE;38453,DR30D-C/LP |
| 102400 | STUD PRESSED IN;102400,#6-32X,DO130 |
| 701624 | SUB PANEL W/STUDS |
| 107114 | SWITCH DOUBLE ELEMENT;107114,DR30EFS |
| 92321 | SWITCH HI LIMIT 275 F;92321,DR30EFS |
| 107113 | SWITCH SINGLE ELEMENT;107113,DR30EFS |
| 107115 | SWITCH TRIPLE ELEMENT;107115,DR30EFS |
| 92387 | TAPE VHB DOUBLE SIDED;92387,DH3006 |
| 83239 | TAPE, DBL COATEDNEOP |
|
|

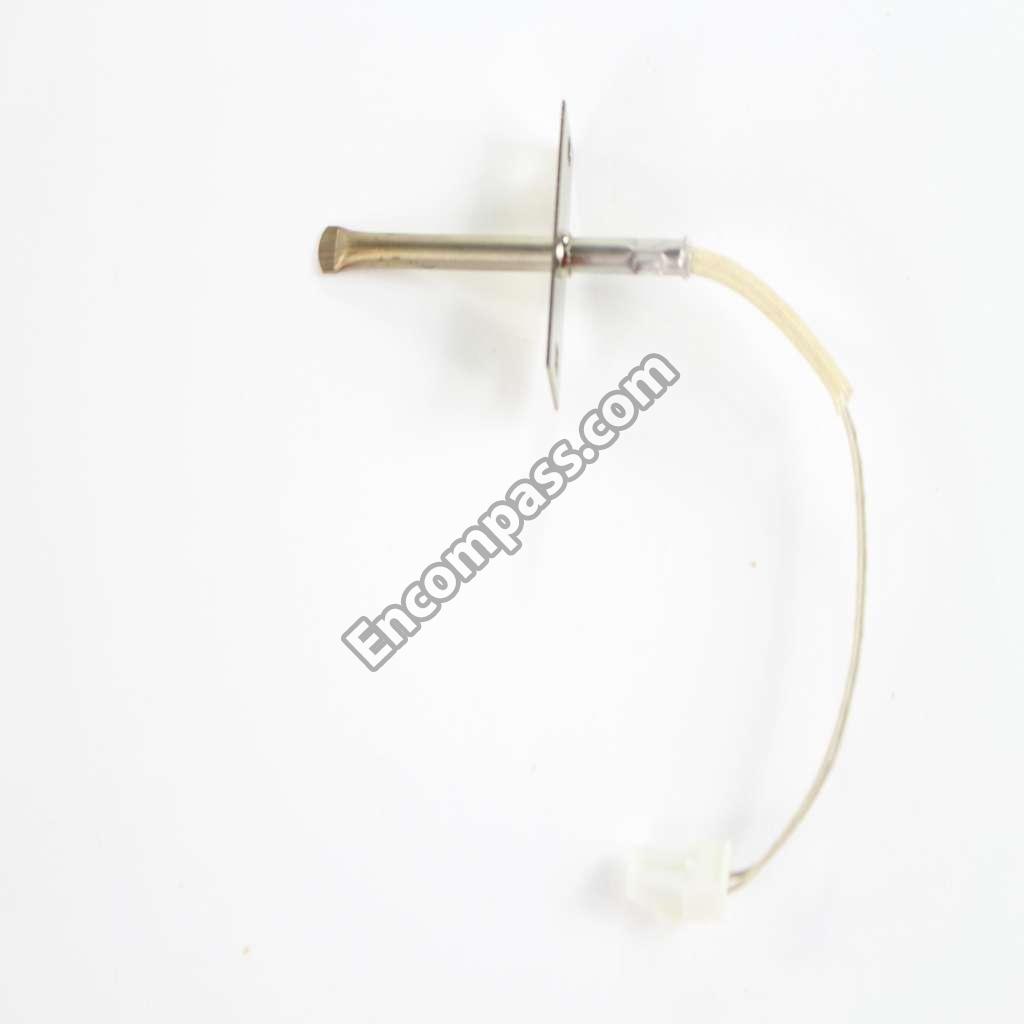

TEMPERATURE SENSOR;72752,DO130 |
|
|
TERMINAL BLOCK |
| 106528 | TOP BOTTM RAIL;106528,DR30EFS |
|
|
TRIM RING |
| 102136 | WASHER CONVECTION FAN E;102136,DO130 |
| 83080 | WASHER NYLON;83080,DO130 |
| 701724 | WELD BASE LEG RAIL;701724,DR30EFS |
| 701746 | WELD BRACKRT DOOR;701746,DR30EFS |
| 701680 | WELD CASE BACK;701680,DR30EFS |
| 701696 | WELD DOOR DR30G;701696,DR30EFS |
| 701430BP | WELD DOOR LINER BP;701430BP,DR30EFS |
| 701430 | WELD DOOR LINER RO130S;701430,DR30EF |
| 701489 | WELD DOOR LINER;701489,DR30EFS |
| 83369 | WELD NUT, 1/2 - 13 |
| 701622 | WELD, BURNER CHASSIS |
| 72968 | WINDOW PACK EO130 230;72968,DR30EFS |
| 107179 | WIRE HARNESS CONTR PANE;107179,DR30E |
| 107120 | WIRE HARNESS COOKTOP;107120,DR30EFS |
| 107121 | WIRE HARNESS OVEN;107121,DR30EFS |
