Model Image
Manufacturer

Dacor

Model Number

E36DF76EPS

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
105288 16 GA CRS, 48 X 96"
80518 16GA GALVANIZED, STE
80532 18 GA 201SST #4 48"X
80208 18 GA GALVANIZED STE
80517 18GA GALVANIZED, 48"
80509 18GA.VIT,52.5"X96"ST
80310 20 GA 201 SS, 36"X10
80522 20 GA 201 SS, 48"X96
80074 20 GA GALVANIZED,48"
80516 20 GA GALVANIZED;80516,"48""X96""",D
80550 20 GA,GALVANIZED STE
80508 22GA VIT STEEL 48X96;80508,DO130
100197 36" ELECTRONIC CONTROL
83308 6 32 KEPS NUT;83308,DH3006
46076 ACCESS PANEL ERDE36;46076,E36DF76EPS
100224 ASSY VALVE LR RF CF CR;100224,E36DF7
100223 ASSY VALVE RR;100223,E36DF76EPS
100221 ASSY,VALVE, LF
13346 ASY BACKSPLASH 3;13346,ERSD36S09
92463 ASY BURNER HEAD D;92463,E30DF74EPS
700063 ASY REGULATOR;700063,E36DF76EPS
92467 ASY WIRE HARNESS LED;92467,E30DF74EP
92466 ASY WIRE HARNESS LIGHT;92466,E30DF74
92468 ASY WIRE HARNESS ROTARY;92468,E30DF7
700086-02 ASY, DOOR, 36"
92398 ASY, LIGHT, HALOGEN, 20W
36184 BACK COVER;36184,ERSD36S
92437 BADGE E LUX;92437,E30DF74EPS
46089BLP BAFFLE CONVECTION BLUE;46089BLP,E36D
83540 BALL STUD CATCH;83540,DO130
83539 BALL STUD TRIM PANEL;83539,DO130
62325 62325 BASE BURNER W TUBE;62325,E30DF74EPS
36189 BASE ERSD36;36189,E36DF76EPS
92092 92092 BEZEL KNOB SGM365E;92092,E30DF74EPS
106009 BLACK PORCELAIN, DRY
100637 BLOCK, FOAM, 2X3 3/8X12
92413 BOARD LED WITH RACK;92413,E30DF74EPS

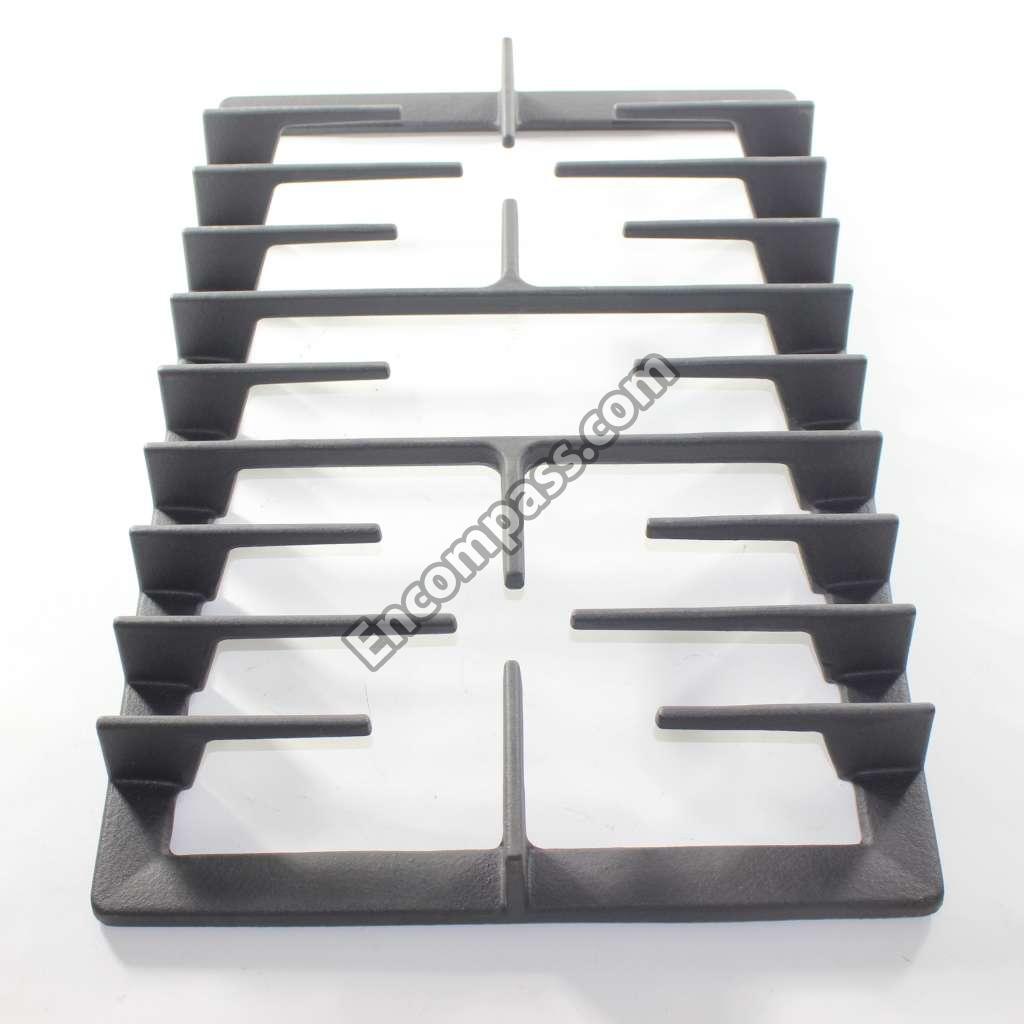

92314 92314 BOX ASY GRATE 14;92314,E30DF74EPS
26041 26041 BRACKET ANTI TIP RANGE;26041,E30DF74
100510 BRACKET BACKING PANEL;100510,E36DF76
26971 BRACKET COOLING FAN;26971,E36DF76EPS
38464 BRACKET HINGE MTG LEFT;38464,DR30D-C
38472 BRACKET HINGE MTG RIGHT;38472,DR30D-
26874 BRACKET IGNITER;26874,ERSD36S
100511 BRACKET, BACKING PANEL
86405 86405 BRASS NUT CB HEAD;86405,DTCT304GB/LP
92464 BROILER PAN INSERT;92464,E30DF74EPS
92430 BROILER PAN ROASTING;92430,E30DF74EP
92429 BROILER PAN;92429,E30DF74EPS
86524SB BURNER CAP, SMALL 'B'
86007C 86007C BURNER RING TOOL-CHROMED
86007 BURNER RING TOOL;86007,E30DF74EPS
105627 BURNER TUBE ELBOW;105627,E30DF74EPS
83133 BUSHING 1 2 RED CONDUI;83133,DO130
83523 BUSHING 3 8 HOLE;83523,DOP36M86DAM
92191-02 BUSHING SPLIT 1 00 DIA;92191-02,DH30
92391 BUSHING SUPPORT RACK;92391,E30DF74EP
92125 BYPASS ORIFICE, SGM
86373 C AIR SHUTTER;86373,DTCT304GB/LP
81086 CARTON, ACCESSORIES
26974 CASE BOTTOM,ERSD36/48
46073 CASE TOP;46073,E36DF76EPS
36130 CHANNEL MTG TOP FRM RR;36130,E36DF76
36215 CHANNEL STIFFENER BOTTOM;36215,E36DF
83152 COIN ENVELOPE S-6285
26420 CONDUIT 1 2 FLEX CUT 60;26420,DO130
76034 CONE DOUBLE SGM365E;76034,E30DF74EPS
83059 CONNECTOR;83059,"1/2 FLEX,STRGH",E30
92411 CONTROL OVEN MODE SELEC;92411,E30DF7
92412 CONTROL TEMPERATURE;92412,E30DF74EPS
82377 CONVECTION ELEMENT 240V;82377,DO130
62101 CONVECTION FAN INT;62101,ERSD36S
81266 CORNER POST, 3 X 3X.400X
36724 COVER BRKT HINGE MTG;36724,DR30D-C/L
36832 COVER CASE SIDE;36832,DR30D-C/LP
72511CH DACOR LOGO LARGE;72511CH,DR30GFS/LP
72435SB DBURNER CAP LARGE;72435SB,DTCT304GB/
82834 DOOR LATCH MECHANISM;82834,E30DF74EP
100025BLP DOOR LINER WELD 36 48L;100025BLP,E36
92393 ELEMENT BAKE;92393,E30DF74EPS
92392 ELEMENT, BROIL
82347 FAN COOLING 110 CFM;82347,DR30D-C/LP
83555 FIBER WASHER W ADHESIVE;83555,DO130
82891 82891 FILTER CONVECTION OVEN;82891,DO130
81533 FOAM BAG WRAP
46130BP FRONT SUPPORT,SPL TRAY
100021 GASKET LINER 36 48L;100021,E36DF76EP
100015 GASKET WINDOW PACK;100015,DR30EFS
83058 GROMMET, EPDM RUBBER
86372 HB AIR SHUTTER;86372,DTCT304GB/LP
100013B HEAT SHIELD INNER BLK;100013B,E36DF7
100013 HEAT SHIELD INNER;100013,E36DF76EPS
100311B HEAT SHIELD LOWER BLK;100311B,E36DF7
100014B HEAT SHIELD, OUTER, BLK
100943-01 HINGE DOOR LH;100943-01,E36DF76EPS
100943-02 HINGE DOOR RH;100943-02,E36DF76EPS
100195 IGNITER WIRE SET 36;100195,E36DF76EP
62933 IGNITOR WIRE JACKET;62933,DTCT304GB/
81073 INNER DOOR PROTECTOR
81238 INSERT, DOOR HANDLE
80168 INSULATION CONV MTR;80168,DO130
80135 INSULATION,CELL SIDE,10L
80136 INSULATION,CELL TOP,10LB
700147-1 KIT, LP, ERDE36/48E

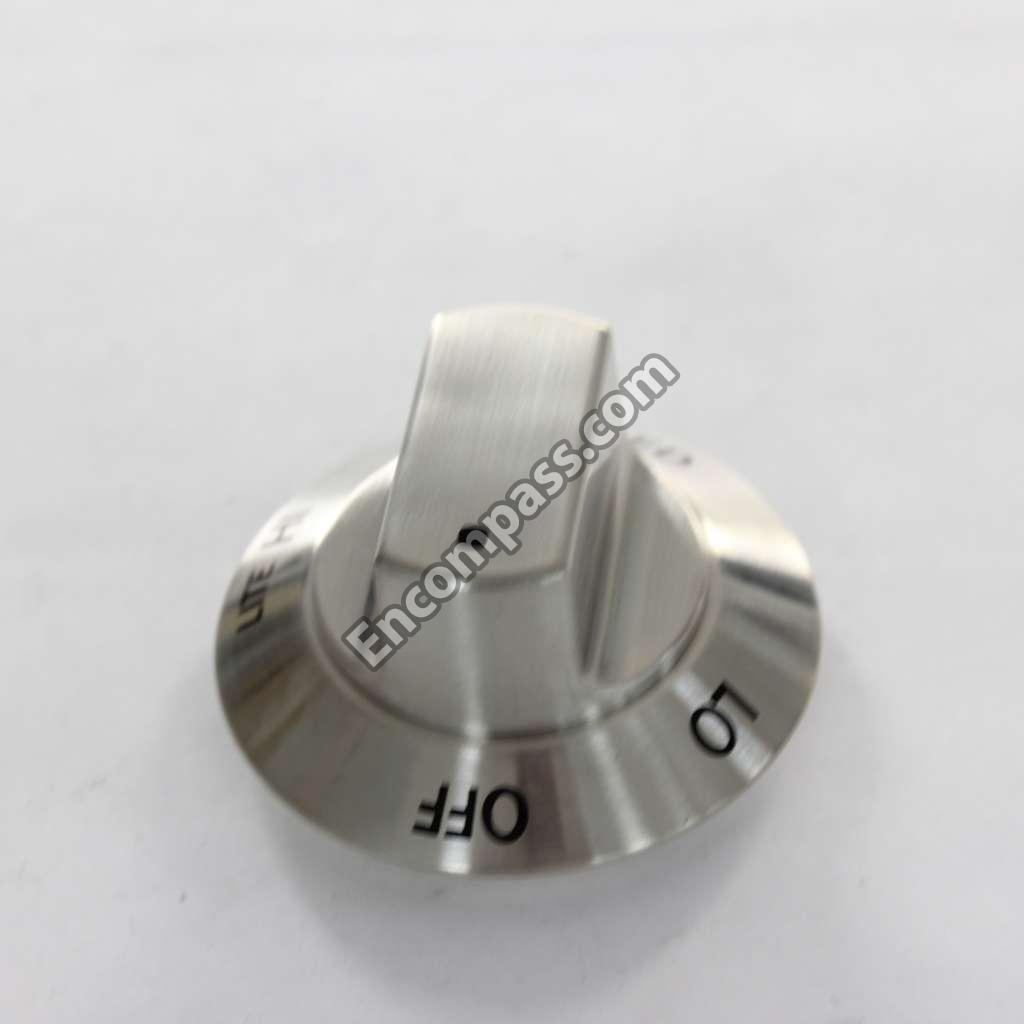

92425 92425 KNOB BURNER;92425,E30DF74EPS
92426 KNOB OVEN MODE SELECTOR;92426,E30DF7
92427 KNOB, TEMPERATURE
65480 LABEL CONVERSION INFO;65480,E30DF74E
105705 LABEL WARNING STABILIT;105705,DR30D-
105508 LABEL WARNING STABILITY;105508,DR30D
106802 LABEL, SELF CLEAN,FR
85249 LABEL,"DIELECTRIC TE
85648 LABEL,EXTRU CONTAINER,CP
26598 LATCH PLATE;26598,DO130
86384 LATCH VALVE SGG;86384,E30DF74EPS
700000 700000 LEG NEW 1 2 EPICURE;700000,DR30D-C/L
36074 LEG NUT SUPPORT BASE;36074,E36DF76EP
106440 LEVELER ADJUSTABLE 2 5;106440,DOP36M
81070 MICROFOAM,12"X6"X.06 THK

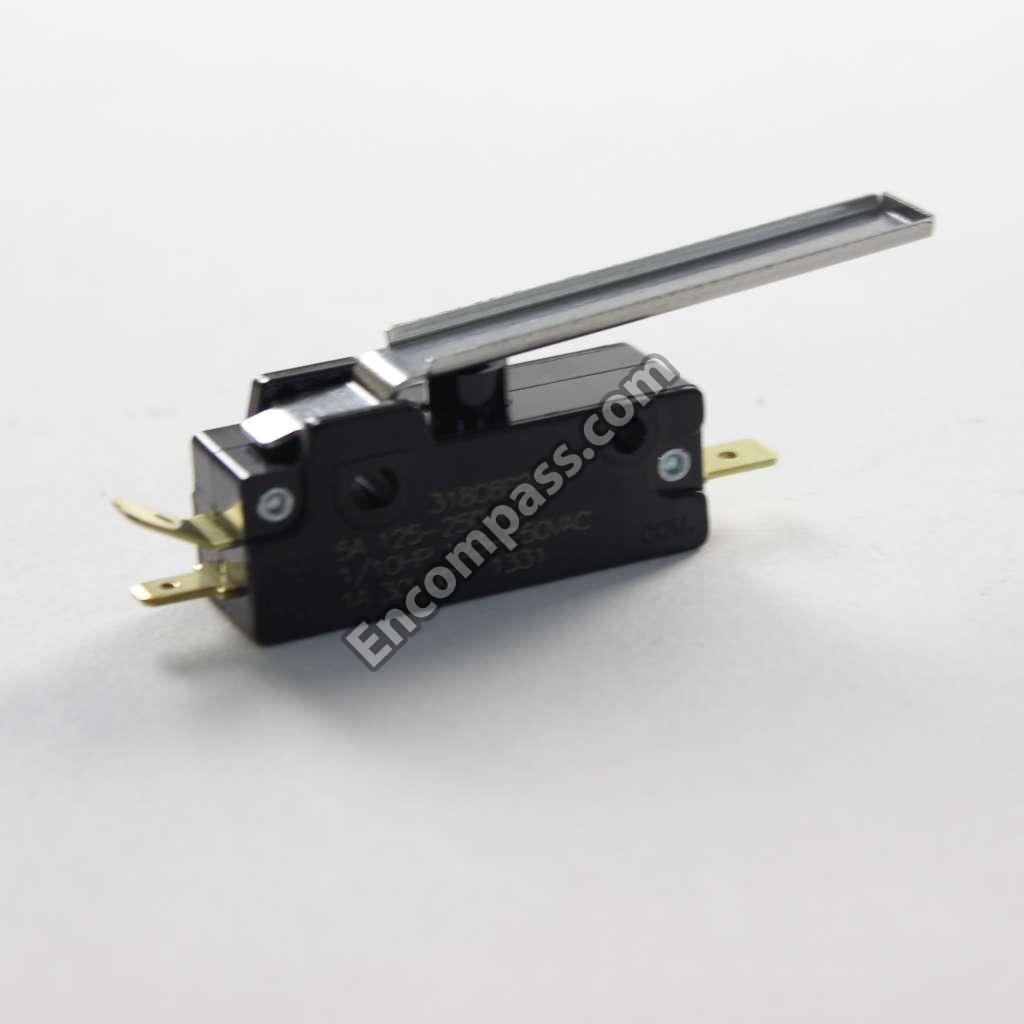

103789 103789 MICROSWITCH ER30G;103789,DOP36M86DAM
100091 MOUNT CONTROLS;100091,E30DF74EPS
36280 MOUNTING PLATE;36280,ERSD36S
76033 NUT COMPRESSION;76033,E30DF74EPS
83048 NUT HEX KEPS;83048,#8-32,DCT305B/LP
83398 NUT RETAINER;83398,1/4-20,DOP36M86DA
100404 NUT WELD;100404,6-32 X 1/4,E30DF74EP
83027 NUT, WELD, 5/16 - 18
86937 O RING B BURNER HEAD;86937,DTCT304GB
86395 86395 O RING D BURNER;86395,DTCT304GB/LP
86936 O-RING, ELECTRODE
72427-133 ORIFICE NUT, MAIN,1.33MM
81263 PALLET, ERSD36
83538 83538 PCB SUPPORT NYLON;83538,DHD30M967WM
92397 PIN COTTER INTERLOCK;92397,E30DF74EP
100376 PLUG SKIN DOOR 36;100376,DYRP36D-C-C
38027 RACEWAY ERSD36;38027,E36DF76EPS
92431 RACK EXTENDABLE 36;92431,E36DF76EPS
100315 RACK FIXED ERDE36 48E;100315,E36DF76
46071 REAR PANEL;46071,E36DF76EPS
72348 72348 RECEPTACLE HINGE;72348,DR30D-C/LP
76116 RING BURNER B;76116,E30DF74EPS
83652 83652 RIVET SS;83652,1/8X1/8,DH3006
72652 72652 RUBBER BUMPER;72652,E30DF74EPS
83397 SCREW CAP;83397,1/4-20 X 5/8LG,DOP36
83692 SCREW PAN HD;83692,#10-32X1,DWD30S
100335 SCREW PHIL PAN HEAD;100335,E30DF74EP
83336 SCREW PHIL PAN;83336,#8-32X1/2,DR30G
83263 SCREW PHIL WAFER;83263,#8X3/8,DCT305
83007 83007 SCREW PHIL;83007,#8-32 X 1/4,DOP36M9
83019 SCREW SLOT HWH;83019,#8 X 3/8,DYRP36
83023 83023 SCREW SLOT;83023,#10 X 3/8HWH,DO130
83534 83534 SCREW WAFER HD;83534,#8 X 3/8,DH3006
83026 SCREW;83026,#10 X 3/4 SLOT HWH,DO130
83408 SCREW;83408,#8-32X 3/4 PHIL,DR30D-C/
83420 83420 SCREW;83420,10-32 X 500,DR30D-C/LP
83705 SCREW;83705,"#8-32 X .5,PH. HD",E30D
83708 83708 SCREW;83708,#8X1/2TRX WFR HD,DOP36M8
83709 83709 SCREW;83709,"#8X1/2TRX WFR HD,",DOP3
101565 SELF CLEANING INFO PLATE;101565,E30D
92436 SET BURNER CAP;92436,E36DF76EPS
92435 SET BURNER RING;92435,E36DF76EPS
46080 SHIELD MANIFOLD;46080,E36DF76EPS
36035 SIDE SUPPORT,SPILLTR
92434 SIMMER PLATE E LUX;92434,E30DF74EPS
105541 SLEEVING TUBE, FIBER
82826 SMOKE ELIMINATOR
46061 SMOKE SHIELD;46061,E36DF76EPS
82318 SPARK MODULE, 6 POINT
92101 STAINLESS STEEL CLEANER
83726 STANDOFF LG;83726,8-32X5/8,E30DF74EP
27866 STEAM BOX 36;27866,E36DF76EPS
36218 STIFFENER REAR PANEL LH;36218,E36DF7
36217 STIFFENER REAR PANEL RH;36217,E36DF7
38453 STRIKER PLATE;38453,DR30D-C/LP
92390 SUPPORT RACK LH E LUX;92390,E30DF74E
92389 SUPPORT RACK RH E LUX;92389,E30DF74E
92394 92394 SWITCH INTERLOCK;92394,E30DF74EPS
92407 SWITCH OVEN LIGHT;92407,E30DF74EPS
83064 TAPE FOAM COUNTERTOP;83064,DYTT305NB
92387 TAPE VHB DOUBLE SIDED;92387,DH3006
62593 62593 TEMPERATURE SENSOR;62593,E30DF74EPS
82987 82987 THERMAL SW HI TEMP CUTOU;82987,DR30D
83037 TIE PUSH MOUNT LOCKING;83037,DH3006
62808 62808 TRANSFORMER HALOGEN LIGH;62808,DO130
62350 TRIM EDGE 1/4X1/32X.218
72816 TUBE EXTENSION 36;72816,E36DF76EPS
92409 TUBING VITON 5 16 O D;92409,E30DF74E
102438 WASHER DOOR HANDLE;102438,DR30DH-C/L
83203 WASHER FLAT;83203,P400 1/4-20,DRT304
86385 WASHER VALVE O RING SG;86385,E30DF74
83194 WASHER;83194,.5OD X .19ID X .0,DCT30
27502 WELD ANTI TIP BRKT ERD36;27502,E36DF
100009 WELD SKIN DOOR 36;100009,E36DF76EPS
27554 WELDMENT RACEWAY ERSD36;27554,ERSD36
72968 WINDOW PACK EO130 230;72968,DR30EFS
92433 WOK RING E LUX;92433,E30DF74EPS
