Manufacturer
Dacor
Model Number
E36GC65ESS
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 80208 | 18 GA GALVANIZED STE |
| 80074 | 20 GA GALVANIZED,48" |
| 92242 | ASY, HEAD, 9 DEGREES |
|
|

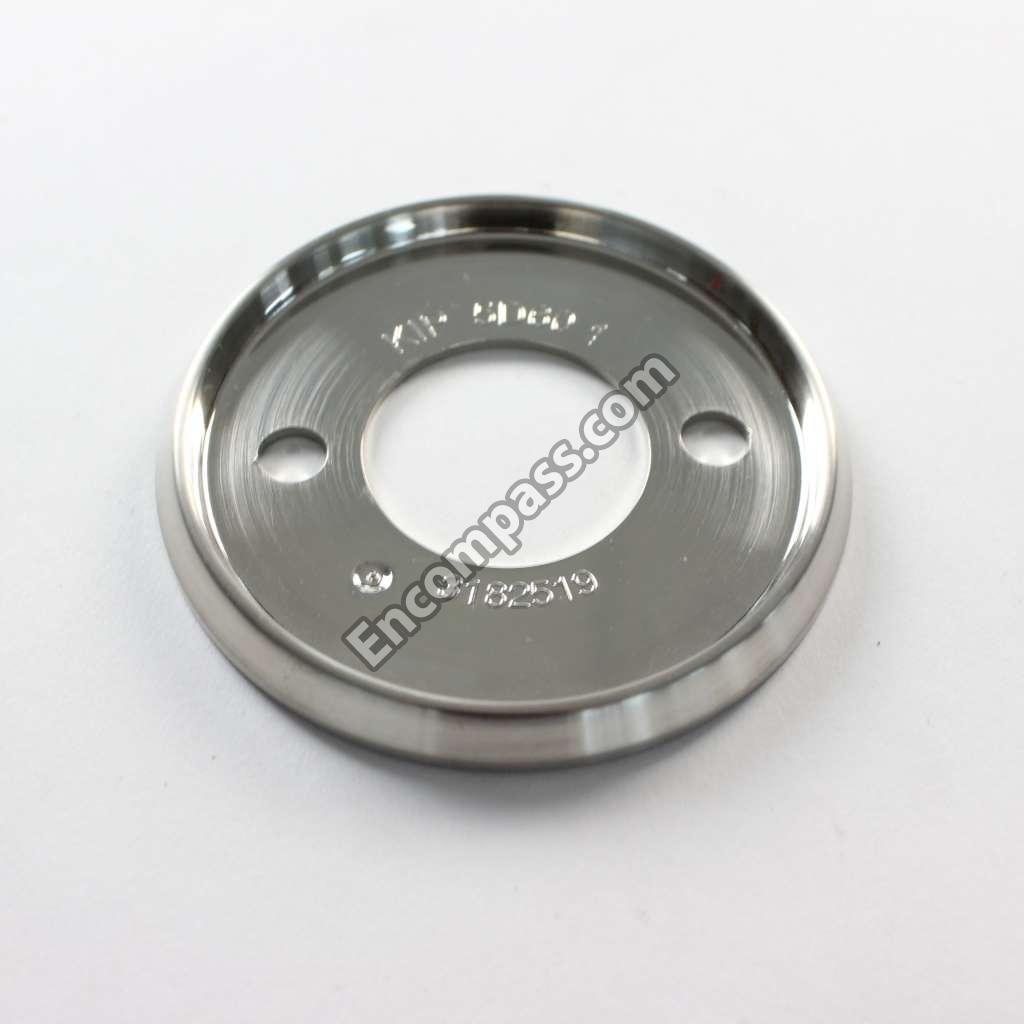

BEZEL KNOB SGM365E;92092,E30DF74EPS |
|
|
BOLT HEX HEA;83065,1/4-20X3.50,DCT30 |
| 46225 | BOX CHASSIS SGM365E;46225,DTCT365GB/ |
|
|
BRASS NUT CB HEAD;86405,DTCT304GB/LP |
| 86523SB | BURNER CAP MEDIUM C;86523SB,DTCT304G |
| 86524SB | BURNER CAP, SMALL 'B' |
|
|

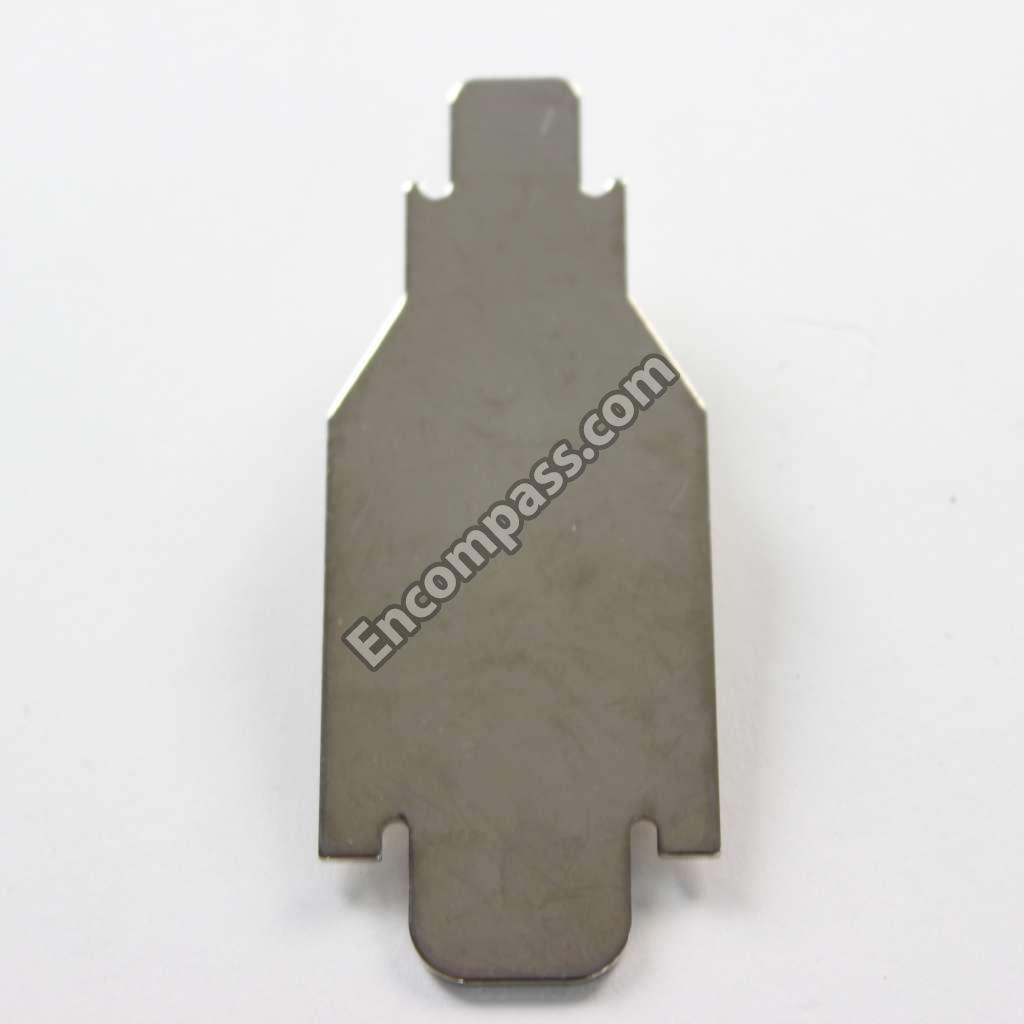

BURNER RING TOOL-CHROMED |
| 86007 | BURNER RING TOOL;86007,E30DF74EPS |
|
|
BURNER TUBE BASE FRONT;62144,DTCT304 |
| 83141 | BUSHING STRAIN RELIEF;83141,DCT305B/ |
| 92125 | BYPASS ORIFICE, SGM |
| 86373 | C AIR SHUTTER;86373,DTCT304GB/LP |
| 76034 | CONE DOUBLE SGM365E;76034,E30DF74EPS |
| 72435SB | DBURNER CAP LARGE;72435SB,DTCT304GB/ |
| 86372 | HB AIR SHUTTER;86372,DTCT304GB/LP |
| 12269 | HOLD DOWN BRACKET;12269,DCT305B/LP |
| 83209 | HOOK LOOP PAIR 2 X 3;83209,DR30GFS/L |
| 62933 | IGNITOR WIRE JACKET;62933,DTCT304GB/ |
|
|

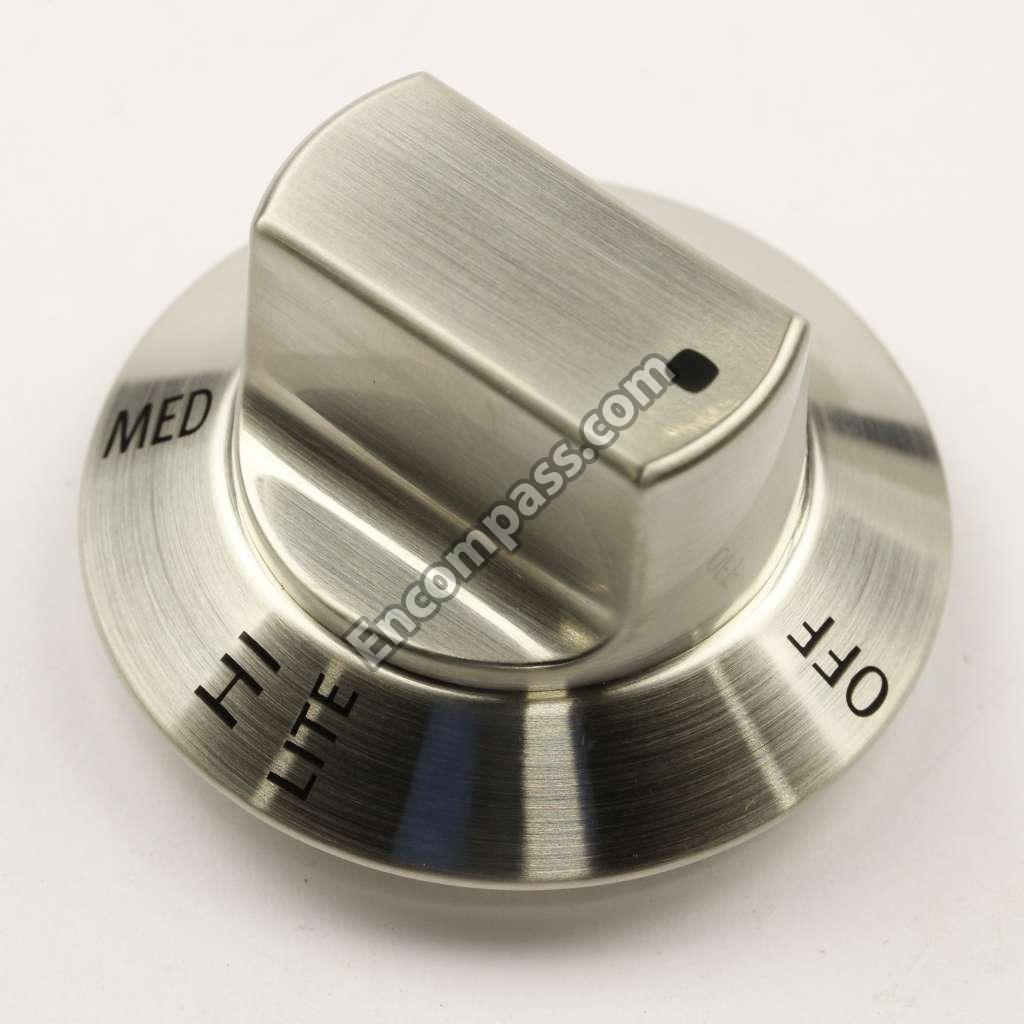

KNOB |
| 65480 | LABEL CONVERSION INFO;65480,E30DF74E |
| 85249 | LABEL,"DIELECTRIC TE |
| 85648 | LABEL,EXTRU CONTAINER,CP |
| 72427-171 | MAIN JET,1.71 MM,NG SL |
|
|
MICROSWITCH ER30G;103789,DOP36M86DAM |
| 76033 | NUT COMPRESSION;76033,E30DF74EPS |
| 83048 | NUT HEX KEPS;83048,#8-32,DCT305B/LP |
| 86937 | O RING B BURNER HEAD;86937,DTCT304GB |
| 86397 | O RING C HEAD SGM;86397,DTCT304GB/LP |
|
|
O RING D BURNER;86395,DTCT304GB/LP |
| 86936 | O-RING, ELECTRODE |
| 72765 | POWER SUPPLY CORD PGM365;72765,DCT30 |
| 85046 | REGULATOR LABEL, GGC |
| 92253 | REGULATOR NG;92253,E36GC65ESS |
| 85047 | REGULATOR TAG, GGC |
| 76116 | RING BURNER B;76116,E30DF74EPS |
| 83578 | RUBBER BUMPER SNAP IN;83578,DTCT304G |
| 83572 | SCREW PH PAN;83572,#8-32 X1/2,DCT305 |
| 83306 | SCREW PHIL TRS;83306,#8 X 3/8,DCT305 |
| 83313 | SCREW,PHIL PAN, #8 X |
| 83705 | SCREW;83705,"#8-32 X .5,PH. HD",E30D |
| 105541 | SLEEVING TUBE, FIBER |
| 13830 | SPARK MODULE ASSEMBLY |
| 82317 | SPARK MODULE, 5 POINT |
| 92101 | STAINLESS STEEL CLEANER |
| 46193 | SUPPORT BURNER;46193,DTCT304GB/LP |
| 83080 | WASHER NYLON;83080,DO130 |
| 86385 | WASHER VALVE O RING SG;86385,E30DF74 |
| 83711 | WASHER,#8X7/16 OD,3/ |
| 66653 | WIRE IGNITORS SERVICE;66653,E36GC65E |
