Model Image
Manufacturer

Dacor

Model Number

ECS136SBK

Description

Ecs136sbk - Ovens

Interactive Exploded View

Parts List

Part Number Description
82195 1 2FLEX 90 DGR CONNECTOR;82195,DO130
83340 83340 10 LOCKWASHER;83340,DHD30M967WM
80518 16GA GALVANIZED, STE
80532 18 GA 201SST #4 48"X
80517 18GA GALVANIZED, 48"
80509 18GA.VIT,52.5"X96"ST
80310 20 GA 201 SS, 36"X10
80522 20 GA 201 SS, 48"X96
80074 20 GA GALVANIZED,48"
80516 20 GA GALVANIZED;80516,"48""X96""",D
80550 20 GA,GALVANIZED STE
80508 22GA VIT STEEL 48X96;80508,DO130
80551 24 GA GALVANIZED STE
80520 24GA 201 SS #4,48X96
83308 6 32 KEPS NUT;83308,DH3006
100852 100852 ACCY SS CLEANER;100852,DCT305B/LP
27894 ASY BRACKET MALE CERAMIC;27894,ECS13
13523SBK ASY DOOR HANDLE;13523SBK,ECS136SBK
27123S ASY END CAP SST;27123S,ECD227SBK
27595 ASY EXHAUST TUBE SHIELD;27595,ECD227
27638BP ASY FRAME BRLR GLASS BLK;27638BP,ECS
27770BP ASY INNER LINER BLK PORC;27770BP,ECS
27780BP ASY OUTER LINER BLK PRC;27780BP,ECS1
27736BP ASY OVEN CELL;27736BP,ECS136SBK
27787 ASY TRIM POST LEFT;27787,ECS136SBK
27786 ASY TRIM POST RIGHT;27786,ECS136SBK
72148 ASY WINDOW PACK 1THK;72148,DO130
72430 ASY WIRE HARNESS SINGLE;72430,ECS136
27639B ASY,DOOR MTG FRAME
13616 ASY,FEMALE CERAMIC BLOCK
66837SBK_L ASY,OUTER DOOR,W/LOGO
36329 BACK COVER;36329,ECS130B
78945 BAFFLE LFT TRANSITN DUC;78945,ECD227
72347 BAKE ELEMENT;72347,ECS136SBK
83540 BALL STUD CATCH;83540,DO130
83539 BALL STUD TRIM PANEL;83539,DO130
26615 BEZEL MTG BRKT LEFT;26615,DO130
26614 BEZEL MTG BRKT RIGHT;26614,DO130
106009 BLACK PORCELAIN, DRY
106007 BLACK PORCELAIN, WET
36276 BRACKET HIGH LIMIT SWITC;36276,DO130
38230 BRACKET,INNER LINER
38382 BRACKET,RIGHT,EXH GRILL
72155-1 BROIL ELEMENT W/WIRES
72160 BROILER GLASS;72160,DYO130B
12530 BROILER PACKAGE OVENS;12530,DR30EFS
83133 BUSHING 1 2 RED CONDUI;83133,DO130
83523 BUSHING 3 8 HOLE;83523,DOP36M86DAM
83056 BUSHING HEYCO SB 875 11;83056,DH3006
83167 CABLE CLAMP CPS127;83167,DH3006
83565 CABLE TIE,NYLON,11" LONG
81086 CARTON, ACCESSORIES
36609 CASE BOTTOM;36609,ECS136SBK
36763 CASE REAR;36763,ECS136SBK
38060 CASE SIDE LEFT;38060,DO130
38061 CASE SIDE RIGHT;38061,DO130
36610 CASE TOP;36610,ECS136SBK
72361 CERAMIC INSULATOR;72361,ECS136SBK

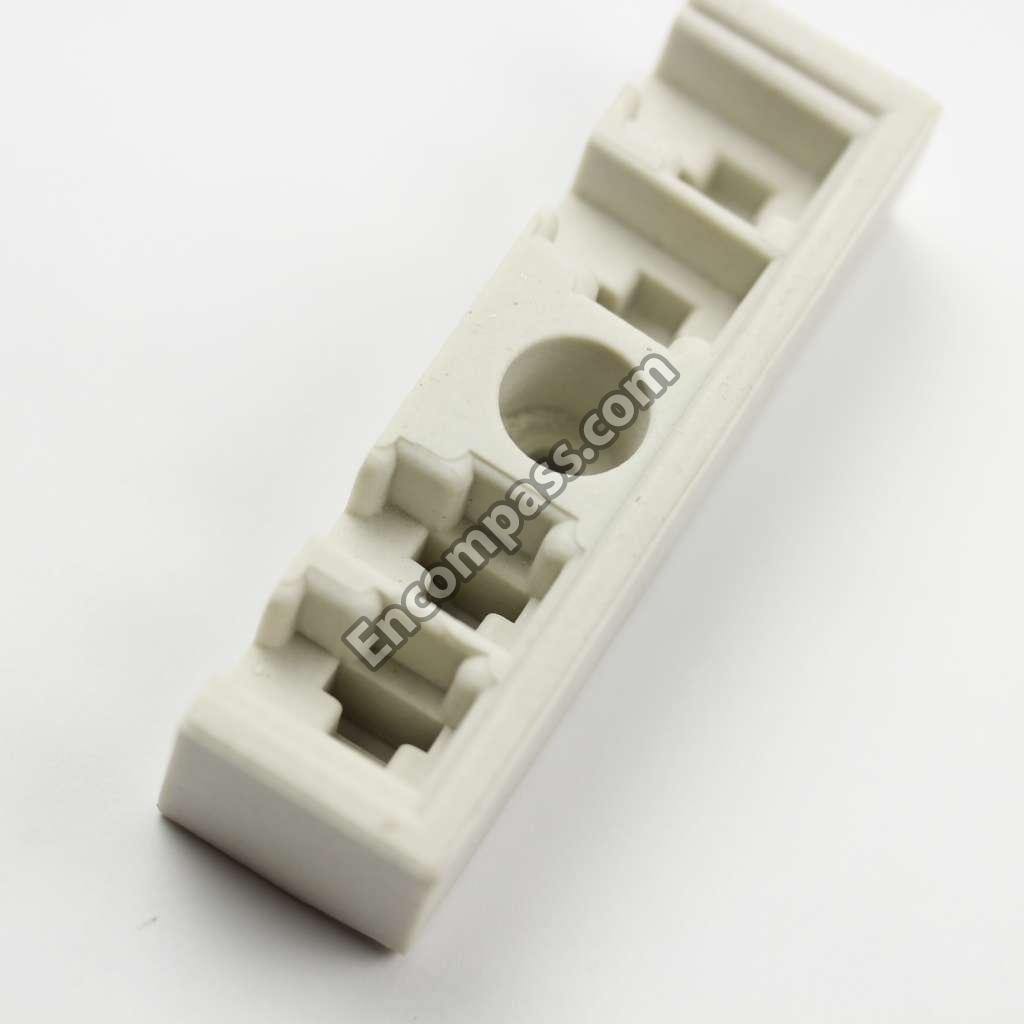

82048 82048 CERAMIC MALE BLOCK;82048,ECS136SBK

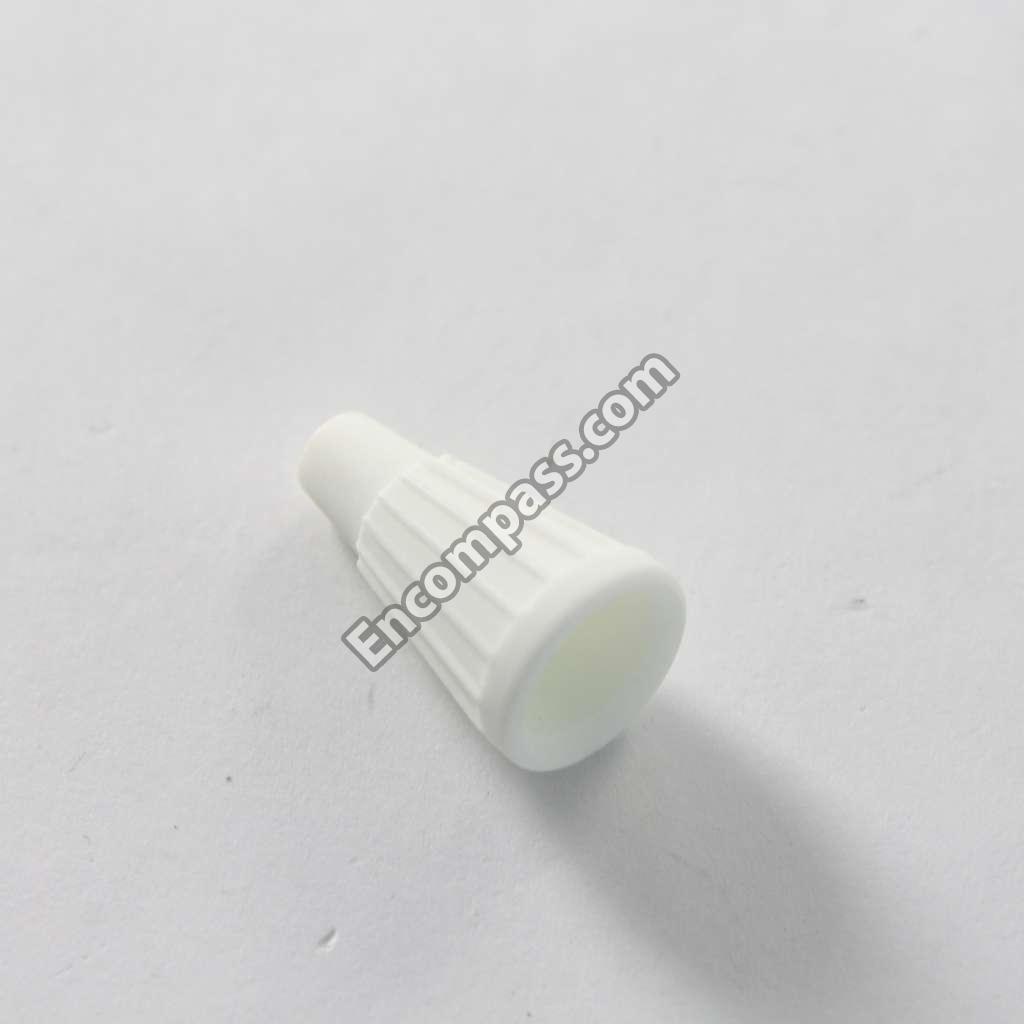

83488 83488 CERAMIC WIRE NUT;83488,ECS136SBK
83250 CLIP FEMALE CERAMIC;83250,ECS136SBK
78921 CLIP, INNER LINER
83152 COIN ENVELOPE S-6285
26420 CONDUIT 1 2 FLEX CUT 60;26420,DO130
26584 CONDUIT BRKT

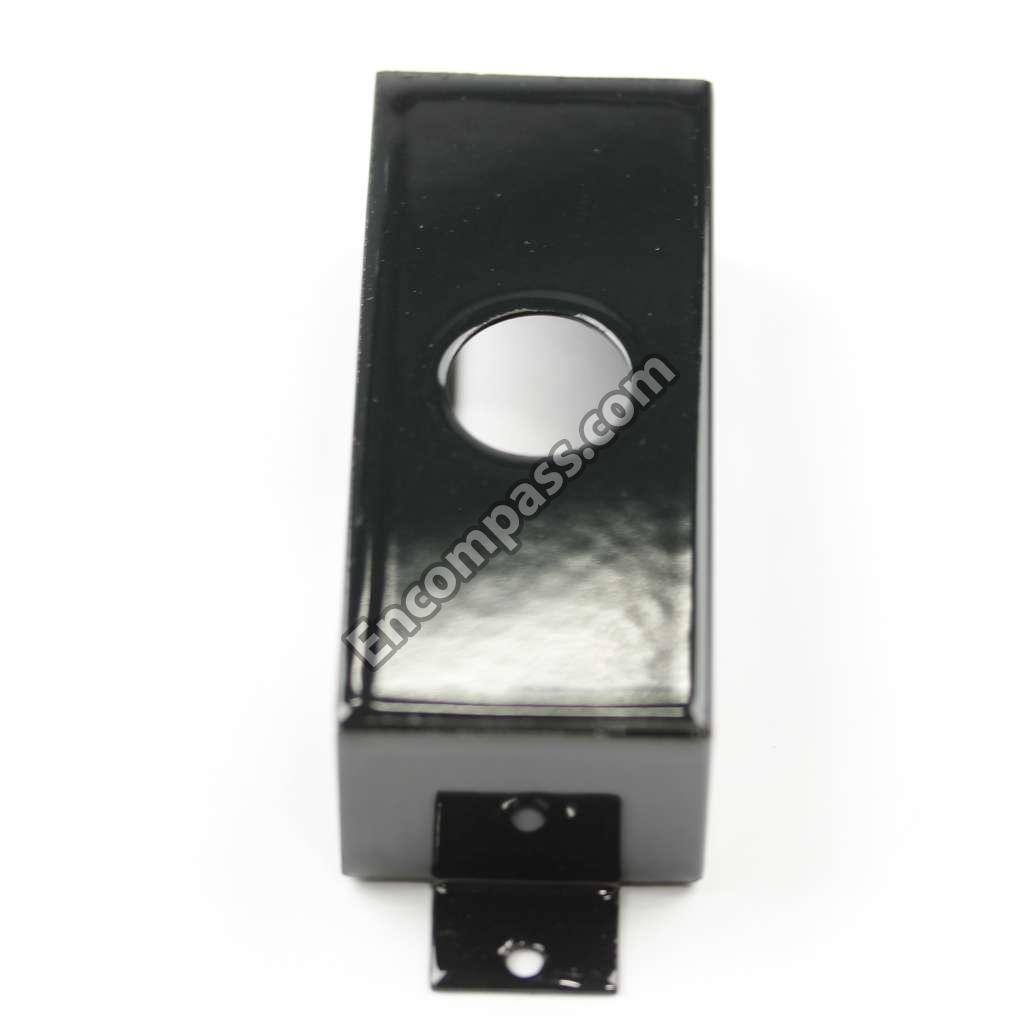

36774BP 36774BP CONNECTOR BOX BLK PORC;36774BP,ECS13
36764BP CONVECTION BAFFLE BLK PO;36764BP,ECS
82377 CONVECTION ELEMENT 240V;82377,DO130
101511 CONVECTION FAN BLADE;101511,DO130
82647 CONVECTION OVEN MOTOR;82647,DO130
82986 COOLING FAN CPO;82986,DO130
36832 COVER CASE SIDE;36832,DR30D-C/LP
36292 COVER EXH DUCT 30 SNG;36292,ECS130B
36279 COVER MEAT PROBE SOCKET;36279,DO130
72511CH DACOR LOGO LARGE;72511CH,DR30GFS/LP
72167B DOOR GLASS
72168 DOOR HANDLE
100090 DOOR LATCH,CLASSIC
36611 DOOR SKIN
62691BK END CAP EPICURE HANDLE;62691BK,ECD22
36288 EXHAUST DUCT 30 SINGLE;36288,ECS130B
36677 EXHAUST DUCT;36677,ECS136SBK
72170S EXHAUST GRILL;72170S,ECS136SBK
82240 EXHAUST TUBE
82471 FEMALE BLOCK CONTACT
83555 FIBER WASHER W ADHESIVE;83555,DO130
82891 82891 FILTER CONVECTION OVEN;82891,DO130
81533 FOAM BAG WRAP
36667 FRONT,TOP COVER
72535 GASKET DOOR;72535,ECS136SBK
62175 62175 HALOGEN LIGHT,10W,12VDC
36752 HEAT SHIELD
36622B HEAT SHIELD 30SS DOORBL;36622B,ECD23
36622 HEAT SHIELD,30"SS DOOR
102137 HEX NUT CONVECTION FAN E;102137,DO13
36833B HI LIMIT BRACKET BLK;36833B,ECD227B
62775 62775 HIGH LIMIT SWITCH 220F;62775,DO130
72428 HINGE LEFT;72428,ECS136SBK
72349 HINGE,RIGHT
81073 INNER DOOR PROTECTOR
80164 INSULATION CELL BOTTOM;80164,E30DF74
80029 INSULATION CELL REPAIR;80029,ECS136S
80161 INSULATION CELL SIDE;80161,DO130
80222 INSULATION CELL TOP;80222,ECS136SBK
80168 INSULATION CONV MTR;80168,DO130
80223 INSULATION DOOR LATCH;80223,ECS136SB
80138 INSULATION INNER LINER;80138,ECS136S
80216 INSULATION,OUTER LINER
36616 INTAKE GRILL
85136 LABEL, "MADE WITH PRIDE"
85249 LABEL,"DIELECTRIC TE
85648 LABEL,EXTRU CONTAINER,CP
36309 LIGHT COVER;36309,ECD227B
72171 MEAT PROBE RECEPT W COVE;72171,ECD22
62713 62713 MEAT PROBE;62713,ECD227B
62682B 62682B MEMBRANE SW PANEL
81070 MICROFOAM,12"X6"X.06 THK
36280 MOUNTING PLATE;36280,ERSD36S
82873 NAMEPLATE SELF CLEAN INF;82873,DO130
83009 NUT KEPS;83009,#10-24,DO130
83418 83418 NUT RETAINER;83418,DO130
83012 NUT SQUARE;83012,#8-32,ECS136SBK
62964 OVEN CONTROL,SNGL
72181 OVEN RACK;72181,ECS136SBK
83538 83538 PCB SUPPORT NYLON;83538,DHD30M967WM
82106 PORCELAIN GRILL;82106,DR30EFS
82107 PORCELAIN PAN;82107,DR30EFS
83083 PROBE, MALE
83357 PUSH NUT;83357,ECS136SBK
12157 12157 RANGE BROIL TRAY ASSY;12157,DR30EFS
36871 REAR CORNER COVER;36871,ECS136SBK
72348 72348 RECEPTACLE HINGE;72348,DR30D-C/LP
92028 92028 RELAY PCB 105C;92028,ECS127B
83652 83652 RIVET SS;83652,1/8X1/8,DH3006
83618 RUBBER BUMPER;83618,DO130
83379 SCREW HWH;83379,"#8X1/2,TYPEA",DO130
83331 SCREW PHIL FLAT;83331,#6 X 3/4,DO130
83060 SCREW PHIL FLL;83060,8-32X1/4,ECS136
83001 83001 SCREW PHIL PAN HD;83001,#8X1/4,DCT30
83042 SCREW PHIL PAN;83042,#8 X 5/8,DOP48M
83263 SCREW PHIL WAFER;83263,#8X3/8,DCT305
83007 83007 SCREW PHIL;83007,#8-32 X 1/4,DOP36M9
83023 83023 SCREW SLOT;83023,#10 X 3/8HWH,DO130
83534 83534 SCREW WAFER HD;83534,#8 X 3/8,DH3006
83571 SCREW,PHILLIPS HD #8X3/8
83026 SCREW;83026,#10 X 3/4 SLOT HWH,DO130
83420 83420 SCREW;83420,10-32 X 500,DR30D-C/LP
83499 SCREW;83499,"#10 X 1/2,PHIL BLK",DO1
83690 SCREW;83690,"#4-40X5/16,#410 S",ECD2
36318 SERVICE PANEL TOP COVER;36318,DO130
82826 SMOKE ELIMINATOR
62714 SOCKET MEAT PROBE;62714,ECD227B
83189 SPACER 138 IDX 25 OD;83189,DO130
78963 SPILL RAIL, DOOR
26606 STIFFENER BRACKET
105875 SUPPORT RACK;105875,ECS136SBK
103637 TAPE DBL SIDED 031THK;103637,DO130
83452 TAPE DBL SIDED 3M 4920;83452,E30DD75
92387 TAPE VHB DOUBLE SIDED;92387,DH3006
62593 62593 TEMPERATURE SENSOR;62593,E30DF74EPS
83037 TIE PUSH MOUNT LOCKING;83037,DH3006
72460 TINE CAP B;72460,ECS136SBK
26635 TOP COVER REAR;26635,ECD230SBK
62808 62808 TRANSFORMER HALOGEN LIGH;62808,DO130
102136 WASHER CONVECTION FAN E;102136,DO130
83665 WASHER;83665,"#10 SAE,BLK",ECS136SBK
27800 WELD SUBCHASSIS;27800,ECS136SBK
36377BP WINDOW MASK BLK PORC;36377BP,ECD227B
82445 WIRE HARNESS MAIN 27CP;82445,ECD227B
