Manufacturer
Dacor
Model Number
ECS230B
Description
Ecs230b - Ovens
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 82195 | 1 2FLEX 90 DGR CONNECTOR;82195,DO130 |
|
|
10 LOCKWASHER;83340,DHD30M967WM |
| 80518 | 16GA GALVANIZED, STE |
| 80280 | 18 GA GALVANNEALED S |
| 80517 | 18GA GALVANIZED, 48" |
| 80509 | 18GA.VIT,52.5"X96"ST |
| 80074 | 20 GA GALVANIZED,48" |
| 80516 | 20 GA GALVANIZED;80516,"48""X96""",D |
| 80275 | 20 GA GALVANNEALED S |
| 80550 | 20 GA,GALVANIZED STE |
| 80508 | 22GA VIT STEEL 48X96;80508,DO130 |
| 80551 | 24 GA GALVANIZED STE |
| 83308 | 6 32 KEPS NUT;83308,DH3006 |
| 80434 | ALUMINIZED,18 GA, 48 |
| 27599 | ASY CASE SIDE LEFT;27599,DO130 |
| 27600 | ASY CASE SIDE RIGHT;27600,DO130 |
| 27595 | ASY EXHAUST TUBE SHIELD;27595,ECD227 |
| 27728BP | ASY INNER LINER 30DOOR;27728BP,DO130 |
| 27592BP | ASY OVEN CELL 30;27592BP,ECD230SBK |
| 27117 | ASY SUB PANEL 30;27117,ECD230SBK |
| 27590 | ASY SUBCHASSIS 30 OVE;27590,ECD230SB |
| 72148 | ASY WINDOW PACK 1THK;72148,DO130 |
| 13402B | ASY, BEZEL/MEM, ECS230 |
| 62708 | ASY, WIRE HRNS,SNGL-DBL |
| 13636B | ASY,DOOR FRAME,BLACK |
| 27613B | ASY,DOOR FRAME,EC30 |
| 13407BBK | ASY,HANDLE,W/BLK END CAP |
| 36487BP | BAFFLE CONVECTION 30OVE;36487BP,ECD2 |
| 78945 | BAFFLE LFT TRANSITN DUC;78945,ECD227 |
| 26608 | BAFFLE REAR LOWER OVEN;26608,ECD227B |
|
|
BAKE ELEMENT, 30" OVEN |
| 83540 | BALL STUD CATCH;83540,DO130 |
| 83539 | BALL STUD TRIM PANEL;83539,DO130 |
| 26615 | BEZEL MTG BRKT LEFT;26615,DO130 |
| 26614 | BEZEL MTG BRKT RIGHT;26614,DO130 |
| 26269B | BEZEL SKIN BLK;26269B,ECS130B |
| 26268 | BEZEL TRIM;26268,DO130 |
| 26268B | BEZEL TRIM;26268B,BLACK,DO130 |
| 106009 | BLACK PORCELAIN, DRY |
| 106007 | BLACK PORCELAIN, WET |
| 36276 | BRACKET HIGH LIMIT SWITC;36276,DO130 |
| 38230 | BRACKET,INNER LINER |
|
|
BROIL ELEMENT 8 PASS;62723,ECD227B |
| 36509 | BROIL REFLECTOR,FLAT |
| 12530 | BROILER PACKAGE OVENS;12530,DR30EFS |
| 83133 | BUSHING 1 2 RED CONDUI;83133,DO130 |
| 83523 | BUSHING 3 8 HOLE;83523,DOP36M86DAM |
| 83056 | BUSHING HEYCO SB 875 11;83056,DH3006 |
| 83168 | CABLE CLAMP;83168,DO230 |
| 83565 | CABLE TIE,NYLON,11" LONG |
| 81086 | CARTON, ACCESSORIES |
| 36282 | CASE BACK 30 OVEN;36282,ECD230SBK |
| 26633 | CASE BOTTOM;26633,E30DF74EPS |
| 38060 | CASE SIDE LEFT;38060,DO130 |
| 38061 | CASE SIDE RIGHT;38061,DO130 |
| 78921 | CLIP, INNER LINER |
|
|
CLOSED END SPLICE 22 14G;83543,ECD22 |
| 83152 | COIN ENVELOPE S-6285 |
| 26430 | CONDUIT 1 2 FLEX CUT 66;26430,ECD227 |
| 26584 | CONDUIT BRKT |
| 82377 | CONVECTION ELEMENT 240V;82377,DO130 |
| 101511 | CONVECTION FAN BLADE;101511,DO130 |
| 82647 | CONVECTION OVEN MOTOR;82647,DO130 |
| 82986 | COOLING FAN CPO;82986,DO130 |
| 78991 | CORNER BRKT,DOOR FRM |
| 26545BP | COVER CONV MOTOR OPENING;26545BP,DO2 |
| 26547 | COVER CONV REAR LOWER;26547,DO230 |
| 36279 | COVER MEAT PROBE SOCKET;36279,DO130 |
| 72510CH | DACOR LOGO SMALL;72510CH,DCT305B/LP |
|
|
DOOR GASKET;72020,DO130 |
| 82216B | DOOR GLASS - BLK |
| 100090 | DOOR LATCH,CLASSIC |
| 36385B | DOOR VENT EC30;36385B,ECS130B |
| 62691BK | END CAP EPICURE HANDLE;62691BK,ECD22 |
|
|
EXHAUST GRILL - BLK |
| 26637 | EXHAUST PLATE;26637,ECD230SBK |
| 82240 | EXHAUST TUBE |
| 83555 | FIBER WASHER W ADHESIVE;83555,DO130 |
|
|
FILTER CONVECTION OVEN;82891,DO130 |
| 72915 | GLIDE RACK 30OVEN;72915,ECD230SBK |
|
|
HALOGEN LIGHT,10W,12VDC |
| 36620 | HEAT SHIELD 30DOOR;36620,ECD230SBK |
| 36105 | HEAT SHIELD OVEN LIGHT;36105,ECD227B |
| 102137 | HEX NUT CONVECTION FAN E;102137,DO13 |
| 36833B | HI LIMIT BRACKET BLK;36833B,ECD227B |
|
|
HIGH LIMIT SWITCH 220F;62775,DO130 |
| 82508 | HINGE EPICURE DOOR GOLD;82508,DO130 |
| 81073 | INNER DOOR PROTECTOR |
| 81238 | INSERT, DOOR HANDLE |
| 80166 | INSULATION CELL BACK 30;80166,E30DF7 |
| 80164 | INSULATION CELL BOTTOM;80164,E30DF74 |
| 80161 | INSULATION CELL SIDE;80161,DO130 |
| 80162 | INSULATION CELL TOP 30;80162,E30DF74 |
| 80168 | INSULATION CONV MTR;80168,DO130 |
| 80207 | INSULATION DOOR;80207,DO130 |
| 80213 | INSULATION,30"OUTER LINE |
| 36829B | INTAKE GRILL BLK PNT;36829B,ECD230SB |
| 85136 | LABEL, "MADE WITH PRIDE" |
| 85249 | LABEL,"DIELECTRIC TE |
| 85648 | LABEL,EXTRU CONTAINER,CP |
| 26598 | LATCH PLATE;26598,DO130 |
| 36309 | LIGHT COVER;36309,ECD227B |
| 72171 | MEAT PROBE RECEPT W COVE;72171,ECD22 |
|
|
MEAT PROBE;62713,ECD227B |
|
|

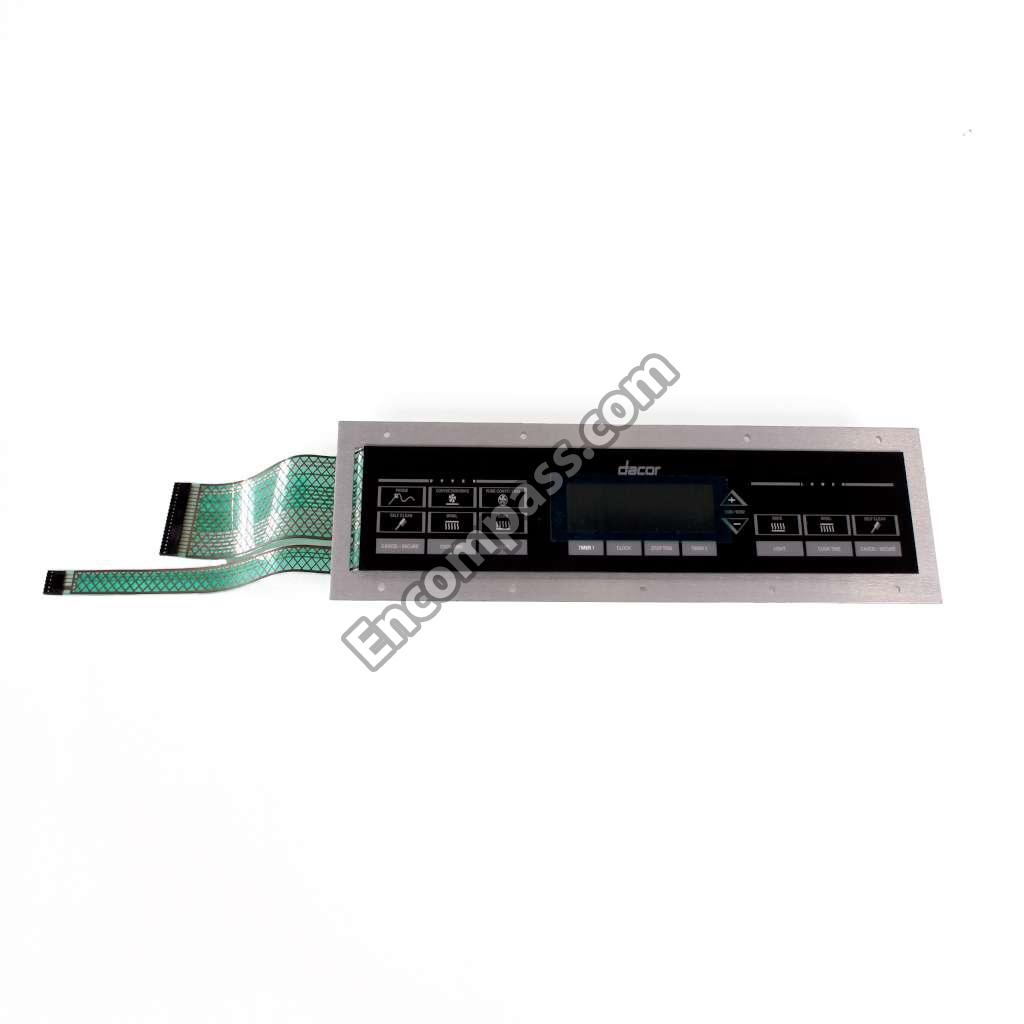

MEMBRANE SW PANEL |
| 81070 | MICROFOAM,12"X6"X.06 THK |
| 27475 | MOTOR MTG BRKT LOWER;27475,ECD227B |
| 36280 | MOUNTING PLATE;36280,ERSD36S |
| 82873 | NAMEPLATE SELF CLEAN INF;82873,DO130 |
| 83009 | NUT KEPS;83009,#10-24,DO130 |
|
|
NUT RETAINER;83418,DO130 |
| 27460BP | OUTER LINER ASY 30 BLK;27460BP,ECD23 |
| 62965 | OVEN CONTROL DBL W MEAT;62965,ECD227 |
| 62140 | OVEN RACK 30EPICURE N C;62140,ECS230 |
|
|
OVEN RACKS 30;62139,ECD230SBK |
| 36319 | OVEN SUPPORT BRACKET;36319,DO230 |
|
|
PCB SUPPORT NYLON;83538,DHD30M967WM |
| 101488 | PLUG PROBE;101488,ECD227B |
| 82106 | PORCELAIN GRILL;82106,DR30EFS |
| 82107 | PORCELAIN PAN;82107,DR30EFS |
|
|
RANGE BROIL TRAY ASSY;12157,DR30EFS |
| 82851 | RECEPTACLE,HINGE |
|
|
RELAY BOARD 105C;92029,ECD227B |
| 82985 | RELAY PCB LWR SINGLE CON;82985,ECS22 |
|
|
RIVET SS;83652,1/8X1/8,DH3006 |
| 83618 | RUBBER BUMPER;83618,DO130 |
| 83553 | SCREW HINGE SOCKET HD CP;83553,DO130 |
| 83379 | SCREW HWH;83379,"#8X1/2,TYPEA",DO130 |
| 83331 | SCREW PHIL FLAT;83331,#6 X 3/4,DO130 |
| 83042 | SCREW PHIL PAN;83042,#8 X 5/8,DOP48M |
| 83336 | SCREW PHIL PAN;83336,#8-32X1/2,DR30G |
| 83263 | SCREW PHIL WAFER;83263,#8X3/8,DCT305 |
|
|
SCREW SLOT;83023,#10 X 3/8HWH,DO130 |
|
|
SCREW WAFER HD;83534,#8 X 3/8,DH3006 |
| 83571 | SCREW,PHILLIPS HD #8X3/8 |
| 83026 | SCREW;83026,#10 X 3/4 SLOT HWH,DO130 |
| 83499 | SCREW;83499,"#10 X 1/2,PHIL BLK",DO1 |
| 83690 | SCREW;83690,"#4-40X5/16,#410 S",ECD2 |
| 36318 | SERVICE PANEL TOP COVER;36318,DO130 |
| 36617 | SIDE SHIELD LEFT;36617,DO130 |
| 36618 | SIDE SHIELD RIGHT;36618,DO130 |
| 82826 | SMOKE ELIMINATOR |
| 62714 | SOCKET MEAT PROBE;62714,ECD227B |
| 83189 | SPACER 138 IDX 25 OD;83189,DO130 |
| 78963 | SPILL RAIL, DOOR |
| 26606 | STIFFENER BRACKET |
| 82650 | SUPPORT RACK-BLK PORCLN |
| 103740 | TAPE DBL SIDE;103740,1/2WX.031,DO130 |
| 103637 | TAPE DBL SIDED 031THK;103637,DO130 |
| 83452 | TAPE DBL SIDED 3M 4920;83452,E30DD75 |
|
|
TEMPERATURE SENSOR;62593,E30DF74EPS |
| 83037 | TIE PUSH MOUNT LOCKING;83037,DH3006 |
| 36312 | TOP COVER FRONT 30;36312,ECD230SBK |
| 26635 | TOP COVER REAR;26635,ECD230SBK |
|
|
TRANSFORMER HALOGEN LIGH;62808,DO130 |
| 26489B | TRIM DOOR EDGE LEFT BLK;26489B,ECD22 |
| 26490B | TRIM DOOR EDGE RIGHT BLK;26490B,ECD2 |
| 27666B | TRIM POST RIGHT DBL BLK;27666B,DO230 |
| 27667B | TRIM POST,LFT,DBL,BLK |
| 102136 | WASHER CONVECTION FAN E;102136,DO130 |
| 36377BP | WINDOW MASK BLK PORC;36377BP,ECD227B |
| 82446 | WIRE HARNESS LWR RELAY;82446,ECD227B |
| 82445 | WIRE HARNESS MAIN 27CP;82445,ECD227B |
