Model Image
Manufacturer

Dacor

Model Number

ED24SBC

Description

Ed24sbc - Dishwashers

Interactive Exploded View

Parts List

Part Number Description
700989 24" BEZEL/MEMBRANE ASY
72326 AIR BREAK SEAL;72326,DW,ED24SCH
72073 AIR BREAK;72073,EDW3,ED24SCH

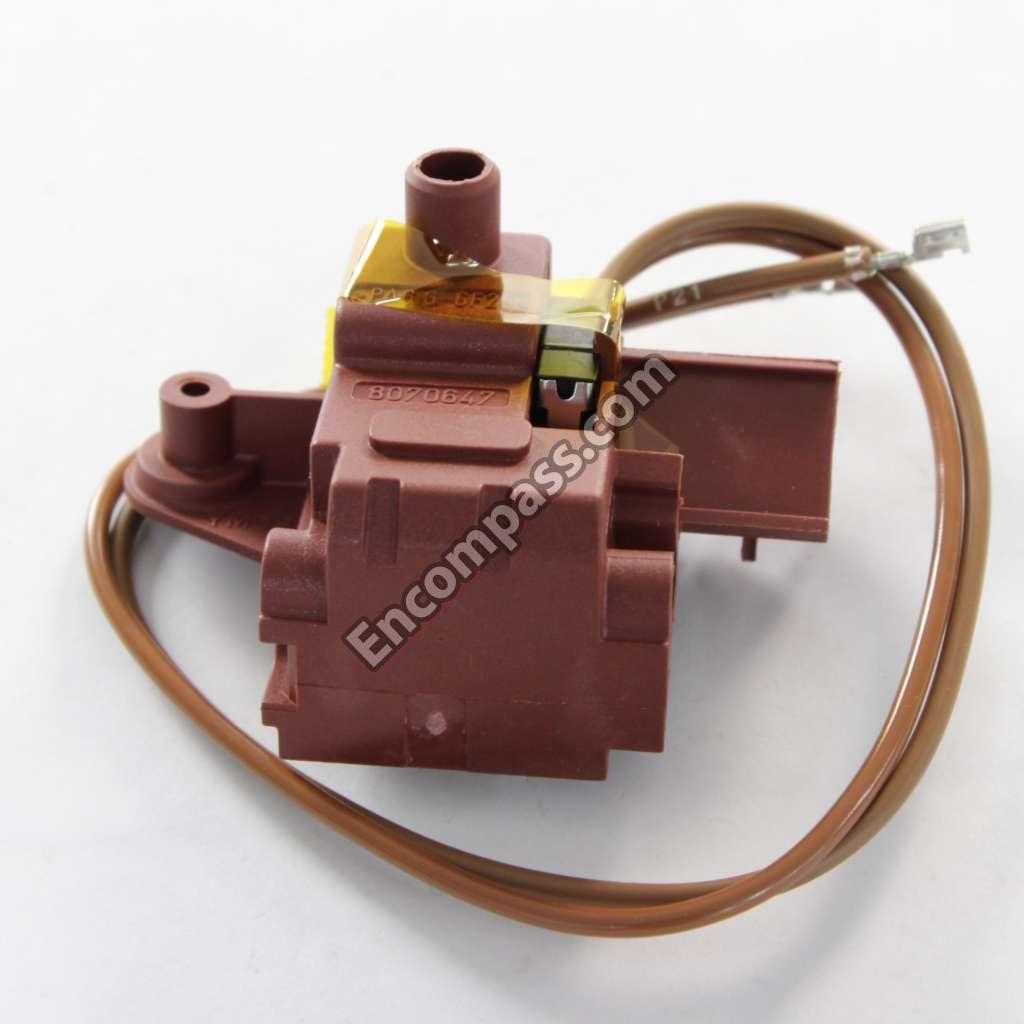

700268 700268 ASSY LATCH;700268,ED24SCH
72555 ASSY-TOP SPRAYER;72555,DW,ED24SCH
700567 ASY BEZEL;700567,"ED/ID24, 24""",ED2
92104 ASY FILTER INNER;92104,EDW/IDW24/3,E
700558SCH ASY HANDLE ED24;700558SCH,ED24SCH
700558SBC ASY HANDLE ED24SBC;700558SBC,ED24SBC
700558SBR ASY HANDLE ED24SBR;700558SBR,ED24SBC
700558SCP ASY HANDLE ED24SCP;700558SCP,ED24SBC
92106 ASY LOW WASHARM FITTING;92106,EDW/ID

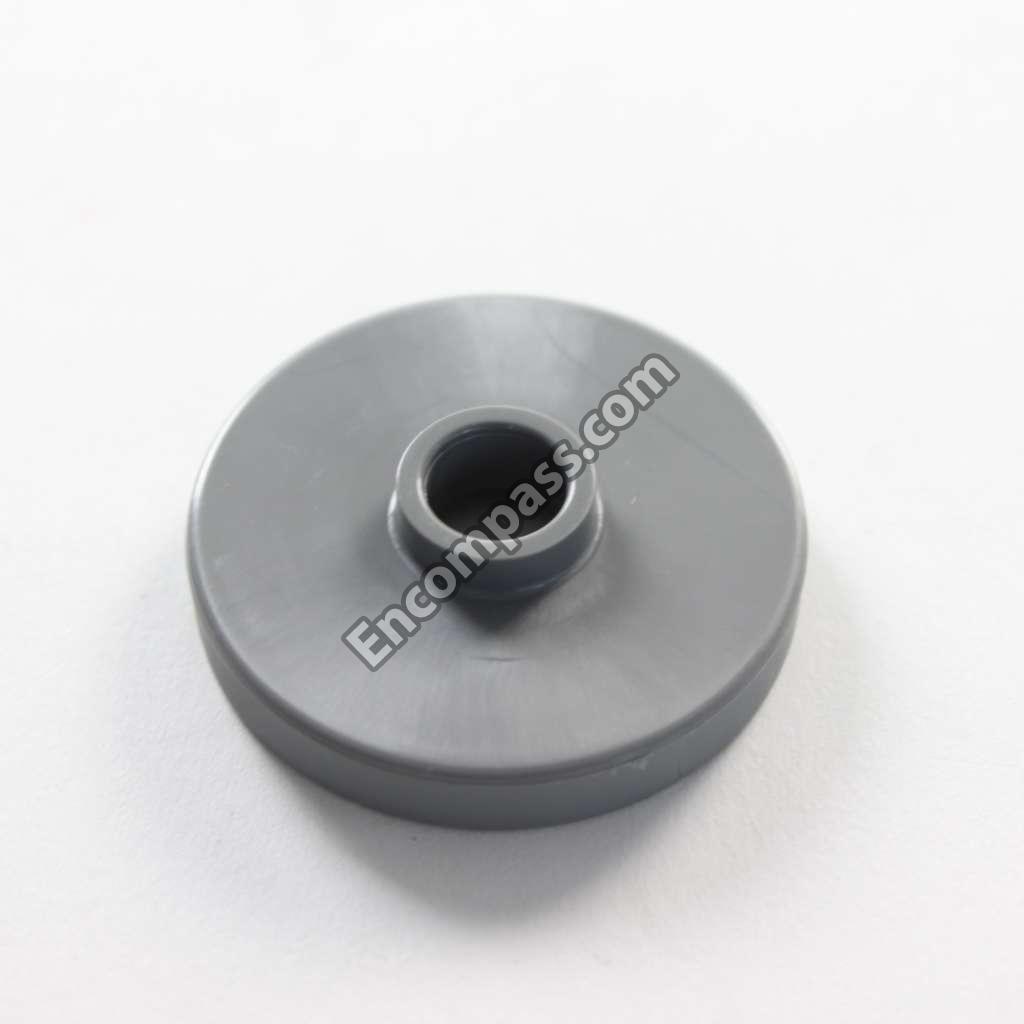

92285 92285 ASY LOWER ROLLER;92285,DW,ED24SCH
92054 ASY SPRAYARM LOWER;92054,EDW/IDW24/3
92123 ASY, ADJUST UPPER RECEPT
700621 ASY, BASE COVER PLATE
701388 ASY, BEZEL, SERVICE
106083 ASY, DOOR LINER, SERVICE
701100 ASY, DOOR SKIN W/LOGO
13763 ASY, FILTER
92090 ASY, FITTING UP SPRAYARM
106544 106544 ASY, RACK, RETROF KIT
106543-02 ASY, RACK, UPPER, 24"
72593 ASY, SILVERWARE BASKET

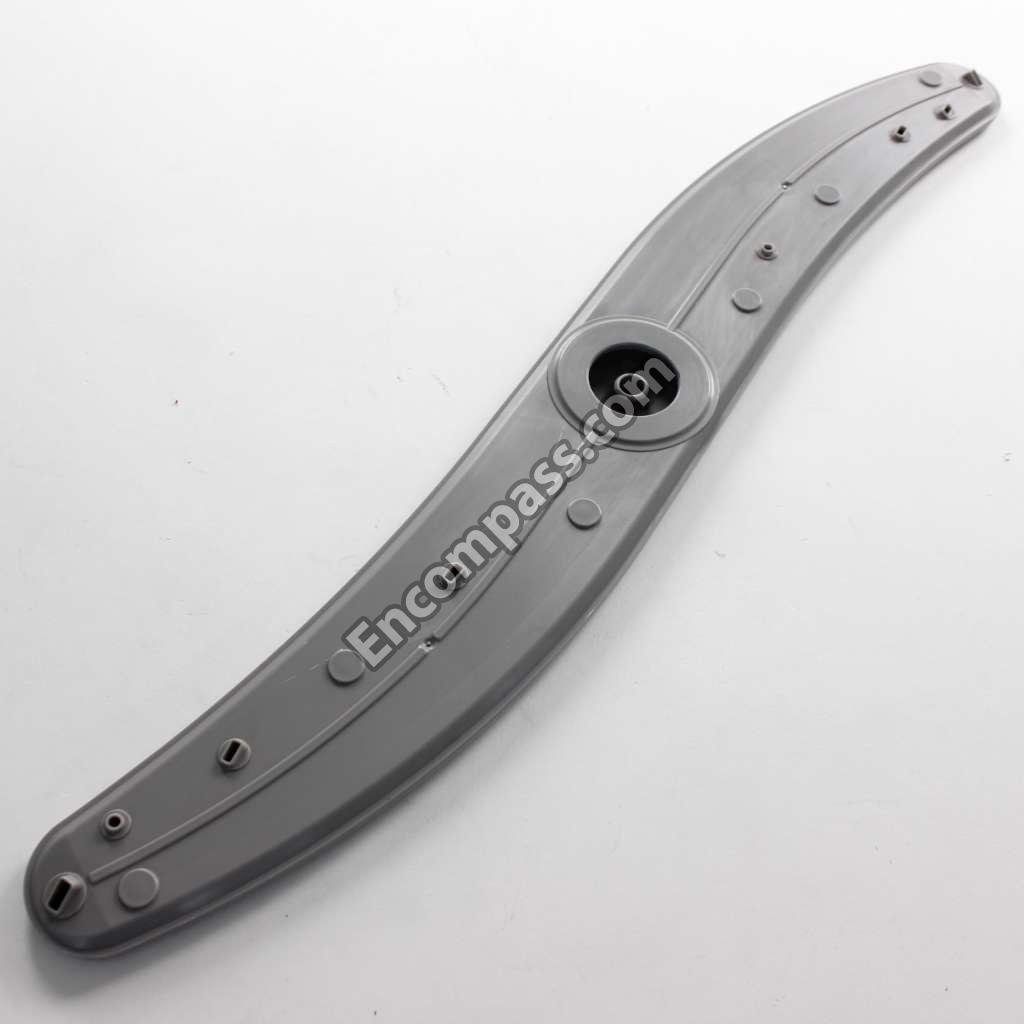

92055 92055 ASY, SPRAYARM, UPPER
101689 ASY, WIRE HARNESS, MAIN
13765 ASY,TURBIDITY SENSOR
101692 BRACKET BEZEL ED24;101692,ED24SCH
101711 BRACKET BTM DOOR SEAL;101711,ED/ID24
102030 BRACKET DP HOSE;102030,ED/ID24,ED24S
101587 BRACKET FLOW METER;101587,ED/ID24,ED
102225 BRACKET PULLEY;102225,ED/ID24,ED24SC
100941 BRACKET SUPPORT J BOX;100941,ED24,ED
46146 BRKT DISPENSER;46146,EDW/IDW,ED24SCH
102353 BRKT INLET VALVE;102353,ED/ID24/3,ED
46180 BRKT PRESSURE SWITCH;46180,DW,ED24SC
83523 BUSHING 3 8 HOLE;83523,DOP36M86DAM
101569 CABLE ASY SPRING;101569,ED24,ED24SCH
72337 CAPACITOR;72337,"DW,24""",ED24SCH
72336 CIRCULATION PUMP;72336,"DW24/3, 24/3
72086 72086 CLIP,SNAP-IN

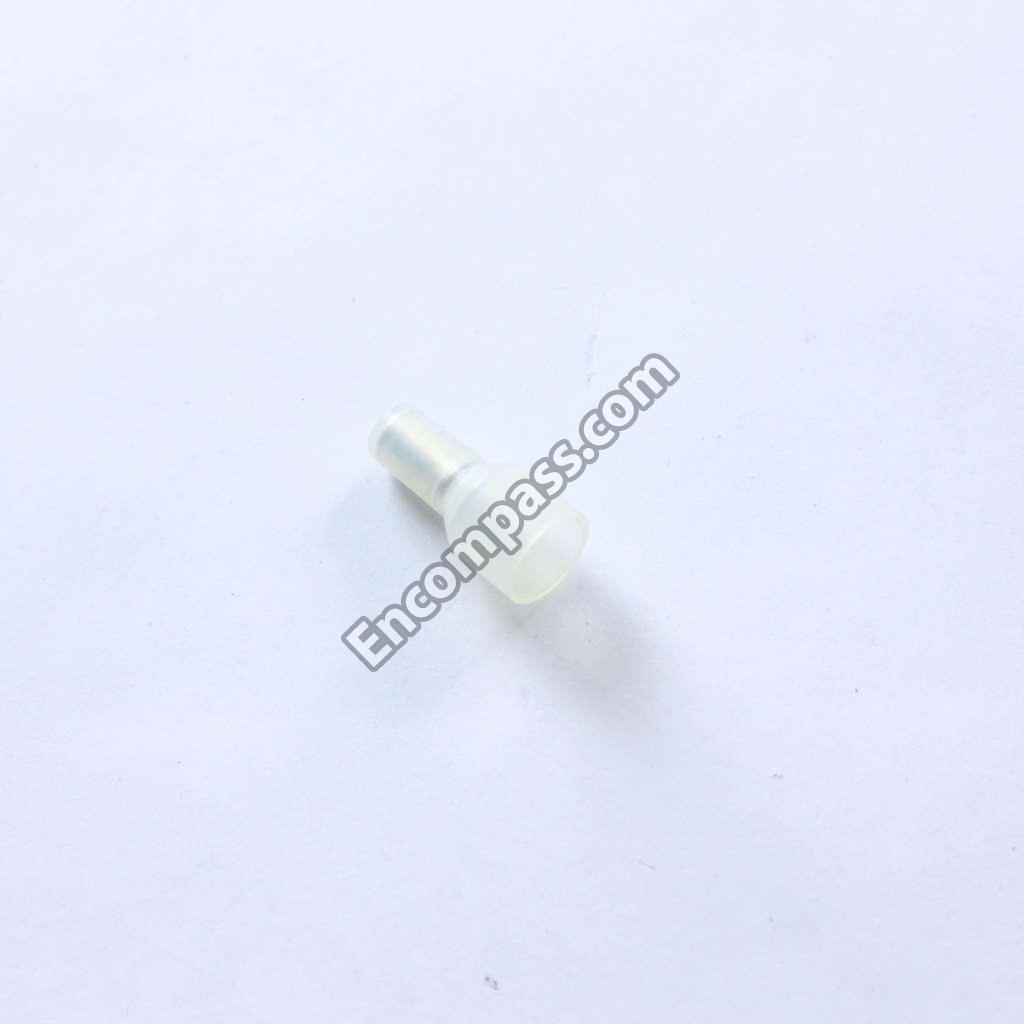

83543 83543 CLOSED END SPLICE 22 14G;83543,ECD22
106781 CONTROL BOARD
72059 COVER AIR BREAK;72059,EDW24/3,ED24SC
101548 COVER CONTROL BOARD 24;101548,ED24,E
72510CH DACOR LOGO SMALL;72510CH,DCT305B/LP
72510CP DACOR LOGO SMALL;72510CP,ECD230SCP
72510BR DACOR LOGO,SMALL
72041 DETERGENT DISPENSER;72041,EDW24/3,ED
72101 DRAIN HOSE;72101,EDW3,ED24SCH
92063 DRAIN HOSE;92063,DW,ED24SCH

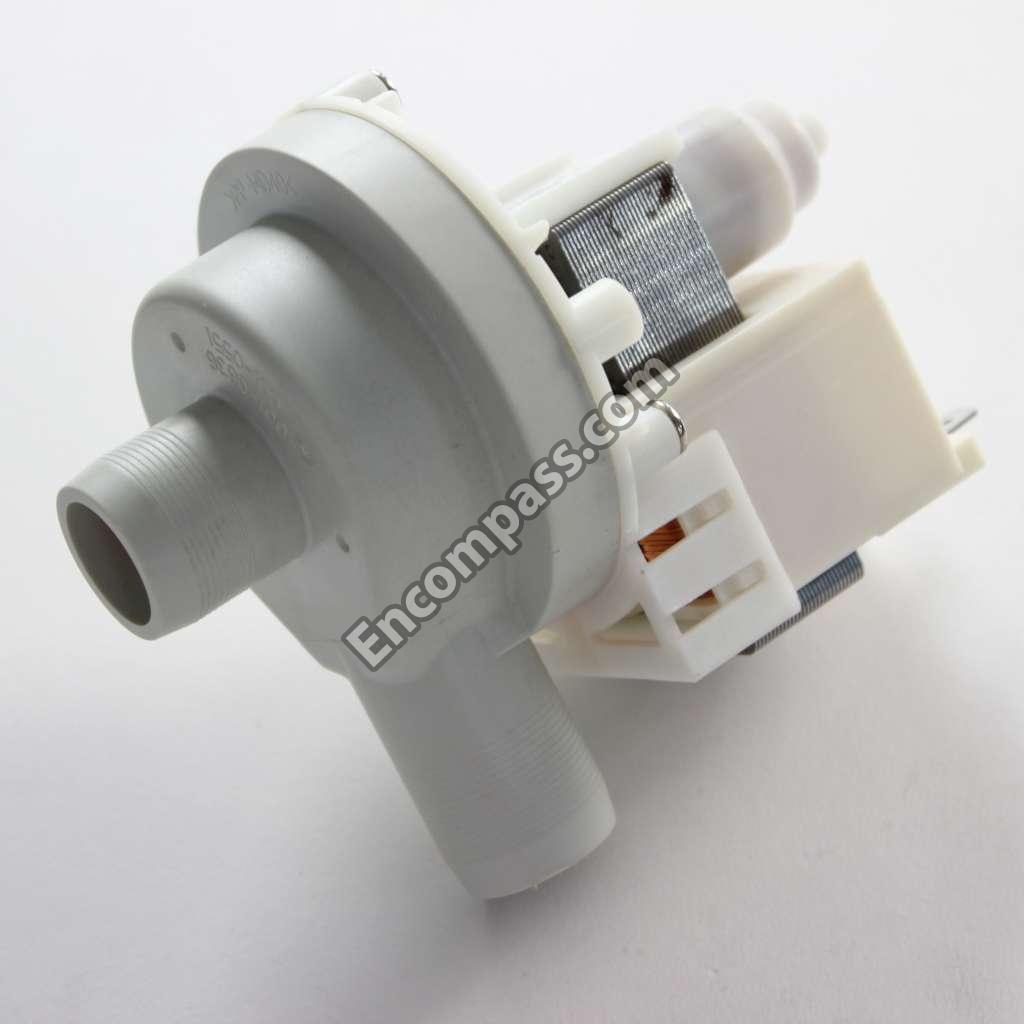

101597 101597 DRAIN PUMP;101597,ED/ID24,ED24SCH
83714 ELBOW;83714,"DW, 3/8"" X 3/8""",ED24
106896 ENDCAP BUMPER SLIDE;106896,ID24
101591B EXTENDER TOE KICK BLK;101591B,ED/ID2
101584 FLOW METER AWECO;101584,ED/ID24,ED24
102122 FOAM TOE KICK;102122,ED/ID24,ED24SCH
102495 GASKET SPACER SLIDE;102495,DW24/3,ED
72094 HEATER FLOW THROUGH;72094,EDW3,ED24S
103225 HEX NUT SLIDE;103225,"8-32,24"" DW",
72080 HOLDER,TINE-TYPE A
101713 HOSE CLAMP DBL WIR;101713,"1.33,ED/I
101708 HOSE CLAMP DBL WIRE;101708,"1.10,ED/
101714 HOSE CLAMP DBL WIRE;101714,"1.48,ED/
101716 HOSE CLAMP DBL WIRE;101716,".46,ED/I
101712 HOSE CLAMP SINGLE WIRE;101712,"1.21,
101715 HOSE CLAMP SNG WIRE;101715,"1.72,ED/
101582 HOSE FLOW METER TO AIR;101582,"BRAKE
72099 HOSE HEATER TO SUMP;72099,EDW3,ED24S
101581 HOSE INLET VLV TO FLOW;101581,"METER
72098 HOSE MAIN PUMP TO HEATER;72098,EDW3,
72473 HOSE PRESSURE SENSOR;72473,"DW 1""",
92241 HOSE, PUMP TO FITTING
101573 INLET VALVE;101573,ED/ID24,ED24SCH
72490 KEEPER DOOR LATCH;72490,DW,ED24SCH

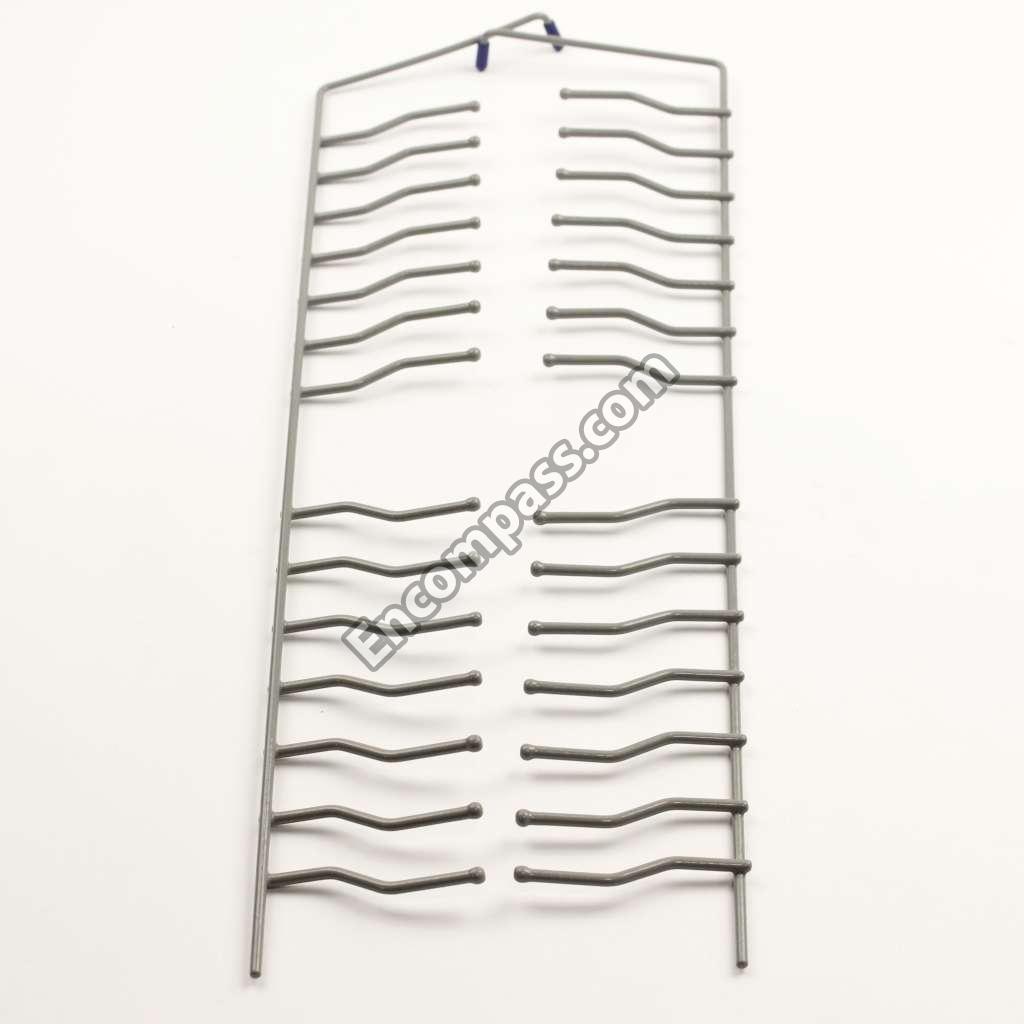

701047 701047 KIT, ADJ. TINES
101546 LEG LEVELER;101546,ED/ID24,ED24SCH
83456 LOCK NUT FRONT LEVELER;83456,IDW24,E
72066 LOCKING NUT SUMP;72066,EDW3,ED24SCH
72061 LOCKING RING AIR BREAK;72061,EDW24/3
83048 NUT HEX KEPS;83048,#8-32,DCT305B/LP
83049 NUT HEX KEPS;83049,"1/4-20,ZN",E30DD
83612 NUT KEPS SST;83612,"10-32,DW",ED24SC
83660 NUT KEPS ZINC;83660,M8-1.25 EDW/IDW2
72076 NUT LOWER WASHARM FITTIN;72076,EDW3,
83582 NUT NYLON;83582,1/4-20 DW,ED24SCH
83687 NUT,8-32 STAINLESS NYLON
92045 O RING CS;92045,1.6 ID X.63 EDW/IDW,
83595 O RING;83595,".125 X .070,DW",ED24SC
83538 83538 PCB SUPPORT NYLON;83538,DHD30M967WM
72482 PIPE,BTWN SPINNERS,7.284
103224 PLASTIC GUIDE SLIDE;103224,"24"" DW"
72978 PRESSURE SWITCH,2.5
72359 PULLEY SPRING DOOR MECH;72359,DW,ED2
101545 RACK LOWER;101545,ED/ID24,ED24SCH
103226 SCREW BTN;103226,"8-32X1/4,18-8,SOC,
102016 SCREW CS SS;102016,ED/ID24 #6-3X5/16

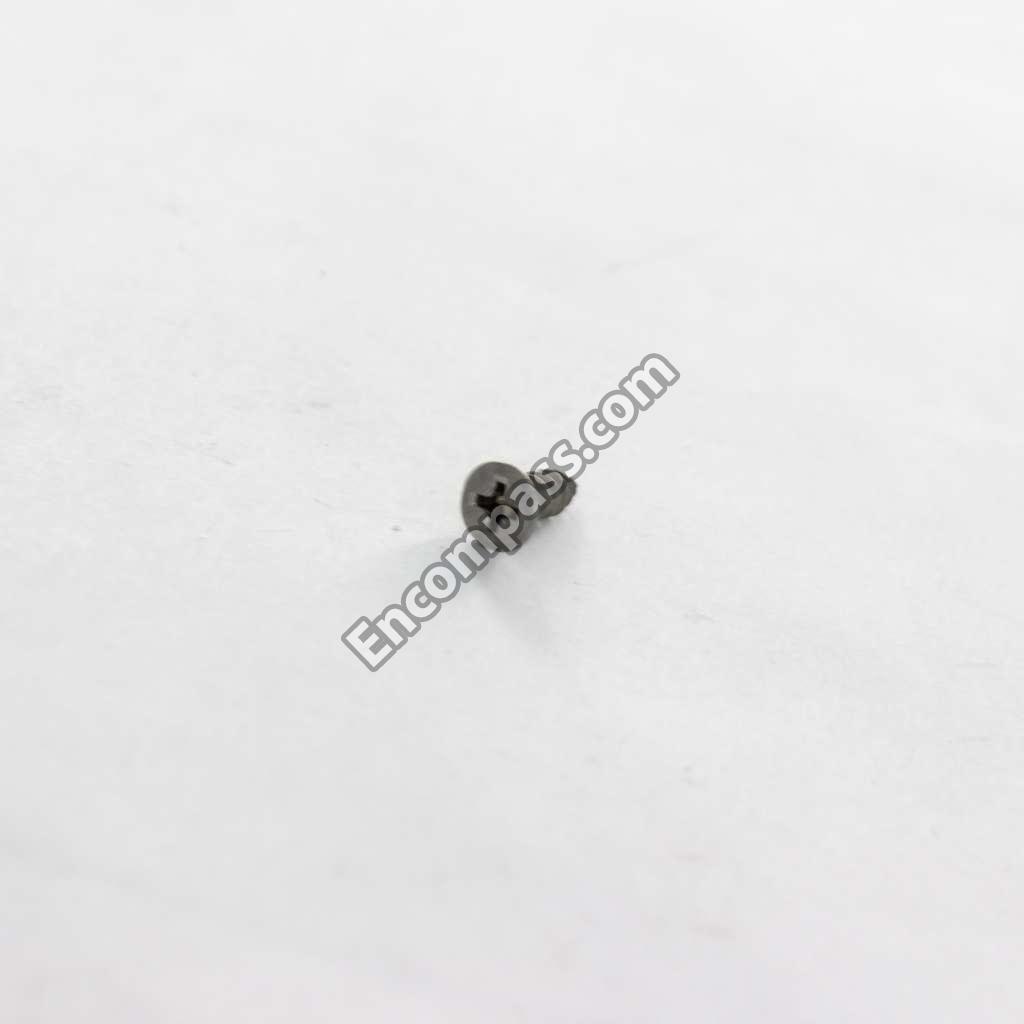

101726 101726 SCREW FLAT HD;101726,"SMS, SS, ED/ID
83653 SCREW HI LO PHIL;83653,"EDW/IDW,#8X1
83598 SCREW M6 SHAKE PROOF;83598,DW,ED24SC
83664 SCREW PAN HD TYPE;83664,"ZINK PLTD,E
83263 SCREW PHIL WAFER;83263,#8X3/8,DCT305
83627 SCREW PHL PAN HD;83627,TYPE A SST #2
101541 SCREW SHLDR;101541,"1/4-28 R/H,PHIL,
83023 83023 SCREW SLOT;83023,#10 X 3/8HWH,DO130
83609 SCREW TRS TAP T;83609,#10X3/8 ZINC P
83604 SCREW,10-32X13/8" WASHER
83341 SCREW,PHIL PAN#8-32X5/16
83571 SCREW,PHILLIPS HD #8X3/8
100462 SCREW;100462,1032 X 12,ID24
83522 SCREW;83522,"DW,#4-40 X 3/8""",ED24S
83602 SCREW;83602,"DW24/3, #6X5/16"",18-8S
102121 SEAL BOTTOM DOOR;102121,"ED/ID24, 24
72064 SEAL LOWER WASH ARM FTTG;72064,DW,ED
72051 SEAL,DOOR 24"
102141 SHIELD LOWER DOOR SEAL;102141,ED/ID2
102343-01 SLIDE, LEFT
102343-02 SLIDE, RIGHT
102320 SPRING EXTENSION;102320,MDV/MDH24,MD
101709 SPRING HOOKED END;101709,ED24,ED24SC
701106 SPRING KIT DECORATIVE PANEL;701106,I
72072 STRAINER;72072,EDW3,ED24SCH
72048 STRIKER DOOR LATCH;72048,EDW3,ED24SC
72464 SUMP GASKET
92108 SUMP;92108,DW24/3,ED24SCH
102022 SUPPORT BRACKET CIRC;102022,"PUMP, E
101518 SUPPORT DRAIN PUMP;101518,ED24,ED24S
72096 SUPPORT PUMP;72096,IDW24,ED24SCH
100374 TAPE DBL COATED 3M9786;100374,"1"" X
83240 TAPE FOAM V2510 BLK;83240,DYRP36D-C-
83701 TIE CABLE;83701,"EDW/IDW24/3,3/16X8"
72081 TINE RECEIVER,LH
72134 TINE RECEIVER,RH
100947 TRAY SILVERWARE;100947,ED24,ED24SCH
92259 VALVE SUMP CHECK;92259,DW,ED24SCH
101902 WASHER, FLAT, 3/4 X
83704 WASHER, FLAT, SPRAYARM
72367 WATER FEED TUBE
72591 WATER RECEPTACLEGROMMET
101293-1B WELD BASE SIDE RIGHT;101293-1B,"BLK,
