Manufacturer
Dacor
Model Number
EDW24B
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 83455 | 5 ACORN NUT;83455,IDW24 |
| 72326 | AIR BREAK SEAL;72326,DW,ED24SCH |
| 72073 | AIR BREAK;72073,EDW3,ED24SCH |
| 72103 | AQUA STOP-SAFETY SYSTEM |
| 66904 | ASSY-BEZEL MEMBRANE;66904,IDW24 |
| 13512 | ASSY-BEZEL;13512,IDW24 |
| 72141 | ASSY-LOWER RECEPT;72141,IDW24 |
| 72556 | ASSY-LOWER ROLLER;72556,IDW24 |
| 106543-02 | ASY, RACK, UPPER, 24" |
| 72593 | ASY, SILVERWARE BASKET |
| 13520 | ASY,LOWER RACK, 24" |
| 36876 | BACK COVER;36876,IDW24 |
| 83540 | BALL STUD CATCH;83540,DO130 |
| 83539 | BALL STUD TRIM PANEL;83539,DO130 |
| 36586 | BASE COVER PLATE;36586,IDW24 |
| 38318 | BASE PAN;38318,IDW24 |
| 13589 | BASE TOE KICK;13589,IDW24 |
| 36588 | BASE WRAP;36588,IDW24 |
| 72144 | BASKET SILVERWARE;72144,IDW24,ED24SC |
| 72074 | BEARING LOWER SPINNER;72074,IDW24 |
| 83581 | BOLT;83581,"DW,5/16 X 1/2""",ED30SCH |
| 38321 | BRACKET ACTUATOR;38321,IDW24 |
| 66901 | BRACKET DISPENSER;66901,IDW24 |
| 36769 | BRACKET HINGE LEFT;36769,IDW24 |
| 36841 | BRACKET HINGE RIGHT;36841,IDW24 |
| 36978 | BRACKET POWER CORD;36978,IDW24 |
| 36855 | BRACKET,DOOR SEAL MTG |
| 72047 | CABLE MEMBRANE;72047,IDW24 |
| 36759 | CAPACITOR MOUNTING BRACKET;36759,IDW |
| 72337 | CAPACITOR;72337,"DW,24""",ED24SCH |
| 36817 | CIRCULATION PUMP MOUNTING PLATE;3681 |
| 72336 | CIRCULATION PUMP;72336,"DW24/3, 24/3 |
| 83457 | CLAMP;83457,"1.0-2.0 X .62,DW24/3",E |
| 83605 | CLAMP;83605,".75-1.75 X .62,DW24/3", |
| 83436 | CLIP J TYPE;83436,EHD3009SBK |
|
|
CLIP,SNAP-IN |
| 72483 | CONTROL BOARD;72483,"24""",IDW24 |
| 72044 | COVER FAN;72044,IDW24 |
| 72115 | COVER SILVERWARE BASKET;72115,EDW3,E |
| 72041 | DETERGENT DISPENSER;72041,EDW24/3,ED |
| 72056 | DOOR LATCH;72056,DW3,ED24SCH |
| 36583 | DOOR LINER;36583,IDW24 |
| 72101 | DRAIN HOSE;72101,EDW3,ED24SCH |
| 72055 | DUCT FAN CONDENSATION TUBE;72055,IDW |
| 72085 | ELBOW;72085,IDW24 |
| 72042 | FAN DRYING;72042,IDW24 |
| 72135 | FILTER INNER ASSEMBLY;72135,IDW24 |
| 72363 | FITTING FLOORGUARD;72363,IDW24 |
| 72660 | FITTING INLET;72660,IDW24 |
| 81550 | FOAM BASE COVER;81550,IDW24 |
| 72558 | GASKET TOP FILTER;72558,IDW24 |
| 72094 | HEATER FLOW THROUGH;72094,EDW3,ED24S |
| 36578 | HINGE LEFT;36578,IDW24 |
| 36579 | HINGE RIGHT;36579,IDW24 |
| 72080 | HOLDER,TINE-TYPE A |
| 72590 | HOSE BRAISED;72590,IDW24 |
| 62268 | HOSE CLAMP 1 14;62268,ERSD30S |
| 72099 | HOSE HEATER TO SUMP;72099,EDW3,ED24S |
| 72106 | HOSE INLET VALVE AIR BR;72106,EDW3,E |
| 72098 | HOSE MAIN PUMP TO HEATER;72098,EDW3, |
| 72465 | HOSE MAIN PUMP TO WASH ARM;72465,IDW |
| 72472 | HOSE PRESSURE SENSOR 13;72472,IDW24 |
| 72473 | HOSE PRESSURE SENSOR;72473,"DW 1""", |
| 72102 | HOSE SUMP TO DRAIN;72102,IDW24 |
| 36598 | INLET VALVE BRACKET;36598,IDW24 |
| 72104 | INLET VALVE S53;72104,IDW24 |
| 72490 | KEEPER DOOR LATCH;72490,DW,ED24SCH |
| 36777 | KICK PANEL MOUNTING PLATE;36777,IDW2 |
| 65338 | LABEL ADJ ROD;65338,DW,ED30SCH |
| 72487 | LED;72487,DW,ED30SCH |
| 72109 | LEVELER FRONT;72109,DW24/3,ED30SCH |
| 72110 | LEVELER REAR;72110,EDW3,ED30SCH |
| 83456 | LOCK NUT FRONT LEVELER;83456,IDW24,E |
| 72066 | LOCKING NUT SUMP;72066,EDW3,ED24SCH |
| 72061 | LOCKING RING AIR BREAK;72061,EDW24/3 |
| 72043 | LOCKING RING FAN;72043,IDW24 |
| 72503 | LOWER WASH ARM ASSEMBLY FITTING;7250 |
| 36604 | LOWER WASH ARM ASSEMBLY;36604,IDW24 |
| 36914 | MICROSWITCH BRACKET;36914,IDW24 |
| 72114 | MICROSWITCH;72114,IDW24 |
| 36894 | MTG PLATE CONTROL BOARD;36894,DW,ED3 |
| 72076 | NUT LOWER WASHARM FITTIN;72076,EDW3, |
|
|
PCB SUPPORT NYLON;83538,DHD30M967WM |
| 72071 | PERFORATED FILTER;72071,IDW24 |
| 72137 | PIN BEARING;72137,IDW24 |
| 72087 | PIN HOLDER FRONT;72087,IDW24 |
| 72088 | PIN HOLDER REAR;72088,IDW24 |
| 72664 | PIPE LOWER SPRAY ARM;72664,7.284,IDW |
| 72344 | PNEUMATIC ACTUATOR FLOOR;72344,IDW24 |
| 72038 | POST AXIS HINGE;72038,IDW24/3,ED30SC |
| 36893 | POWER BOARD MOUNTING PLATE;36893,IDW |
| 72486 | POWER BOARD;72486,EDW24SCP |
| 72129 | POWER SUPPLY CORD;72129,"W/3 LOOPS, |
| 72459 | PRESSURE SENSOR BOX;72459,IDW24 |
| 72738 | PRESSURE SWITCH;72738,IDW24 |
| 13606 | PULLEY CABLE ASY;13606,DW,ED30SCH |
| 72039 | PULLEY SPRING DOOR MECH;72039,IDW24 |
| 72359 | PULLEY SPRING DOOR MECH;72359,DW,ED2 |
|
|
PUMP DRAIN;72113,IDW24,ED30SCH |
| 72111 | REAR LEVELER ADJUSTMENT ROD;72111,ID |
| 86603 | SCREW WASHER HEAD;86603,8 X 38,IDW24 |
| 83587 | SCREW,1/4-20X2" PHIL PAN |
| 83604 | SCREW,10-32X13/8" WASHER |
| 83571 | SCREW,PHILLIPS HD #8X3/8 |
| 83588 | SCREW;83588,1420 X 58,IDW24 |
| 72317 | SEAL BOTTOM DOOR;72317,"24""",IDW24 |
| 72064 | SEAL LOWER WASH ARM FTTG;72064,DW,ED |
| 72327 | SEAL SLIDE MOUNTING;72327,IDW24 |
| 72051 | SEAL,DOOR 24" |
| 83585 | SHOULDER BOLT;83585,"ALLOY STEEL,5/1 |
| 72557 | SLIDE BUMPER;72557,IDW24 |
| 66639 | SLIDE MOUNTING BRACKET;66639,IDW24 |
| 81478 | SOUND INSUL L;81478,"DW24,24""",ED24 |
| 81552 | SOUND INSUL U;81552,"DW24,24""",ED24 |
| 81540 | SOUND INSULATION BASE COVER;81540,ID |
| 81555 | SOUND INSULATION BASE LEFT;81555,IDW |
| 81556 | SOUND INSULATION BASE RIGHT;81556,ID |
| 81557 | SOUND INSULATION DOOR LINER;81557,ID |
| 81512 | SOUND INSULATION;81512,IDW24 |
|
|

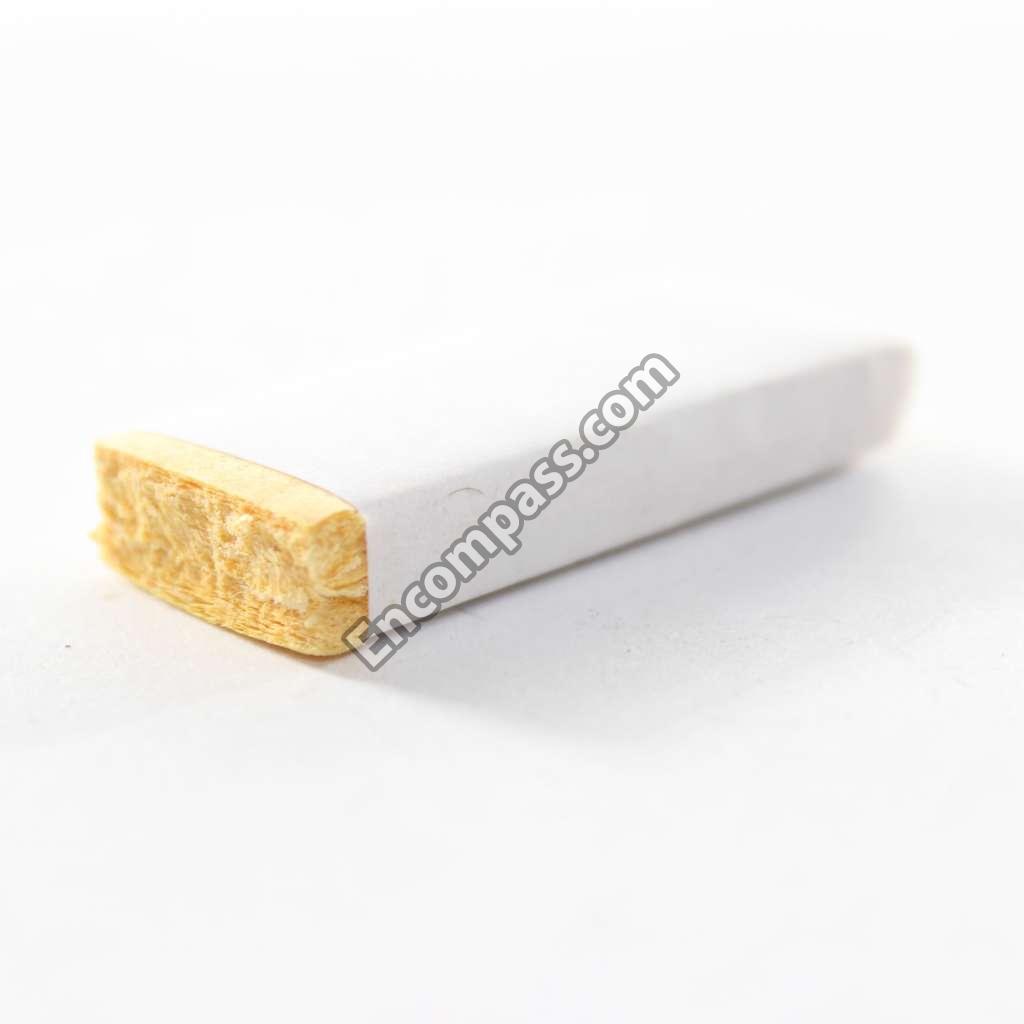

SPONGE FLTR GRD ELEMENT;66848,IDW24 |
| 83454 | SPRAY ARM WASHER;83454,IDW24 |
| 72492 | STANDOFF;72492,"4-4 TAP,DW24/3,3/16X |
| 72072 | STRAINER;72072,EDW3,ED24SCH |
| 72464 | SUMP GASKET |
| 72065 | SUMP;72065,IDW24 |
| 72096 | SUPPORT PUMP;72096,IDW24,ED24SCH |
| 36761 | TANK MOUNTING BRACKET;36761,IDW24 |
| 72108 | TERMINAL BLOCK;72108,IDW24 |
| 81559 | THERMAL INSULATION LOWER;81559,IDW24 |
| 81561 | THERMAL INSULATION U 2;81561,DW24,ED |
| 72081 | TINE RECEIVER,LH |
| 72134 | TINE RECEIVER,RH |
| 36847 | TOE KICK;36847,IDW24 |
| 72351 | TOP SPRAY BASE;72351,DW24/3,ED24SCH |
| 72352 | TOP SPRAY SPINNER;72352,DW24/3,ED24S |
| 83606 | TUBE CLIP 3 16 TINNERMAN;83606,DW,ED |
| 62715 | TURBIDITY SENSOR;62715,IDW24 |
| 72367 | WATER FEED TUBE |
| 72591 | WATER RECEPTACLEGROMMET |
| 72540 | WATER SPINNER LOWER RIGHT HAND;72540 |
| 72541 | WATER SPINNER LOWER RIGHT HAND;72541 |
