Manufacturer
Dacor
Model Number
EGR30
Description
Range
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 27646 | AIR BAFFLE ASSEMBLY |
| 27728BP | ASSEMBLY, INNER LINER |
| 36907 | BACK COVER |
| 36922 | BACK COVER BKT |
| 13468 | BACKSPLASH ASSEMBLY |
| 26217 | BAKE BURNER HOOD BKT |
| 72600 | BAKE ORIFICE FITTING LP |
| 72599 | BAKE ORIFICE FITTING NG |
| 72586 | BAKE TUBE 3/8-INCHES |
| 26239 | BASE BACK COVER |
| 27048 | BASE STIFFENER ASSEMBLY |
| 27820 | BASE WELD |
|
|
BRASS NUT |
| 72588 | BROIL TUBE |
| 82107 | BROILER PAN |
| 36530 | BULL NOSE |
|
|
BURNER BASE |
| 62954 | BURNER HEAD |
| 82564 | BURNER RING SET |
| 62424 | BURNER TUBE, , LP/HA |
| 62416 | BURNER TUBE, FRONT, LP/SL |
|
|
BURNER TUBE, FRONT, NG |
| 62674 | BURNER TUBE, FRONT, NG/HA |
| 62423 | BURNER TUBE, LR, LP/HA |
| 62415 | BURNER TUBE, LR, LP/SL |
|
|
BURNER TUBE, LR, NG |
| 62673 | BURNER TUBE, LR, NG/HA |
| 62418 | BURNER TUBE, RR, LP |
| 62646 | BURNER TUBE, RR, NG |
| 62675 | BURNER TUBE, RR, NG/HA |
| 26533 | CASE BOTTOM |
| 26127 | CASE BOTTOM COVER |
| 27575 | CASE SIDE ASSEMBLY. |
| 27574 | CASE SIDE ASSEMBLY. |
| 36903 | CASE TOP FRONT |
| 36904 | CASE TOP REAR |
| 26536 | CELL BOTTOM BKT |
| 36897 | CHASSIS |
| 36474 | CHASSIS BOX |
| 36415 | CHASSIS BOX COVER |
| 66894 | CONTROL PANEL AND SUB-PANEL ASSEMBLY |
| 36280 | CONV. MOTOR MOUNTING PLATE |
| 36951BP | CONVECTION BAFFLE |
| 36539BP | CONVECTION BAFFLE TOP |
|
|
CONVECTION FILTER |
| 80168 | CONVECTION MOTOR INSULATION |
| 82647 | CONVECTION OVEN MOTOR |
| 36921 | COOLING FAN BKT |
| 36917 | COVER ERC WIRES |
| 86565 | D VALVE LP/HA |
| 86566 | D VALVE LP/HA |
| 86564 | D VALVE LP/HA |
| 86559 | D VALVE LP/SL |
|
|
D VALVE LP/SL |
| 86558 | D VALVE LP/SL |
| 86967 | D VALVE NG/HA |
| 86966 | D VALVE NG/HA |
| 86965 | D VALVE NG/HA |
| 86963 | D VALVE NG/SL |
| 86962 | D VALVE NG/SL |
| 86961 | D VALVE NG/SL |
|
|
DGRATE SUPPORT PAD |
| 83618 | DOOR BUMPER |
| 86166 | DOOR DOOR LATCH ASSEMBLY |
| 26371 | DOOR EDGE TRIM |
| 26370 | DOOR EDGE TRIM |
| 27613B | DOOR FRAME |
|
|
DOOR GASKET |
| 62209 | DOOR HANDLE |
| 36956B | DOOR HEAT SHIELD |
|
|
DOOR HINGES |
| 26598 | DOOR LATCH PLATE |
| 66092 | DOOR SKIN |
| 36338 | DOOR VENT |
| 62691BK | END CAP HANDLE, BLACK |
| 62691BR | END CAP HANDLE, BRASS |
| 62691CH | END CAP HANDLE, CHROME |
| 62691CP | END CAP HANDLE, COPPER |
| 62712BK | END CAP, BLACK |
| 62712BR | END CAP, BRASS |
| 62712CH | END CAP, CHROME |
| 62712CP | END CAP, COPPER |
| 83058 | EPDM RUBBER GROMMET |
| 36911 | EXHAUST DUCT BACK |
| 36865 | EXHAUST PLATE |
| 82651 | FAN BLADE, CONVECTION MOTOR |
| 36900 | FLUE DUCT SEAL BKT. |
| 36899 | FLUE DUCT SHIELD |
| 62834 | GAS REGULATOR 3/4-INCHES |
| 72434SB | GRATE PACK 14 INCH |
| 36255 | HALOGEN LIGHT COVER |
| 72585 | HARNESS ASSEMBLY |
| 36445 | HEAT SHIELD BURNER |
|
|
HI LIMIT - AUTO RESET |
| 36275 | HI LIMIT BRKT |
| 82851 | HINGE RECEPTICLE |
| 82473 | HOT SURFACE IGNITER |
|
|
IGNITER ASSEMBLY |
| 36166 | IGNITER BRACKET |
| 36286 | IGNITER MOUNTING KIT |
| 36285BP | IGNITER MOUNTING SHIELD |
| 83278 | IGNITER WIRES SEAL |
| 36391BP | IGNITER WIRES SHIELD |
| 62036 | INDICATOR LITE, BLUE NEON |
| 12422 | INFRARED BURNER |
| 80207 | INNER LINER INSULATION |
| 80166 | INSULATION CELL BACK |
| 80177 | INSULATION CELL BOTTOM |
| 80161 | INSULATION CELL SIDE |
| 80094 | INSULATION CELL TOP |
| 80180 | INSULATION CELL TOP SIDE |
| 80169 | INSULATION CELL TOP-1 |
| 80095 | INSULATION VENTURI |
| 80179 | INSULATION, VENT RISER |
| 36901 | INTAKE GRILL |
| 62719 | IR ORIFICE FITTING LP, LP-HA |
| 62718 | IR ORIFICE FITTING NG, NG-HA |
| 36540 | IR-AIR ASSISTANT BOX |
| 36426 | ISLAND TRIM |
| 36910 | KICK PANEL |
| 26477B | KICK PANEL BKT |
| 36918 | KICK PANEL LINER |
| 36679BP | KICK PANEL SHIELD |
| 26183 | KICK PANEL SUPPORT |
| 62021B | KNOB |
|
|
LEVELER |
| 36908 | LH TRIM POST |
|
|

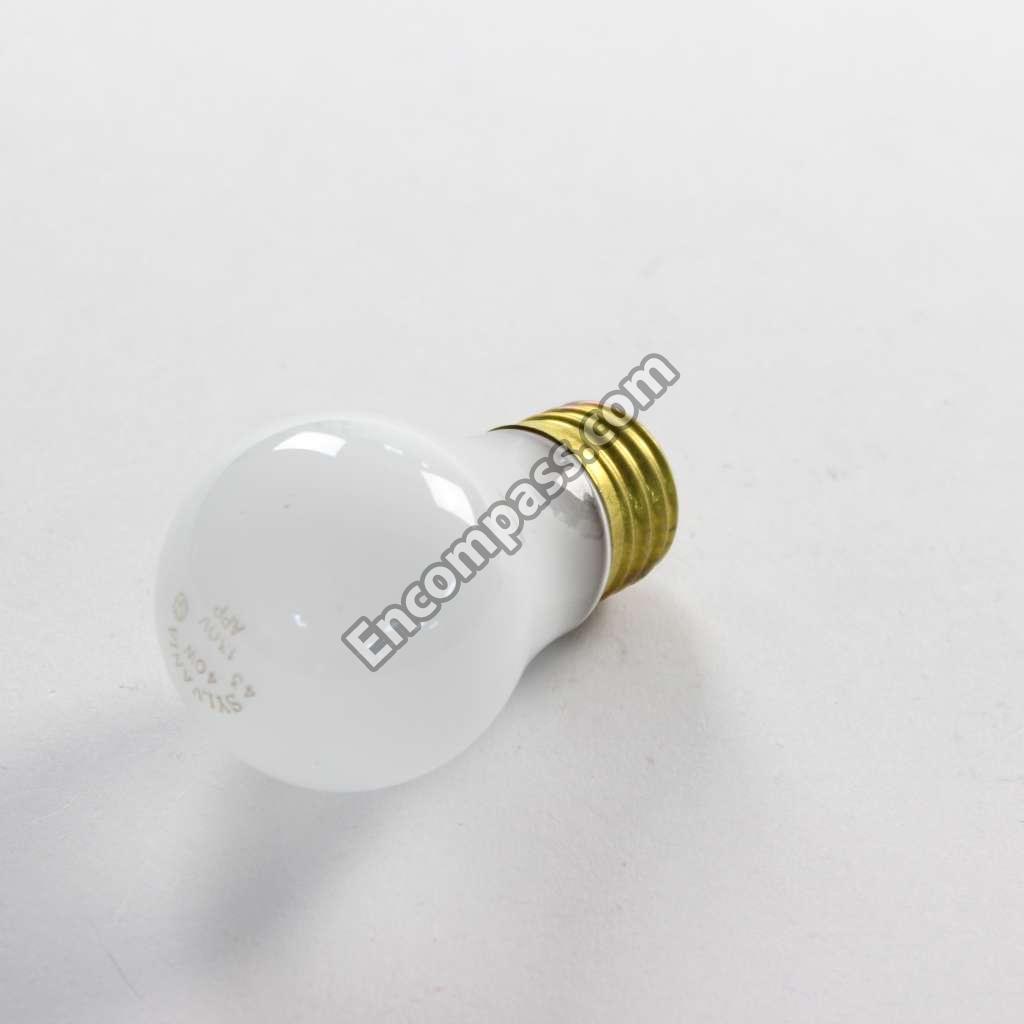

LIGHT BULB |
|
|

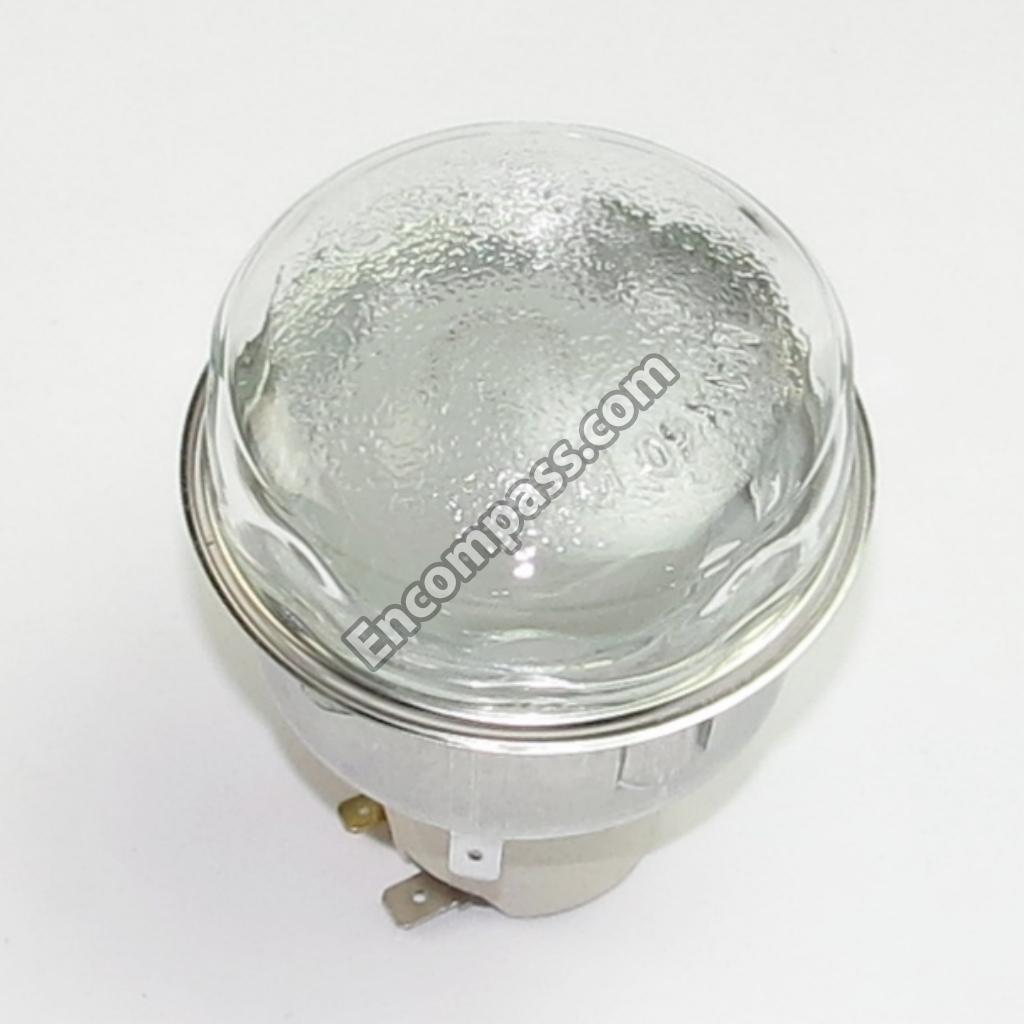

LIGHT SERVICE KIT |
| 83440 | LOCKNUT |
|
|
LOWER EXHAUST GRILL |
| 72589 | MAIN GAS INLET TUBE |
| 62495 | MANIFOLD ASSEMBLY LP/HA |
| 62497 | MANIFOLD ASSEMBLY LP/SL |
| 62672 | MANIFOLD ASSEMBLY NG/HA |
| 62671 | MANIFOLD ASSEMBLY NG/SL |
| 36147 | MANIFOLD HEAT SHIELD |
| 62802 | MEMBRANE |
| 86425 | MICROSWITCH |
|
|
O-RING |
| 86746 | OUTER LINER ASSEMBLY |
| 80213 | OUTER LINER INSULATION |
| 27602BP | OVEN CELL ASSEMBLY |
| 26449BP | OVEN CELL BOTTOM |
|
|
OVEN CONTROL |
|
|
OVEN RACK |
| 26900 | PALLET ANGLE |
| 82106 | PORCELAIN GRILL |
| 72129 | POWER SUPPLY CORD |
| 701099 | RACK SUPPORT |
| 36496 | REAR PANEL |
| 26441 | REFLECTOR BAKE BURNER |
| 36916 | REGULATOR BRKT |
| 36902 | RELAY BOARD SUPP |
|
|
RELAY POWER CONTROL BOARD |
| 36909 | RH TRIM POST |
| 36360 | SHIELD CELL BOTTOM |
| 36906 | SIDE PANEL LH |
| 36905 | SIDE PANEL RH |
| 38182 | SIDE SUPP |
| 36504 | SIDE SUPP LH |
| 86526 | SPARK MODULE |
| 36896BP | SPILL TRAY |
| 36245 | SPILL TRAY SIDE SUPP |
| 36528BP | SPILL TRAY SUPP ANGLE |
| 36529B | SPILL TRAY SUPP FRONT |
| 83141 | STRAIN RELIEF BUSHING |
|
|
TEMPERATURE SENSOR |
| 82151 | TERMINAL BLOCK |
| 82429 | THERMAL DUAL VALVE |
| 26594 | TRIM COLLAR VENT DUCT |
| 100122BC | TRIM RING, BLACK CHROME |
| 100122BR | TRIM RING, BRASS |
|
|
TRIM RING, CHROME |
| 100122CP | TRIM RING, COPPER |
| 26791 | TRIM SIDE TOP |
| 26831 | TRIM SIDE TOP |
| 26404 | TUBULA BURNER BKT |
|
|
TUBULAR BURNER |
| 36895BP | VENT CAP |
| 27879 | VENT DUCT |
| 26184 | VENT DUCT BRACKET |
| 36320BP | VENTURI SHIELD |
| 72148 | WINDOW PACK ASSEMBLY |
