Manufacturer
Dacor
Model Number
EHD3618SCH
Description
Ehd3618sch - Ventilation Hoods
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 80517 | 18GA GALVANIZED, 48" |
| 80310 | 20 GA 201 SS, 36"X10 |
| 80522 | 20 GA 201 SS, 48"X96 |
| 80516 | 20 GA GALVANIZED;80516,"48""X96""",D |
| 80275 | 20 GA GALVANNEALED S |
| 80550 | 20 GA,GALVANIZED STE |
| 80510 | 22GA.ALUMINIZED STL. |
| 83334 | 8 STARWASHER;83334,DHD30M967WM |
|
|
ACCY SS CLEANER;100852,DCT305B/LP |
| 13223 | ASY 1 8 FAN BOX FAN;13223,E308WV60ES |
| 27490 | ASY CANOPY WELD EH3618;27490,E368WV6 |
| 13443 | ASY CONTROL BOX 8 AMPS;13443,EHD3018 |
| 13224 | ASY FAN 8 MTG PLATE;13224,E308WV60ES |
| 72757 | ASY FAN SPEED CONTROL;72757,DH3006 |
| 72756 | ASY LAMP DIMMER;72756,DH3006 |
| 13196 | ASY LINER EHD36S;13196,E368WV60ES |
| 13437SCH | ASY, BULLNOSE |
| 72022 | ASY,DAMPER,8" |
| 36032 | BRACE LINER;36032,E308WV60ES |
| 36006 | BRKT LAMP HOLDER;36006,E308WV60ES |
| 36194 | BRKT MOUNTING EHD FAN;36194,E308WV60 |
| 83056 | BUSHING HEYCO SB 875 11;83056,DH3006 |
|
|
CAP BLK ICON FAN;36100,DH3006 |
| 83427 | CAP BLK KNOB SELCO C290;83427,DH3006 |
| 83436 | CLIP J TYPE;83436,EHD3009SBK |
| 101613 | COLLAR DAMPER |
| 26619 | DUCT COLLAR;26619,3-1/4 X 10,E308WV6 |
| 62754 | EHD FAN SPEED CONTROL |
| 62753 | EHD LAMP DIMMER;62753,DH3006 |
| 62712 | END CAP BULL NOSE;62712,EGR30S06BK |
| 62712CH | END CAP,BULL NOSE-CHROME |
| 62355 | FAN, AXIS |
|
|

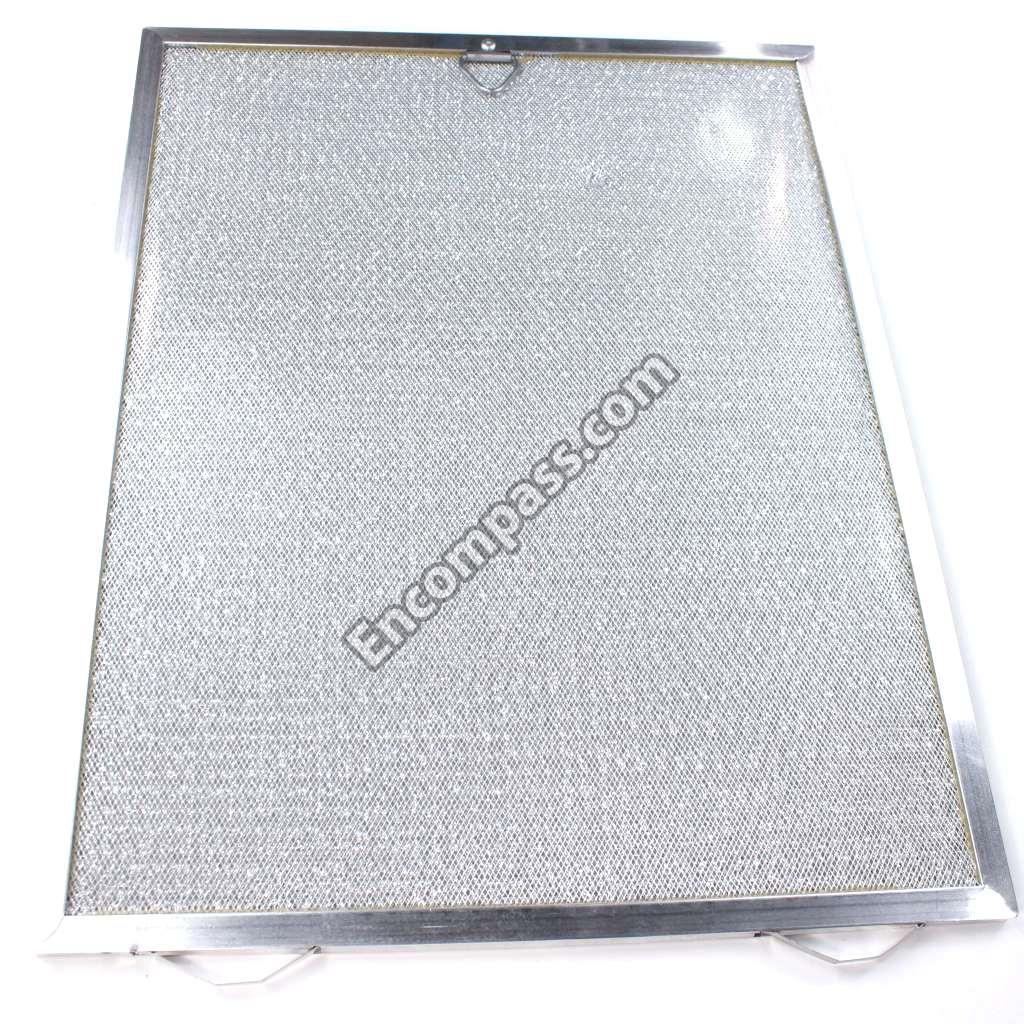

FILTER 15 188 X 11 875;62353,E308WV6 |
| 81132 | FOAM TAPE, URETHANE |
| 72680 | HARNESS 2 LIGHT LINER;72680,DH3006 |
| 72683 | HARNESS POWER NON REMOTE;72683,DH300 |
| 72685 | HARNESS,SINGLE FAN IVS/ |
|
|
KNOB SELCO DBK291 006;83424,DH3006 |
| 85136 | LABEL, "MADE WITH PRIDE" |
| 65467 | LABEL, CAUTION |
| 85249 | LABEL,"DIELECTRIC TE |
| 85626 | LABEL,MAINTENANCE-EN |
| 85627 | LABEL,MAINTENANCE-FR |
| 85591 | LABEL,WIRE CNCT SUPP |
| 62770 | LAMP DIMMER KNOB 8A CTRL;62770,DH300 |
| 92348 | LAMP HALOGEN 75W;92348,DH3006 |
| 62349 | LAMP HOLDER LEVITON 8871;62349,DH300 |
| 36511 | LIGHT DIMMER CAP;36511,DH3006 |
| 83531 | NUT 4 40 HEX KEPS ZINC P;83531,DH300 |
| 83048 | NUT HEX KEPS;83048,#8-32,DCT305B/LP |
| 83009 | NUT KEPS;83009,#10-24,DO130 |
| 26626 | PLENUM DUCT HOLE COVER;26626,E308WV6 |
|
|
RIVET SS;83652,1/8X1/8,DH3006 |
| 83578 | RUBBER BUMPER SNAP IN;83578,DTCT304G |
| 83429 | SCREW PHIL PAN 8 32X2 S;83429,EHD300 |
| 83530 | SCREW PHIL PAN;83530,#4-40X5/8,DH300 |
| 83024 | SCREW PHIL TRS;83024,#8 X 3/8,DR30EF |
|
|
SCREW WAFER HD;83534,#8 X 3/8,DH3006 |
| 83204 | SCREW WELD;83204,"8-32X3/8,SST",DH30 |
| 83667 | SCREW,#10-32X1/2",41 |
| 83137 | SCREW,WELD,#8-32 X1/2,ST |
| 36043 | SHLD GRIME FRONT EHD36;36043,E368WV6 |
| 36044 | SHLD GRIME SIDE EHD36;36044,E368WV60 |
| 83430 | SPACER ALUM 1 562 LON;83430,EHD3009S |
|
|
SUCTION CUP LAMP EHD;62408,DH3006 |
| 83240 | TAPE FOAM V2510 BLK;83240,DYRP36D-C- |
| 102352 | TERMINAL BLOCK 12 PT;102352,DH3006 |
| 62350 | TRIM EDGE 1/4X1/32X.218 |
| 62352 | TRIM LAMP MRH 105;62352,DH3006 |
| 83432 | WASHER BLK FLAT;83432,DTO127B |
| 102243 | WASHER, .625 ODX.395 |
