Manufacturer
Dacor
Model Number
EOG303
Description
Out Door Grill
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 83485 | 1/2 WASHER, FLAT, 17/32 ID., S.S. |
| 83009 | 10-24 HEX NUTS, KEPS |
| 83484 | 3/8 WASHER, FLAT, 13/32., S.S. |
| 36942 | ACCESS PANEL, FIREBOX |
| 72601 | ASSEMBLY, REGULATOR, 11-INCHES, LP-HARD PIPE |
| 72310 | ASSEMBLY, REGULATOR, 11-INCHES, LP-TANK |
|
|
ASSEMBLY, REGULATOR, 4-INCHES, NG |
| 38413 | BOTTOM PANEL |
| 36365 | BRACKET TERMINAL BLOCK |
| 27823 | CANOPY |
| 72158 | CANOPY ARM |
| 27826 | CANOPY LINER |
| 66936NGHA | CENTER MANUAL VALVE |
| 66936NGSL | CENTER MANUAL VALVE |
| 66936LPHA | CENTER MANUAL VALVE |
| 66936LPSL | CENTER MANUAL VALVE |
| 36945 | CHASSIS REAR |
| 27831E | CONTROL PANEL |
| 36939 | CONTROL PLENUM |
| 36941 | CONTROL SUB-PANEL |
| 72178 | END CAP, HANDLE |
| 38415 | FIREBOX BACK |
| 27829 | FIREBOX BOTTOM |
| 36676 | FIREBOX LAMP HOUSING |
| 36650 | FIREBOX SIDE, LH |
| 36630 | FIREBOX SIDE, RH |
| 36971BP | FIREBOX TOP |
| 36628 | FLAME SPREADER, LARGE |
| 36661 | FLAME SPREADER, SMALL |
| 36938 | FRONT FRAME |
| 36934 | FRONT TRIM |
| 38420 | GREASE TRAY |
| 36626 | GREASE TRAY FACIA |
| 72157 | GRILL, 11-INCHES, S.S. |
| 72648 | GRILL, 4 7/8-INCHES S.S. |
| 72177 | GRILL, 5-1/2-INCHES, S.S. |
| 13617 | HANDLE |
| 72360 | HANDLE, GREASE TRAY |
| 83476 | HEX NUT, S.S., 1/4-20 X 7/16 X 3/16 |
| 83477 | HEX NUT, S.S., 3/8-16 X 9/16 |
| 36674 | HINGE BRACKET |
| 83459 | HINGE PIVOT, 3/8-16 |
| 72176 | I.R. BROILER THERMOCOUPLE |
| 72662NGHA | I.R. JET |
| 72662NGSL | I.R. JET |
| 72662LPHA | I.R. JET |
| 72662LPSL | I.R. JET |
| 27834 | IGNITER SUPPORT |
| 106467 | IGNITER WIRE SET |
|
|
IGNITION SWITCH ASSEMBLY |
| 82343 | INDICATOR LIGHT WITH CAMERA LENS |
|
|
INDICATOR LIGHT WITH CAMERA LENS |
| 72647 | INFRARED BURNER |
| 72179 | INFRARED GAS TUBING, 3/8-INCHES |
| 27652 | IR BROILER IGNITER BOX |
| 66557NGHA | IR MANUAL VALVE |
| 66557NGSL | IR MANUAL VALVE |
| 66557LPHA | IR MANUAL VALVE |
| 66557LPSL | IR MANUAL VALVE |
| 62021B | KNOB |
| 66561NGHA | LEFT MANUAL VALVE |
| 66561NGSL | LEFT MANUAL VALVE |
| 66561LPHA | LEFT MANUAL VALVE |
| 66561LPSL | LEFT MANUAL VALVE |
|
|
LIGHT ASSEMBLY |
| 72169 | LIGHT SWITCH |
| 83473 | LOCK NUT, 1/4 NPT, S.S. |
| 83048 | NUT, HEX.KEPS, 8-32 |
| 72265 | POWER CORD |
| 13652 | ROTISSERIE MOTOR ASSEMBLY. |
| 36675 | ROTISSERIE POCKET |
| 36657 | ROTISSERIE SPIT BRACKET |
| 72165 | RUBBER BUMPER, HI-TEMP |
| 83263 | SCREW WASHER HEAD, 8 X 3/8 |
| 83408 | SCREW, PHIL PAN, 8-32 X 3/4 |
|
|
SCREW, PHIL, FLAT HEAD, 4-40 X 1/4 |
| 102365 | SCREW, TRUSS HEAD, S.S. |
|
|
SCREW, WAFER HEAD, 8 X 3/8 S.S. |
| 36940 | SERVICE PANEL |
| 83462 | SHOULDER BOLT HINGE GUIDE |
| 36809 | SIDE PANEL, LH |
| 36810 | SIDE PANEL, RH |
|
|

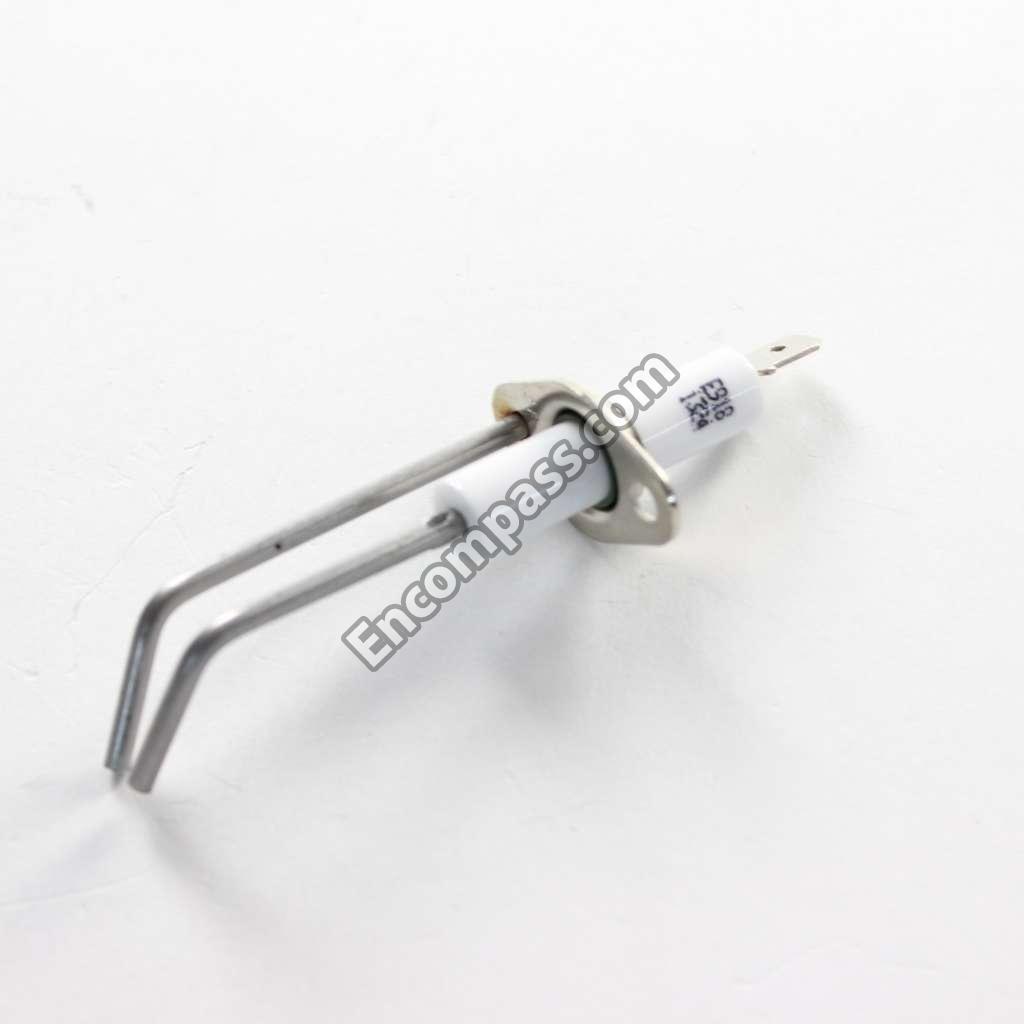

SPARK ELECTRODE |
| 86526 | SPARK MODULE, 4 POINT |
| 72644 | SPIT ROD |
| AGFS | SPIT ROD FORK |
| 83474 | SPLIT 1/4 LOCK WASHER |
| 83475 | SPLIT 3/8 LOCK WASHER |
| 72686 | TEMPERATURE GAUGE |
| 72184 | TEMPERATURE GAUGE TRIM RING |
| 62057 | TRANSFORMER |
|
|
TRIM RING |
|
|
U-BURNER, BBQ GRILL |
| 72643 | WARMING RACK |
| 72185 | WARMING RACK SUPPORT |
| 72645 | WIRE HARNESS |
