Manufacturer
Dacor
Model Number
ERD30S06CP
Description
Erd30s06cp - Ranges
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 86961 | #1 VALVE,NG/SL,ERSD30S06 |
| 86962 | #2 VALVE,NGSL,ERSD30S06 |
| 86963 | #3 VALVE,NG/SL,ERSD30S06 |
| 86965 | 1 VALVE NG HA ERSD30S06;86965,ERD60S |
|
|

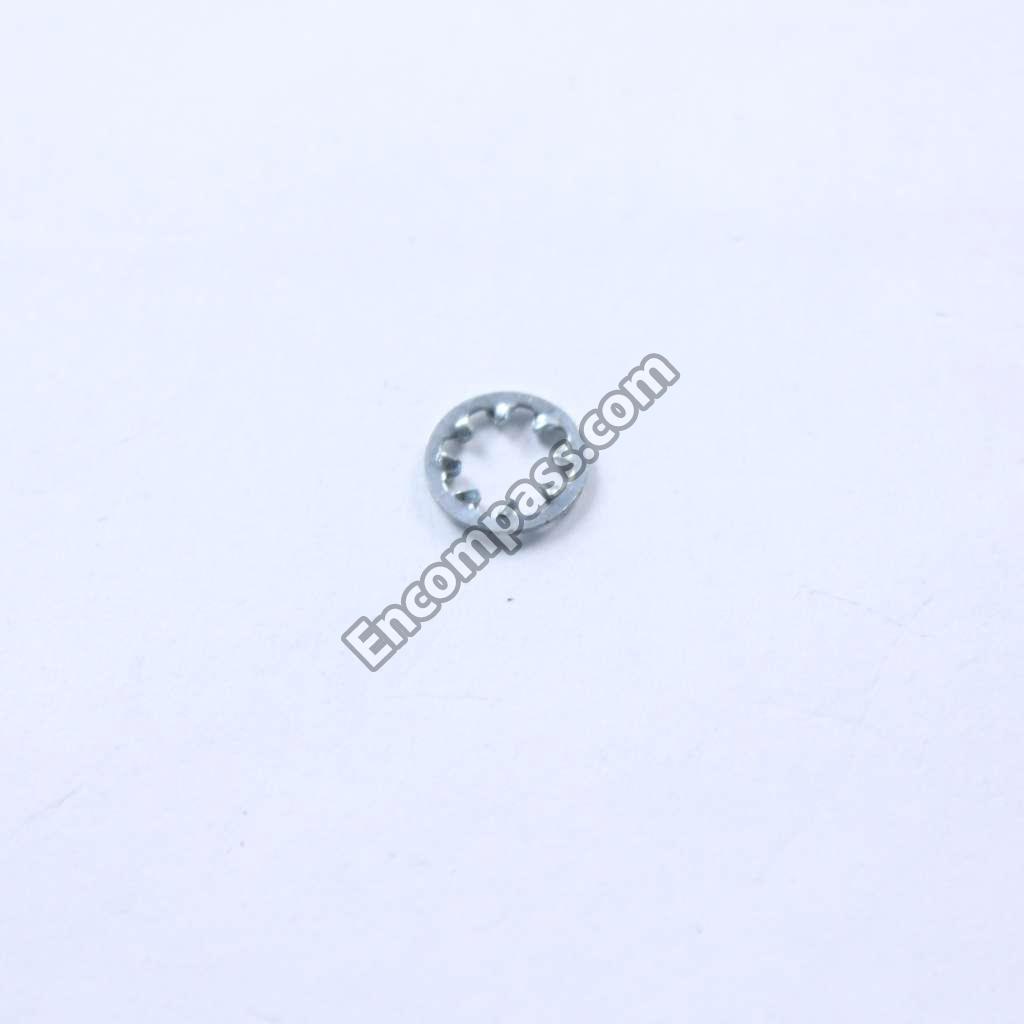

10 LOCKWASHER;83340,DHD30M967WM |
| 80518 | 16GA GALVANIZED, STE |
| 80532 | 18 GA 201SST #4 48"X |
| 80208 | 18 GA GALVANIZED STE |
| 80517 | 18GA GALVANIZED, 48" |
| 80509 | 18GA.VIT,52.5"X96"ST |
| 86966 | 2 VALVE NG HA ERSD30S0;86966,ERD60S0 |
| 80310 | 20 GA 201 SS, 36"X10 |
| 80522 | 20 GA 201 SS, 48"X96 |
| 80074 | 20 GA GALVANIZED,48" |
| 80516 | 20 GA GALVANIZED;80516,"48""X96""",D |
| 80550 | 20 GA,GALVANIZED STE |
| 80508 | 22GA VIT STEEL 48X96;80508,DO130 |
| 80510 | 22GA.ALUMINIZED STL. |
| 80551 | 24 GA GALVANIZED STE |
| 80013 | 24GA 201 S/S#4 24X32 |
| 80520 | 24GA 201 SS #4,48X96 |
| 86967 | 3 VALVE NG HA ERSD30S06;86967,ERD60S |
| 62665 | 3/8 TUBE,THERM VAL INLET |
| 62666 | 3/8 TUBE,THERM VAL OUTLE |
| 62663 | 5 8 GAS INLET TUBING;62663,ERD30S06B |
| 83308 | 6 32 KEPS NUT;83308,DH3006 |
|
|

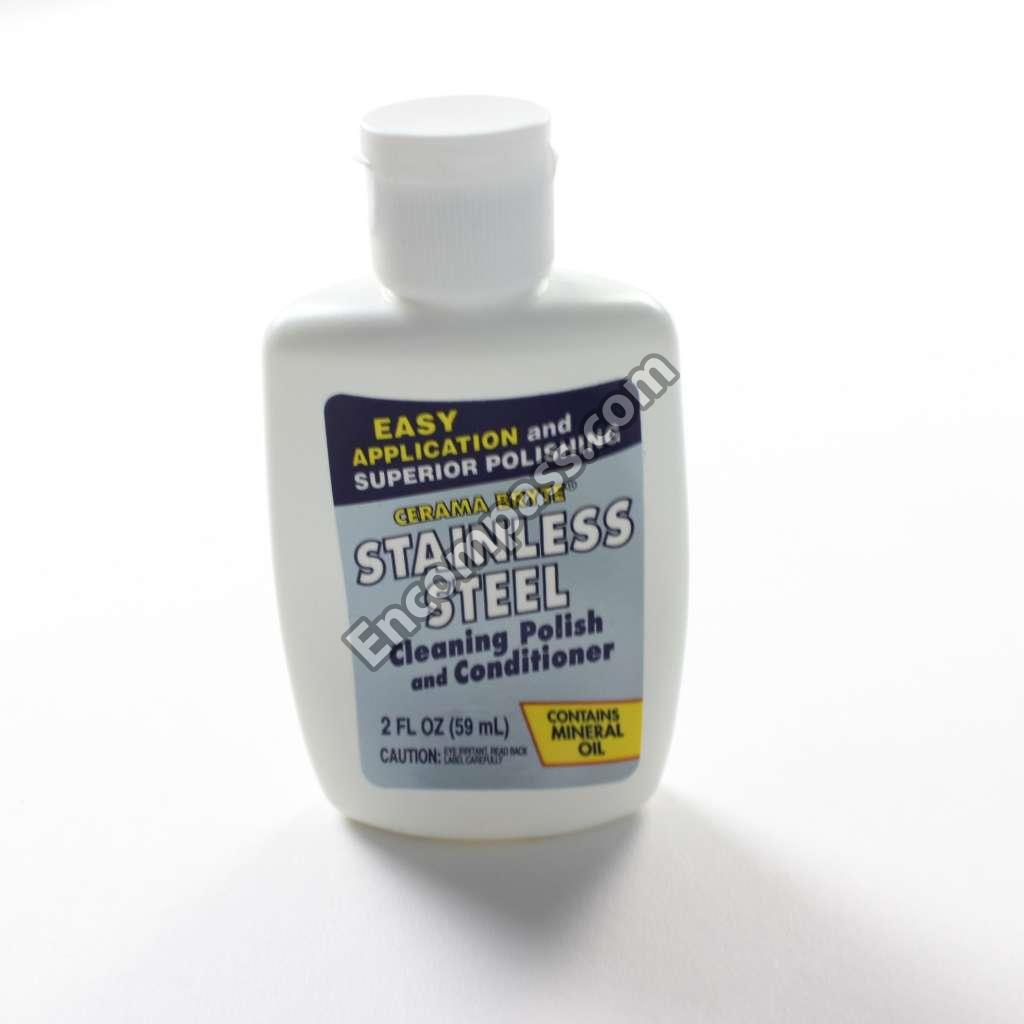

ACCY SS CLEANER;100852,DCT305B/LP |
| 36606 | AIR DEFLECTOR;36606,ERD30S06BK |
| 36624BP | AIR SHIELD BROILER BLK P;36624BP,EGR |
| 36624 | AIR SHIELD BROILER;36624,EGR30S06BK |
| 80434 | ALUMINIZED,18 GA, 48 |
| 36471B | ANGLE RR SPILL TRAY PAIN;36471B,EGR3 |
| 36245 | ANGLE SIDE SUPPORT RH;36245,E30DF74E |
| 36528BP | ANGLE SPILL TRAY SUPPORT;36528BP,E30 |
| 62495 | ASSY MANIFOLD WVALVES;62495,ERD60S06 |
| 62672 | ASSY MANIFOLD WVALVES;62672,ERD60S06 |
| 12470 | ASSY WINDOW PACK 1 INCH1;12470,ERD36 |
| 27646 | ASY AIR BAFFLE;27646,EGR30S06BK |
| 27274 | ASY ANT TIP BRKT ERSD30;27274,ER30D- |
| 27575 | ASY CASE SIDE LH;27575,EGR30S06BK |
| 27574 | ASY CASE SIDE RH;27574,EGR30S06BK |
| 62954 | ASY DBURNER HEAD;62954,EGR30S06BK |
| 86166 | ASY DOOR LATCH;86166,ERG30B06BK |
| 27581 | ASY DUCT VENT HORIZONTAL;27581,ERD30 |
| 27728BP | ASY INNER LINER 30DOOR;27728BP,DO130 |
| 72005 | ASY IR NG SL ORIFICE;72005,EGR30S06B |
| 12423 | ASY OVEN CASE ERD30S06;12423,ERD30S0 |
| 27572BP | ASY OVEN CELL BLK PRCLN;27572BP,ERD3 |
| 72148 | ASY WINDOW PACK 1THK;72148,DO130 |
| 13407SBK | ASY, HANDLE, EC30 SST/BL |
| 13407SBR | ASY, HANDLE, EC30 SST/BR |
| 13407SCH | ASY, HANDLE,EC30 SST/CHR |
| 13391 | ASY, REGULATOR |
| 27687 | ASY, SIDE SUPPORT-RH |
| 13468 | ASY,BACKSPLASH,ERG30 |
| 12594 | ASY,CONVECTION BAFFLE |
| 27613B | ASY,DOOR FRAME,EC30 |
| 66092 | ASY,DOOR SKIN,EC30 |
| 13407SCP | ASY,HANDLE,EC30 |
| 12422 | ASY-INFRARED BURNER |
| 36415 | BACK COVER CHASSIS;36415,E30DF74EPS |
| 36912 | BACK COVER PLATE |
| 36425 | BACK COVER;36425,ERD30S06BK |
|
|

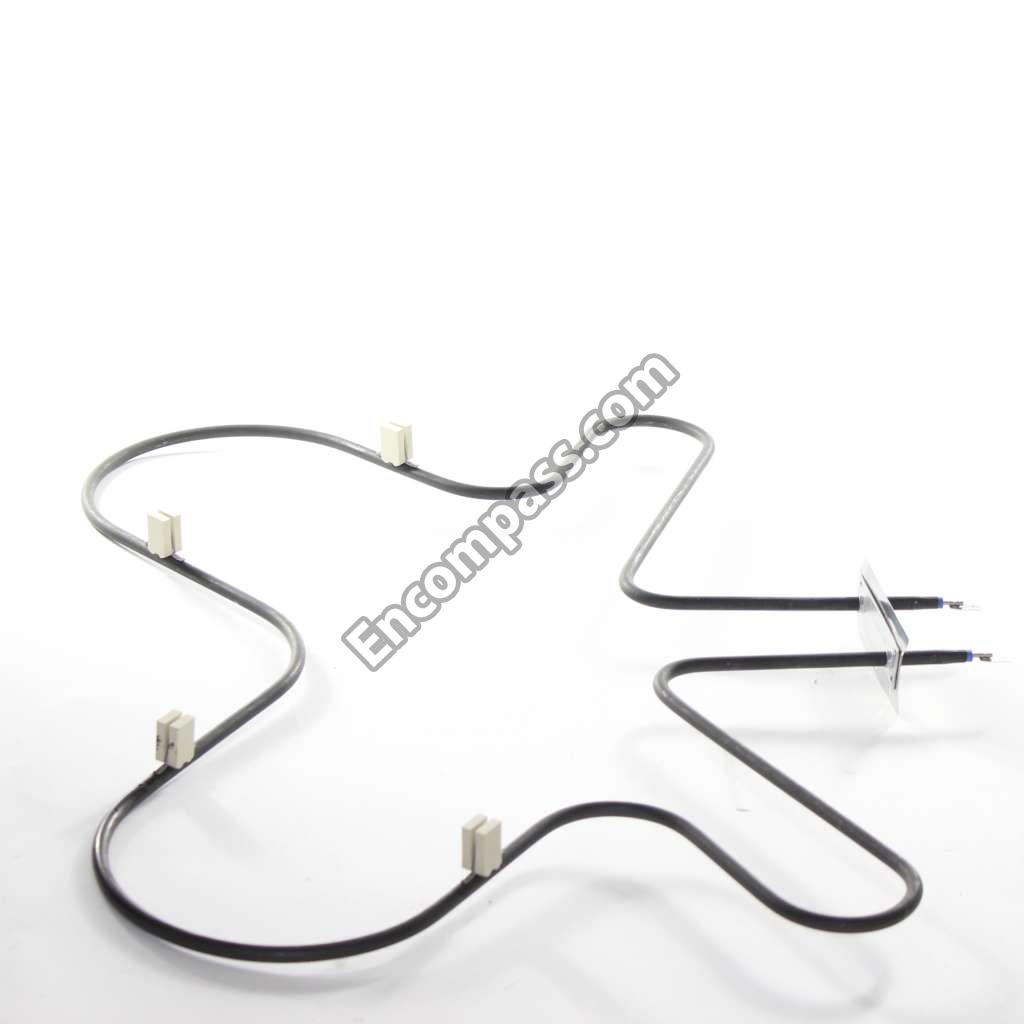

BAKE ELEMENT;62628,ERD30S06BK |
|
|

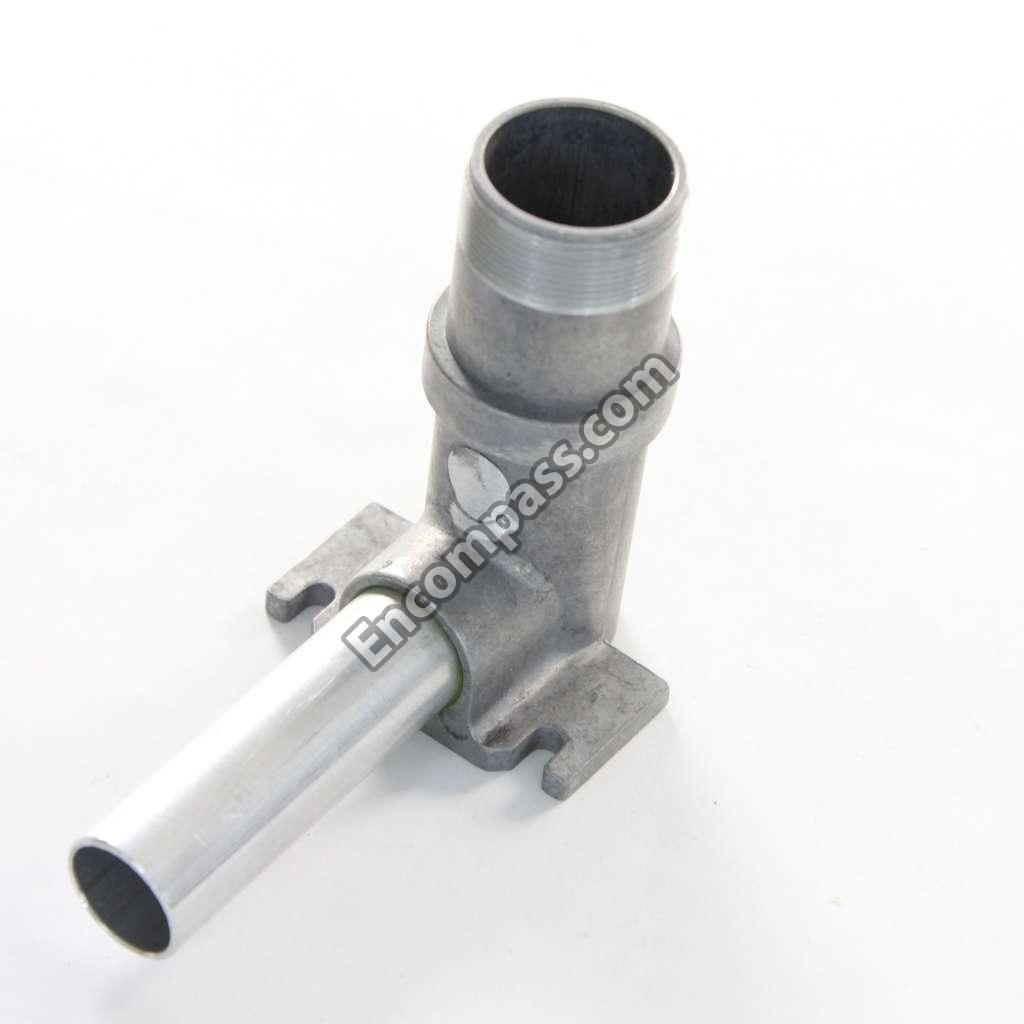

BASE BURNER W TUBE;62325,E30DF74EPS |
| 36410 | BASE,TRAY |
| 36257 | BEZEL TRIM |
| 106009 | BLACK PORCELAIN, DRY |
| 106007 | BLACK PORCELAIN, WET |
|
|
BRACKET ANTI TIP RANGE;26041,E30DF74 |
| 36431 | BRACKET MTG TRANSFORM FA;36431,EGR30 |
| 36268 | BRACKET PALLET;36268,ERD30S06BK |
| 36263 | BRACKET REGULATOR;36263,ERD30S06BK |
| 36286 | BRACKET, IGNITOR MTG |
| 38230 | BRACKET,INNER LINER |
|
|

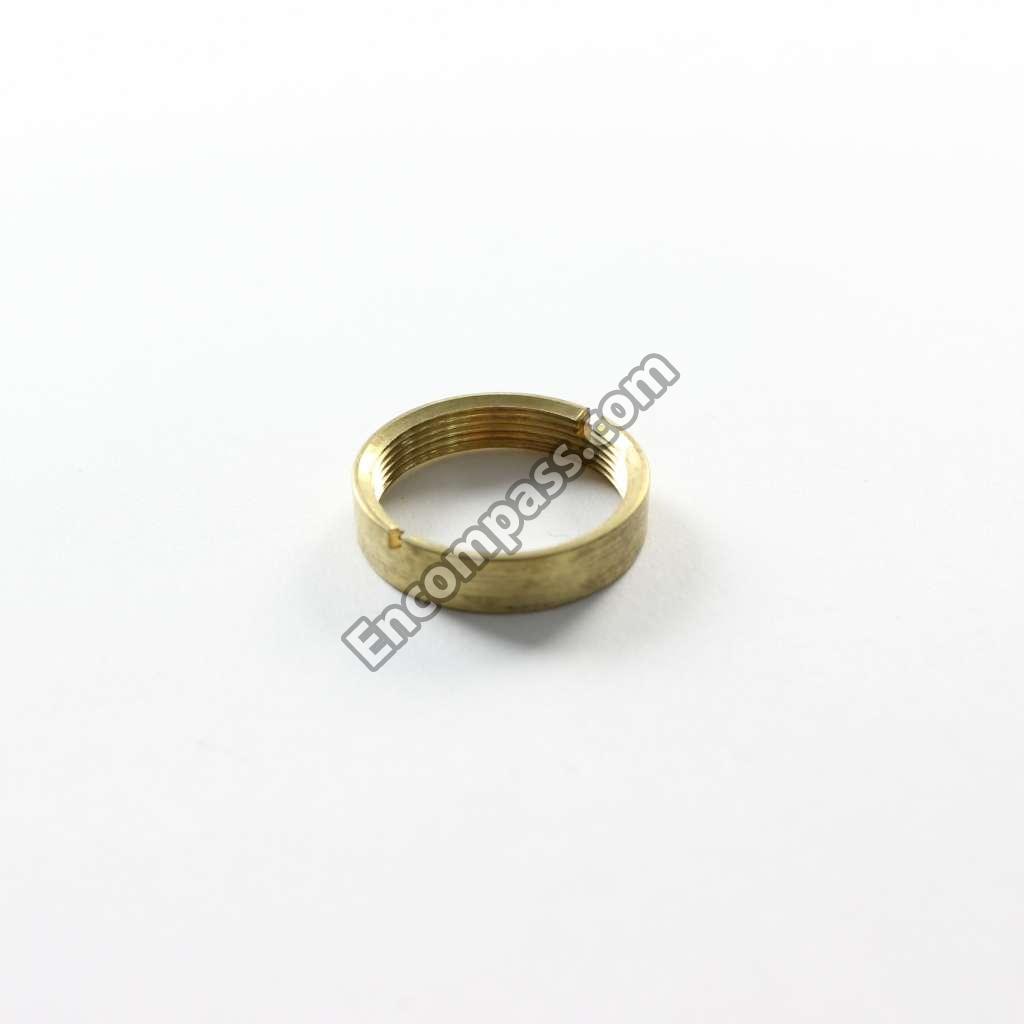

BRASS NUT CB HEAD;86405,DTCT304GB/LP |
| 36530 | BULLNOSE |
| 82564 | BURNER RING D BURNER;82564,EGR30S06B |
| 62673 | BURNER TUBE #1,NG/HA |
|
|

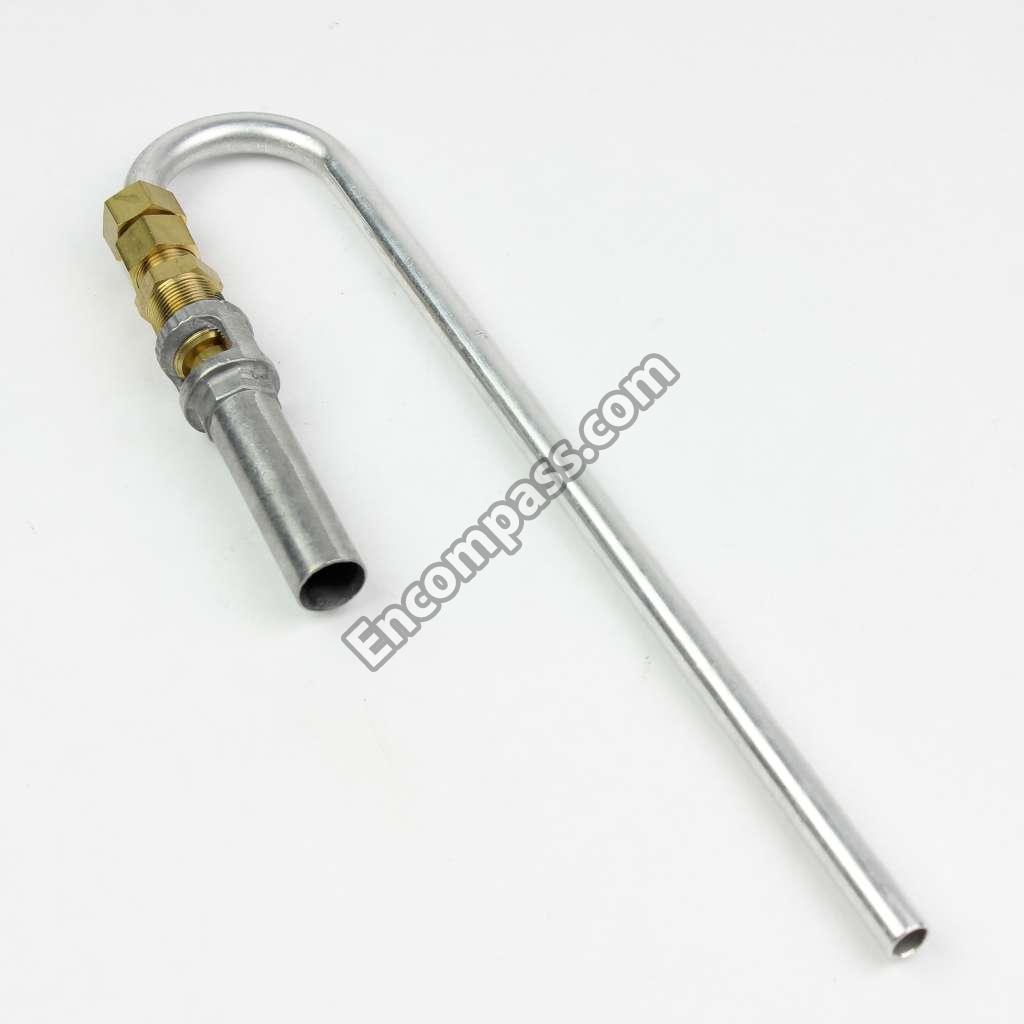

BURNER TUBE #1,NG/SL |
| 62426 | BURNER TUBE #4 LP/H |
| 62423 | BURNER TUBE 1;62423,ERD60S06BK |
| 62424 | BURNER TUBE 2;62424,ERD60S06BK |
| 62674 | BURNER TUBE 2;62674,ERD60S06BK |
| 62675 | BURNER TUBE 4;62675,ERD60S06BK |
| 105627 | BURNER TUBE ELBOW;105627,E30DF74EPS |
|
|
BURNER TUBE;62645,"#2 3,NG/SL",EGR30 |
| 62646 | BURNER TUBE;62646,"#4,NG/SL",EGR30S0 |
| 83133 | BUSHING 1 2 RED CONDUI;83133,DO130 |
| 83056 | BUSHING HEYCO SB 875 11;83056,DH3006 |
| 86373 | C AIR SHUTTER;86373,DTCT304GB/LP |
| 83565 | CABLE TIE,NYLON,11" LONG |
| 62058 | CAP 3 8 RSD;62058,EGR30S06BK |
| 81086 | CARTON, ACCESSORIES |
| 36243 | CASE BACK ERSD30IR;36243,ERD30S06BK |
| 26633 | CASE BOTTOM;26633,E30DF74EPS |
| 36241 | CASE TOP FRONT;36241,ERD30S06BK |
| 36242 | CASE TOP REAR ERSD30IR;36242,ERD30S0 |
| 36474 | CHASSIS BOX;36474,E30DF74EPS |
| 36516 | CHASSIS NEW ERD30;36516,ERD30S06BK |
| 78921 | CLIP, INNER LINER |
| 83152 | COIN ENVELOPE S-6285 |
| 26420 | CONDUIT 1 2 FLEX CUT 60;26420,DO130 |
| 76034 | CONE DOUBLE SGM365E;76034,E30DF74EPS |
| 105538 | CONNECTOR SGM;105538,EGR30S06BK |
| 83059 | CONNECTOR;83059,"1/2 FLEX,STRGH",E30 |
|
|

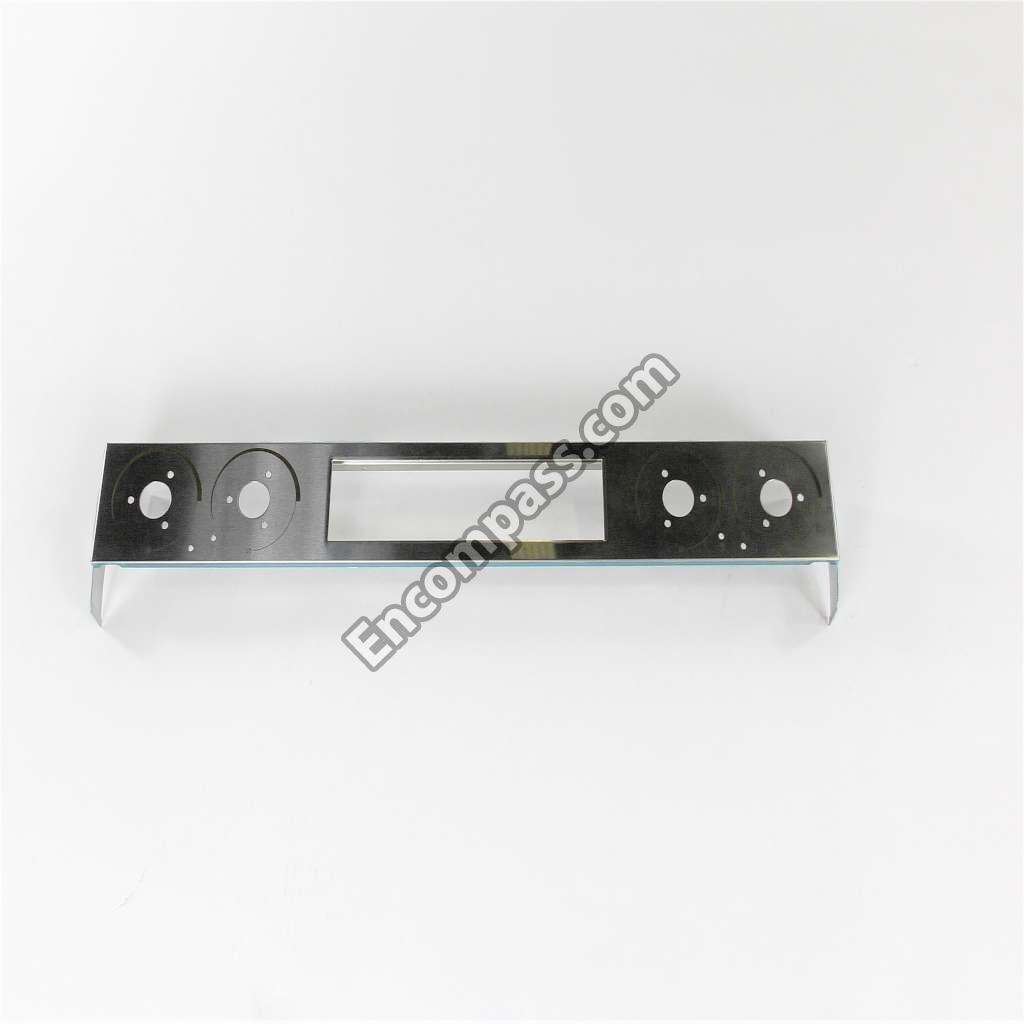

CONTROL PANEL - ETCHED |
| 36816BP | CONVECTION BAFFLE BLK PP;36816BP,ERD |
| 36816 | CONVECTION BAFFLE;36816,E30DF74EPS |
| 82377 | CONVECTION ELEMENT 240V;82377,DO130 |
| 62101 | CONVECTION FAN INT;62101,ERSD36S |
| 78991 | CORNER BRKT,DOOR FRM |
| 81266 | CORNER POST, 3 X 3X.400X |
| 36352BP | COVER CONV BAFFLE TOP BP;36352BP,ERD |
| 36255 | COVER HALOGEN LIGHT;36255,EGR30S06BK |
| 36408 | COVER REAR AIR DUCT;36408,ERD30S06BK |
| 86918 | D BURNER RING SNGL 5 FG;86918,DTCT30 |
| 72511CH | DACOR LOGO LARGE;72511CH,DR30GFS/LP |
| 72511CP | DACOR LOGO LARGE;72511CP,ERD30S06CP |
| 72511BR | DACOR LOGO,LARGE |
|
|

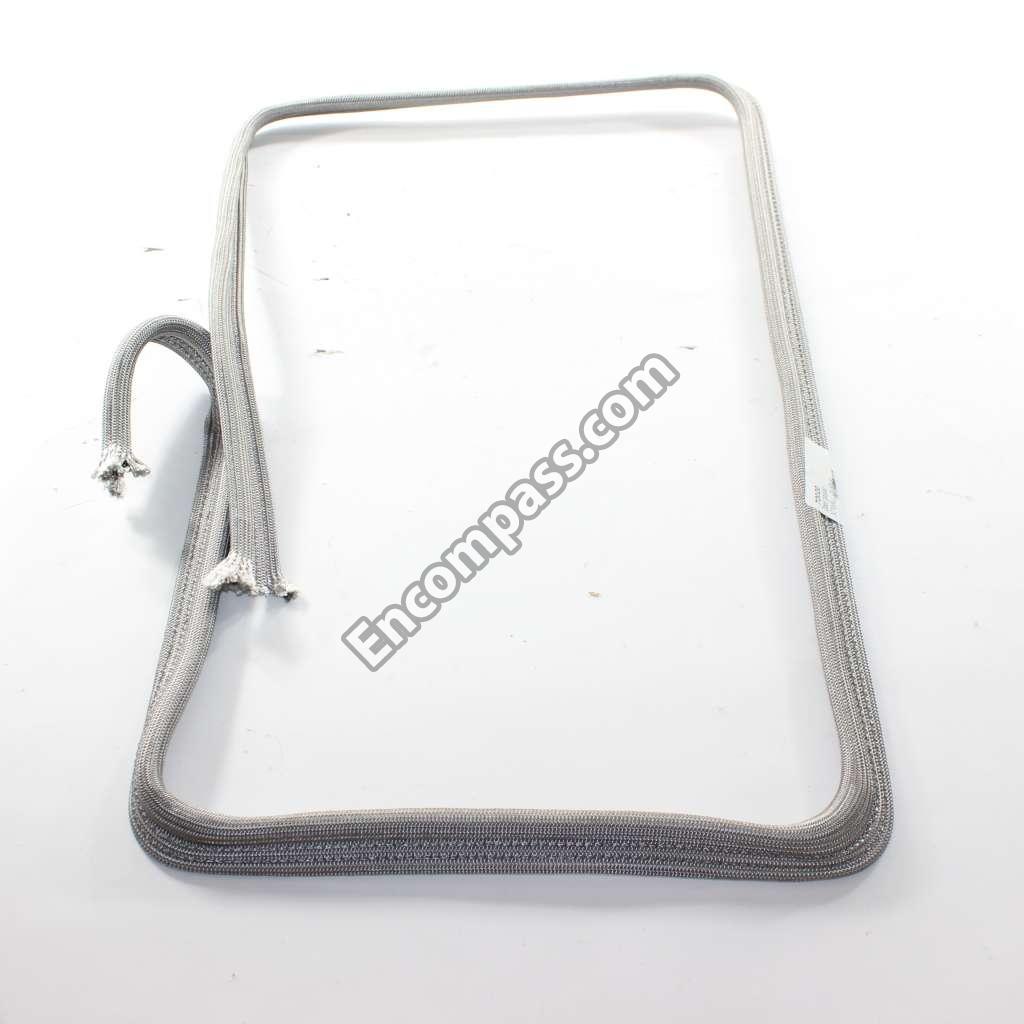

DOOR GASKET;72020,DO130 |
| 82216B | DOOR GLASS - BLK |
| 82834 | DOOR LATCH MECHANISM;82834,E30DF74EP |
| 36338 | DOOR VENT EC30;36338,ECD230SBK |
| 105604 | ELECTRODE, BURNER HE |
| 62712BR | END CAP BULL NOSE BRASS;62712BR,EGR3 |
| 62712 | END CAP BULL NOSE;62712,EGR30S06BK |
| 62691BK | END CAP EPICURE HANDLE;62691BK,ECD22 |
| 62691BR | END CAP EPICURE HANDLE;62691BR,ECS13 |
| 62691CP | END CAP, EPICURE HANDLE |
| 62691CH | END CAP, EPICURE HANDLE |
| 62712BK | END CAP,BULL NOSE-BLACK |
| 62712CH | END CAP,BULL NOSE-CHROME |
| 62712CP | END CAP,BULL NOSE-COPPER |
| 36517 | EXHAUST DUCT NEW ERD30;36517,ERD30S0 |
| 82347 | FAN COOLING 110 CFM;82347,DR30D-C/LP |
| 83555 | FIBER WASHER W ADHESIVE;83555,DO130 |
|
|

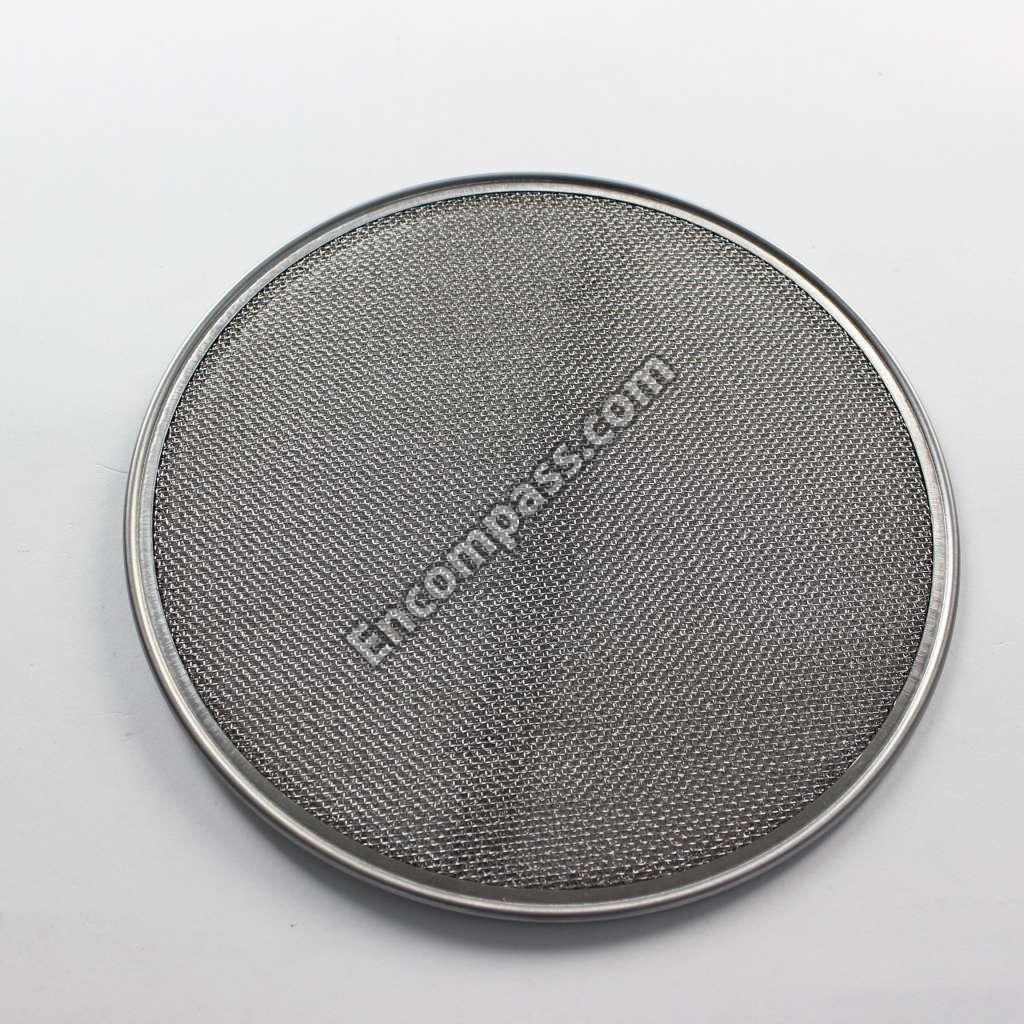

FILTER CONVECTION OVEN;82891,DO130 |
| 36479BP | FLUE VENT CAP BLK PRCLN;36479BP,ERD3 |
| 72915 | GLIDE RACK 30OVEN;72915,ECD230SBK |
| 72434SB | GRATE PACK,14" GRATES |
| 62296 | GRIDDLE |
| 83058 | GROMMET, EPDM RUBBER |
| 83278 | GROMMET, THERMOVALVE |
| 86573 | HALOGEN BULB 10W 12VAC;86573,ERD36S0 |
|
|

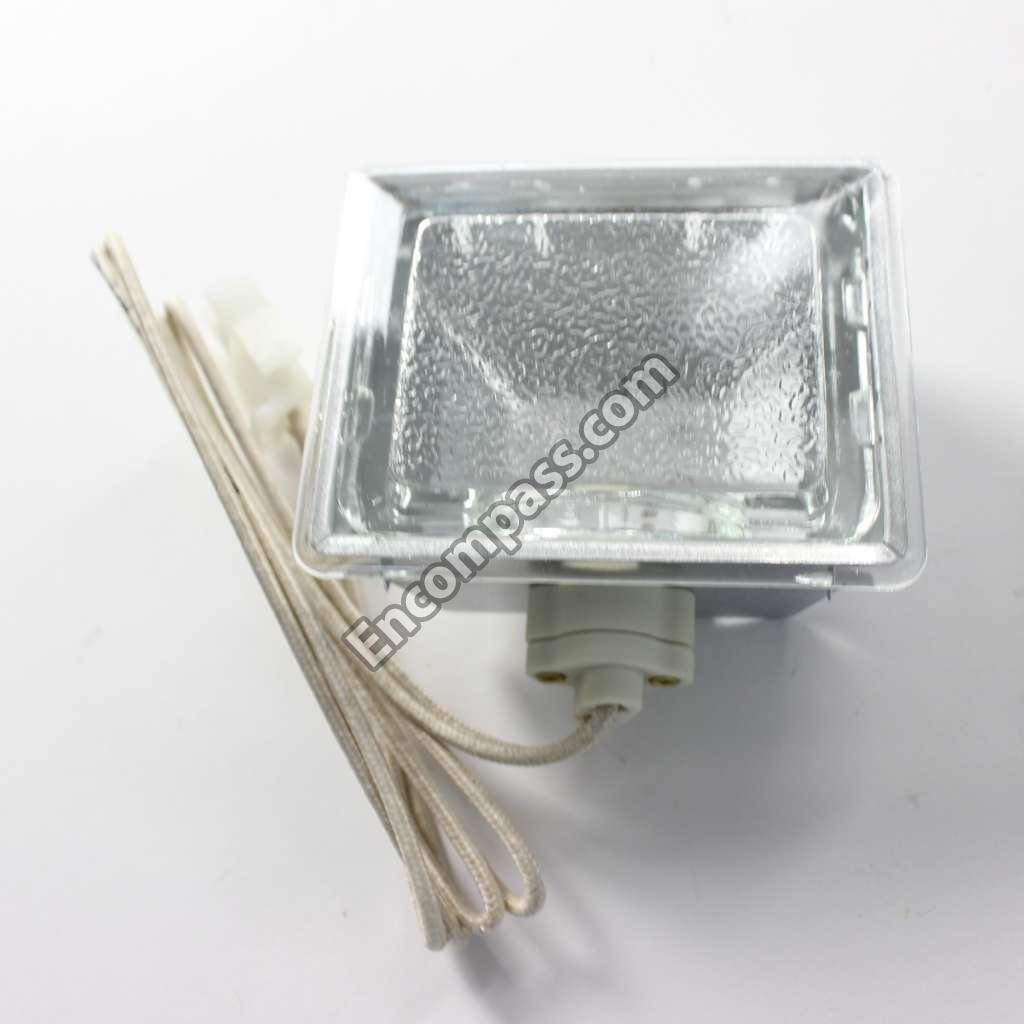

HALOGEN LIGHT,10W,12VDC |
| 62209 | HANDLE 30 S S;62209,ECD230SBK |
| 36956B | HEAT SHIELD 30 DOOR;36956B,EGR30S06B |
| 36147 | HEAT SHIELD MANIFOLD;36147,EGR30S06B |
| 82508 | HINGE EPICURE DOOR GOLD;82508,DO130 |
|
|
HINGE KIT;701035,ERD60S06BK |
| 83209 | HOOK LOOP PAIR 2 X 3;83209,DR30GFS/L |
| 82473 | HOT SURFACE IGNITER;82473,DR30GFS/LP |
|
|
IGNITER ASSY KIT SINGLE;76482-001,ER |
| 62933 | IGNITOR WIRE JACKET;62933,DTCT304GB/ |
|
|
INDICATOR LIGHT BLUE NEO;82086,EGR30 |
| 81073 | INNER DOOR PROTECTOR |
| 81238 | INSERT, DOOR HANDLE |
| 80166 | INSULATION CELL BACK 30;80166,E30DF7 |
| 80164 | INSULATION CELL BOTTOM;80164,E30DF74 |
| 80161 | INSULATION CELL SIDE;80161,DO130 |
| 80169 | INSULATION CELL TOP 1;80169,EGR30S06 |
| 80180 | INSULATION CELL TOP SID;80180,EGR30S |
| 80094 | INSULATION CELL TOP;80094,EGR30S06BK |
| 80168 | INSULATION CONV MTR;80168,DO130 |
| 80207 | INSULATION DOOR;80207,DO130 |
| 80095 | INSULATION VENTURI;80095,EGR30S06BK |
| 80213 | INSULATION,30"OUTER LINE |
| 80096 | INSULATION,VENT RISER |
|
|
IR BROILER SHIELD SET |
| 36426 | ISLAND TRIM, ERD/ERG30 |
| 86746 | KIT,DOOR LINER 30" |
| 62021B | KNOB, EPICURE |
| 85136 | LABEL, "MADE WITH PRIDE" |
| 85249 | LABEL,"DIELECTRIC TE |
| 85648 | LABEL,EXTRU CONTAINER,CP |
| 26598 | LATCH PLATE;26598,DO130 |
|
|

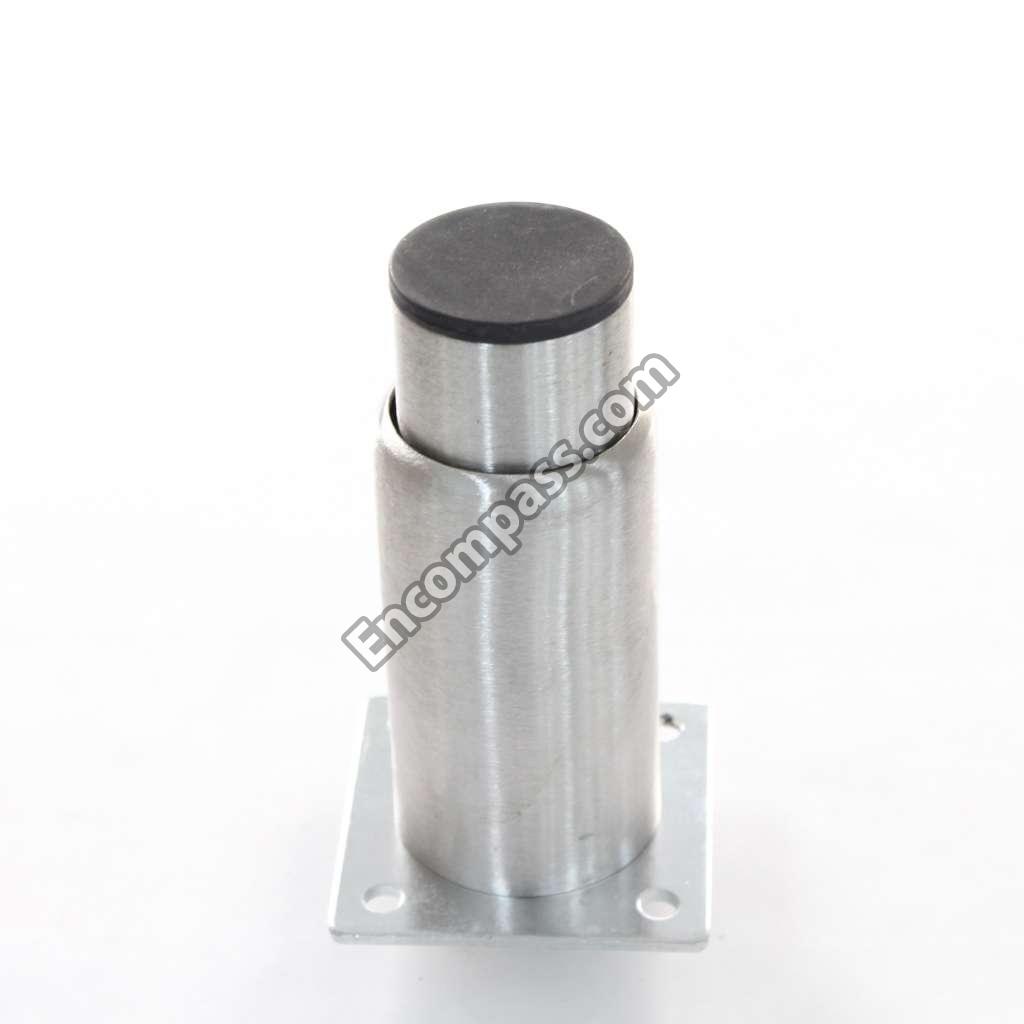

LEG NEW 1 2 EPICURE;700000,DR30D-C/L |
| 106440 | LEVELER ADJUSTABLE 2 5;106440,DOP36M |
| 83440 | LOCKNUT 3 8 NPT;83440,EGR30S06BK |
| 72427-171 | MAIN JET,1.71 MM,NG SL |
| 62671 | MANIFOLD W VALVE NG SL;62671,EGR30S0 |
| 62309 | MEMBRANE,SW,PANEL |
| 81070 | MICROFOAM,12"X6"X.06 THK |
| 36280 | MOUNTING PLATE;36280,ERSD36S |
| 82873 | NAMEPLATE SELF CLEAN INF;82873,DO130 |
|
|

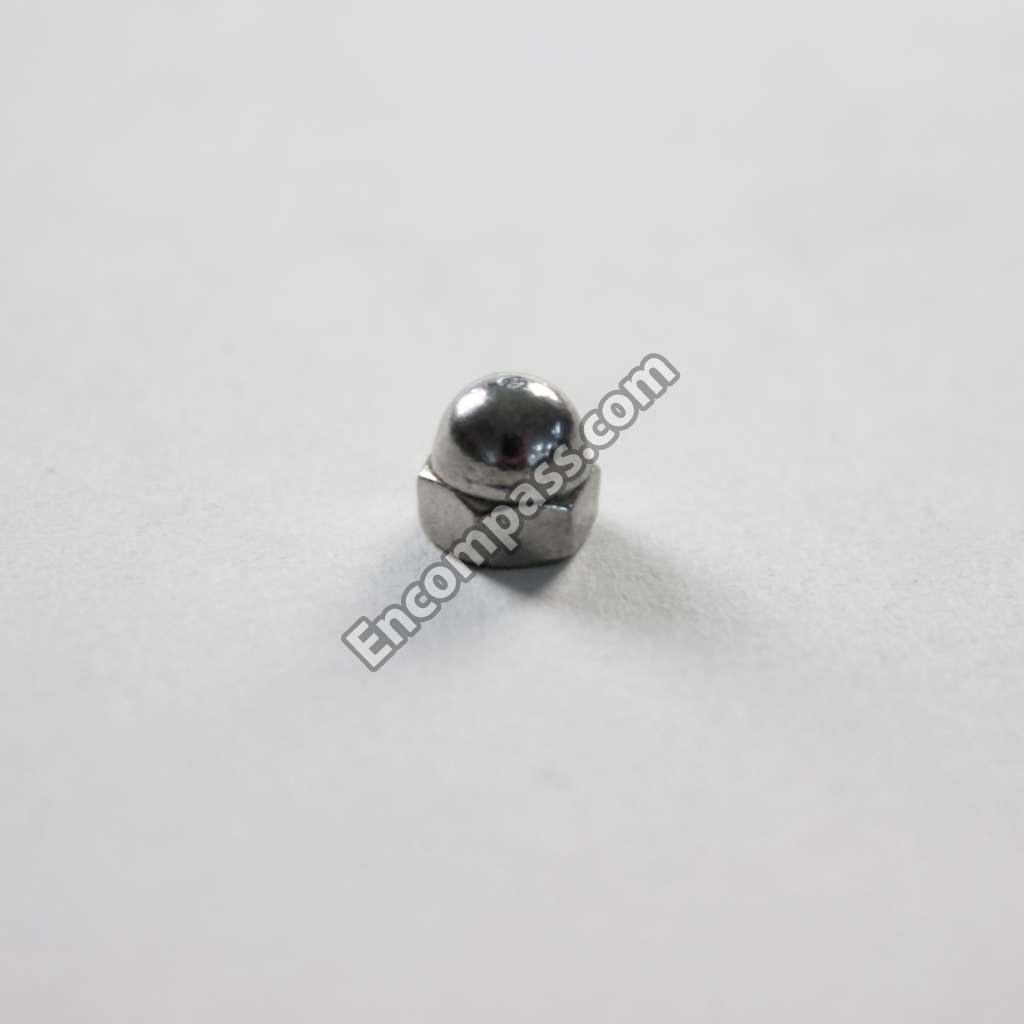

NUT ACORN CAP 8 32 S S;83287,EGR30S0 |
| 76033 | NUT COMPRESSION;76033,E30DF74EPS |
| 83048 | NUT HEX KEPS;83048,#8-32,DCT305B/LP |
| 83398 | NUT RETAINER;83398,1/4-20,DOP36M86DA |
|
|
NUT RETAINER;83418,DO130 |
| 83027 | NUT, WELD, 5/16 - 18 |
|
|

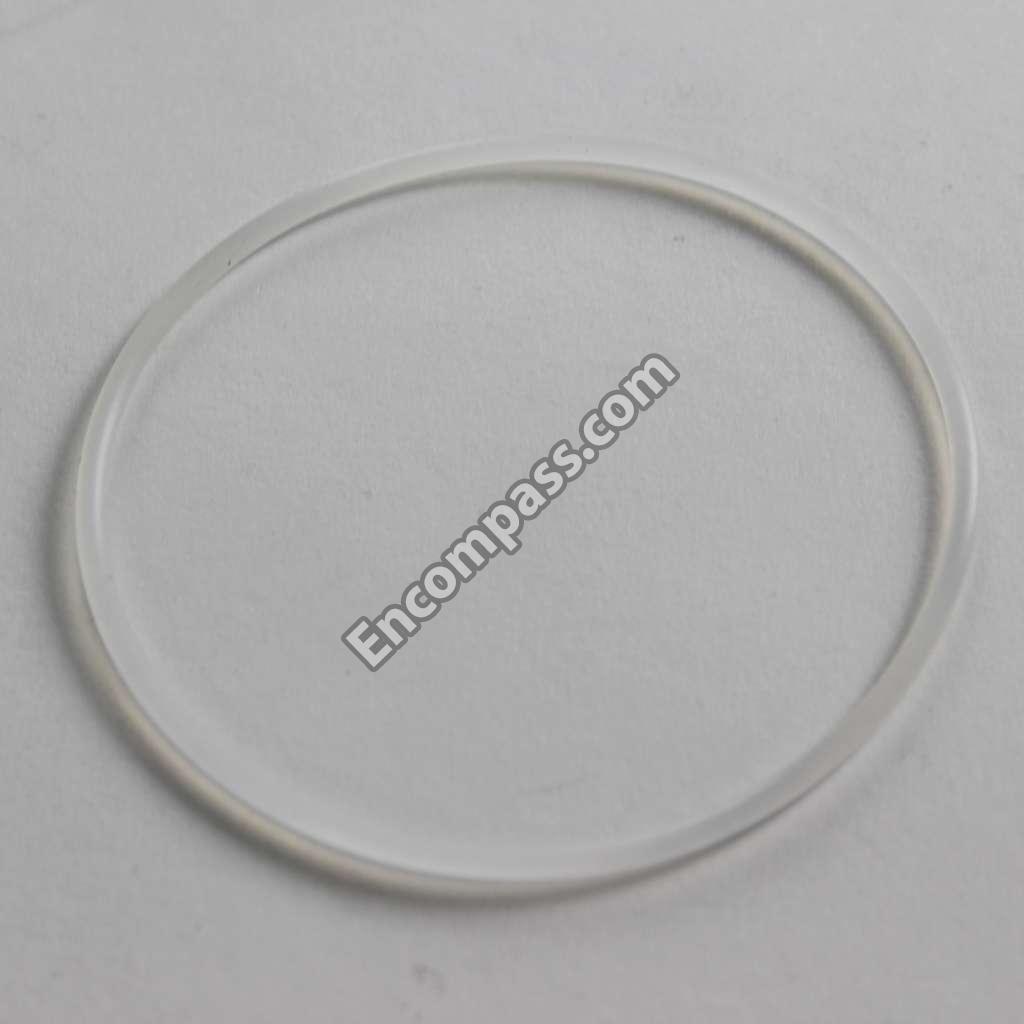

O RING D BURNER;86395,DTCT304GB/LP |
| 86936 | O-RING, ELECTRODE |
| 36553 | ORIFICE ALIGNMENT PLATE;36553,ERD30S |
| 27460BP | OUTER LINER ASY 30 BLK;27460BP,ECD23 |
| 62790 | OVEN CONTROL,ERD30 |
|
|

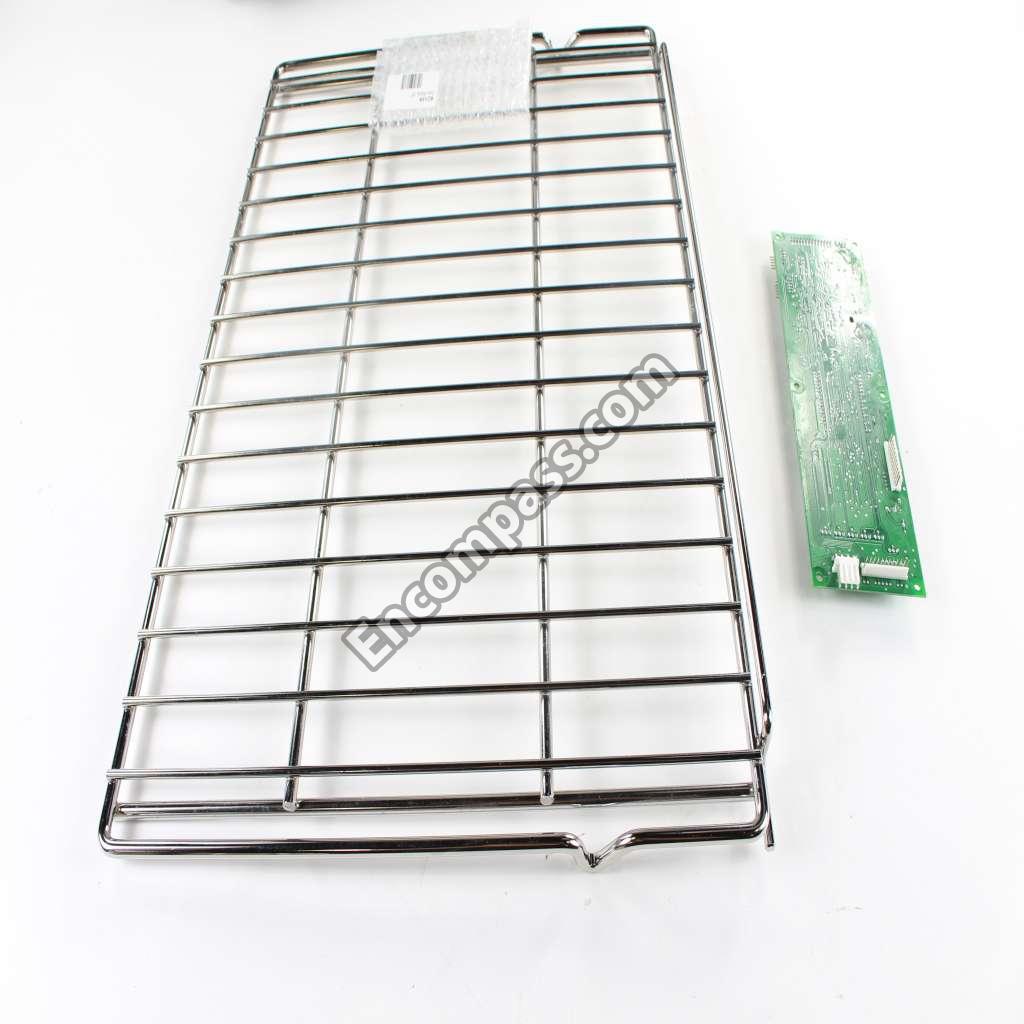

OVEN RACKS 30;62139,ECD230SBK |
| 36405 | OVEN SUPPORT |
| 36515 | PCB MODULE COVER;36515,ERD30S06BK |
| 36514 | PCB MODULE MNTG PLATE;36514,ERD30S06 |
|
|

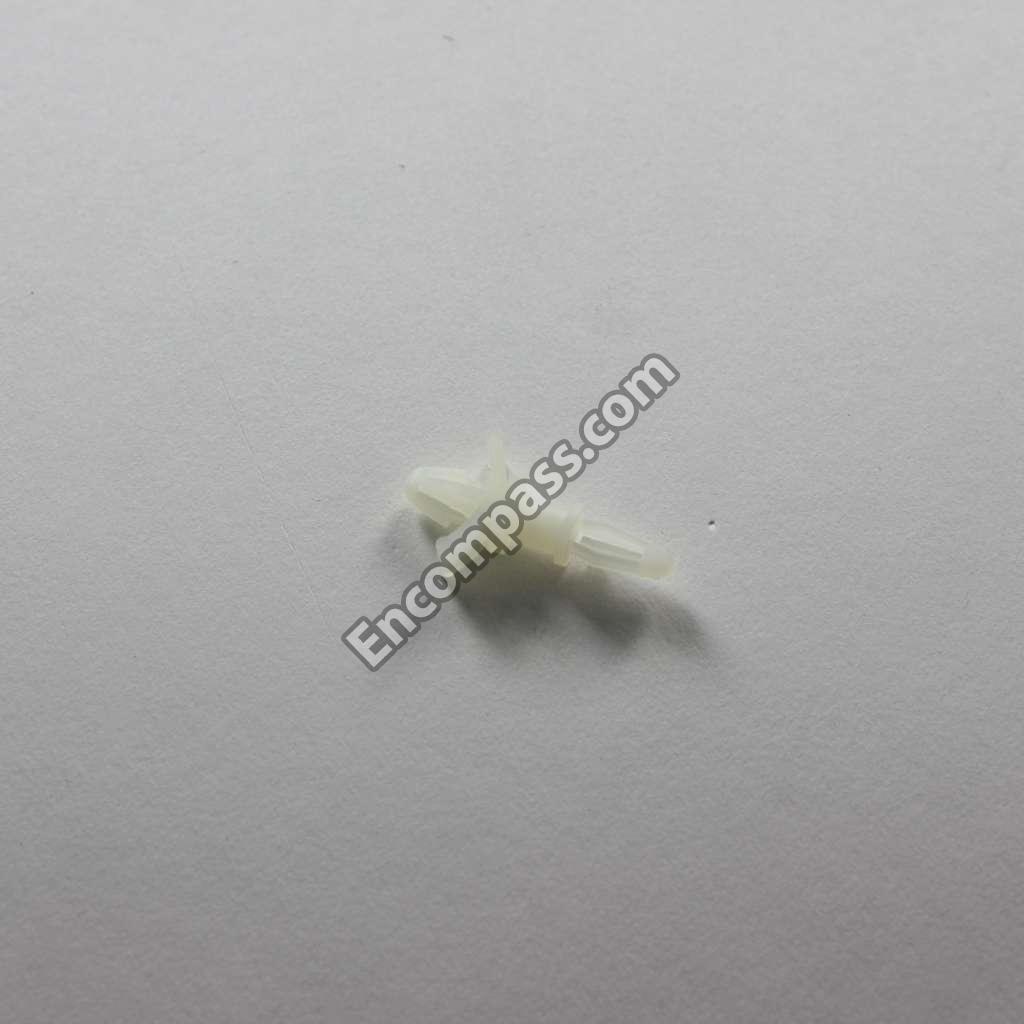

PCB SUPPORT NYLON;83538,DHD30M967WM |
| 62592 | PLASTIC SPATULA W/ LOGO |
| 82106 | PORCELAIN GRILL;82106,DR30EFS |
| 82107 | PORCELAIN PAN;82107,DR30EFS |
| 36518 | PRIMARY AIR BOX;36518,ERD30S06BK |
| 62747 | RACK SUPPORT 5 LH;62747,EGR30S06BK |
| 62748 | RACK SUPPORT 5 RH;62748,EGR30S06BK |
|
|

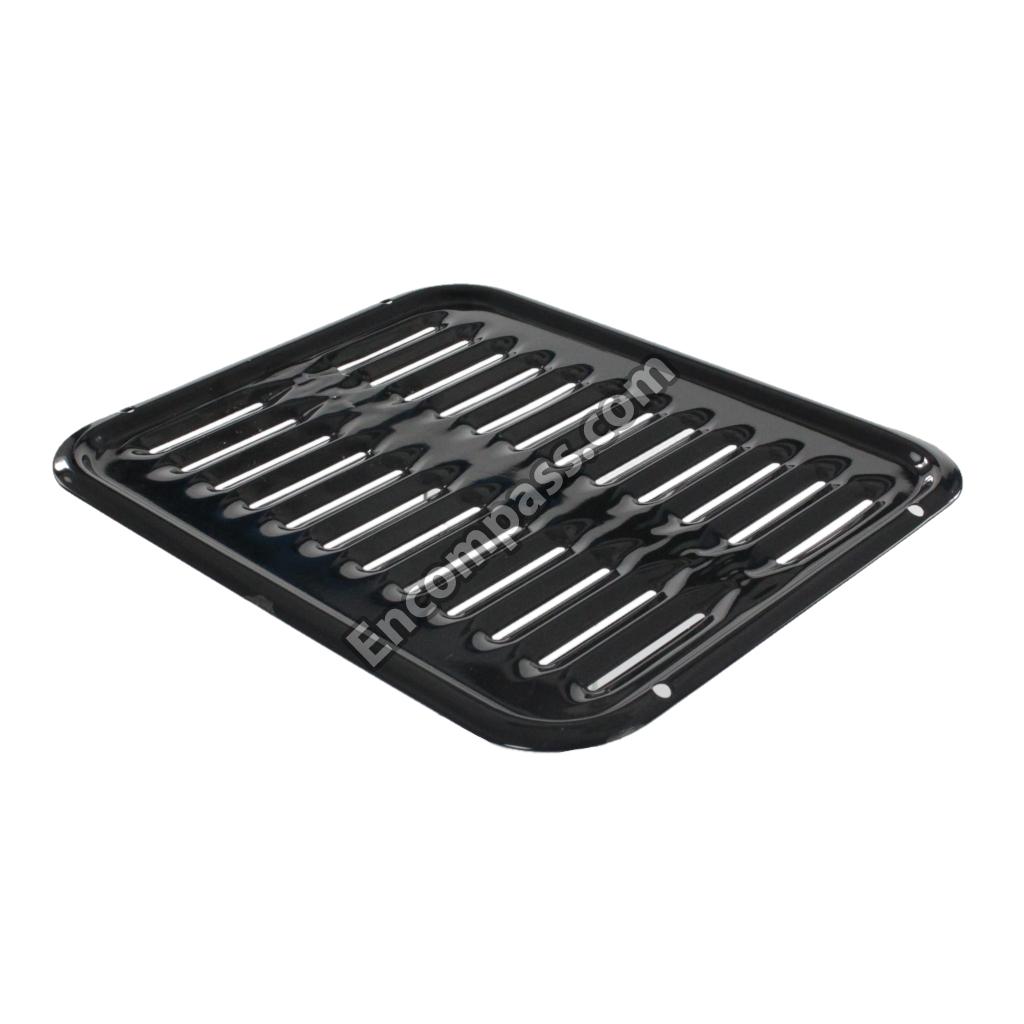

RANGE BROIL TRAY ASSY;12157,DR30EFS |
| 36496 | REAR PANEL;36496,E30DF74EPS |
| 82851 | RECEPTACLE,HINGE |
|
|

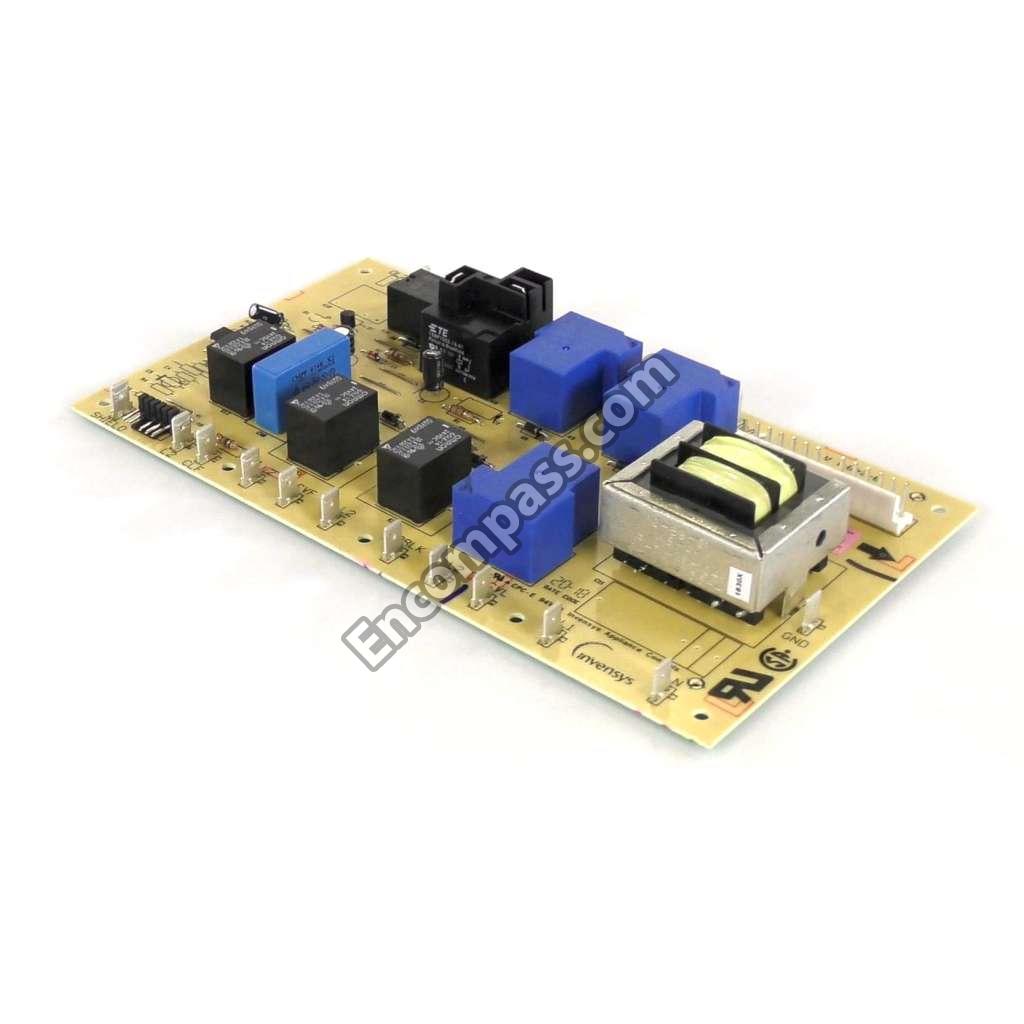

RELAY PCB 105C;92028,ECS127B |
| 105588 | RETAINER RING, ELECT |
| 83618 | RUBBER BUMPER;83618,DO130 |
| 83397 | SCREW CAP;83397,1/4-20 X 5/8LG,DOP36 |
| 83553 | SCREW HINGE SOCKET HD CP;83553,DO130 |
| 83379 | SCREW HWH;83379,"#8X1/2,TYPEA",DO130 |
| 83358 | SCREW PAN HD;83358,8-32 X 3/8,DWD30S |
| 83010 | SCREW PHIL PAN;83010,#8 X 3/4,DTCT30 |
| 83054 | SCREW PHIL PAN;83054,#6-32 X3/,ERD30 |
| 83336 | SCREW PHIL PAN;83336,#8-32X1/2,DR30G |
| 83024 | SCREW PHIL TRS;83024,#8 X 3/8,DR30EF |
| 83263 | SCREW PHIL WAFER;83263,#8X3/8,DCT305 |
|
|

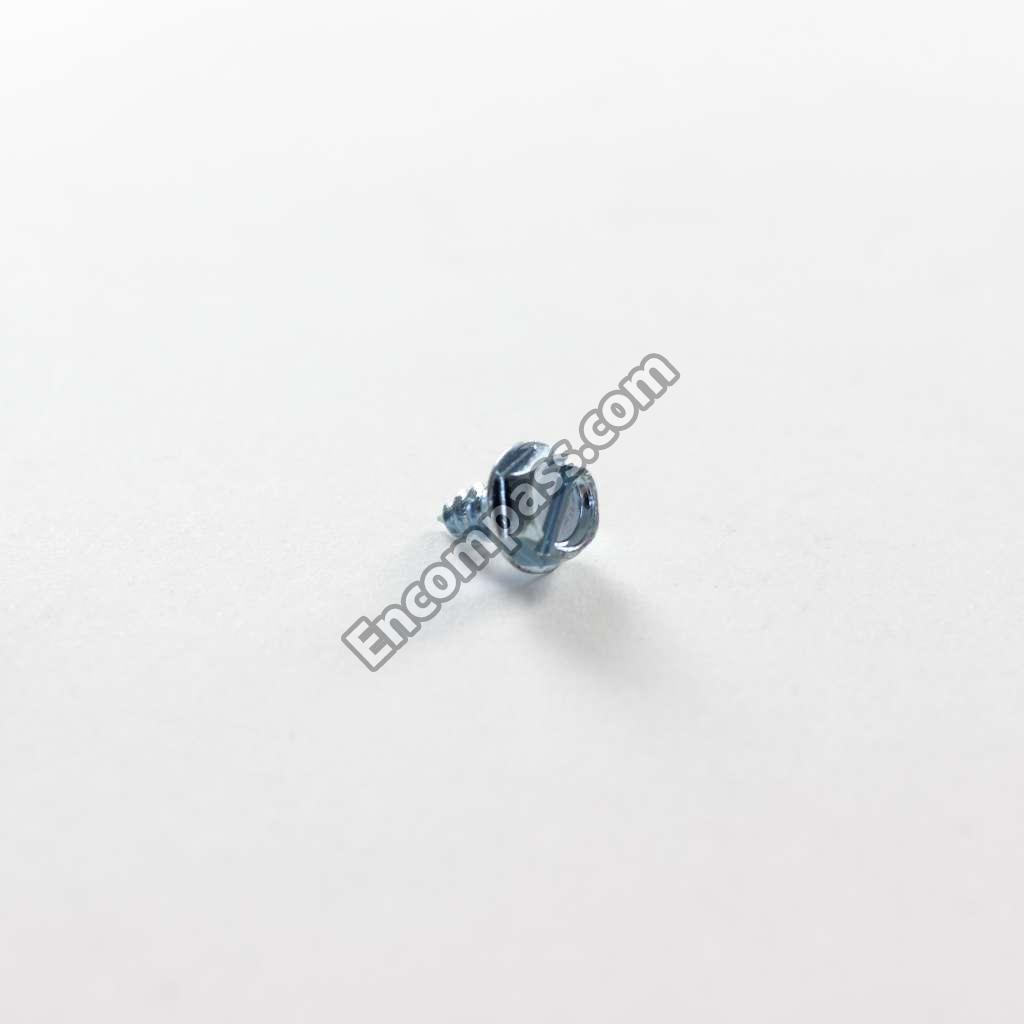

SCREW SLOT;83023,#10 X 3/8HWH,DO130 |
|
|
SCREW WAFER HD;83534,#8 X 3/8,DH3006 |
| 83204 | SCREW WELD;83204,"8-32X3/8,SST",DH30 |
| 83137 | SCREW,WELD,#8-32 X1/2,ST |
| 83026 | SCREW;83026,#10 X 3/4 SLOT HWH,DO130 |
| 83408 | SCREW;83408,#8-32X 3/4 PHIL,DR30D-C/ |
| 83690 | SCREW;83690,"#4-40X5/16,#410 S",ECD2 |
|
|
SET GRATE SUPPORTPAD KIT;66916,ERD36 |
| 36737 | SHIELD IGN MTG BRACKET;36737,EGR30S0 |
| 36737BP | SHIELD IGN MTG BRACKET;36737BP,EGR30 |
| 36391BP | SHIELD IGNITOR WIRES;36391BP,EGR30S0 |
| 36259 | SHIELD VENT RISER;36259,ERD30S06BK |
| 36320BP | SHIELD VENTURI BP;36320BP,EGR30S06BK |
| 36252 | SIDE PANEL LH W BSPLASH;36252,ERD30S |
| 36253 | SIDE PANEL W/BSPLASH RGH |
| 36504 | SIDE SUPPORT LH |
| 38182 | SIDE SUPPORT RH;38182,EGR30S06BK |
| 105541 | SLEEVING TUBE, FIBER |
| 83189 | SPACER 138 IDX 25 OD;83189,DO130 |
| 36275 | SPACER HI LIMITS;36275,EGR30S06BK |
| 86425 | SPACER MICROSWITCH;86425,ERD60S06BK |
| 86526 | SPARK MODULE 4 POINT KIT;86526,ERD60 |
| 82316 | SPARK MODULE, 4 POIN |
| 78963 | SPILL RAIL, DOOR |
| 36244BP | SPILL TRAY-BLK PRCLN |
| 105584 | SPRING ELECTRODE BURNER;105584,DTCT3 |
| 83053 | STANDOFF 6 32X 44LG HEX;83053,ERD30S |
| 36266 | SUBPANEL,ERSD30S06 |
| 36529B | SUPPORT SPILL TRAY FRONT;36529B,EGR3 |
| 83452 | TAPE DBL SIDED 3M 4920;83452,E30DD75 |
| 92387 | TAPE VHB DOUBLE SIDED;92387,DH3006 |
|
|

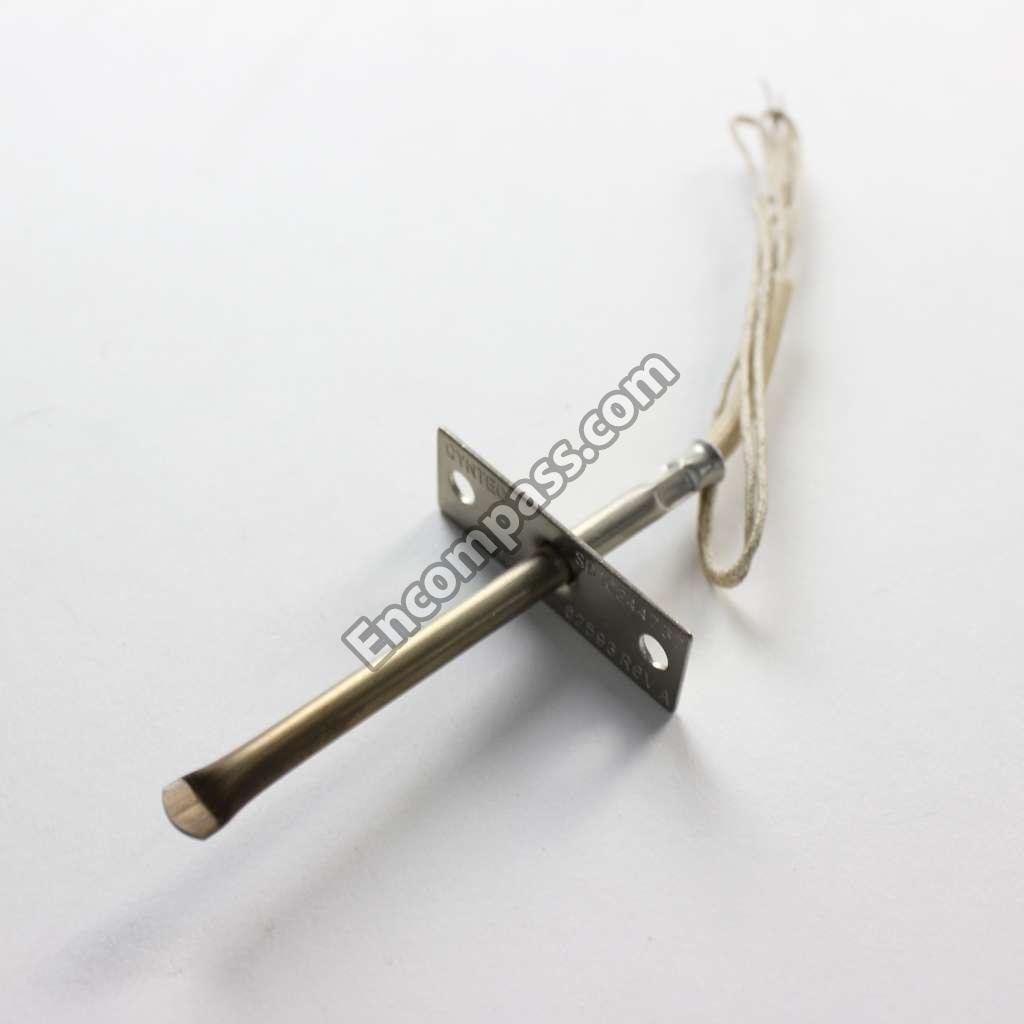

TEMPERATURE SENSOR;62593,E30DF74EPS |
| 82151 | TERMINAL BLOCK;82151,ERD60S06BK |
|
|

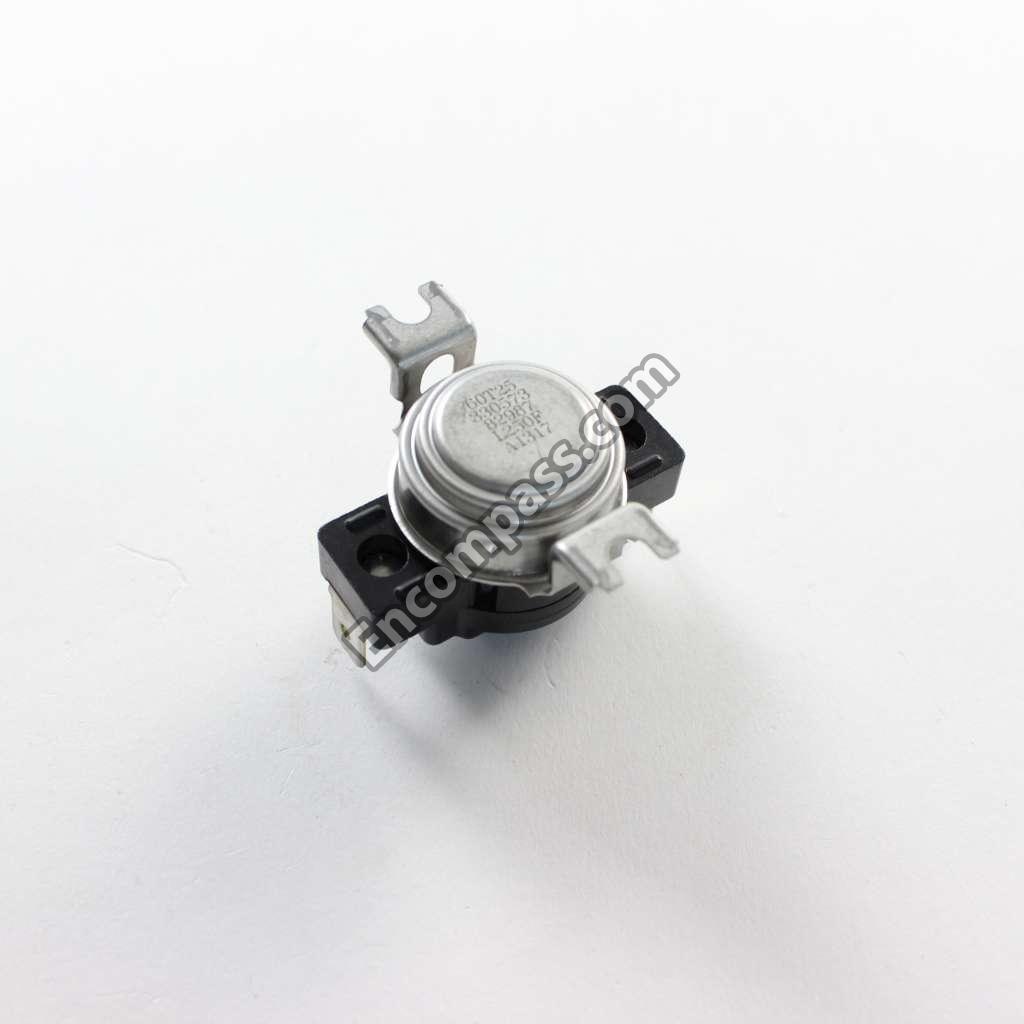

THERMAL SW HI TEMP CUTOU;82987,DR30D |
| 83037 | TIE PUSH MOUNT LOCKING;83037,DH3006 |
|
|

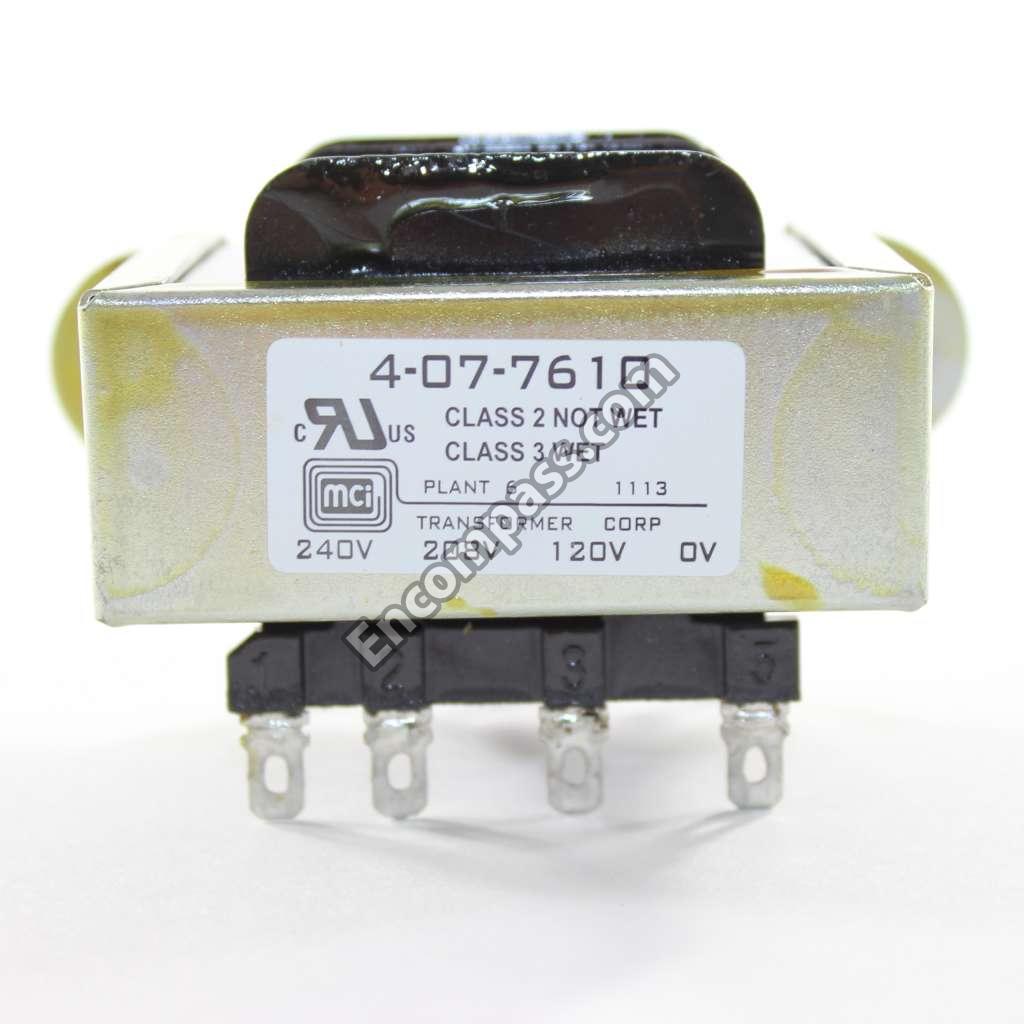

TRANSFORMER HALOGEN LIGH;62808,DO130 |
| 26371 | TRIM DOOR EDGE RIGHT;26371,ECD227SB |
| 62350 | TRIM EDGE 1/4X1/32X.218 |
| 26801 | TRIM PANEL LOWER;26801,ERD30S06BK |
| 26798 | TRIM POST LH FORMED;26798,ERD30S06BK |
| 26799 | TRIM POST RH FORMED;26799,ERD30S06BK |
| 62020CP | TRIM RING EPICURE COPPE;62020CP,ERD3 |
| 100122CP | TRIM RING KNOB COPPER;100122CP,ERD36 |
| 100122BC | TRIM RING KNOB;100122BC,BLACK,ERD36S |
|
|
TRIM RING KNOB;100122CH,DR30D-C/LP |
| 100122BR | TRIM RING, KNOB, BRASS |
| 26370 | TRIM, DOOR EDGE - LEFT |
| 26831 | TRIM,SIDE TOP,LEFT |
| 26791 | TRIM,SIDE TOP,RIGHT |
| 86564 | VALVE 1;86564,ERD36S03BK |
| 86558 | VALVE LP SL ERSD48;86558,ERD36S03BK |
|
|
VALVE LP SL ERSD48;86560,ERD60S06BK |
| 86566 | VALVE LP/HA,ERSD48 |
| 86565 | VALVE LP/HA,ERSD48 |
| 86559 | VALVE LP/SL,ERSD48 |
| 62317 | VALVE THERMAL SINGLE;62317,ERD30S06B |
| 62834 | W C REGULATOR NG;62834,"5/10""",DCT3 |
| 83098 | WASHER FLT;83098,875X1 50X 05,E30DF7 |
| 72004 | WIRE HARNESS MCI TRANSFO;72004,ERD30 |
| 82032K | WOK RING KIT;82032K,EGR30S06BK |
