Manufacturer
Dacor
Model Number
ETT3041B
Description
Ett304-1b - Cooktops
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 82195 | 1 2FLEX 90 DGR CONNECTOR;82195,DO130 |
| 80074 | 20 GA GALVANIZED,48" |
| 80516 | 20 GA GALVANIZED;80516,"48""X96""",D |
| 80551 | 24 GA GALVANIZED STE |
|
|
ACCY CLEANER CERAN 10 OZ;A300,DR30EF |
| 83372 | ADHESIVE TOUCHPAD;83372,ETT304-1B |
| 36439 | AIR BAFFLE FRONT;36439,ETT304-1B |
| 36440 | AIR BAFFLE;36440,ETT304-1B |
| 13256 | ASSY FILTER CAPACITORS;13256,ETT304- |
| 13692 | ASY,CONTROL BOX |
| 66948B | ASY,PANEL,30" BLK |
|
|
BOLT HEX HEA;83065,1/4-20X3.50,DCT30 |
| 36490 | BRACKET FAN MTG;36490,ETT304-1B |
| 83133 | BUSHING 1 2 RED CONDUI;83133,DO130 |
| 83056 | BUSHING HEYCO SB 875 11;83056,DH3006 |
| 62054 | CAPACITOR FILTER ETT;62054,ETT304-1B |
| 27481 | CHASSIS WELDMENT;27481,ETT304-1B |
| 66798 | CONDUIT SERVICE KIT;66798,ETT304-1B |
| 62053 | COOLING FAN ETT;62053,ETT304-1B |
|
|
COUNTER GASKET CET 304;13208,DYTT305 |
| 100656-01 | ELEMENT DUAL;100656-01,DR30EFS |
| 62792 | ELEMENT SET ETT304;62792,ETT304-1B |
| 36460 | FAN AIR BAFFLE;36460,ETT304-1B |
| 26424 | FLEX COND CUT;26424,"1/2,48""-CS",DY |
| 82929 | FRAME 30;82929,ETT304-1B |
| 82929B | FRAME 30;82929B,BLACK,ETT304-1B |
| 82929NP | FRAME 30;82929NP,ETT304-1B |
| 105788 | FRAME, EXTRUSION |
| 27251 | GC SEC CKTP HOLD DOWNBRK;27251,E46GC |
| 62568B | GLASS PANEL-30" BLK |
| 26646 | HEAT SHIELD;26646,ETT304-1B |
| 66128 | HEATER SERIES 8 1200W;66128,DR30EFS |
| 66129 | HEATER SERIES 8 1500W;66129,DR30EFS |
|
|
HEATER SERIES 8 1800W;66130,ETT304-1 |
| 12045 | HOLD DOWN BRKTS,CET/SEG |
| 26800 | INSLTN 1 2X31093X22093;26800,ETT304- |
| 36919 | INSULATION BRACKET;36919,ETT304-1B |
| 85136 | LABEL, "MADE WITH PRIDE" |
| 100887 | LABEL, WIRE DIAGRAM |
| 85249 | LABEL,"DIELECTRIC TE |
| 65168 | LIT KIT CONSOLIDATION;65168,ETT304-1 |
| 83048 | NUT HEX KEPS;83048,#8-32,DCT305B/LP |
| 83009 | NUT KEPS;83009,#10-24,DO130 |
|
|

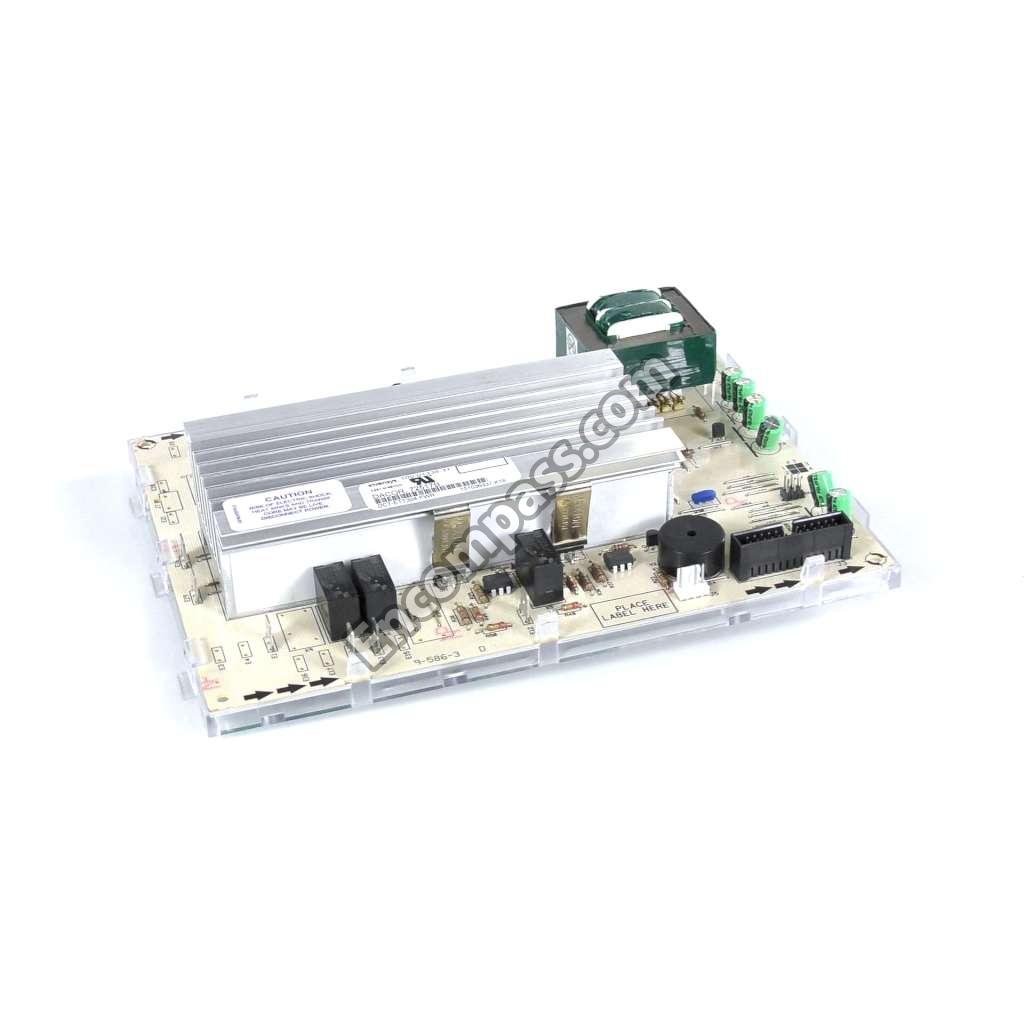

POWER BOARD 4 BRNR ETT30;72517,ETT30 |
| 62063 | RIBBON CABLE ETT;62063,ETT304-1B |
|
|
SCRAPER CERAN;82499,DR30EFS |
| 83326 | SCREW PHIL PAN;83326,#8-32 X1,ETT304 |
| 83022 | SCREW PHIL TRS HD;83022,#10X1/2,E30D |
| 83024 | SCREW PHIL TRS;83024,#8 X 3/8,DR30EF |
| 85050 | SERIAL NUMBER LABEL |
| 700411-04 | SERVICE KIT,DUAL ELEMENT |
| 83145 | SHRINK TUBING 3 16 ID CS;83145,ERV36 |
| 83353 | SILICONE RUBR,PACTAN |
| 100644 | SPRING HEATER;100644,DR30EFS |
| 83064 | TAPE FOAM COUNTERTOP;83064,DYTT305NB |
| 83239 | TAPE, DBL COATEDNEOP |
| 62052 | TERMINAL BLOCK ETT;62052,ETT304-1B |
| 72516 | TOUCH BOARD LOWER 30;72516,ETT304-1B |
| 72518 | TOUCH BOARD,UPPER,30" |
| 83098 | WASHER FLT;83098,875X1 50X 05,E30DF7 |
| 27670 | WELD CONTROL BOX;27670,ETT304-1B |
| 72630 | WIRE HARNESS;72630,ETT304-1B |
