Manufacturer
Dacor
Model Number
ETT3652RF
Description
Ett365-2rf - Cooktops
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 82195 | 1 2FLEX 90 DGR CONNECTOR;82195,DO130 |
| 80074 | 20 GA GALVANIZED,48" |
| 80516 | 20 GA GALVANIZED;80516,"48""X96""",D |
| 80550 | 20 GA,GALVANIZED STE |
|
|
ACCY CLEANER CERAN 10 OZ;A300,DR30EF |
| 83372 | ADHESIVE TOUCHPAD;83372,ETT304-1B |
| 100674 | AIR DIVIDER;100674,ETT365-2B |
| 13256 | ASSY FILTER CAPACITORS;13256,ETT304- |
|
|
BOLT HEX HEA;83065,1/4-20X3.50,DCT30 |
| 100775 | BRACKET HEAT SHIELD;100775,ETT365-2B |
| 100673 | BRACKET INSULATION;100673,ETT365-2B |
| 100709 | BRACKET SHIELD;100709,ETT365-2B |
| 83133 | BUSHING 1 2 RED CONDUI;83133,DO130 |
| 83056 | BUSHING HEYCO SB 875 11;83056,DH3006 |
| 62054 | CAPACITOR FILTER ETT;62054,ETT304-1B |
| 66798 | CONDUIT SERVICE KIT;66798,ETT304-1B |
| 12635FS | COOKTOP TOP GLASS PANEL;12635FS,MODE |
| 62077 | COOLING FAN;62077,ETT365-1RF |
|
|
COUNTER GASKET CET 304;13208,DYTT305 |
| 100656-01 | ELEMENT DUAL;100656-01,DR30EFS |
| 62793 | ELEMENT SET ETT365;62793,ETT365-1RF |
| 100675 | EXHAUST COVER;100675,ETT365-2B |
| 100741 | FAN MOUNTING PLATE;100741,ETT365-2B |
| 26424 | FLEX COND CUT;26424,"1/2,48""-CS",DY |
| 100808 | FRAME PUNCHED 36;100808,ETT365-1RF |
| 100808NP | FRAME, 36" |
| 105788 | FRAME, EXTRUSION |
| 100823 | GASKET FOAM;100823,ETT365-2B |
| 27251 | GC SEC CKTP HOLD DOWNBRK;27251,E46GC |
| 83058 | GROMMET, EPDM RUBBER |
| 66128 | HEATER SERIES 8 1200W;66128,DR30EFS |
| 66129 | HEATER SERIES 8 1500W;66129,DR30EFS |
|
|

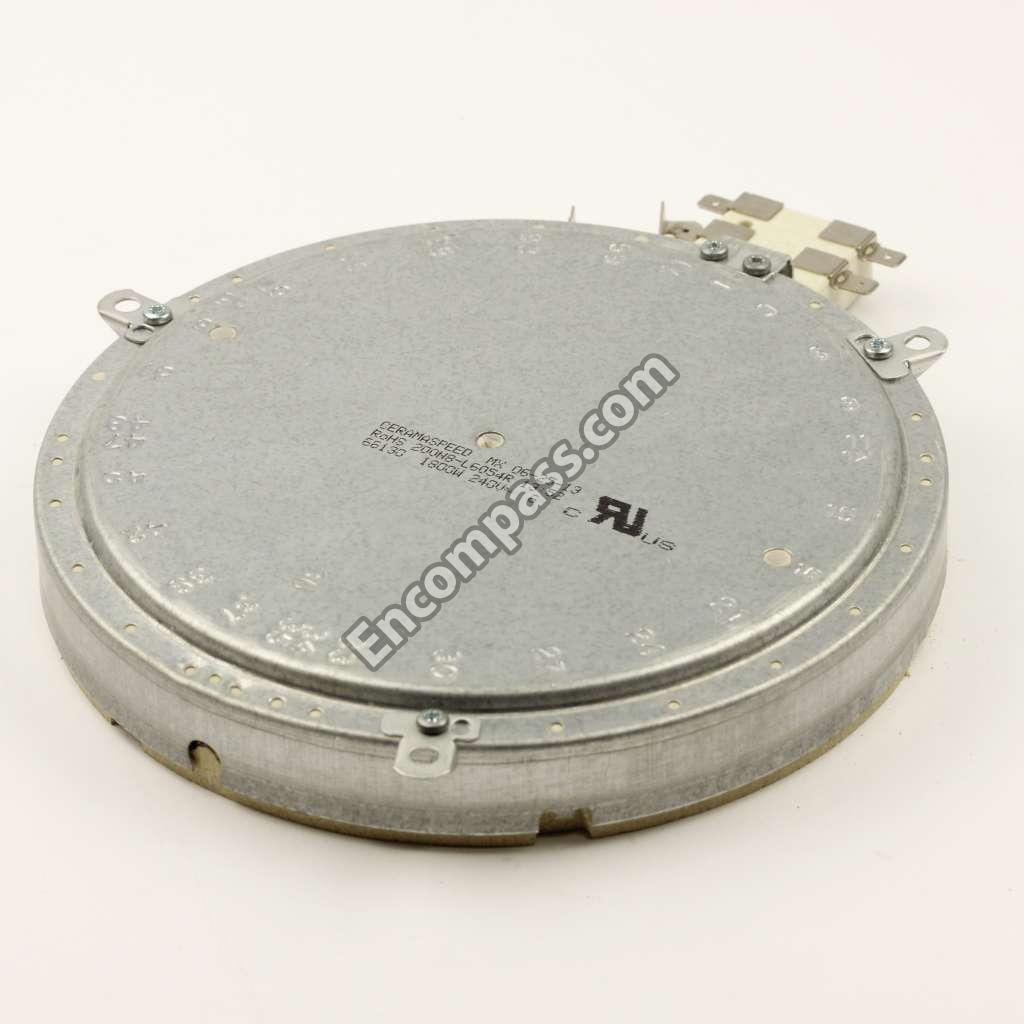

HEATER SERIES 8 1800W;66130,ETT304-1 |
| 66132 | HEATER SERIES 8 2100W;66132,ETT365-1 |
| 12045 | HOLD DOWN BRKTS,CET/SEG |
| 85136 | LABEL, "MADE WITH PRIDE" |
| 100886 | LABEL, WIRE DIAGRAM |
| 85249 | LABEL,"DIELECTRIC TE |
| 65168 | LIT KIT CONSOLIDATION;65168,ETT304-1 |
| 83048 | NUT HEX KEPS;83048,#8-32,DCT305B/LP |
| 72512 | POWER BOARD 5 BURNER ETT;72512,ETT36 |
| 100678 | POWER CORD BOX;100678,ETT365-2B |
| 62063 | RIBBON CABLE ETT;62063,ETT304-1B |
|
|
SCRAPER CERAN;82499,DR30EFS |
| 83572 | SCREW PH PAN;83572,#8-32 X1/2,DCT305 |
| 83326 | SCREW PHIL PAN;83326,#8-32 X1,ETT304 |
| 83022 | SCREW PHIL TRS HD;83022,#10X1/2,E30D |
| 83306 | SCREW PHIL TRS;83306,#8 X 3/8,DCT305 |
| 700411-03 | SERVICE KIT DUAL ELEMENT;700411-03,E |
| 83145 | SHRINK TUBING 3 16 ID CS;83145,ERV36 |
| 100644 | SPRING HEATER;100644,DR30EFS |

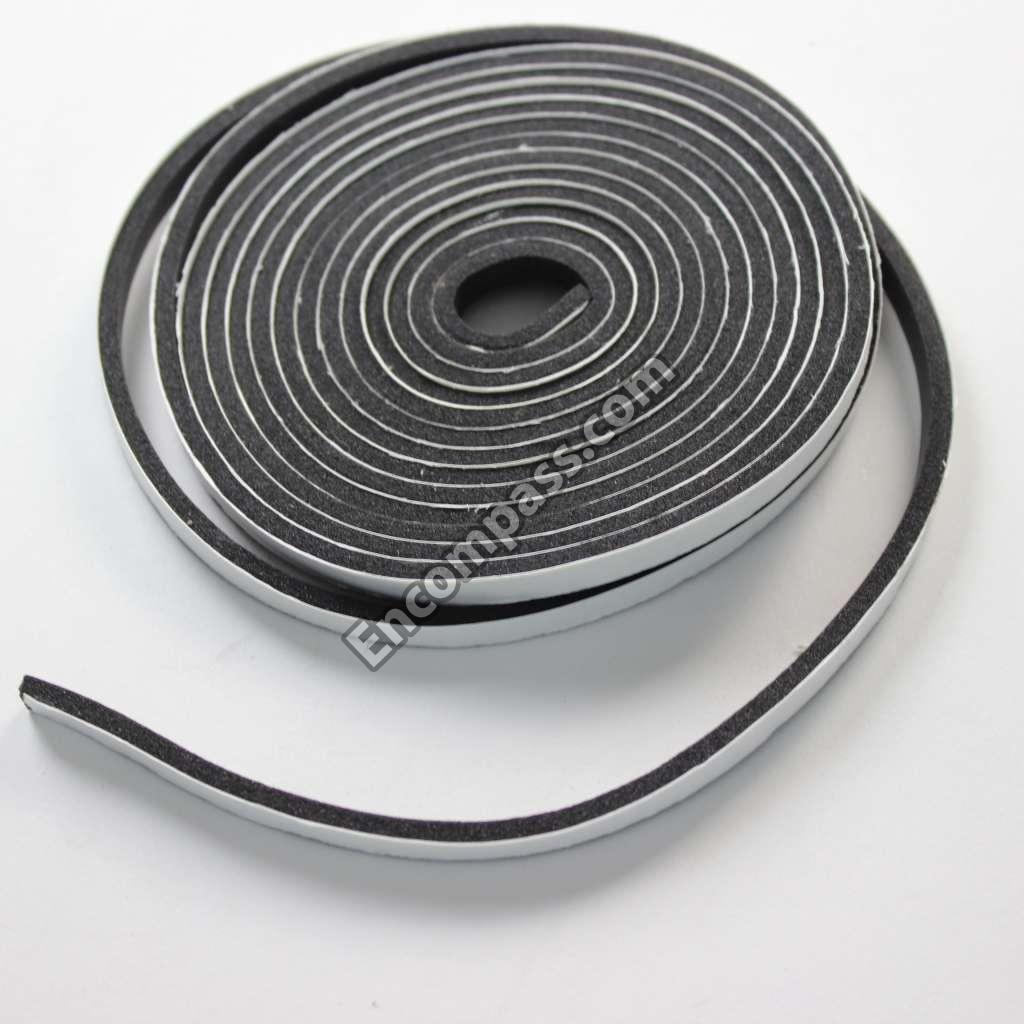

| 83064 | TAPE FOAM COUNTERTOP;83064,DYTT305NB |
| 83239 | TAPE, DBL COATEDNEOP |
| 62052 | TERMINAL BLOCK ETT;62052,ETT304-1B |
|
|

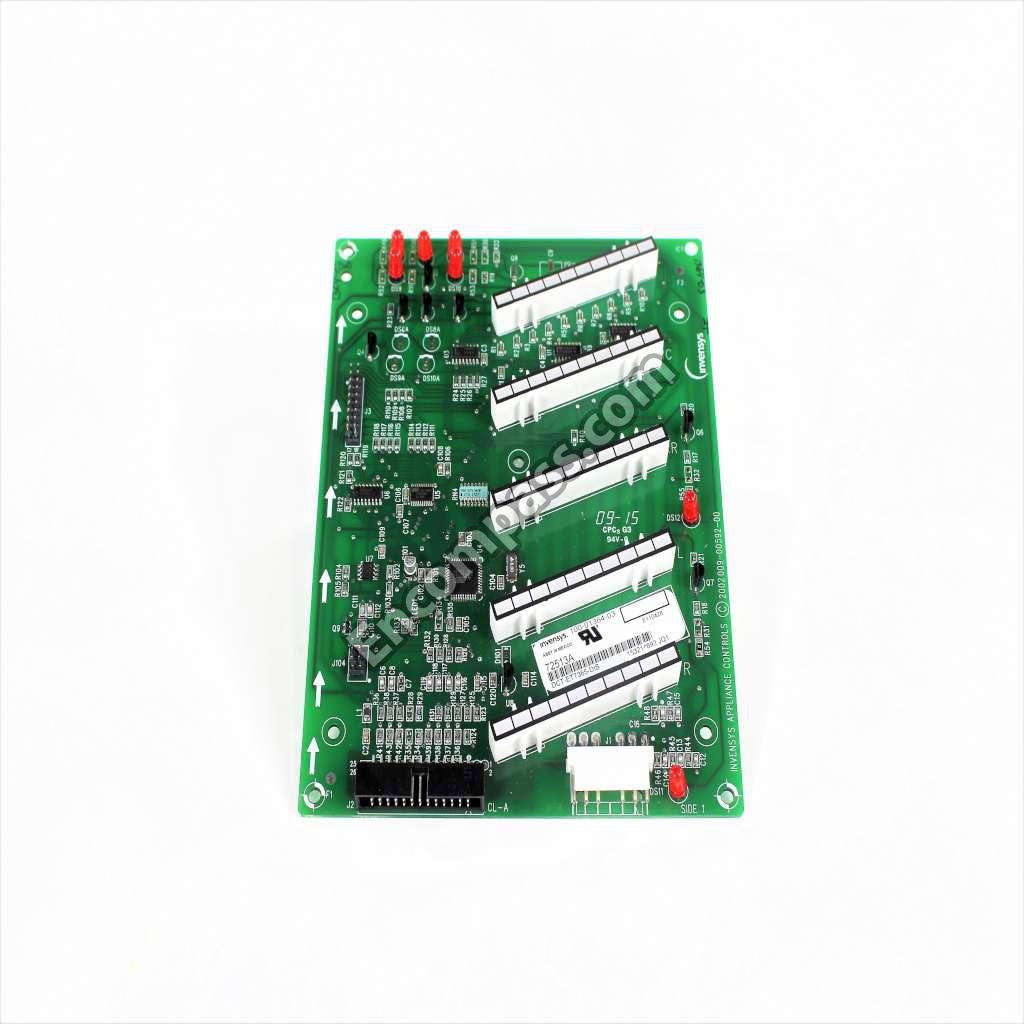

TOUCH BOARD LOWER 36;72513,ETT365-1R |
| 72514 | TOUCH BOARD,UPPER,36 |
| 100891 | WELDMENT ELEMENT CHASSIS;100891,ETT3 |
| 72631 | WIRE HARNESS;72631,ETT365-1RF |
